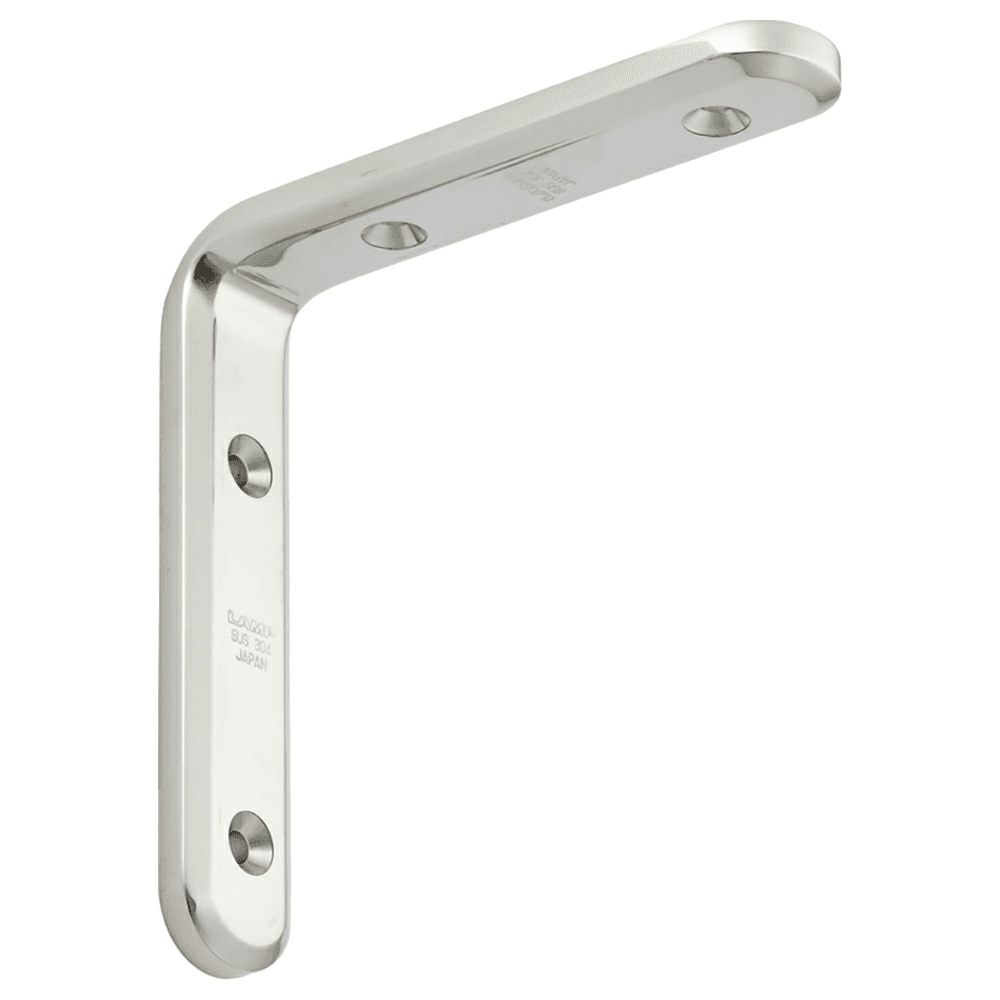

120mm Angle Bracket, Mirror

XL-SA01 series Stainless Steel Angle Bracket in mirror finish
Support your shelving securely and in style with these sleek and popular steel angle brackets by Sugatsune America. From our angle bracket department, the XL-SA01 Series of angle support bracket hardware offers a reliable, aesthetic mounting solution for a wide variety of applications.

This particular model is XL-SA01-120/M, the smallest version in the series, with the mirror finish variant. You can also get this same-size bracket in a satin finish. Larger brackets are available too: the XL-SA01-150,XL-SA01-180, and XL-SA01-240, each available in mirror and satin finish variants.

A Strong, Sturdy, Aesthetic Bracket
Like all of our hardware, our top goal at Sugatsune America is performance. We create durable, elegant hardware that is reliable, sturdy, and a pleasure to use. The XL-SA01-120/M bracket offers a number of advantages over other brackets:

• Grade 304 Stainless Steel: Angle bracket design has a brushed stainless steel finish providing an elegant and sleek design while protecting it against corrosion in harsh environments.
• Suitable for Outdoor Use: The corrosion resistance of Grade 304 stainless steel will stand up to sun, wind, rain, or snow. (We don’t recommend this bracket for exterior use on marine vessels where high salt exposure is likely.)
• Soft and Sleek Design: The stainless steel material and smooth mirror finish give a clean, minimalistic look that blends into and complements virtually any decor. This angle support bracket will look right at home in everything from commercial kitchens, warehouses, and health clinics to bars, restaurants, and upscale hotels.

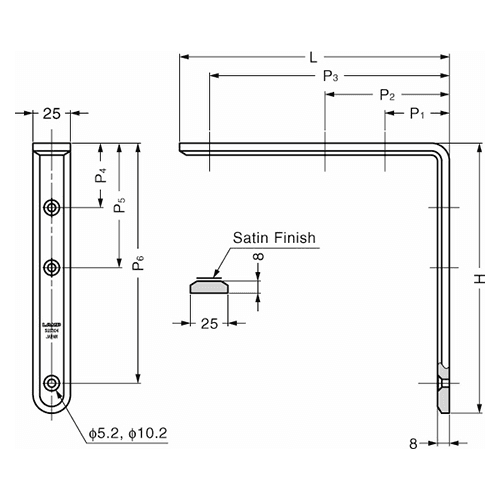

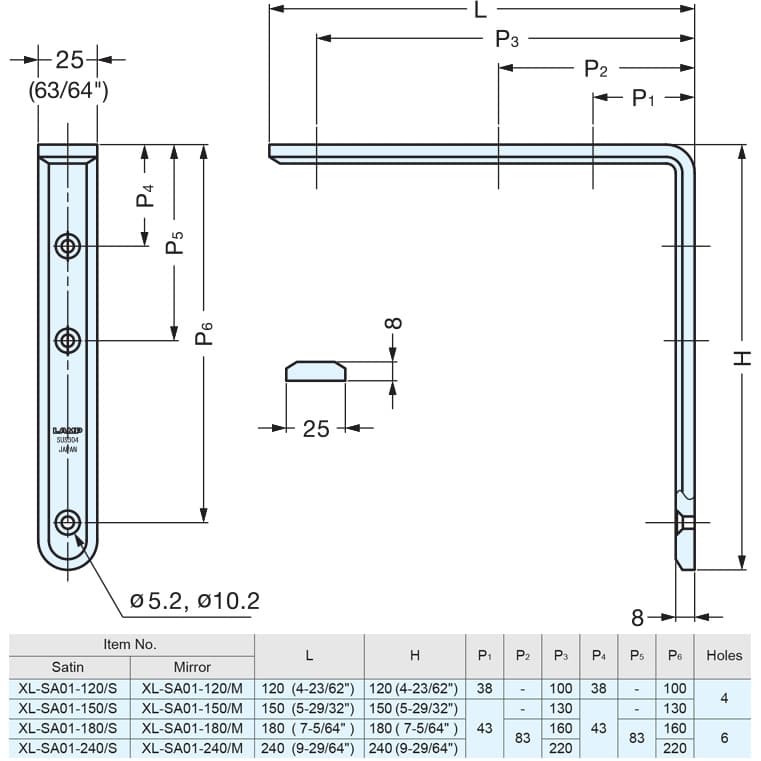

The XL-SA01-120/M bracket has the following specs:

• Support loads of up to 50 pounds (23 kg) per bracket
• Angle bracket weight is 11 oz. (312 g)
• Height and depth each measure 4-23/62" (120 mm)
• Width is 63/64" (25 mm)
• Metal thickness is 5/16" (8 mm)
