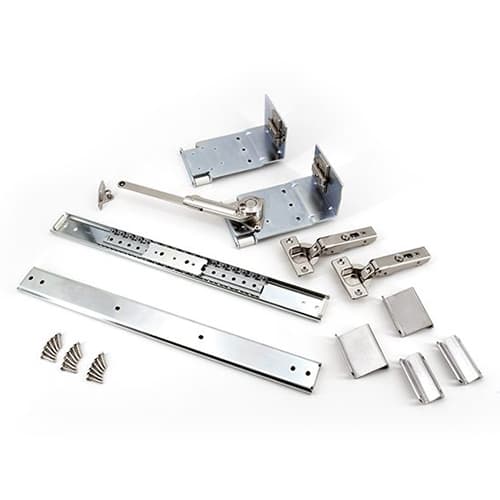

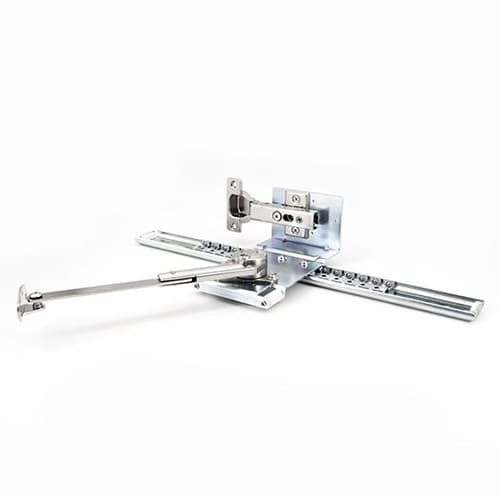

16" Double Soft-Closing Flipper Door Mechanism, 15mm - 20mm Door Thickness
Item # SGIF360W-16
•Mfr # IF-360W-16
$177.49
/Set
10 items
$168.98/Set
Length: 16"
Material: N/A
Min Order: 1
Qty mult. by: 1
Product Details
Features:

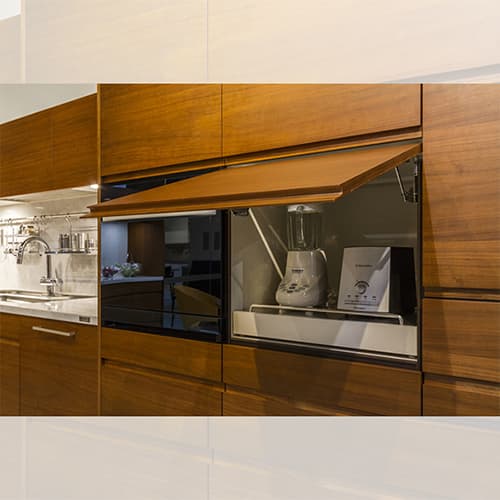

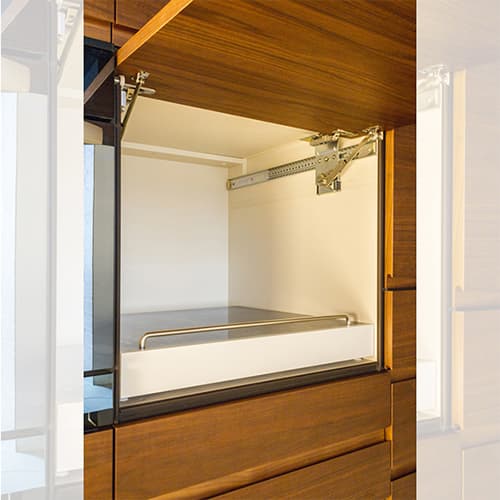

• 16" Double soft-closing flipper door mechanism • For upward-opening flap doors • Soft-close feature prevents slamming. Soft-closing speed is adjustable • Flap door retracts inside cabinet, allowing other cabinets to be installed on top • NSDX soft-down stay successfully passed 30,000 open/close private cycles test • Operating temperature: 32°F ~ 104°F (0°C ~ 40°C)Specifications
| Box Quantity | 1 |
| Length | 16" |
| Finish | Nickel |
| Left or Right | |
| Closing Type | Soft-Closing |
| Load Capacity | 8.8lb |
| Travel | |
| Minimum Clearance | |
| Cup Diameter | |
| Door Thickness | |
| Cabinet Type | |
| Mounting Type | |
| Material | |
| Slide Type | |
| Product Type | Receding Door Mechanism |
