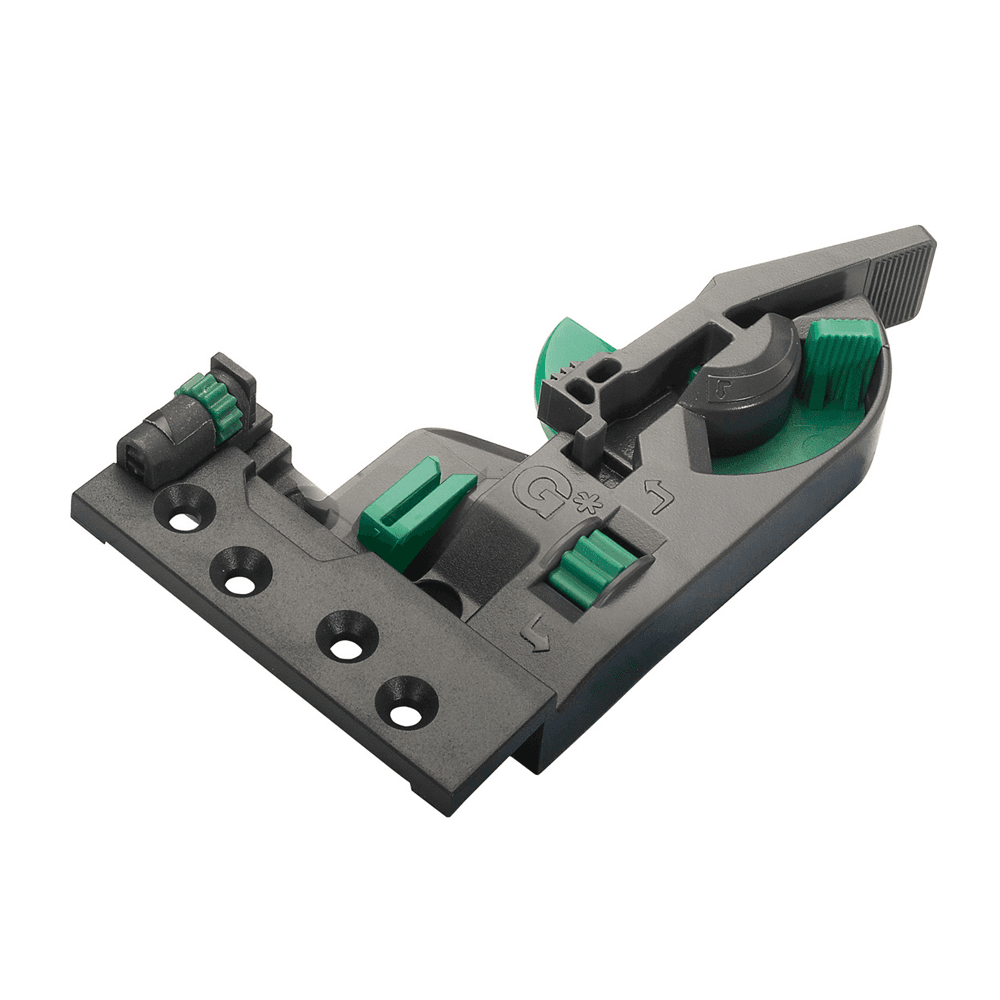

Dynapro 3D Right-Hand Front Locking Device with Flange
5 items
50 items
200 items
Left or Right: Right
Product Details
Dynapro 3D Locking Device with Height, Side & Depth Adjustment, with Flange
RIGHT SIDE ONLY. LEFT ALSO REQUIRED
Features:
• Provides 2D or 3D adjustment for drawers
• For all drawer applications up to 48" in width
• Minimum inside drawer width 150mm (5 7/8")
• Lightweight, high strength material

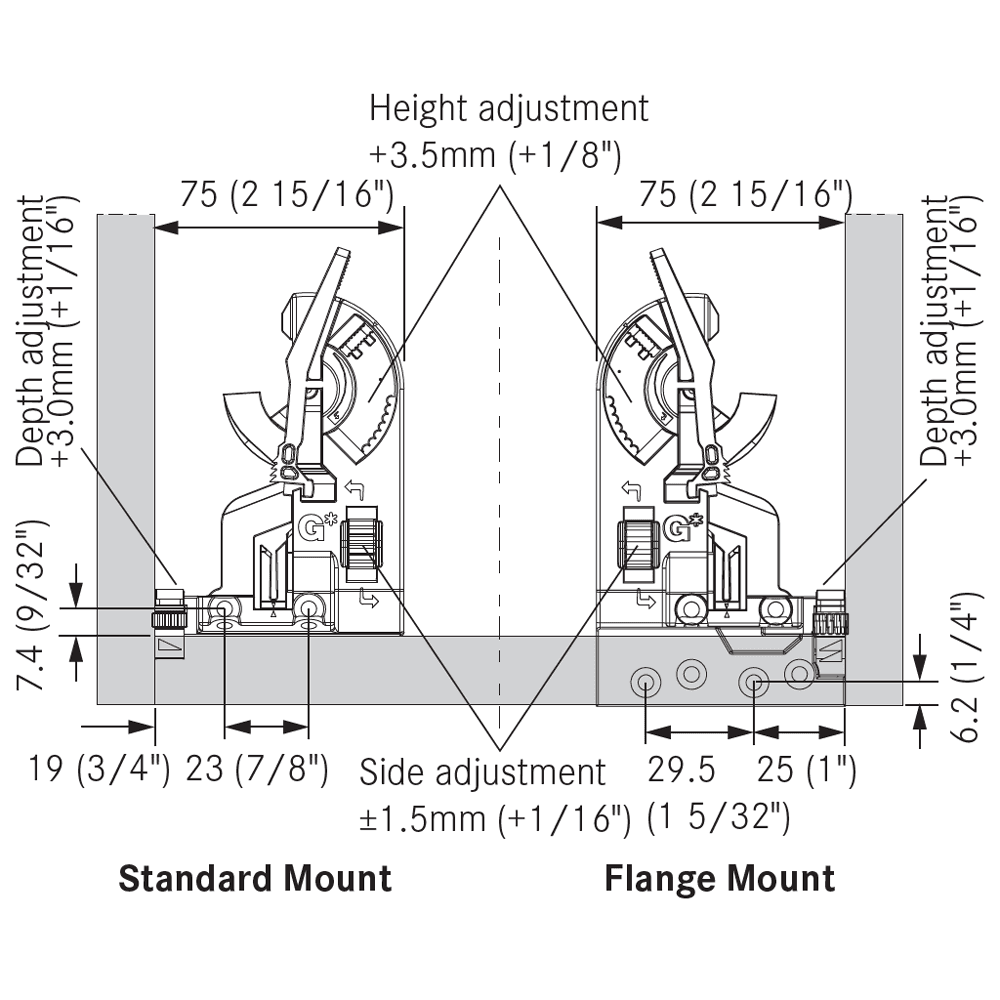

• Height adjustment range: +3.5mm
• Side adjustment range: ±1.5mm
• Depth adjustment range: +3.0mm forward adjustment
Pre-drilling recommended Ø2.5mm (3/32")
Patent Pending

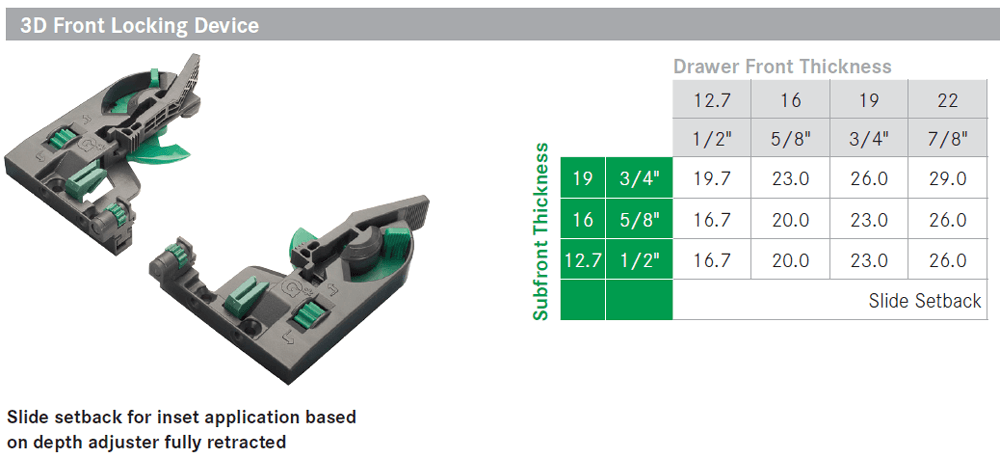

See diagram for slide setback for inset drawers
Specifications
| Length | |
| Finish | |
| Drawer Length | |
| Closing Type | |
| Model | Dynapro |
| Load Capacity | |
| Travel | |
| Product Type | Front Locking Device |
| Left or Right | Right |
| Cabinet Type | |
| Mounting Type | Standard |
| Material | |
| Slide Type | |
| Height | |
| Certifications | |
| Width | |
| Material Thickness | |
| Cabinet Width | |
| Thickness | |
| Overlay |
