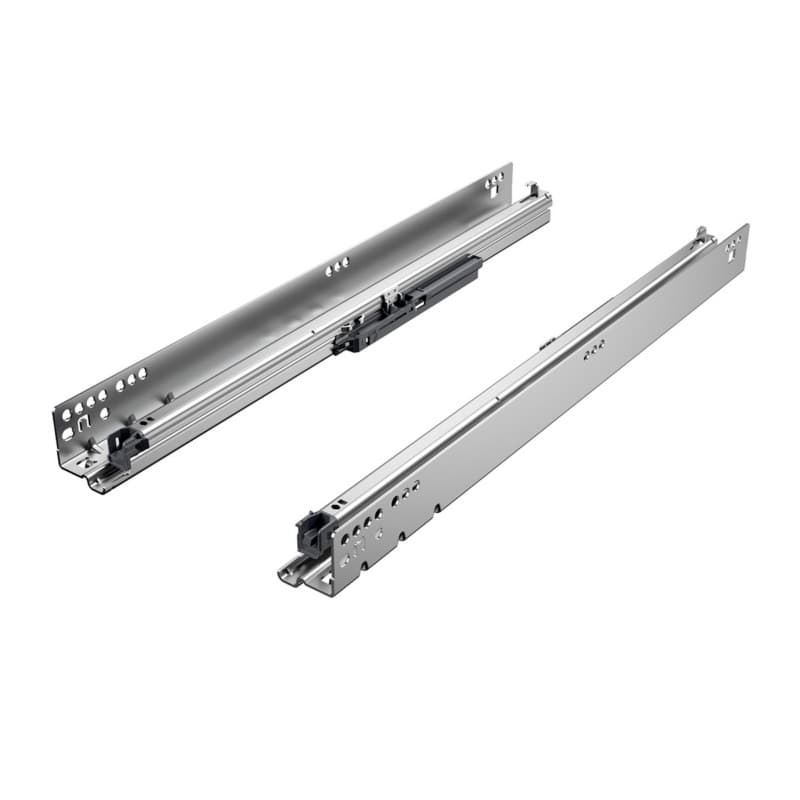

Quadro V6 2D Right Hand Drawer Slide with 90lb Capacity, Full Extension, Undermount, Soft-Closing, 21
Item # HET9304281
•Mfr # 9304281
$8.41
$9.12
/Each
You save $0.71
10 items
$8.41/Each
390 items
$8.24/Each
Left or Right: Right
Min Order: 10
Quantity Multiple by: 10
Product Details
Features:
• 21" Right-hand drawer slide
• Slide on installation with front fixing clips and tool-less height adjustment
• Integrated damping silent system
• Side adjustment up to +/- 2mm with 2D front fixing clips
• For 1/2" (13mm) or 5/8" (16mm) drawers side thickness
• For face frame or frameless applications
• Meets or exceeds ANSI/BHMA 156.9 grade 1 requirements
• Load capacity up to 90lb. dynamic (100lb. static), as per ANSI/BHMA 156.9 grade 1 specification on a 21" length slide
• Suitable for rooms exposed to moisture
• For narrow applications
• 21" Right-hand drawer slide
• Slide on installation with front fixing clips and tool-less height adjustment
• Integrated damping silent system
• Side adjustment up to +/- 2mm with 2D front fixing clips
• For 1/2" (13mm) or 5/8" (16mm) drawers side thickness
• For face frame or frameless applications
• Meets or exceeds ANSI/BHMA 156.9 grade 1 requirements
• Load capacity up to 90lb. dynamic (100lb. static), as per ANSI/BHMA 156.9 grade 1 specification on a 21" length slide
• Suitable for rooms exposed to moisture
• For narrow applications
Downloads
Specifications
| Length | |
| Finish | Galvanized |
| Drawer Length | 21" |
| Closing Type | Soft-Closing |
| Model | |
| Load Capacity | 90lb |
| Travel | Full Extension |
| Product Type | Drawer Slide |
| Left or Right | Right |
| Cabinet Type | Face Frame/Frameless |
| Mounting Type | Undermount |
| Material | Steel |
| Slide Type | |
| Height | |
| Certifications | |
| Width | |
| Material Thickness | |
| Cabinet Width | |
| Thickness | |
| Overlay |
