2300mm DSR403 Concealed Door Straightener with Cover Cap Plain/Nickel
Item # SGDSR403-2300
•Mfr # DSR403-2300-25
$20.64
/Each
Min Order: 1
Qty mult. by: 1
Product Details
Features:

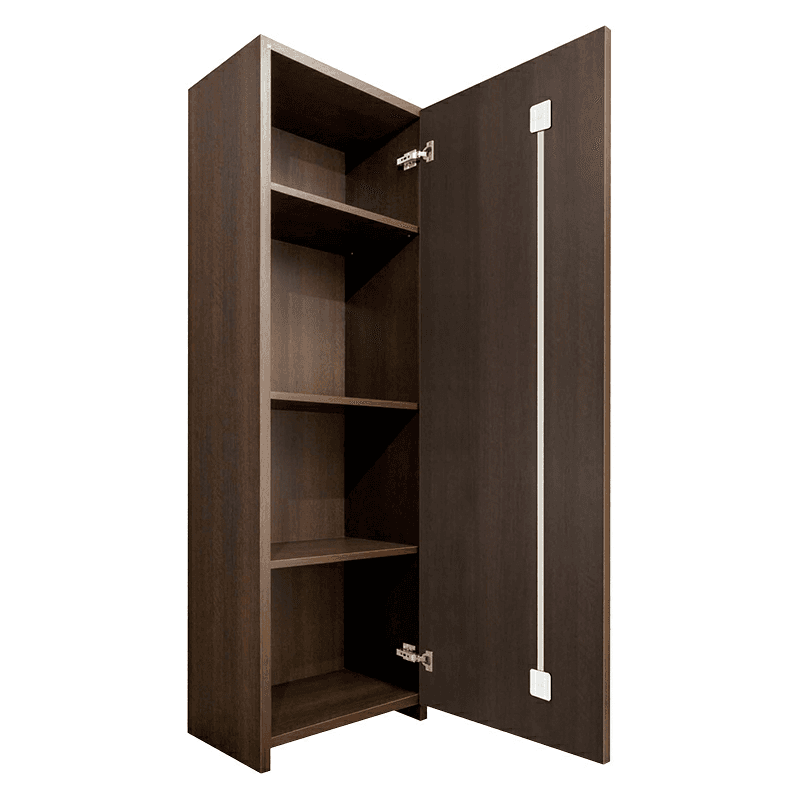

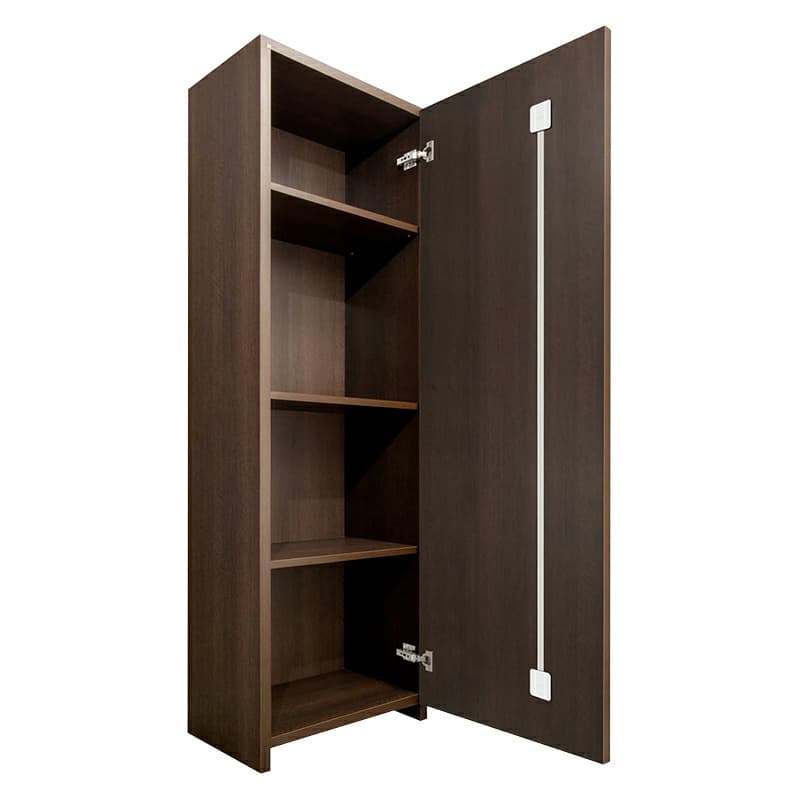

• 2300mm concealed door straightener with cover cap in plain/nickel finish
• Fully concealed/hidden door straightener
• Recess mounted under laminate

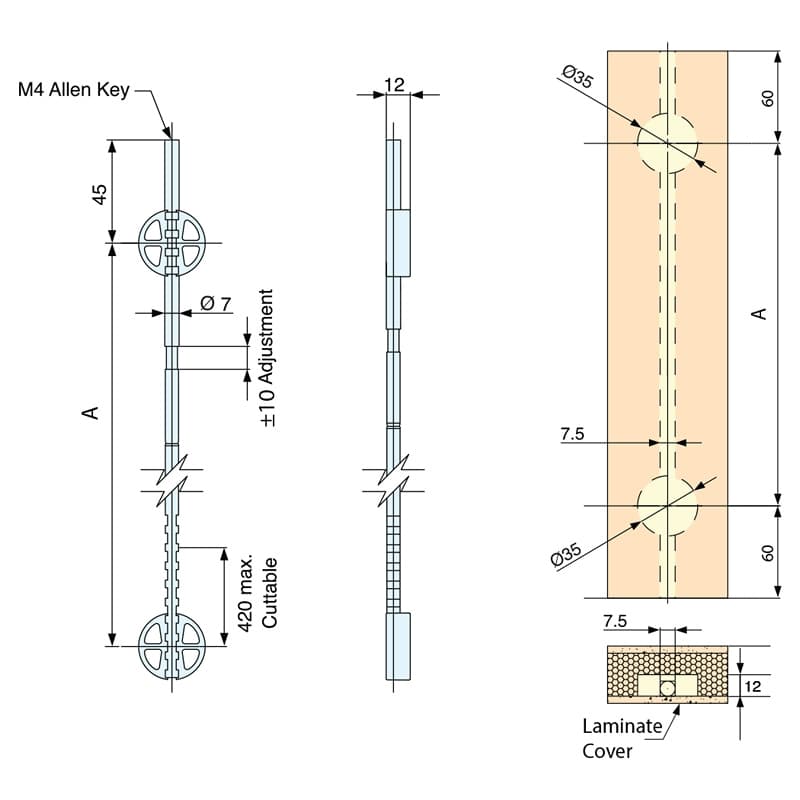

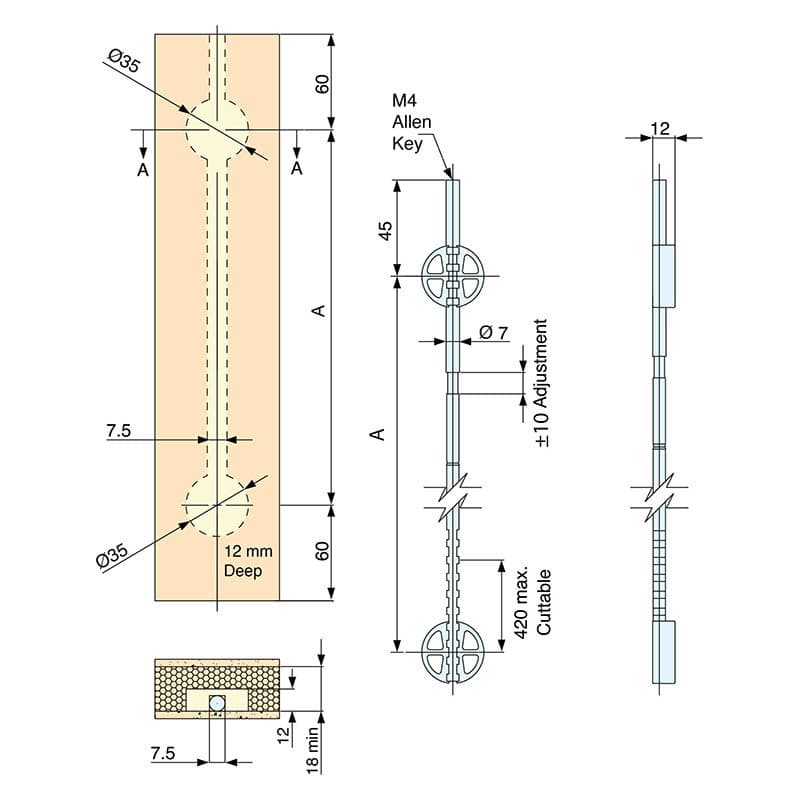

• ±10mm adjustment can be made from the top of the door with a M4 Allen Key(included)
• Min. door thickness 18mm (11/16")
• Can be cut from the bottom up to 420mm (16-9/16")
• Pressure-fit into place, screws not needed for installation
• 2300mm concealed door straightener with cover cap in plain/nickel finish
• Fully concealed/hidden door straightener
• Recess mounted under laminate
• ±10mm adjustment can be made from the top of the door with a M4 Allen Key(included)
• Min. door thickness 18mm (11/16")
• Can be cut from the bottom up to 420mm (16-9/16")
• Pressure-fit into place, screws not needed for installation
Specifications
| Box Quantity | 10 |
| Finish | Plain/Nickel |
| Material | Steel/Zinc |
| Diameter | |
| Product Type | Door Straightener |
| Height | |
| Mounting Type | Recessed Mount |
| Length | 2300mm |
| Depth | |
| Style | |
| Thickness | |
| Weight Capacity | |
| Width | |
| Flange Type | |
| Shape |
