70-7/8" - 86-5/8" DSR701 Surface Mount Door Straightener, Black
Item # SGDSR701-2200/B-10
•Mfr # DSR701-2200/B-10
$54.70
/Each
Finish: Black
Length: 70-7/8" - 86-5/8"
Min Order: 10
Qty mult. by: 10
Product Details
Features:

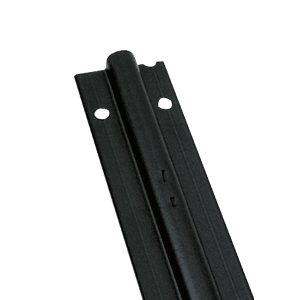

• 70-7/8" - 86-5/8" door strainghtner in black finish
• Full-size doors can deform with time, humidity, and use. Straighten warped doors stylishly with the DSR701 surface mount door straightener kit
• These braces utilize a strong steel core with durable aluminum casing to impart enough corrective force to fix bowed doors without further damage
• There are two different model versions available, supporting different door lengths from 56" to 86"
• Can be partially recessed or surface mounted to the back of the door

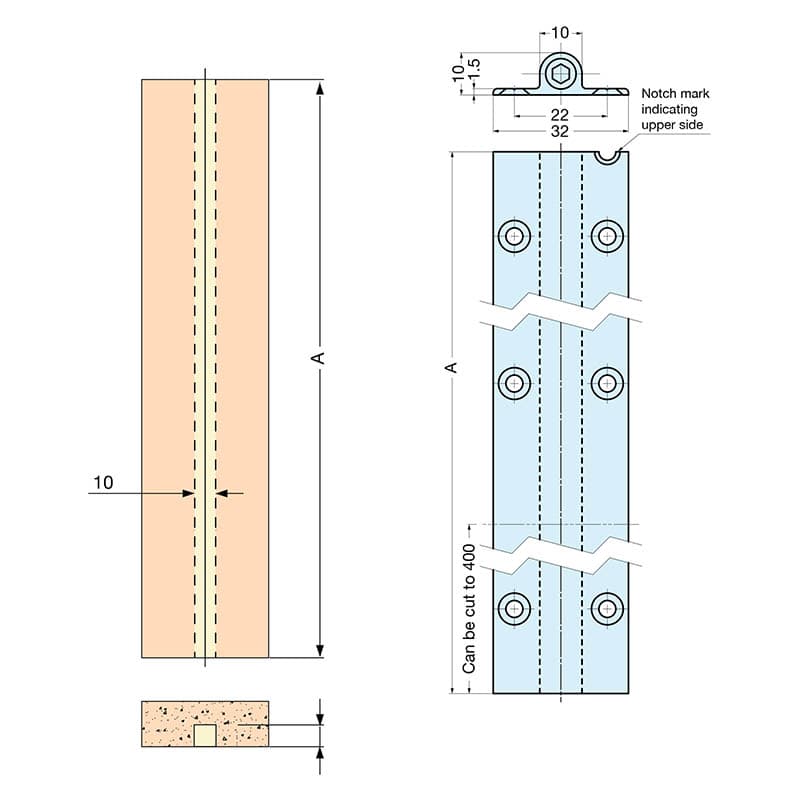

• ±10mm adjustment can be made from the top of the door with a M4 Allen Key (included)
• Min. door thickness 16 mm (9/16")
• Requires M4 (U.S. #8) flathead wood countersunk screws for partially recessed installation or wood panhead screws for surface installation
• Can be cut from the bottom up to 400mm
Designed for Doors that are Already Damaged:
• The DSR701 is a retrofitted solution, installed post-production to straighten warped doors that have already lost their original shape. For preventative door straightening on doors that still have their shape (or for new doors), check out our other DSR Series door straighteners.
• The DSR701 retrofit straightener is only available as a surface-mounted kit. However, for our preventative straightening solutions, we offer various recessed and concealed models to accommodate just about any project situation, style, or decor.
• 70-7/8" - 86-5/8" door strainghtner in black finish
• Full-size doors can deform with time, humidity, and use. Straighten warped doors stylishly with the DSR701 surface mount door straightener kit
• These braces utilize a strong steel core with durable aluminum casing to impart enough corrective force to fix bowed doors without further damage
• There are two different model versions available, supporting different door lengths from 56" to 86"
• Can be partially recessed or surface mounted to the back of the door
• ±10mm adjustment can be made from the top of the door with a M4 Allen Key (included)
• Min. door thickness 16 mm (9/16")
• Requires M4 (U.S. #8) flathead wood countersunk screws for partially recessed installation or wood panhead screws for surface installation
• Can be cut from the bottom up to 400mm
Designed for Doors that are Already Damaged:
• The DSR701 is a retrofitted solution, installed post-production to straighten warped doors that have already lost their original shape. For preventative door straightening on doors that still have their shape (or for new doors), check out our other DSR Series door straighteners.
• The DSR701 retrofit straightener is only available as a surface-mounted kit. However, for our preventative straightening solutions, we offer various recessed and concealed models to accommodate just about any project situation, style, or decor.
Specifications
| Box Quantity | 10 |
| Finish | Black |
| Material | Steel/Aluminum |
| Diameter | |
| Product Type | Door Straightener |
| Height | |
| Mounting Type | Surface Mount |
| Length | 70-7/8" - 86-5/8" |
| Depth | |
| Style | |
| Thickness | |
| Weight Capacity | |
| Width | |
| Flange Type | |
| Shape |
