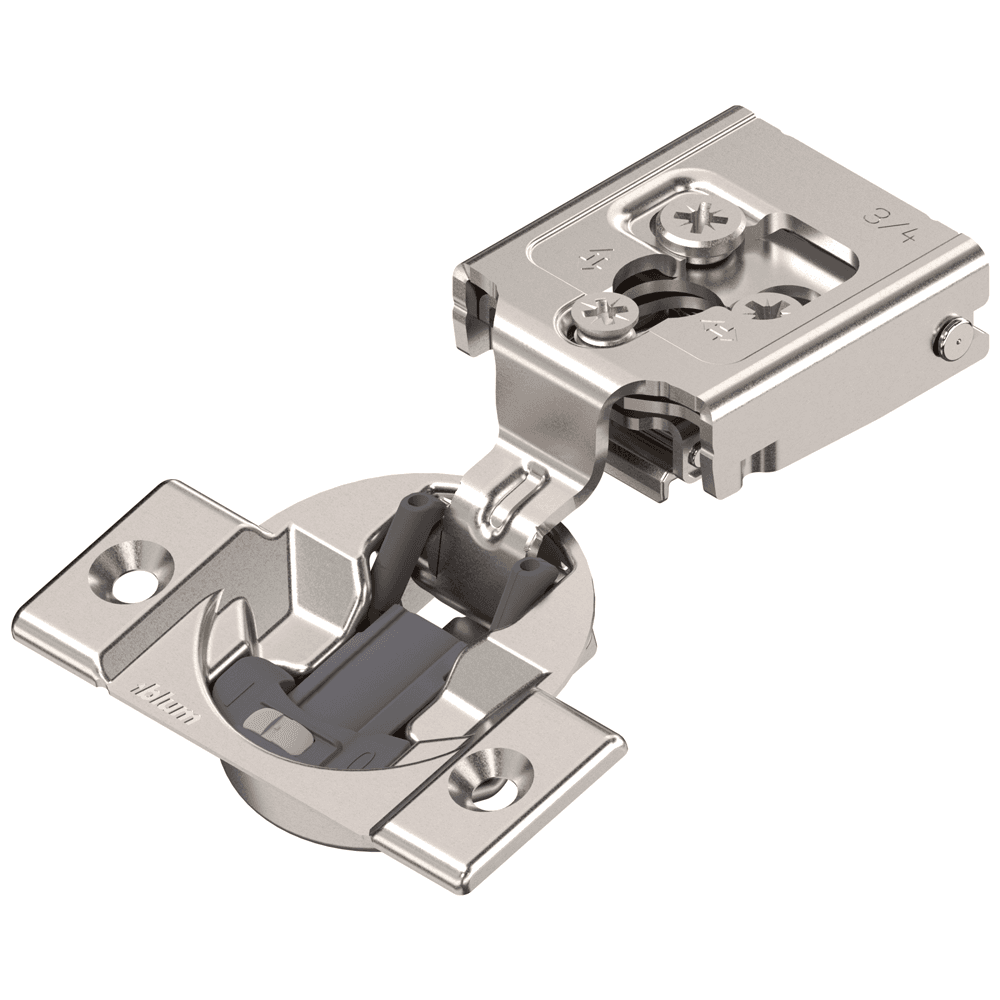

COMPACT CLIP 30C2 105° Opening Wrap-Around Face Frame Hinge,45mm Borin Pattern, Soft-Closing, 3/4" Opening, Screw-On
250 items
Mounting Type: Screw-On
Overlay: 3/4"
Opening Angle: 105°
Model: 30C2 Partial Overlay
Hinge Type: Wrap-Around Face Frame
Cup Depth: 11mm
Product Details
COMPACT CLIP 30C2 for Partial Overlay
105° Opening Wrap-Around Face Frame Hinge, 3/4" Overlay, Screw-On Application
The COMPACT CLIP hinge combines more than 50 years of innovations into a single hinge. Featuring Blum€™s proven CLIP technology, doors can be removed and reattached quickly and tool free. The hinge comes pre-attached to the plate with a pre-mounted screw to save time and improve installation accuracy. Designed with soft-close BLUMOTION and three-dimensional cam adjustments, COMPACT CLIP is user-friendly for cabinetmakers and installers alike.
• Utilizes Blum€˜s CLIP technology
• BLUMOTION integrated into the hinge cup
• Deactivation switch for small/light doors
• Overload safety feature
• Three-dimensional cam adjustment with directional arrows for easy and precise adjustability
• 7/16" cup depth
• Custom logo cover cap available
Specifications
| Box Quantity | 125 |
| Product Type | |
| Mounting Type | Screw-On |
| Overlay | 3/4" |
| Closing Type | Soft-Closing |
| Opening Angle | 105° |
| Model | 30C2 Partial Overlay |
| Hinge Type | Wrap-Around Face Frame |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 11mm |
| Material | Steel |
| Cabinet Type | Face Frame |
