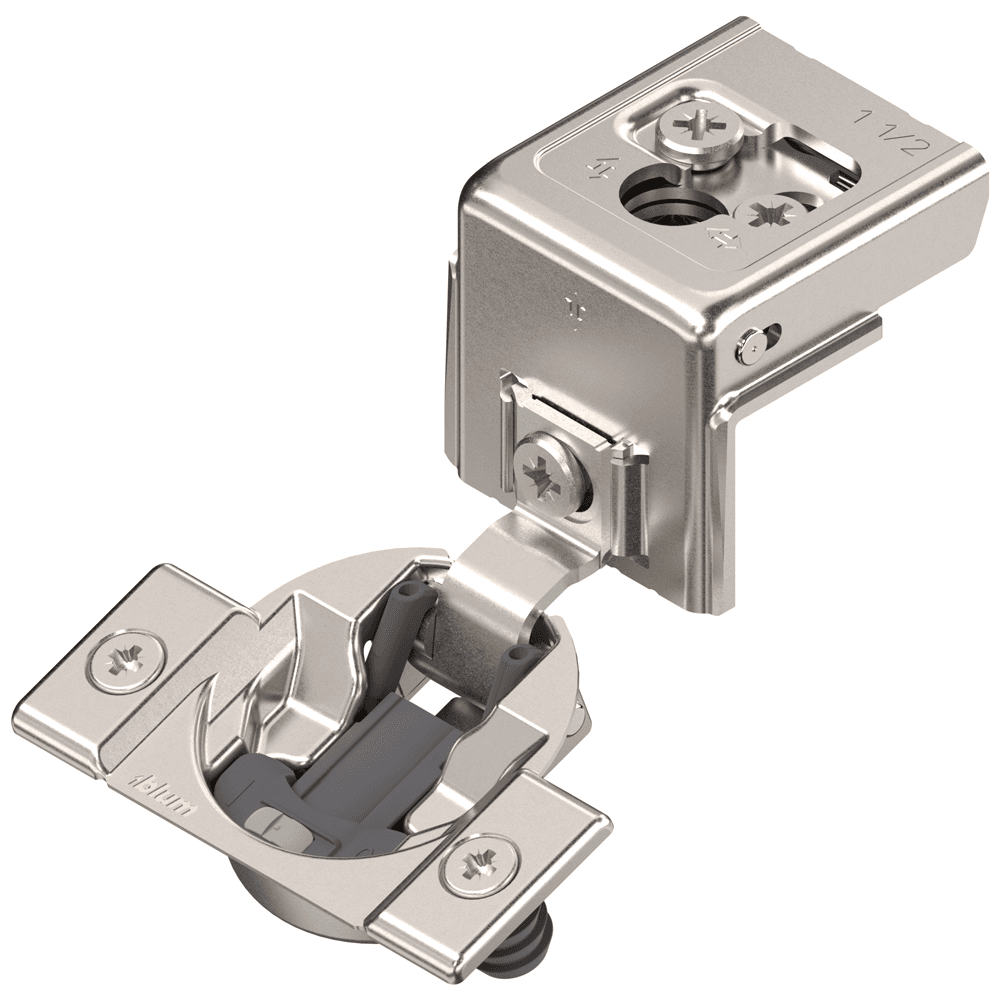

COMPACT CLIP 31C3 110° Opening Wrap-Around Face Frame Hinge,45mm Borin Pattern, Soft-Closing, 1-1/2" Opening, Press-In
250 items
Mounting Type: Press-In
Overlay: 1-1/2"
Opening Angle: 110°
Model: 31C3 Full Overlay
Hinge Type: Wrap-Around Face Frame
Cup Depth: 12.7mm
Product Details
COMPACT CLIP 31C3 for Full Overlay
110° Opening Wrap-Around Face Frame Hinge, 1-1/2" Overlay, Press-In Application
The COMPACT CLIP hinge combines more than 50 years of innovations into a single hinge. Featuring Blum’s proven CLIP technology, doors can be removed and reattached quickly and tool free. The hinge comes pre-attached to the plate with a pre-mounted screw to save time and improve installation accuracy. Designed with soft-close BLUMOTION and three-dimensional cam adjustments, COMPACT CLIP is user-friendly for cabinetmakers and installers alike.
• Utilizes Blum‘s CLIP technology
• BLUMOTION integrated into the hinge cup
• Deactivation switch for small/light doors
• Overload safety feature
• Three-dimensional cam adjustment with directional arrows for easy and precise adjustability
• 1/2" cup depth
• Less minimum reveal
• Custom logo cover cap available
Specifications
| Box Quantity | 125 |
| Product Type | |
| Mounting Type | Press-In |
| Overlay | 1-1/2" |
| Closing Type | Soft-Closing |
| Opening Angle | 110° |
| Model | 31C3 Full Overlay |
| Hinge Type | Wrap-Around Face Frame |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 12.7mm |
| Material | Steel |
| Cabinet Type | Face Frame |
