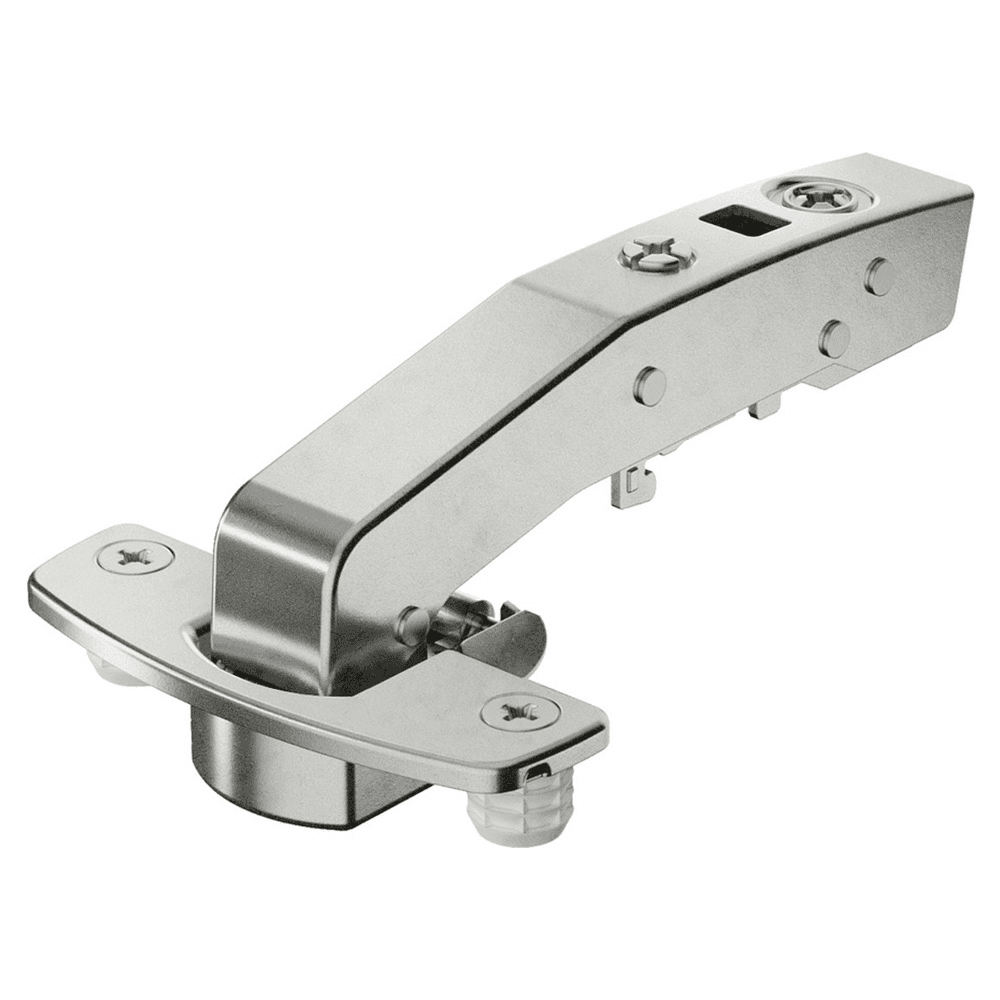

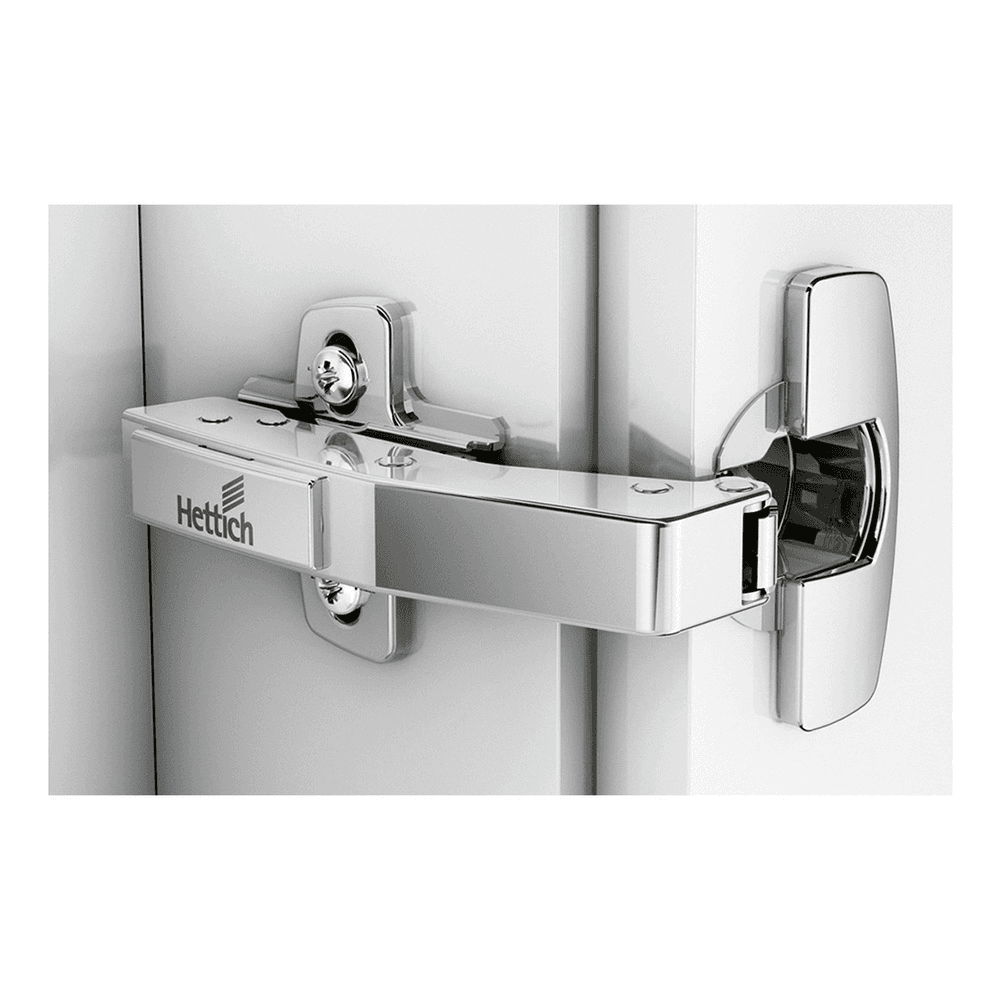

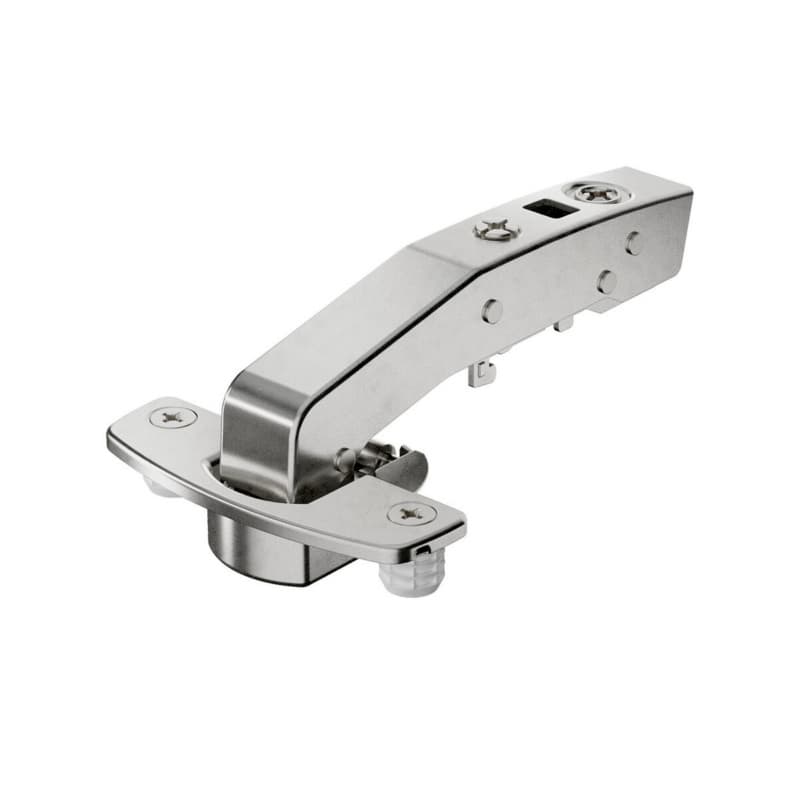

Sensys 8639i 95° Opening Hinge with Integrated Silent System, 45mm Bore Pattern, Self-Closing, Inset, Nickel-Plated, Dowelled
50 items
Product Details
Features:

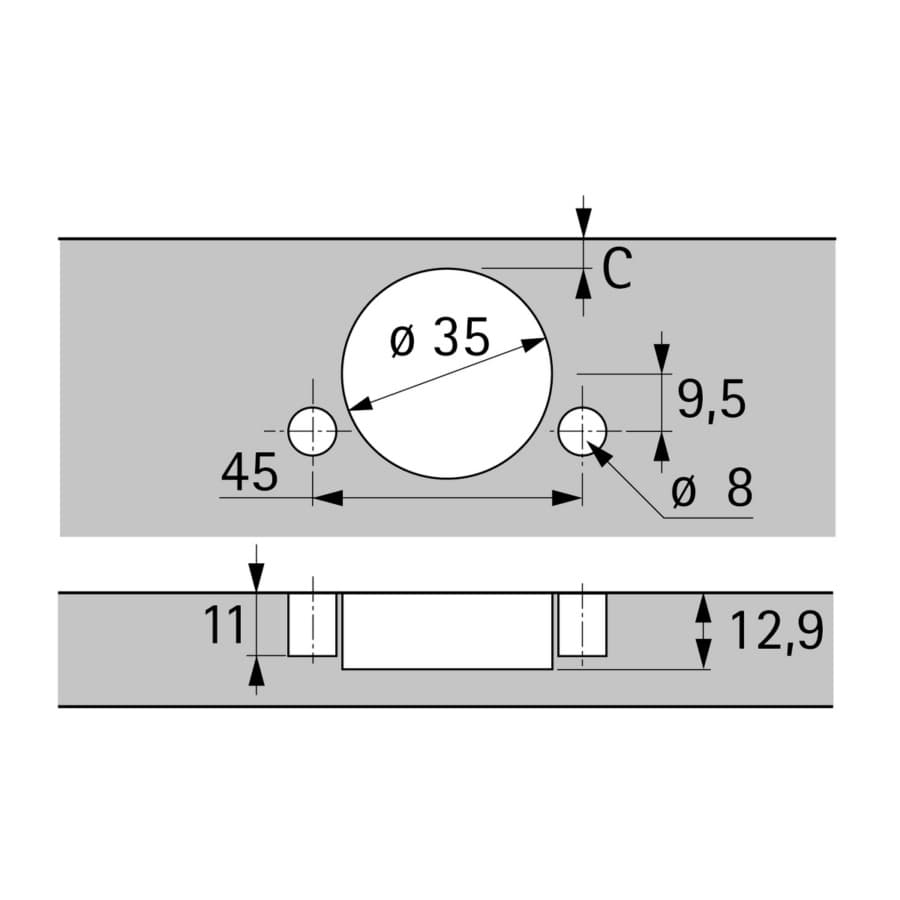

• Sensys angle hinge W90 • With integrated Silent System, with self closing feature (Sensys 8639i W90) • Quality classification under EN 15570, Level 3 • Opening angle 95° • For door thickness 15mm - 28mm • Door mounting option inset (B 4mm) • TB-drilling pattern 45mm x 9.5mm • Cup depth 12.8mm • Installation for pressing in (TB 53) • Integrated adjustment of door offset +1mm / -2mm • Integrated reveal adjustment +3mm / -2mm • Height adjustment at mounting plate • Steel nickel platedThis product can expose you to chemicals including Nickel (Metallic), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
This product can expose you to chemicals including Nickel (Metallic), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 50 |
| Product Type | |
| Mounting Type | Dowelled |
| Overlay | Inset Overlay |
| Closing Type | Self-Closing |
| Opening Angle | 95° |
| Model | |
| Hinge Type | Concealed Hinge |
| Finish | Nickel-Plated |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 12.8mm |
| Material | Steel |
| Cabinet Type |
