2" x 10" Enterprise Counter Mounted Support Bracket, Stainless Steel Finish

Item # FDB30350
Mfr # 30350

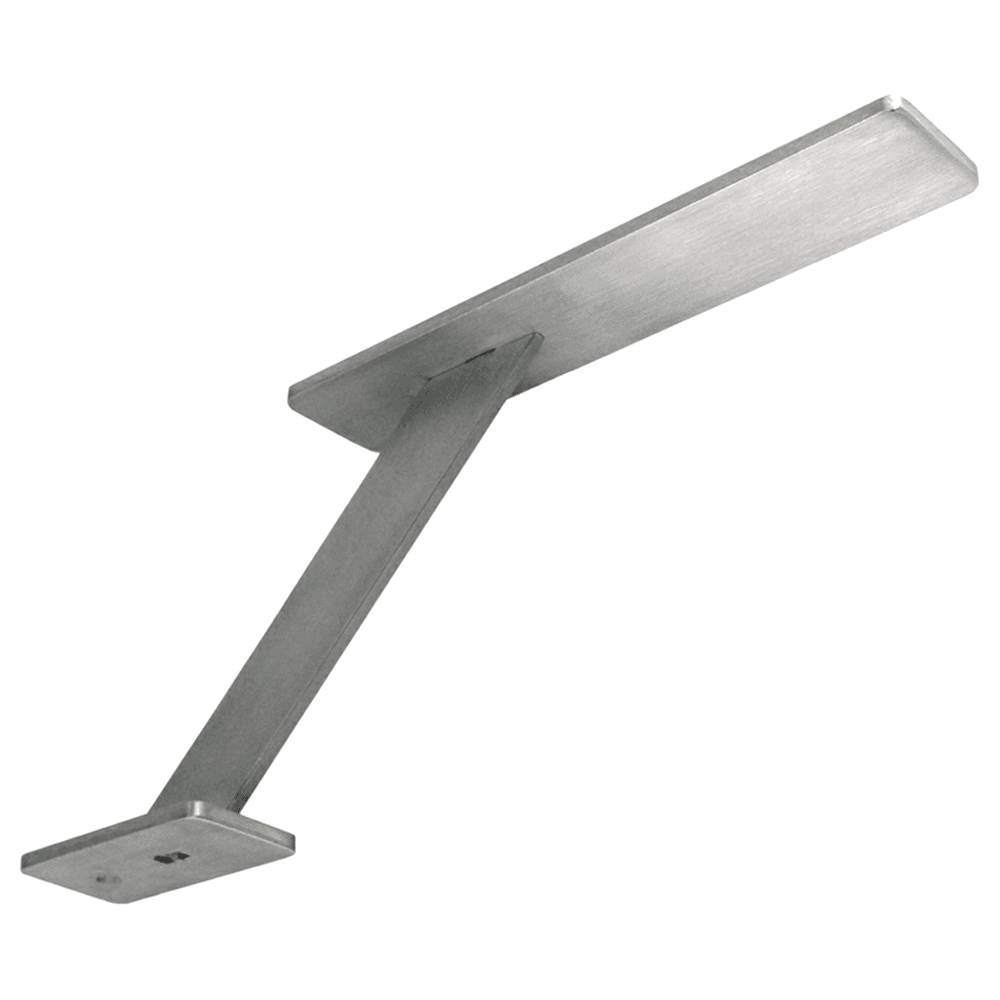

2" x 10" Enterprise Counter Mounted Support Bracket, Stainless Steel Finish Main - Image

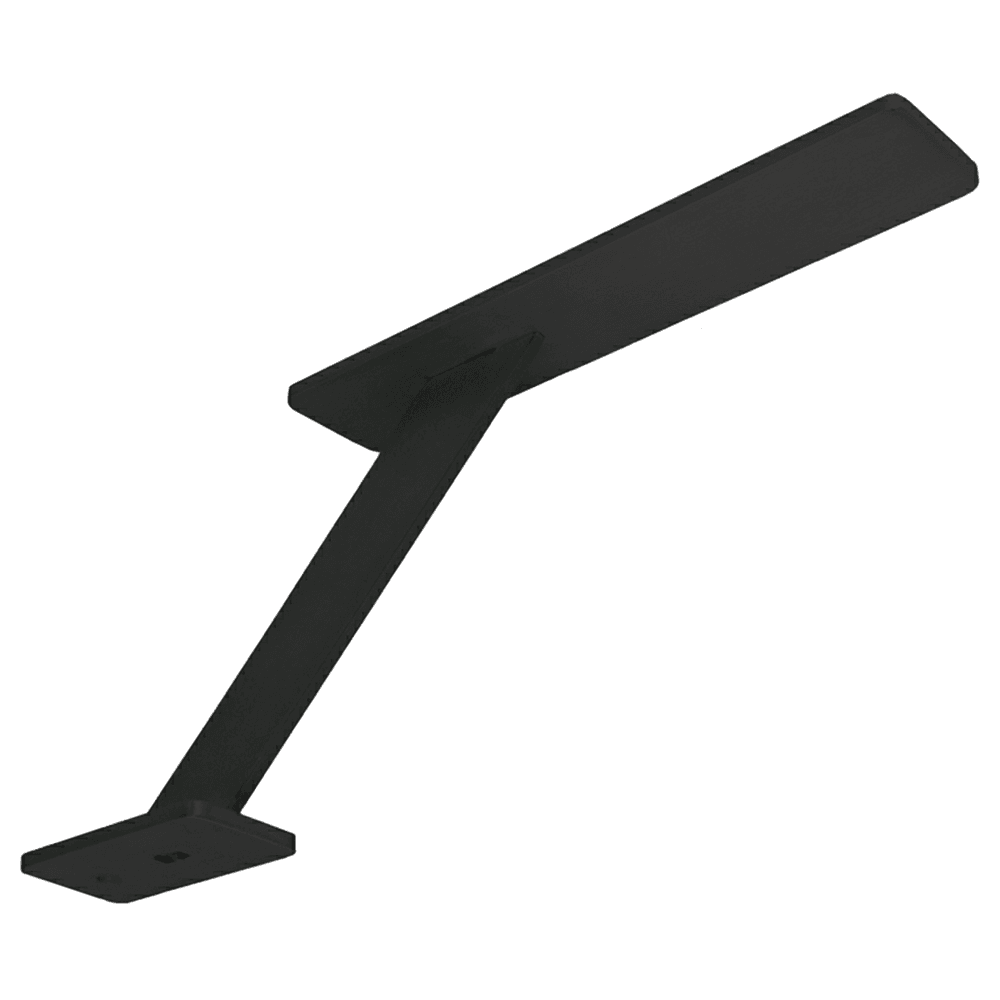

2" x 10" Enterprise Counter Mounted Support Bracket, Stainless Steel Finish Alt 1 - Image

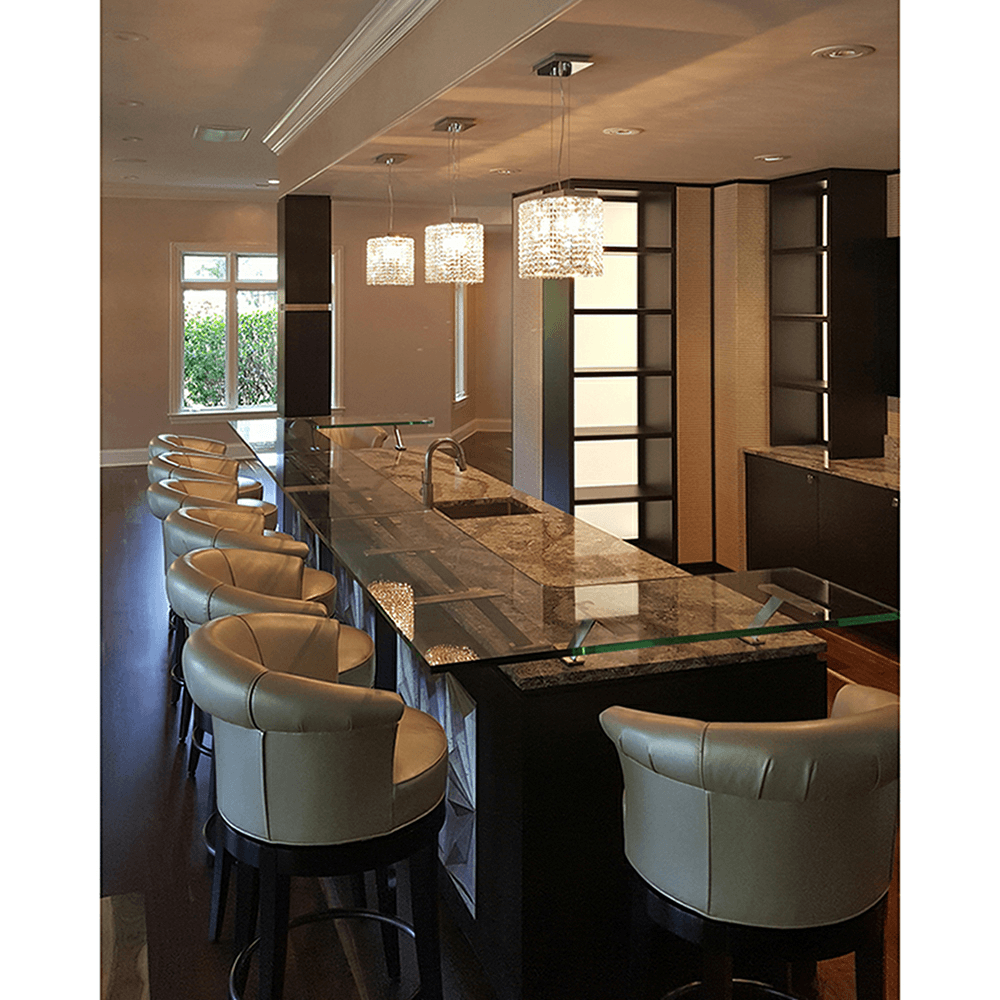

2" x 10" Enterprise Counter Mounted Support Bracket, Stainless Steel Finish Alt 2 - Image

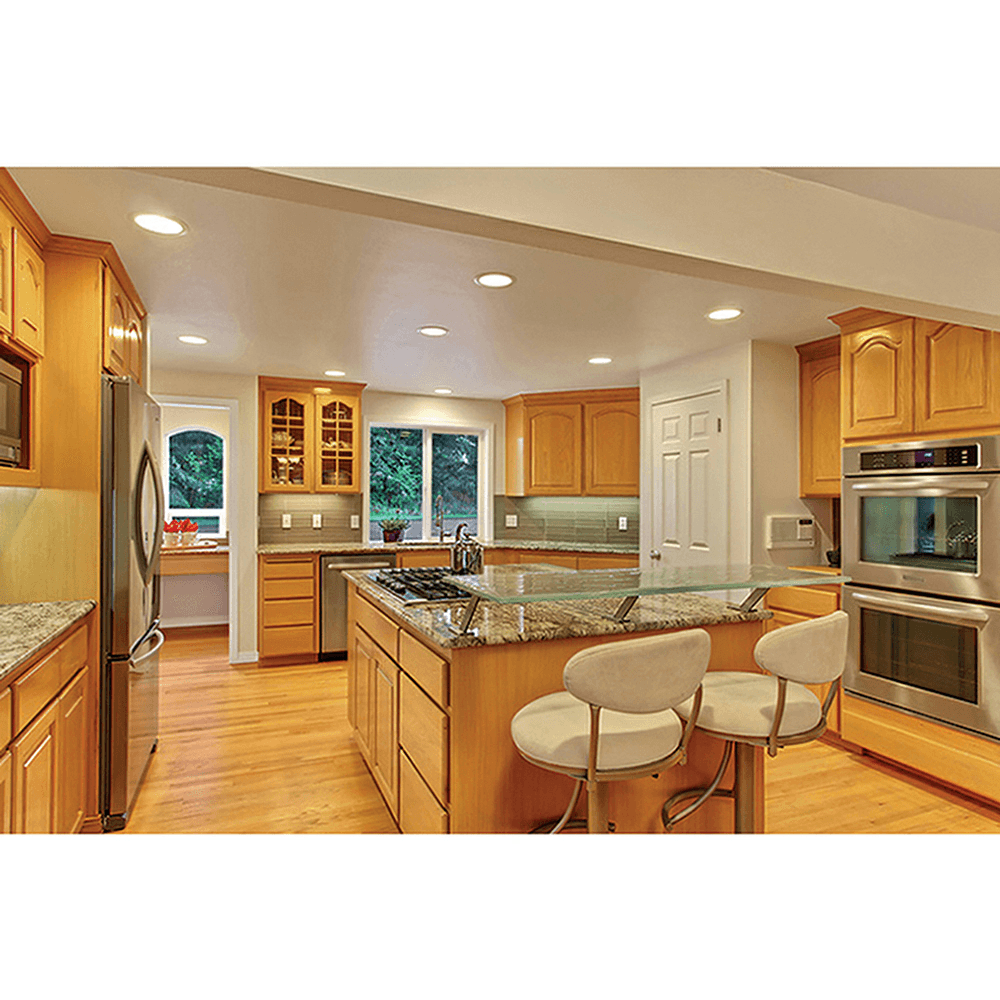

2" x 10" Enterprise Counter Mounted Support Bracket, Stainless Steel Finish Alt 3 - Image
$130.74
/Each

Finish: Stainless Steel

Qty /
Min Order: 1
Qty mult. by: 1

Product Details

The Enterprise counter mounted support attaches to the top of your base counter to create a secondary bar. A rectangular footplate bolts to the top of your sub-counter, with a gusset that extends to the top plate, allowing installation of your bar granite or glass on the 10" top plate. The Enterprise counter mounted support will hold up to an 18" deep counter. The Enterprise Support comes in both brushed stainless steel and raw steel materials. The installation of our Enterprise countertop mounted brackets is a special install. You will need to have prefabricated into your granite or other stone materials or predrilled into you wood counters holes that will fit a 1/4" diameter flat head bolt.

Features:

• 10" x 2" enterprise counter mounted support in stainless steel finish
• 0.25" of material thickness
• 1 - 0.50" straight holes
• 500lb of carry capacity

Specifications

Box Quantity1
Depth10"
Height6"
Product TypeSupport Bracket
FinishStainless Steel
MaterialSteel
Folding
Weight Capacity500lb
Width2"
Style
Length10"
Application
