4" x 34-1/2" Trajan Countertop Leg Support, Black Finish

Item # FDB39562
Mfr # 39562
4" x 34-1/2" Trajan Countertop Leg Support, Black Finish Main - Image
4" x 34-1/2" Trajan Countertop Leg Support, Black Finish Alt 1 - Image
4" x 34-1/2" Trajan Countertop Leg Support, Black Finish Alt 2 - Image
$182.38
/Each
Qty /
Min Order: 1
Qty mult. by: 1

Product Details

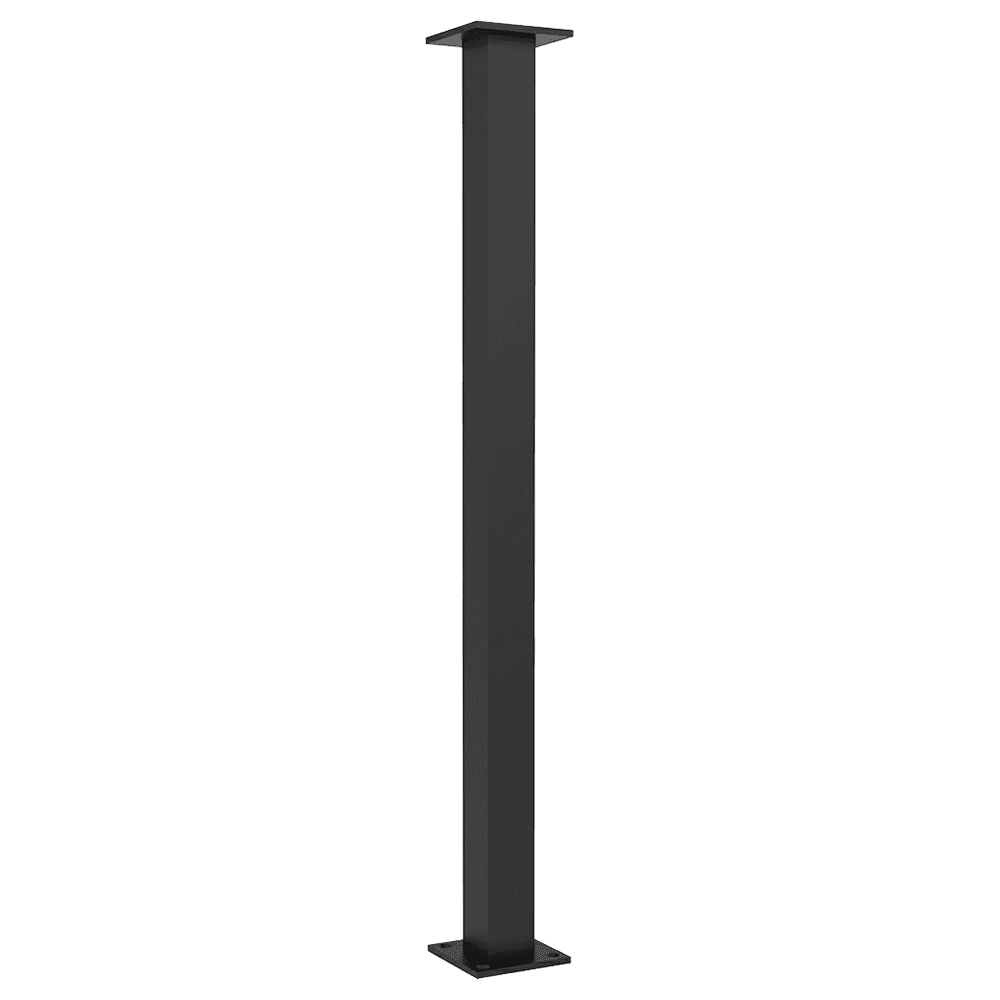

The Trajan countertop leg support is made with a 2 inch square tube in steel or stainless with a 1/4" thick top and base plate. This countertop support leg provides a strong support base with a small profile. The 4x4 bottom plate attaches to the floor using a 4 point connection with countersunk lag screws. The 4x4 plate and tubular construction provide a 200lbs carry capacity. Silicone or epoxy should be used to attach countertop.

Island Support Legs are made of 1/4" steel, in either a stainless finish or painted gloss black. You will find a bottom plate with hole(s) for fastening the leg to the floor so it will be a sturdy support for your counter. The top plate for attaching under the counter for support does not have holes and is adhered using silicone or a two part epoxy.

Features:

• 4" x 34-1/2" Trajan countertop leg support in black finish
• 1/4" of material thickness plate, 11 gauge tube
• 4 - 0.26" countersunk holes

Specifications

Box Quantity1
Depth4"
Height34-1/2"
Product TypeCountertop Leg Support
FinishBlack
MaterialSteel
Folding
Weight Capacity200lb
Width4"
Style
Length4"
Application
