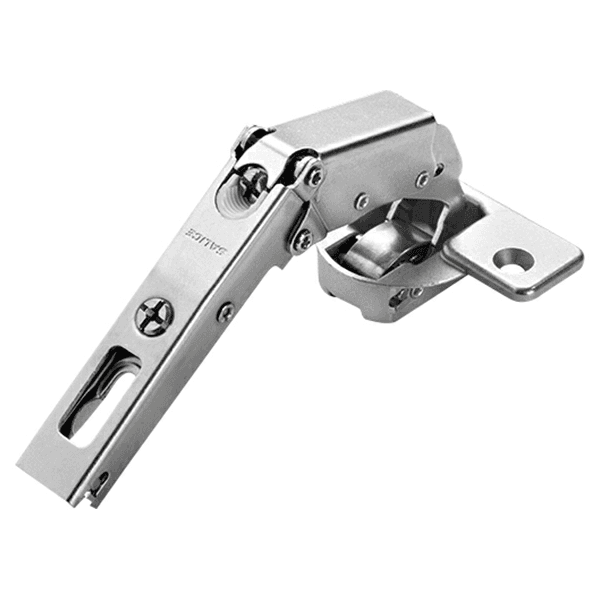

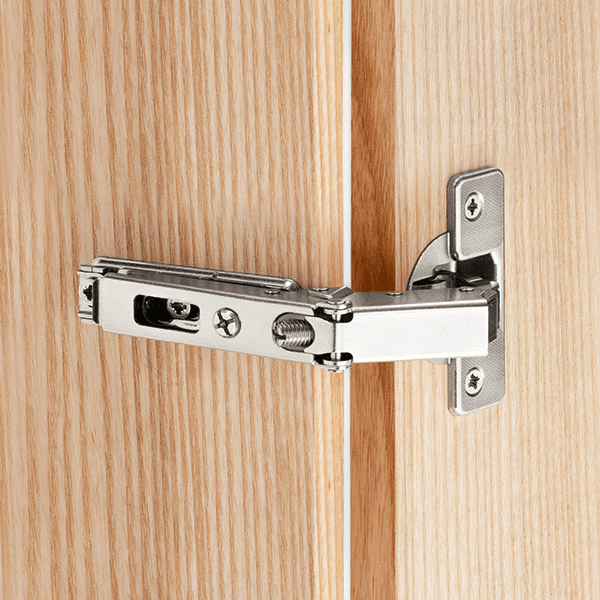

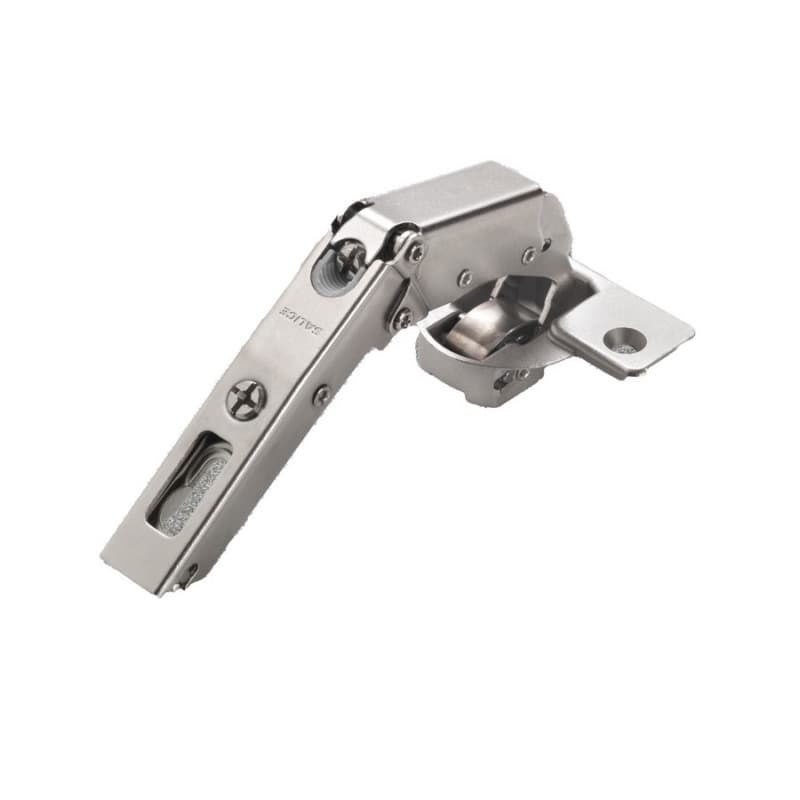

Series 200 Pie-Cut Corner 65° Opening Hinge with Self-Closing, 45mm Bore Pattern, Nickel, Dowelled (150/Box)
Item # SALC2RYA99R
•Mfr # C2RYA99R
$7.47
/Each
150 items
$7.25/Each
Mounting Type: Dowelled
Min Order: 1
Qty mult. by: 1
Product Details
Features:
• Dowelled mounting type • Pie-cut corner 65° opening hinge in nickel finish • Adjustable hinge for corner cabinets • 11mm (7/16") deep cup • 35mm cup diameter • Opening angle of the swing door 65° • Possible drilling distance on the door (K) : from 3 to 5mm • For doors close to 1" (25.4mm), K max: 4mm • Maximum thickness of the door with square edges: 1" (25.4mm) • Extended adjustment range +7 / -5mm • Compatible with all mounting plates, including face frame adaptersSpecifications
| Box Quantity | 1 |
| Product Type | |
| Mounting Type | Dowelled |
| Overlay | |
| Closing Type | Self-Closing |
| Opening Angle | 65° |
| Model | |
| Hinge Type | Pie-Cut Corner Hinge |
| Finish | Nickel |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 7/16" |
| Material | |
| Cabinet Type | Face Frame |
