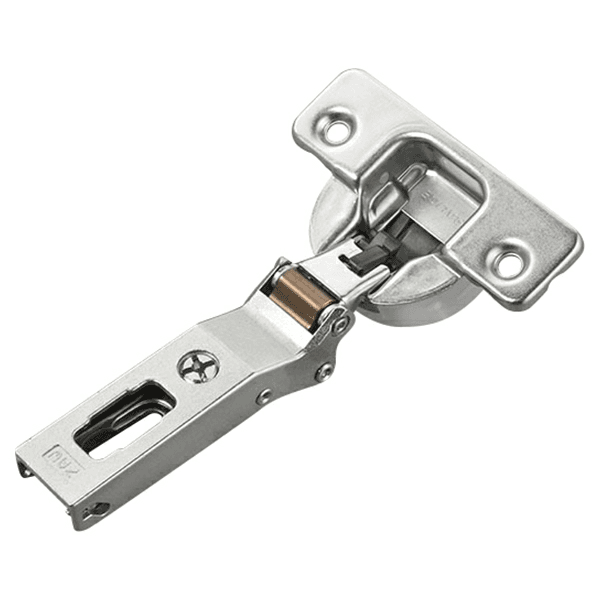

Series 700 -30° Negative Angled Corner 110° Opening Hinge with Self-Closing, 45mm Bore Pattern, Nickel, Screw-On (150/Box)
Item # SALC7R6WE9
•Mfr # C7R6WE9
$5.45
/Each
150 items
$5.24/Each
Mounting Type: Dowelled
Min Order: 1
Quantity Multiple by: 1
Product Details
Features:
• Dowelled mounting type • -30° negative angled corner 110° opening hinge in nickel finish • Hinges with adjustable integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup • The decelerating effect is adjusted by using a simple switch • For wooden doors with negative angled assembly • Dimensions of the 35mm cup • Hinges for min. 16mm thick doors • 13.5mm deep cup • 110° opening • Possible drilling distance on the door (K): from 3 to 6mm • Compatible with all traditional Series 200 mounting plates and with all Domi snap-on mounting platesSpecifications
| Mounting Type | Dowelled |
| Overlay | |
| Closing Type | Self-Closing |
| Opening Angle | 110° |
| Model | |
| Hinge Type | -30° Angled |
| Finish | Nickel |
| Boring Pattern | 45mm |
| Cup Diameter | 35mm |
| Cup Depth | 13.5mm |
| Material | |
| Cabinet Type | Frameless |
