2-1/2" Butt Hinge with Bushing, Satin

Item # SGD-S-64A
Mfr # D-S-64A

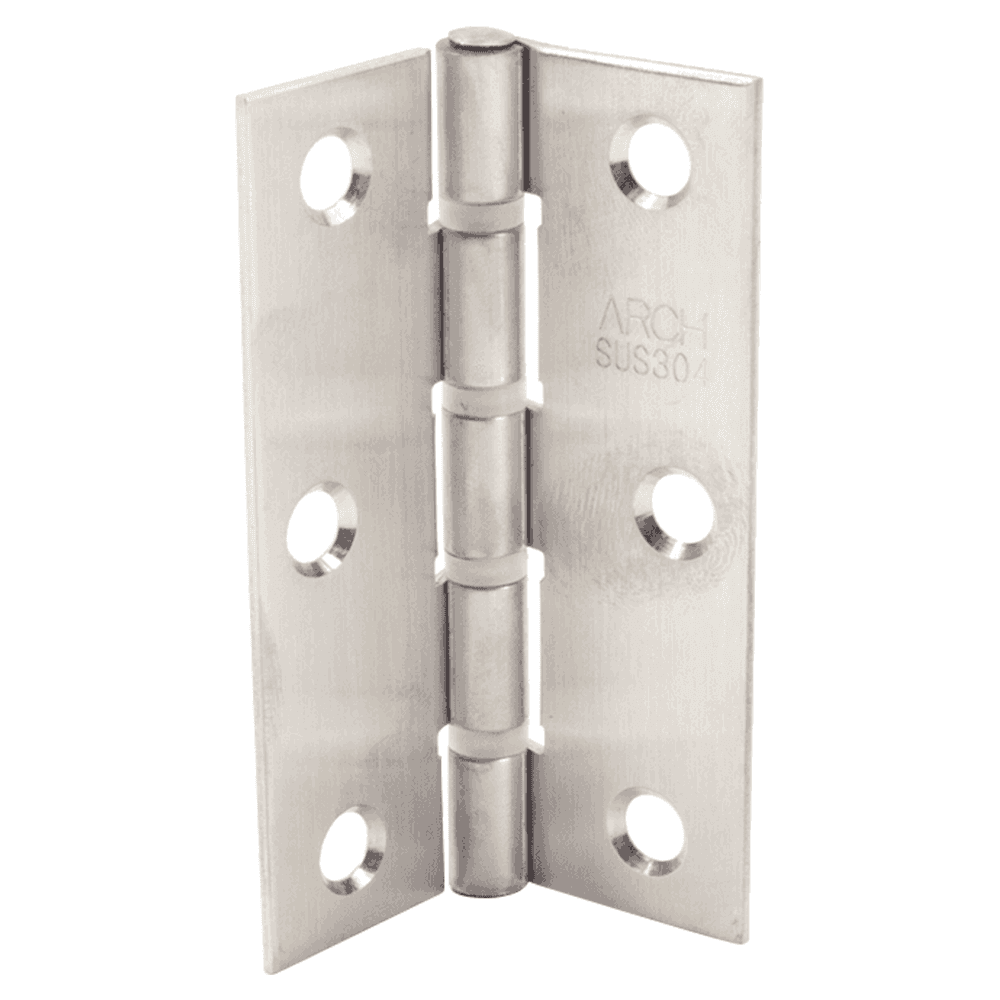

2-1/2" Butt Hinge with Bushing, Satin Main - Image

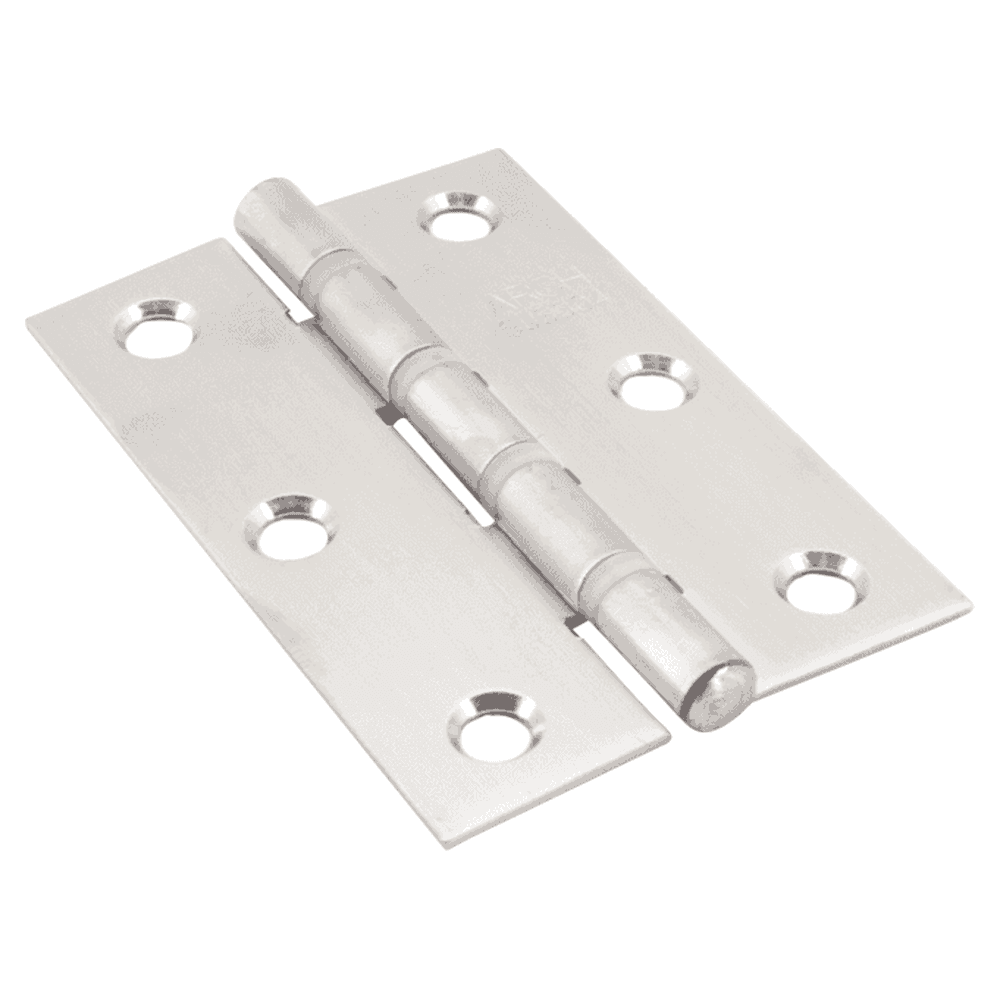

2-1/2" Butt Hinge with Bushing, Satin Alt 1 - Image

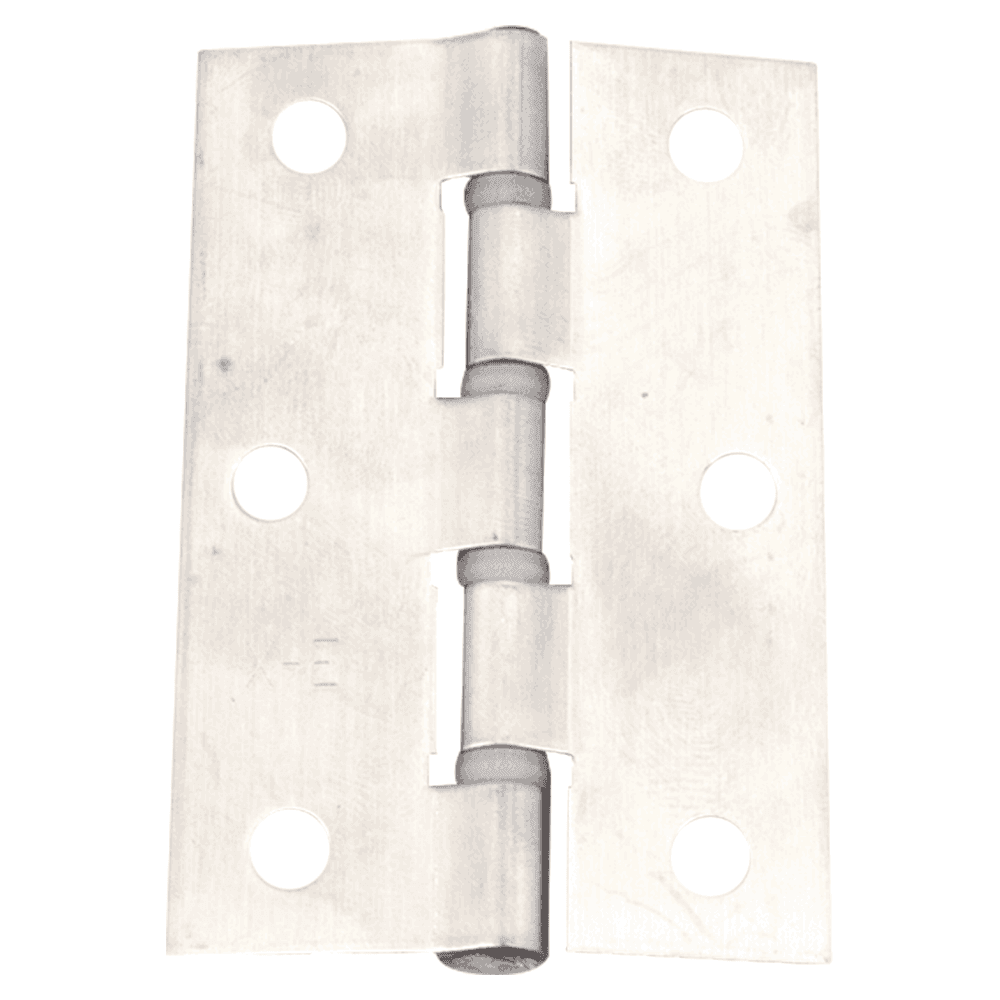

2-1/2" Butt Hinge with Bushing, Satin Alt 2 - Image

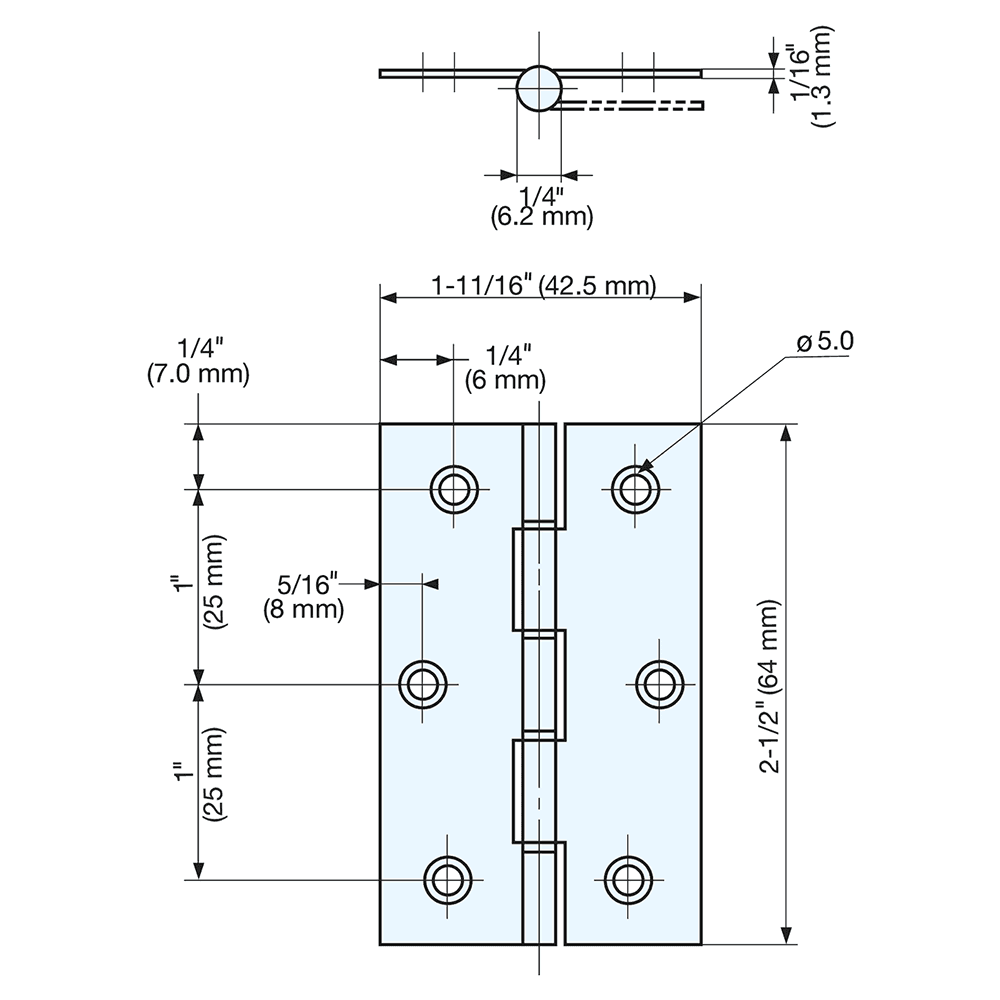

2-1/2" Butt Hinge with Bushing, Satin Alt 3 - Image
$8.34
/Each
20 items
$6.95/Each

Product Details

Features:
• Stainless steel hinge with polyacetal bushing
• Load Capacity (lbs./pr): 22.05
• Knuckles: 5
• Holes: 6
• Fasteners Included: No
• Fasteners Type: 4 mm or #8 self tapping screw

Specifications

Box Quantity1
Product Type
FinishSatin
Height2-1/2"
Hinge TypeButt Hinge
Material304 Stainless Steel
Opening Angle
Width1-11/16"
