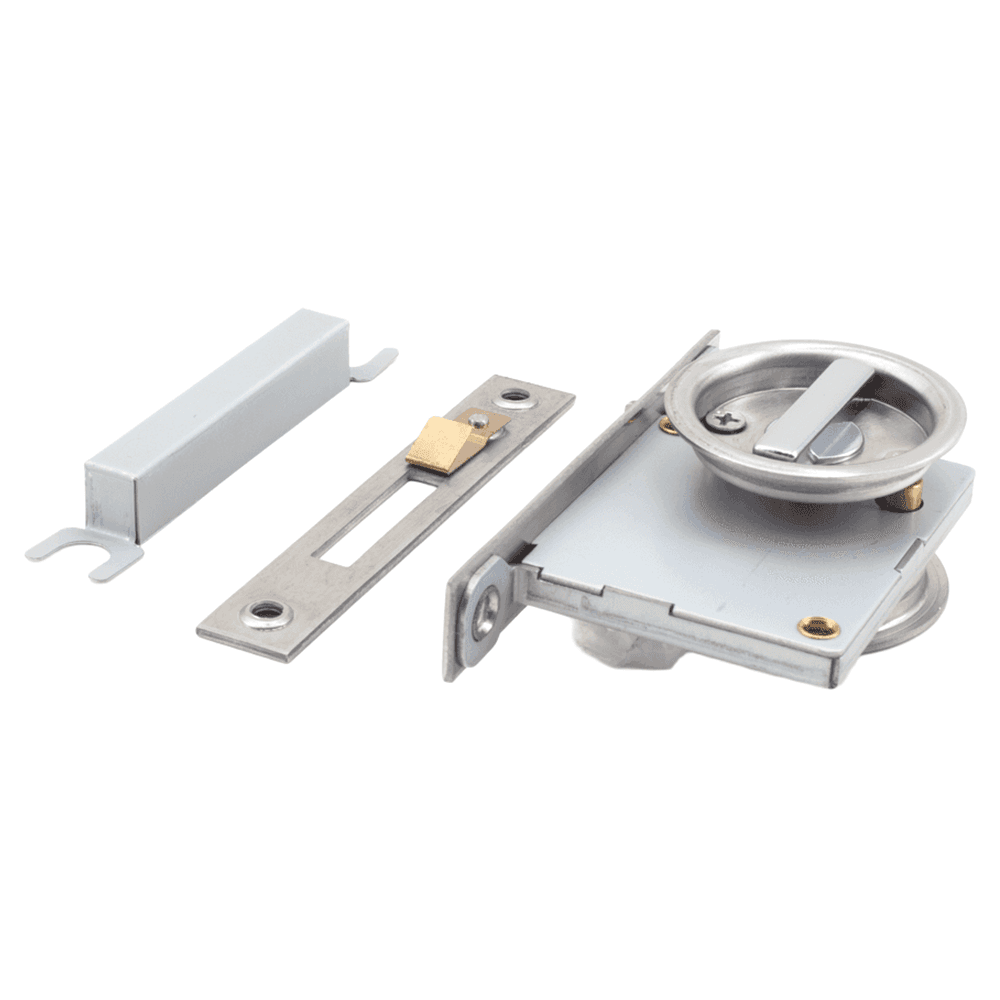

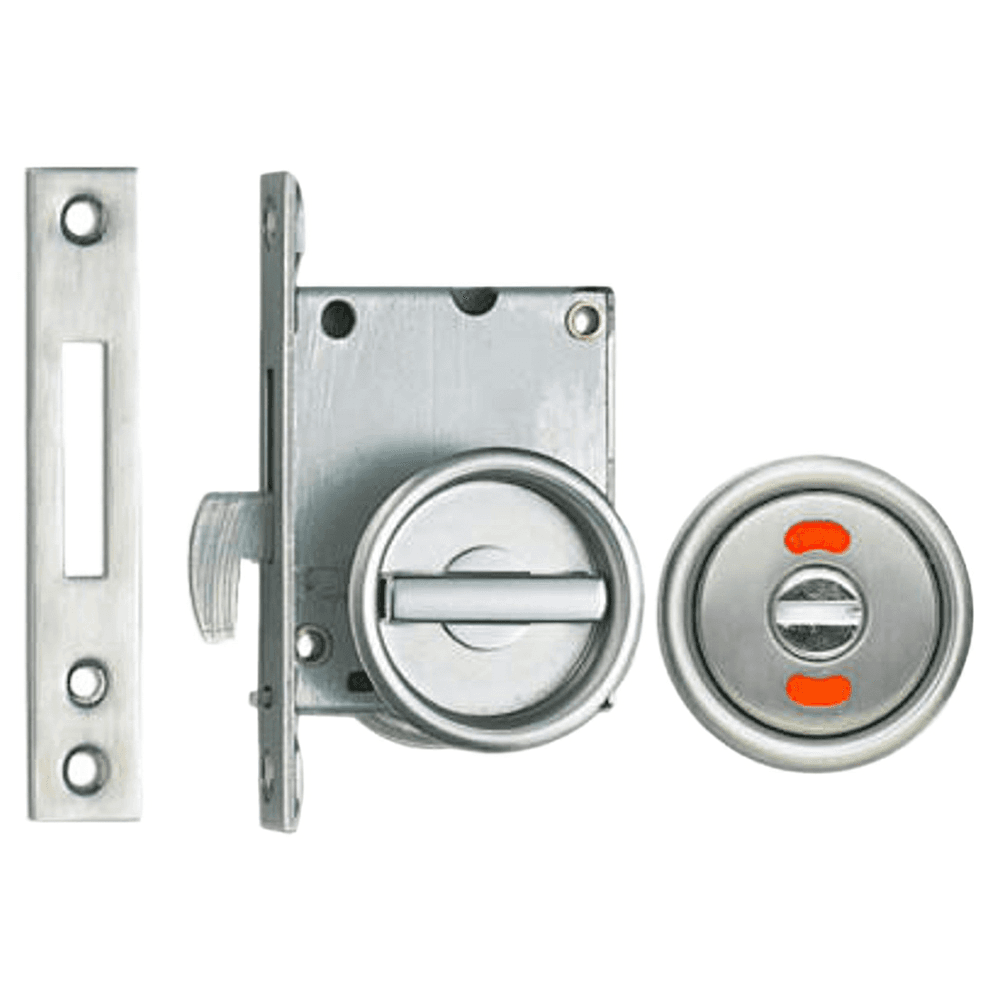

Sliding Door Latch with Indicator Thumbturn, Satin
5 items
Product Details
Features: • Door latch with indicator • Slim design suitable for various applications • Non-handed • For door thickness 28-40 mm (1-1/8" - 1-9/16") • For sliding doors only • Fasteners Required: Yes • Fasteners Size: 3.5 X 20mm • Fasteners Type: Screw
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Keyed As | |
| Finish | Satin |
| Product Type | Sliding Door Latch |
| Width | |
| Height | |
| Cam Length | |
| Depth | |
| Material | 304 Stainless Steel, Brass, Zinc Alloy |
| Mounting Type | |
| Shape | |
| Bolt Length | |
| Application | |
| Cylinder Diameter | |
| Certifications | |
| Bolt Throw | |
| Cam Rotation | |
| Locked Bolt Length | |
| Orientation | |
| Hardware Included | Yes |
| Tumbler Type | |
| Bolt Set Back | |
| Cam Setback | |
| Open Bolt Length | |
| Center to Center |
