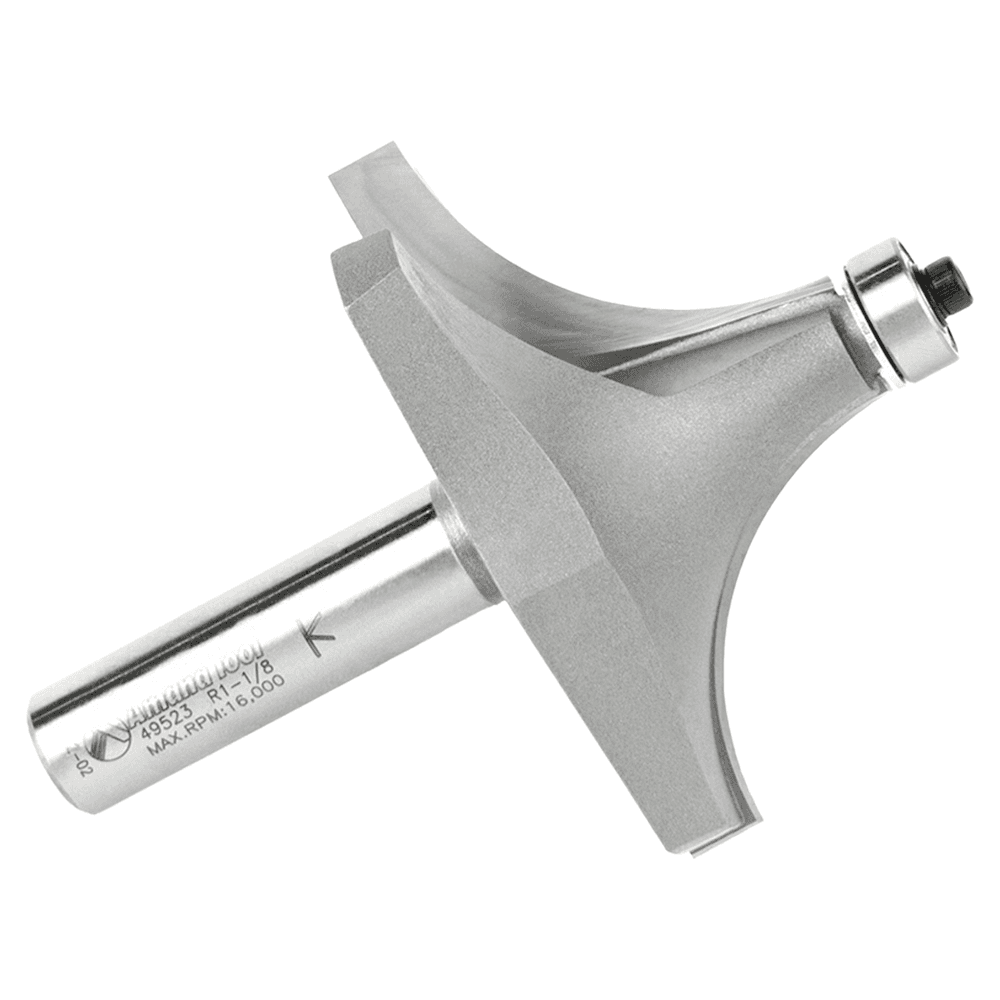

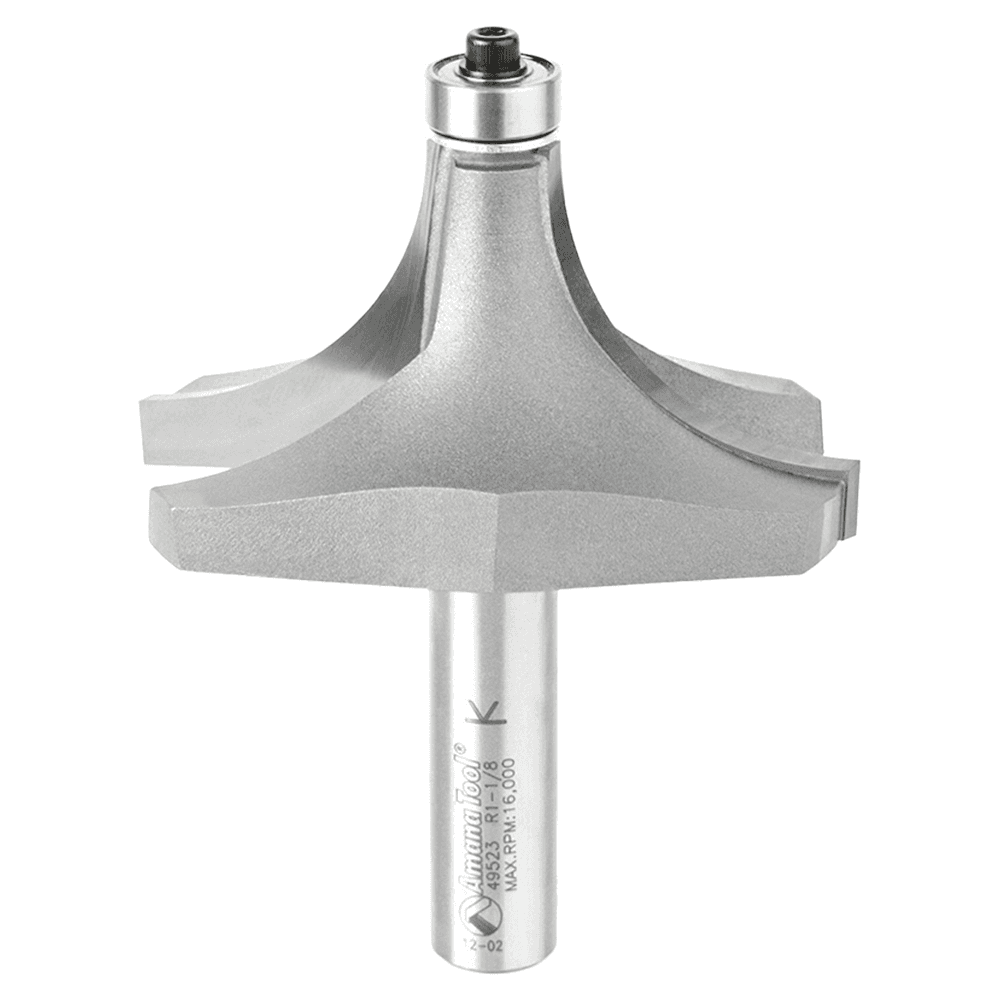

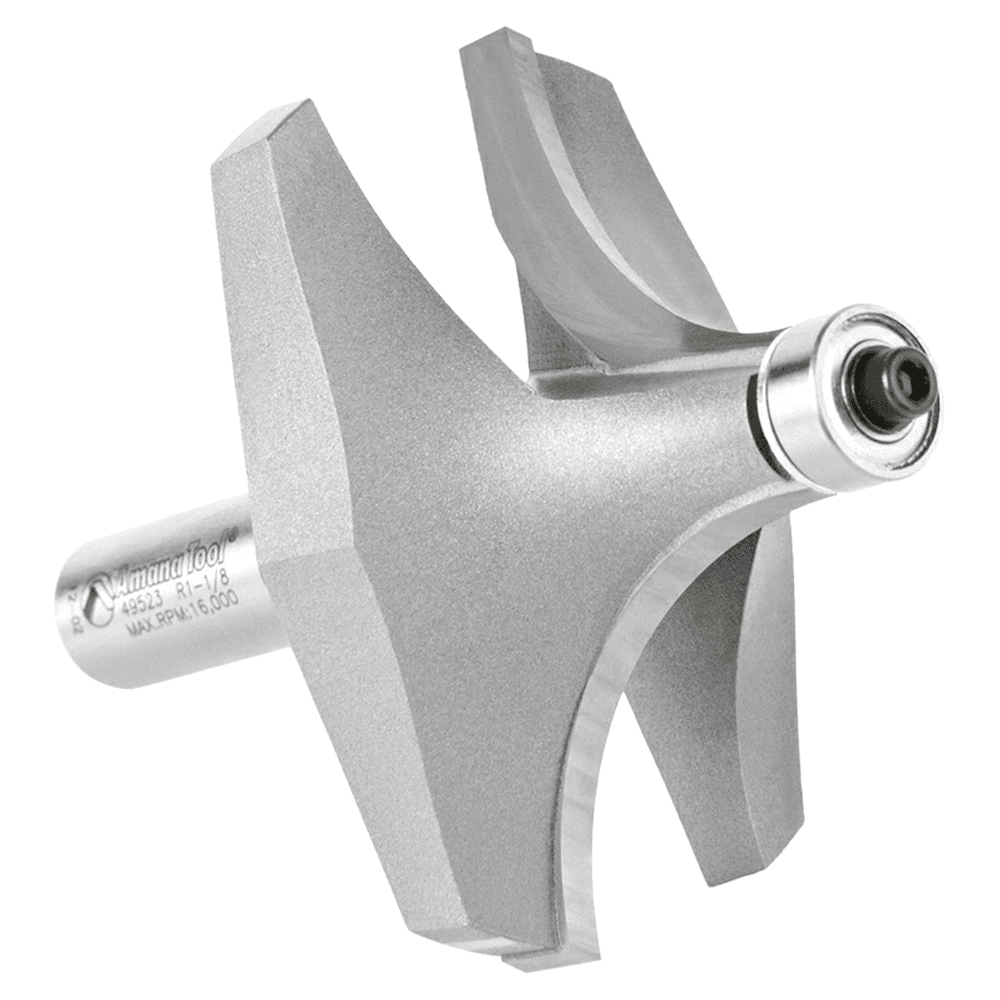

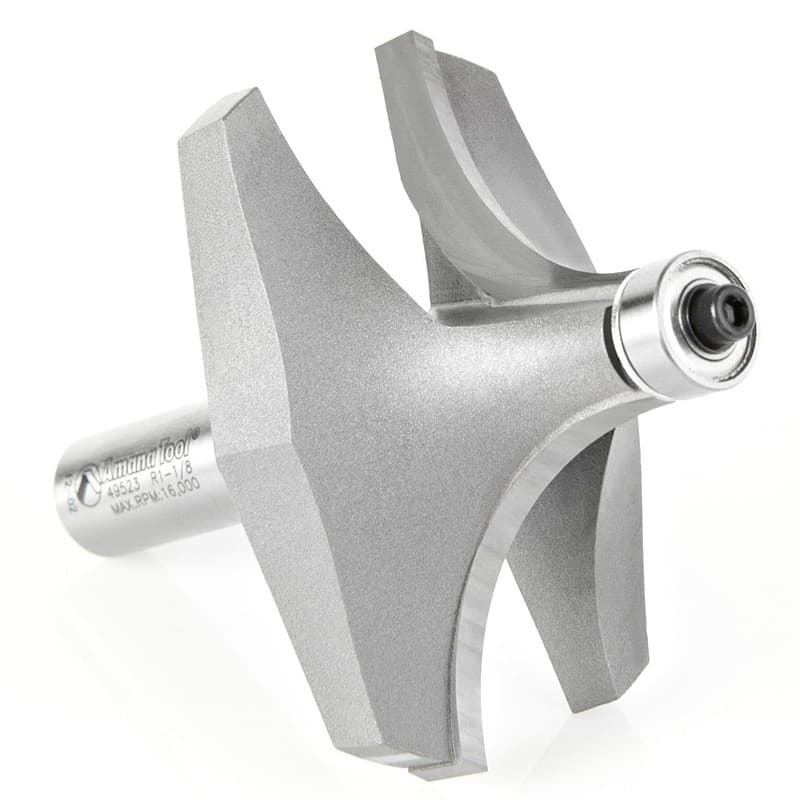

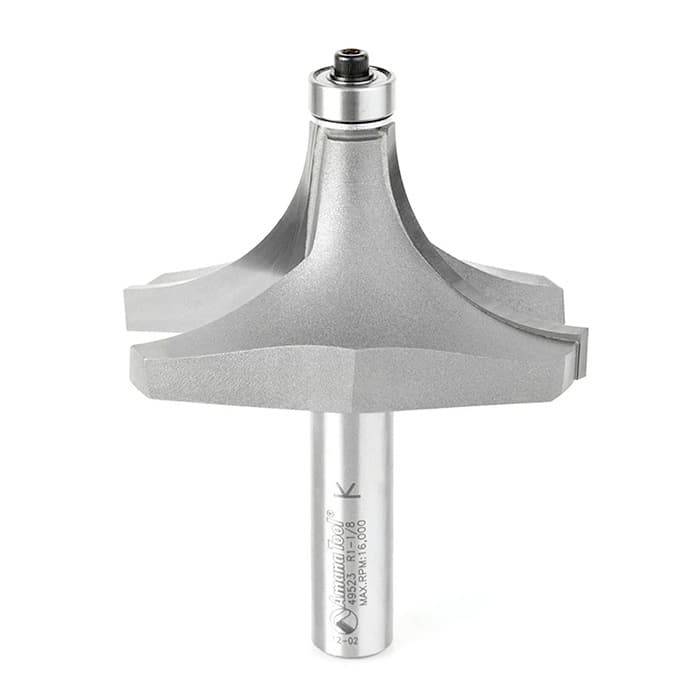

2-3/4" Dia x 1-3/8" Carbide Tipped Corner Round Bit, 1-1/8" Radius, 1/2" Shank
Product Details

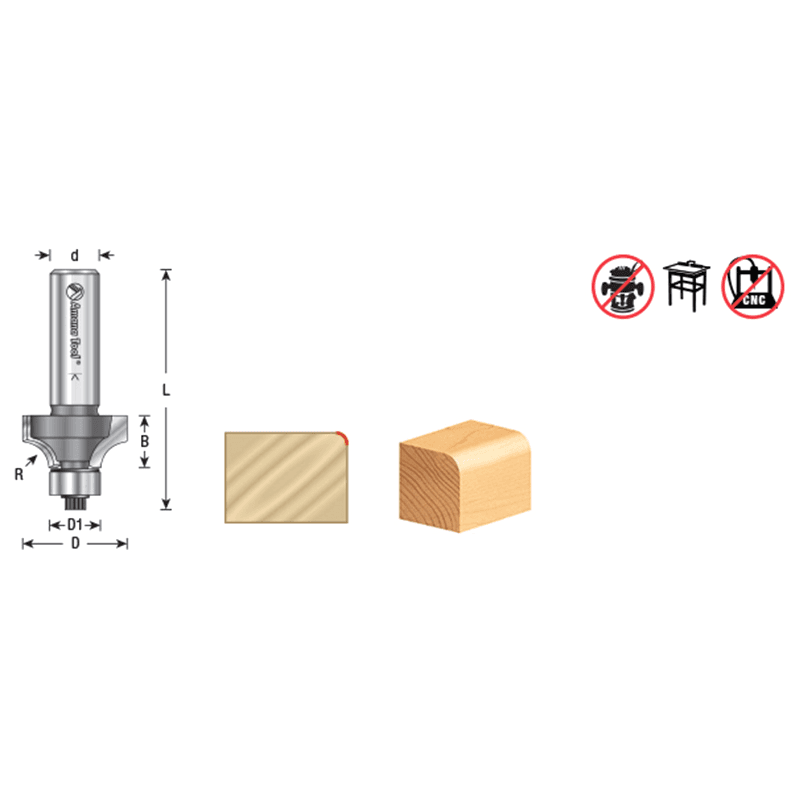

The basic edge-forming bit, the corner-rounding bit rounds an edge to a given radius. The tool is shouldered to cut a fillet. The cut can be used to ease edges, as a simple profile, or as a part of a complex one. Also known as roundover, rounding over and quarter-round. If a smaller pilot bearing is used, a second shoulder can be produced, in effect making the bit a beading bit. Maximum RPM 16,000. Use in a table-mounted router. Not for use in a handheld router! Not guaranteed due to extreme diameter and radius. For best results it is recommended to use a smaller radius bit or chamfer the material prior to using these large radius tools. Tool life will be prolonged and a smoother finish will result. Features: • 2-3/4" Dia x 1-3/8" Carbide Tipped Corner Round 1-1/8" Radius, 1/2" Shank • Replacement Bearing: 47706 • Flutes: 2 Excellent for Cutting: • Acrylic • Laminate • MDF/HDF • Melamine • Wood • Plywood
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Box Quantity | 1 |
| Height | 1-3/8" |
| Width | |
| Cutting Diameter | 2-3/4" x 1/2" |
| Application | |
| Material | |
| Product Type | Corner Round Bit |
| Length | 3-3/4" |
| Degree of Cut | |
| Shank Diameter | 1/2" |
