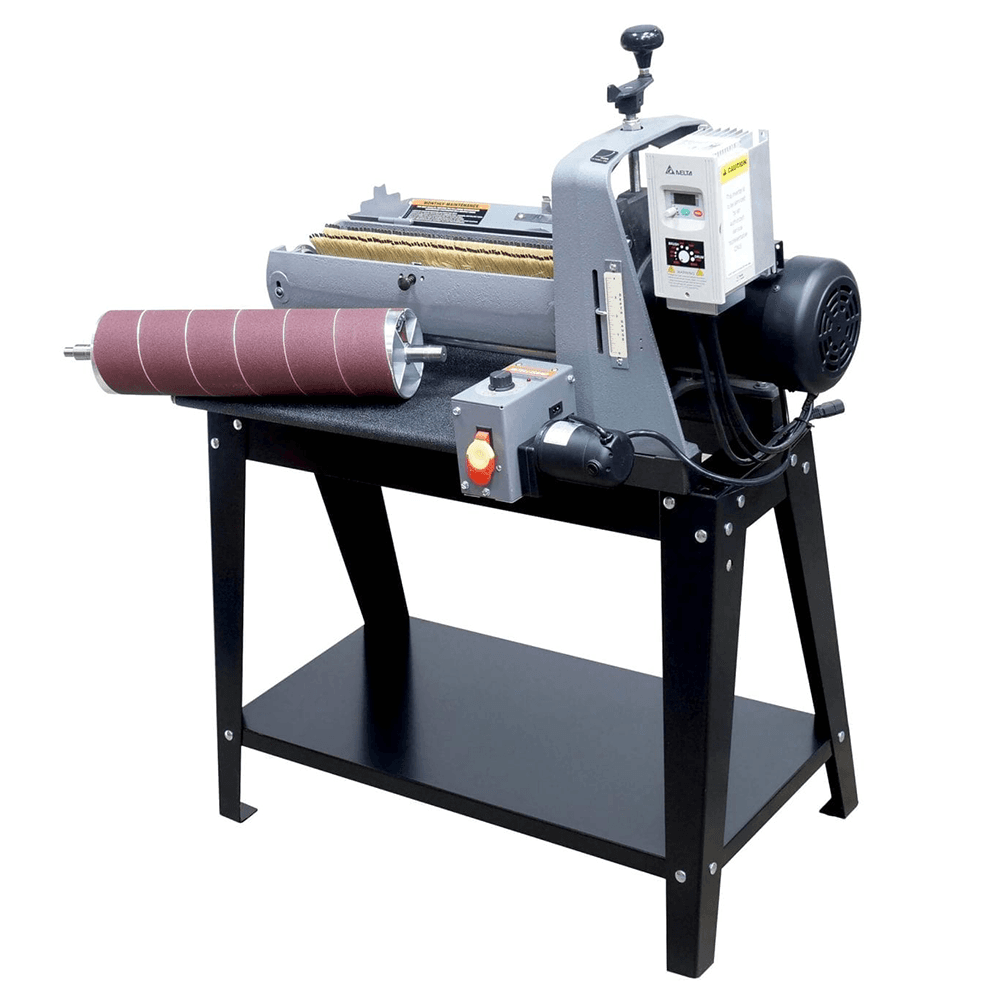

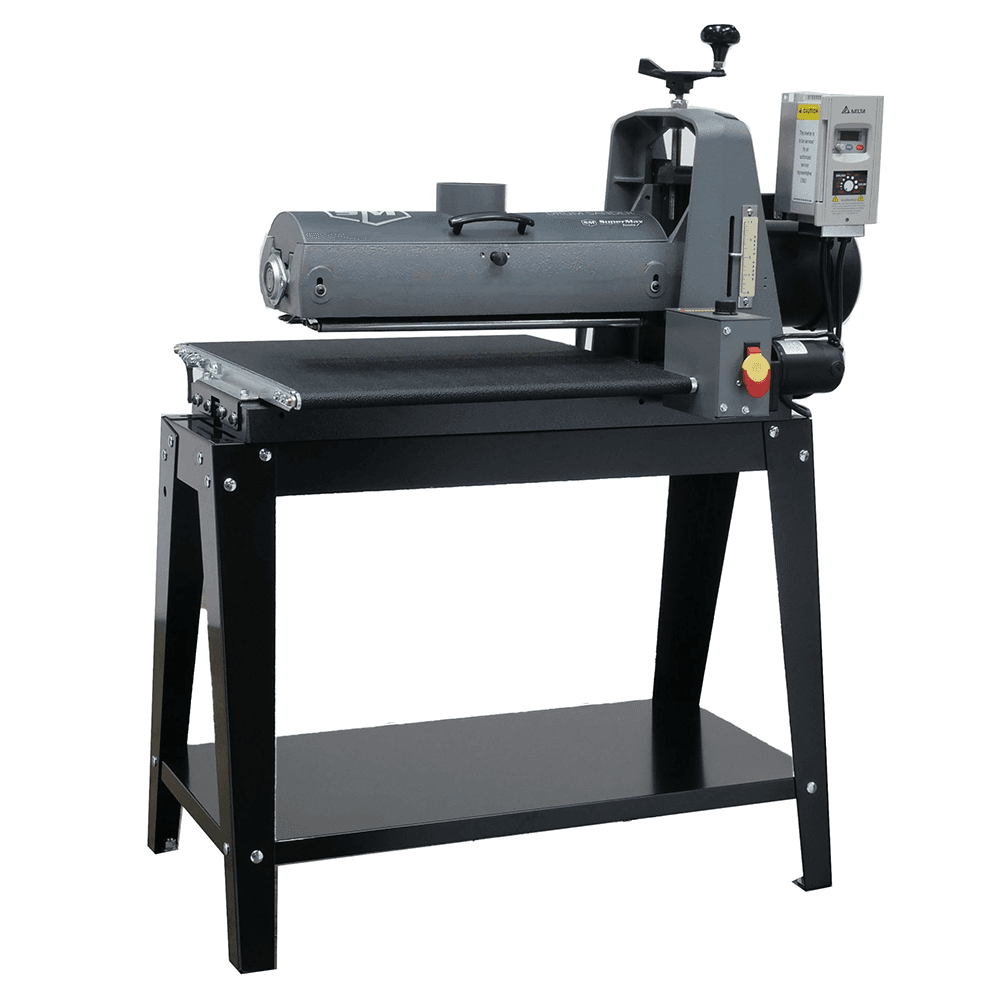

SUPERMAX 19|38 BRUSH|DRUM COMBO SANDER
Item # SM219383
•Mfr # SUPMX-219383
$3,199.00
/Each
Freight: $150.00
Min Order: 1
Qty mult. by: 1
This item may incur additional shipping costs and lead times.
Product Details
Features:
• Simple alignment feature: Just one nut will adjust the conveyor to parallel the sanding head, making aligning the conveyor to the sanding head fast and easy
• Indexed alignment setting: Has an indexed alignment setting for narrow and wide stock. When sanding stock wider than 19", the index lever will properly adjust the conveyor for flawless wide sanding
• Easy height adjustments: A thrust bearing below the handle and a nut positioned above prevents the drum from moving out of the set position while sanding. No backlash or slop in the height adjustment mechanism allowing easier and smoother height adjustments
• Extra-wide conveyor to properly support stock over 19" wide. The conveyor table is 22" wide to add support to the work piece
• Drum will never go out of alignment": The drum carriage is bolted to the base, preventing any movement or alignment issues
Additional Features:
• Intellisand Technology: Automatically adjusts conveyor speed based on load
I. Prevents gouging, damaging or burning stock
ii. Provides consistent finish even with varying grain pattern and density
iii. Greatly increases abrasive planning and dimensioning speed
• Flatness Guarantee: Precision-flattened steel conveyor bed reinforced with four steel cross sections for no flex" in conveyor, guaranteeing flatness to less than .010" across the width of the sander
• Abrasive conveyor belt offers the best grip for raw wood, giving you the ability to accommodate stock that is much shorter or thinner
• Patented Abrasive Attachment System effectively tensions the abrasive wraps, preventing loose abrasive and overlap
• Easiest access to abrasive fastening system of any drum sander extra wide space to access fasteners to eliminate need for special tools
• Self-cooling drum prevents overheating and extends abrasive life
• Tension rollers are adjustable in height and hold down pressure, eliminating snipe
• Excellent dust extraction as dust cover is formed to shape of drum metal, not plastic, is formed to maximize air flow and dust extraction
• Heavy-duty cast iron construction for strength, rigidity and reduced vibration
Machine Specs:
Maximum Width: 38"
Minimum Length: 5-1/2"
Maximum Thickness: 4"
Minimum Thickness: 1/32"
Dimensions: 24" D x 40" W x 24" H (on stand)
Drum Speed: 1740 RPM
Dust Hood: 1 - 4" vacuum ports, min 600CFM Recommended
Conveyor Motor: 43 in-lb. torque, direct drive DC motor, ranged variable 0-10 FPM
Drive Motor (TEFC): 1-3/4 HP
Power Requirements: 110 V 15 amp
Shipping Weight (lbs.): 371lb
• Simple alignment feature: Just one nut will adjust the conveyor to parallel the sanding head, making aligning the conveyor to the sanding head fast and easy
• Indexed alignment setting: Has an indexed alignment setting for narrow and wide stock. When sanding stock wider than 19", the index lever will properly adjust the conveyor for flawless wide sanding
• Easy height adjustments: A thrust bearing below the handle and a nut positioned above prevents the drum from moving out of the set position while sanding. No backlash or slop in the height adjustment mechanism allowing easier and smoother height adjustments
• Extra-wide conveyor to properly support stock over 19" wide. The conveyor table is 22" wide to add support to the work piece
• Drum will never go out of alignment": The drum carriage is bolted to the base, preventing any movement or alignment issues
Additional Features:
• Intellisand Technology: Automatically adjusts conveyor speed based on load
I. Prevents gouging, damaging or burning stock
ii. Provides consistent finish even with varying grain pattern and density
iii. Greatly increases abrasive planning and dimensioning speed
• Flatness Guarantee: Precision-flattened steel conveyor bed reinforced with four steel cross sections for no flex" in conveyor, guaranteeing flatness to less than .010" across the width of the sander
• Abrasive conveyor belt offers the best grip for raw wood, giving you the ability to accommodate stock that is much shorter or thinner
• Patented Abrasive Attachment System effectively tensions the abrasive wraps, preventing loose abrasive and overlap
• Easiest access to abrasive fastening system of any drum sander extra wide space to access fasteners to eliminate need for special tools
• Self-cooling drum prevents overheating and extends abrasive life
• Tension rollers are adjustable in height and hold down pressure, eliminating snipe
• Excellent dust extraction as dust cover is formed to shape of drum metal, not plastic, is formed to maximize air flow and dust extraction
• Heavy-duty cast iron construction for strength, rigidity and reduced vibration
Machine Specs:
Maximum Width: 38"
Minimum Length: 5-1/2"
Maximum Thickness: 4"
Minimum Thickness: 1/32"
Dimensions: 24" D x 40" W x 24" H (on stand)
Drum Speed: 1740 RPM
Dust Hood: 1 - 4" vacuum ports, min 600CFM Recommended
Conveyor Motor: 43 in-lb. torque, direct drive DC motor, ranged variable 0-10 FPM
Drive Motor (TEFC): 1-3/4 HP
Power Requirements: 110 V 15 amp
Shipping Weight (lbs.): 371lb
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Downloads
Specifications
| Box Quantity | 1 |
| Product Type | Brush/Drum Sander |
| Power | |
| Frequency | |
| Capacity | |
| Finish | |
| Drum Speed | 1740RPM |
| Blade Diameter | |
| Tank Storage | |
| Speed | |
| Maximum Cutting Length | |
| Maximum Width | 38" |
| Motor Power | |
| Maximum Pressure | |
| Pump Up Time | |
| Arbor Diameter | |
| Arbor | |
| Width | 40" |
| Height | 24" |
| Drive Motor | 1-3/4" |
| Belt Size | |
| Depth | 24" |
| Motor Phase | |
| Horsepower | 1-3/4" |
| Phase | |
| Range of Speeds | |
| Length | |
| Voltage | 110V |
| Backing Material | |
| Material | |
| Recovery Time |
