Product Details

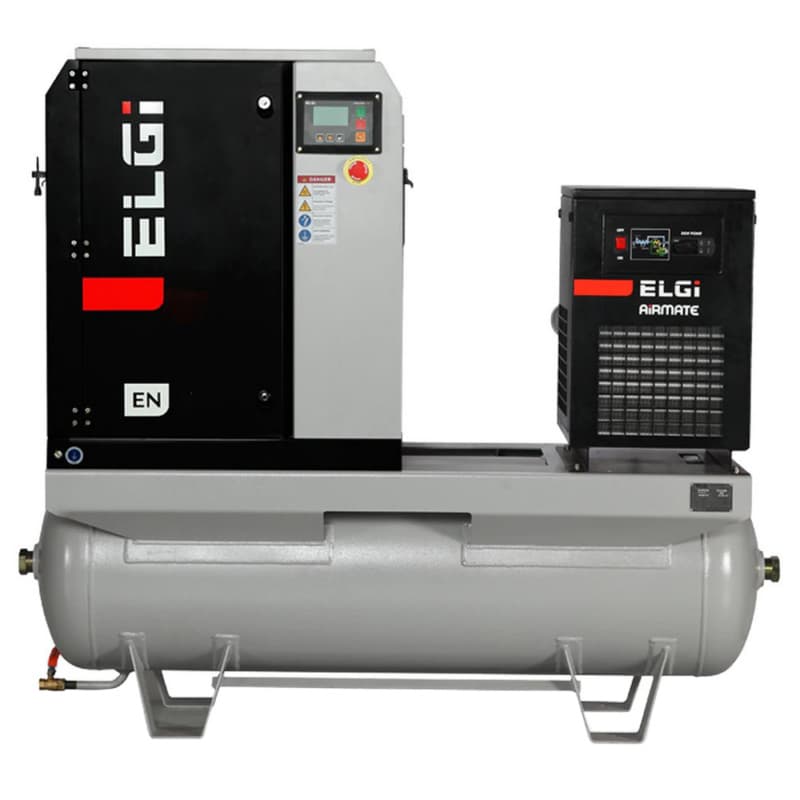

Presenting ELGi's EN Series screw air compressors, a compact approach to delivering more value, and more uptime for your investment. Packed full of performance, the EN Series uses the world-class technology found in our large, industrial grade compressors. This includes proprietary air ends, air after coolers, and electronic controllers. The EN Series integrates major systems such as the air intake system, compression system and oil separation system into one robust, encapsulated system, energy saving system that keeps your business running smoothly, efficiently and profitably.
ELGi's EN Series screw compressors are designed to encapsulate all functional components of the compressor within a common housing. With a small footprint, high reliability and low maintenance requirements, these compressors are ideal for industrial applications where size, efficiency and cost matter.
Features:
Best in class rotary screw air compressor
• Built for food processing, paper, automotive, small machining & fabrication workshops
Thermo-zone layout design
• Designed into 4 zones for sensitive components to run cooler
• Twin cooling fans for maximum cooling capacity and efficiency
• 2-piece, oversized, air cooled oil cooler and after cooler for high ambient applications
Exclusive ELGi air end
• 2-stage heavy duty inlet air filter complete with pre-filter mat for extended life
• Integrated air intake valve, solenoid, safety, minimum pressure, thermostatic, oil drain & blow down valves
High efficiency premium belt drive TEFC motor
• Units electrical voltage default is 230 volt
• Complete with class F insulation, reserve power & tensioning adjustments
• All electrical components are UL/cUL certified to withstand severe conditions
Zero leaks
• Encapsulated design features internal ports and O-ring sealed flanges for leak-free performance
Heavy-duty full enclosure with best in class sounds levels
• Allows for installation closer to point-of-use
• Complete with powder coated panels with 3 service doors
State of the art neuron controller
• Easy-to-use service indications, fault alarms, hour master indicators and safety shut-downs help ensure maximum uptime
Built-in refrigerant air dryer
• Prevents rust in compressed air piping & avoids damage to air tools
• Cools the compressed air and removes the water before it enters your network
120 gallon air tank
• 100% duty cycle produces steady air flow, day in, day out
• Manual drain reduces moisture build-up to avoid rust & prolong life
3 Stage oil separation system < 3PPM
• High capacity spin on 10 micron oil filter element
• Factory fill with 8,000-hour life premium synthetic lubricant
• ELGi's unique Oil Separation By Impact and Deceleration action efficiently separates oil & air
Applications:
• Automotive Repair
• Machining and Fabrication Workshops
• HVAC Controls
• Assembly Lines
• Food Industry
Technical Specs:
• Length: 74"
• Depth: 36"
• Height: 68"
• CFM Rated: 125 PSI
• Capacity: 55 CFM
• Voltage: 208-230/460 Volt AC
• Pump Type: Rotary
• Pump Drive: Belt Drive
• Tank Size: 120 gallon
• Oil System: Splash Lubricated
• Tank Outlet: 3/8"
• Tank Orientation: Horizontal
