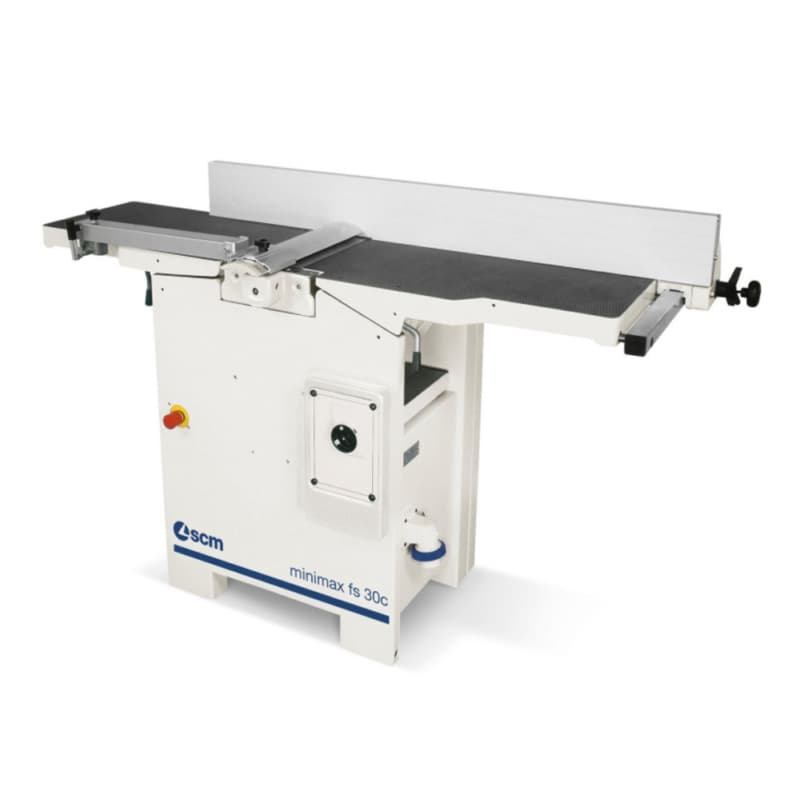

SCM Minimax FS 30C 12" Jointer/Planer with Xylent Helical Cutter Head 4.8HP

The jointer/planer combination machine for the D.I.Y. woodworkers and craftsmen joineries.

This machine offers premium power and precision in a compact size for any shop. With long jointer tables and sturdy fence, this machine is a quality product, made in Italy, for a value price.

STANDARD FEATURES

• - 4.8 Horsepower single-phase motor

• - 12" Jointer/planer cutterblock

• - 60" Jointer table length

• - Precision-ground cast iron tables

• - American-style jointer guard

• - Quick-tilting jointer fence

• - Jointer tables open away from operator

• - Two independent dust collection ports

• - Tool set & owner’s manual

• - Xylent helical cutterhead

• The Minimax FS 30C comes with an American-style spring-loaded jointer guard.

TECHNICAL SPECIFICATIONS
JOINTER SPECS

Overall Table Length

59.75" (1510mm)

Maximum Jointing Width

12" (300mm)

Cutterhead Speed

5,200 rpm

Maximum Stock Removal

0.16” (4mm)

Fence Tilt

0° - 45°

PLANER SPECS

Table Size

12" x 22” (300mm x 585mm)

Min./Max. Working Thickness

0.12" / 9.0” (3mm / 230mm)

Maximum Stock Removal

0.16” (4mm)

Feed Speed

23 fpm

ELECTRICAL

Single-Phase Motor, 230v

4.8 Hp

Weight

595 lbs

Dust Extraction Port Diameter

4.75” (120mm)

Minimum Recommended Dust Extraction Volume

600 cfm
