Jet Tools 710701K DC-1200VX-BK1 Dust Collector 2HP Single Phase 230V with 30 Micron Bag Filter Kit
This item may incur additional shipping costs and lead times.
Product Details

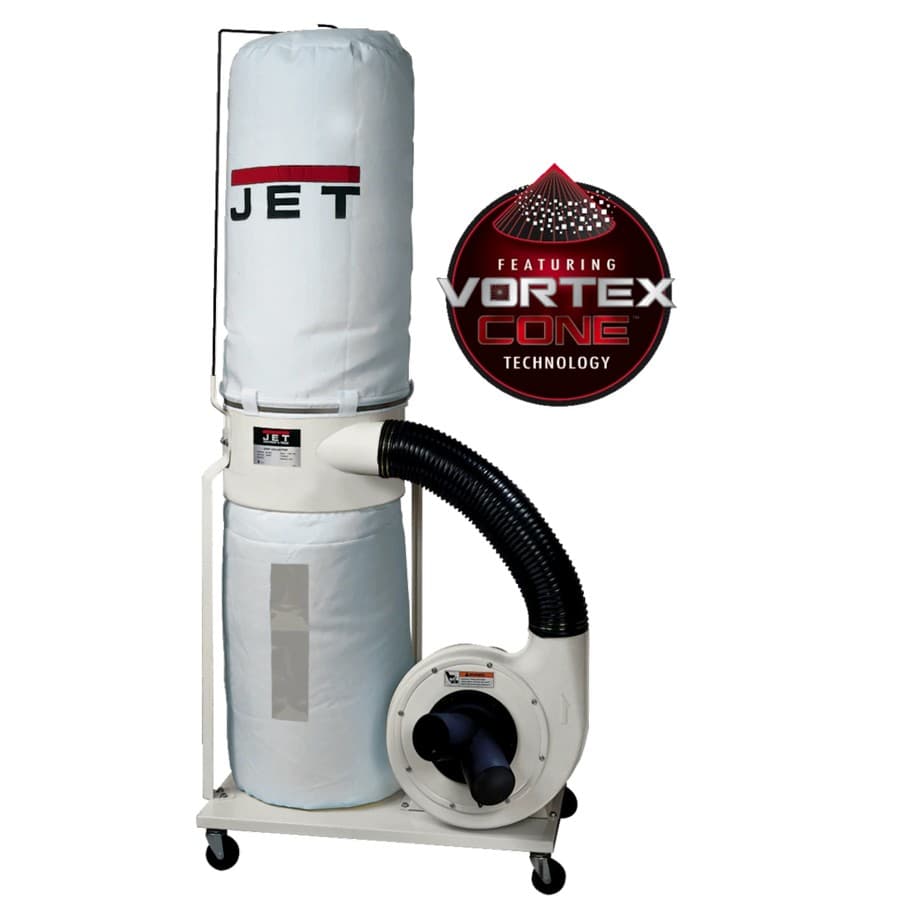

The JET DC-1200VX features the exclusive Vortex Cone which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The high air velocity (CFM) stands up to any competitive specifications, and the industrial controls are designed for years of durable use. Collection bags have a snap ring for fast installation and removal. Casters offer maneuverability within the shop.
- Eliminates premature filter clogging for sustained performance
- High air velocity (CFM) design stands up to any competitive specifications
- Includes four casters for maneuverability and total portability
- Industrial controls designed for years of trouble-free use
- Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
- Quick-connect collection bags with elastic band for fast, easy installation and removal
- Single-stage design for economical and quiet operation
- Vortex Cone improves chip separation and collector bag packing efficiency
Specifications
Air Flow @ 4" (CFM) - 1200
Style (Type) - Bag
Velocity @ 4" (FPM) - 13,745
Static Pressure (Wc.) - 11-1/2
Efficiency (Micron) - 30
Bag Diameter (In.) - 20
Collection Bag Capacity (Cu. Ft.) - 5-3/10
Collection Bag Length (In.) - 29
Impeller Diameter (In.) - 12
Sound Rating (Db.) - 80 - 85
Impeller Material - Steel
Motor Power (HP) - 2
1-Hose Connection Diameter (In.) - 6
2-Hoses Connection Diameter (In.) - 4
Motor Voltage (V.) - 230
Prewired Voltage (V.) - 230
Motor Amps - 8
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Product Type | Dust Collector |
| Length | |
| Material | |
| Width | |
| Height | |
| Finish | |
| Motor Voltage (V.) | 230 |
| Motor Current (Amps) | 8 |
| Motor Phase | Single Phase |
| Motor Power (HP) | 2 |
| Warranty | 5 Year |
| Main Inlet Diameter | |
| Connector Inlet Diameter | |
| Bag Volume | 5-3/10 Cubic Feet |
| Static Pressure of Water | 11-1/2" |
| Top Bags | |
| Bottom Bags | |
| Noise Level | 80-85 Decibels |
