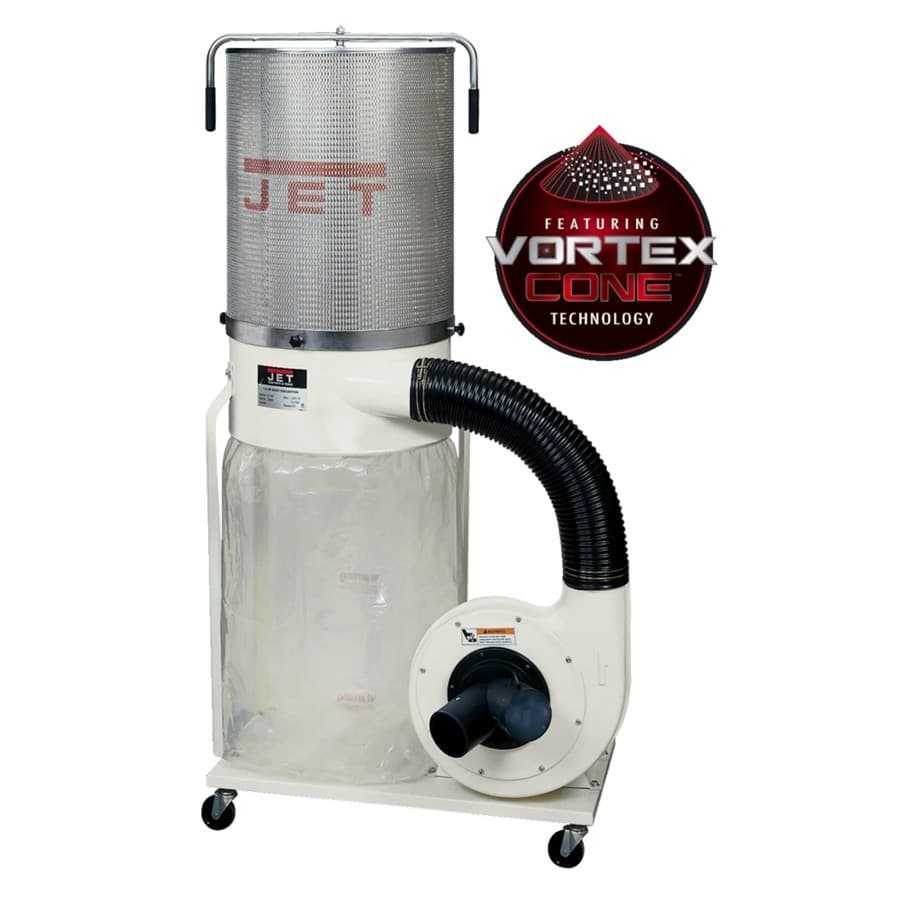

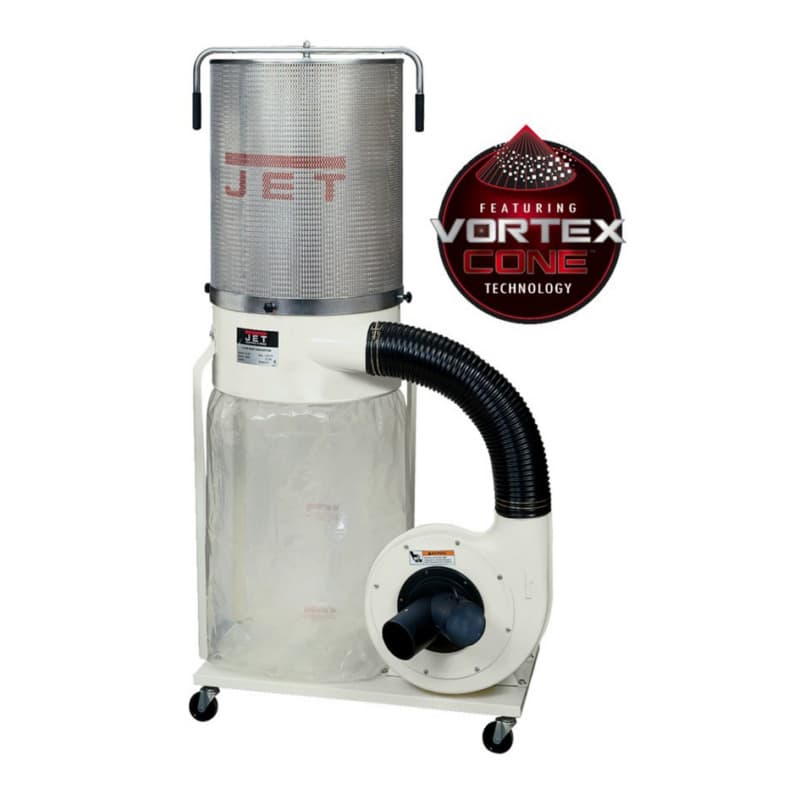

Jet Tools 710704K DC-1200VX-CK3 Dust Collector with 2-Micron Canister Kit 2HP Three Phase 230/460V
This item may incur additional shipping costs and lead times.
Product Details
The JET® DC-1200VX features the exclusive Vortex Cone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The high air velocity (CFM) stands up to any competitive specifications, and the industrial controls are designed for years of durable use. Collection bags have a snap ring for fast installation and removal. Casters offer maneuverability within the shop.
FEATURES
- Eliminates premature filter clogging for sustained performance
- High air velocity (CFM) design stands up to any competitive specifications
- Includes four casters for maneuverability and total portability
- Industrial controls designed for years of trouble-free use
- Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
- Quick-connect collection bags with elastic band for fast, easy installation and removal
- Single-stage design for economical and quiet operation
- Vortex Cone improves chip separation and collector bag packing efficiency
SPECIFICATIONS
Air Flow @ 4" (CFM) - 1200
Style (Type) - Canister
Velocity @ 4" (FPM) - 13,745
Static Pressure (Wc.) - 11-1/2
Efficiency (Micron) - 2
Bag Diameter (In.) - 20
Collection Bag Capacity (Cu. Ft.) - 5-3/10
Collection Bag Length (In.) - 29
Impeller Diameter (In.) - 12
Sound Rating (Db.) - 80 - 85
Impeller Material - Steel
Motor Power (HP) - 2
1-Hose Connection Diameter (In.) - 6
2-Hoses Connection Diameter (In.) - 4
Prewired Voltage (V.) - 230
Motor Amps - 6/3
This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
This product can expose you to chemicals including Lead, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Product Type | Dust Collector |
| Power | |
| Frequency | |
| Capacity | |
| Finish | |
| Drum Speed | |
| Blade Diameter | |
| Tank Storage | |
| Speed | |
| Maximum Cutting Length | |
| Maximum Width | |
| Motor Power | |
| Maximum Pressure | |
| Pump Up Time | |
| Arbor Diameter | |
| Arbor | |
| Width | |
| Height | |
| Drive Motor | |
| Belt Size | |
| Depth | |
| Motor Phase | |
| Horsepower | |
| Phase | |
| Range of Speeds | |
| Length | |
| Voltage | |
| Backing Material | |
| Material | |
| Recovery Time |
