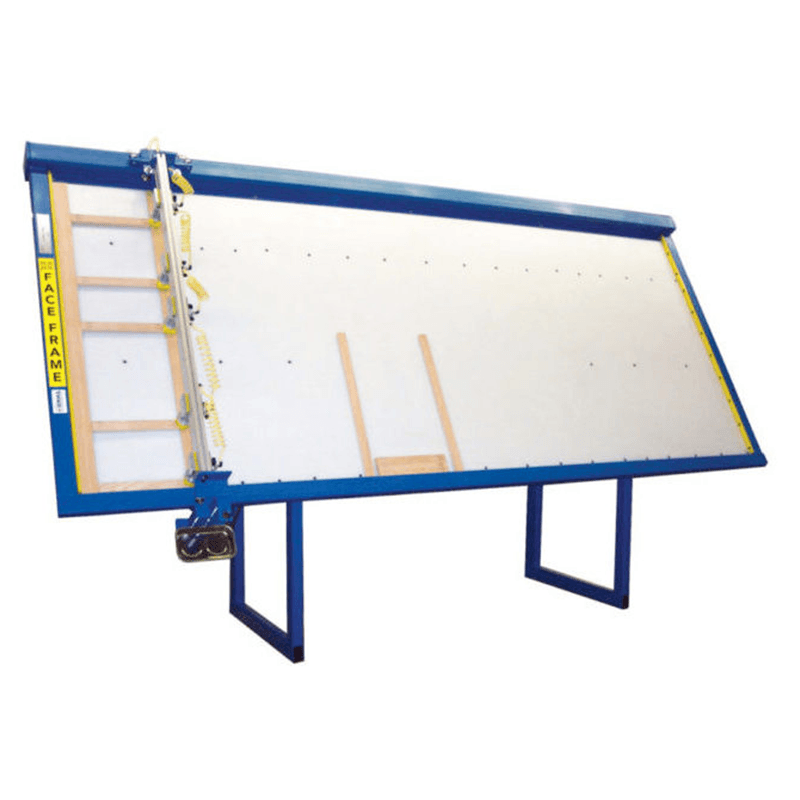

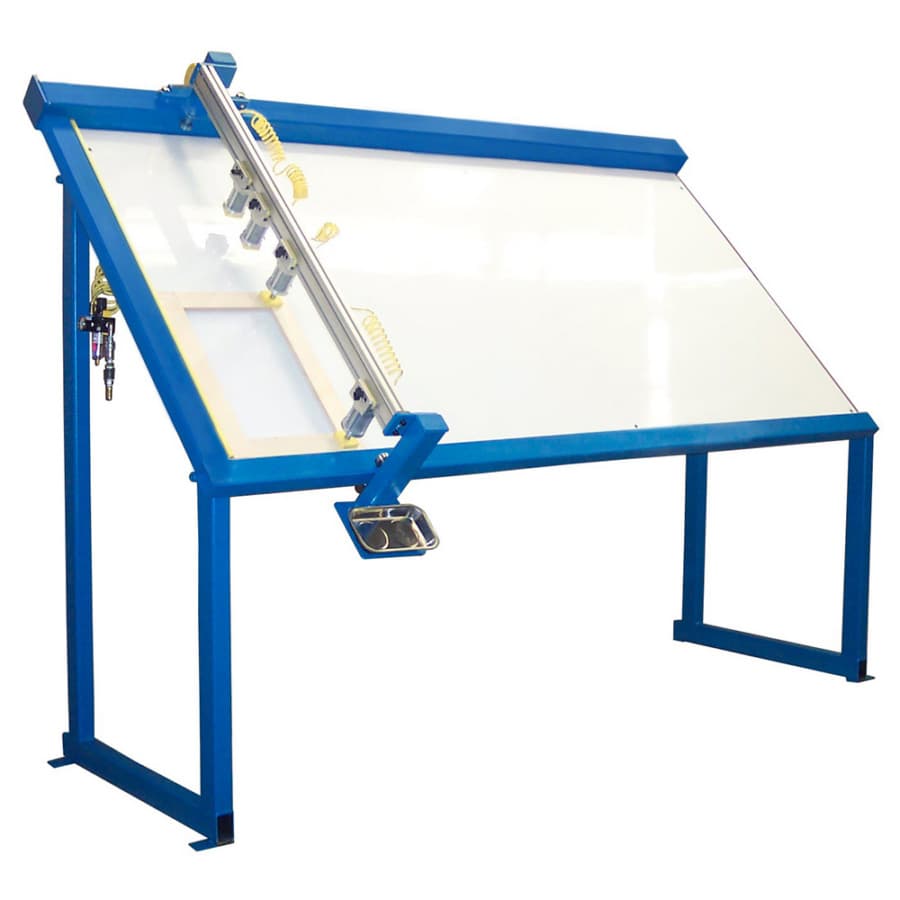

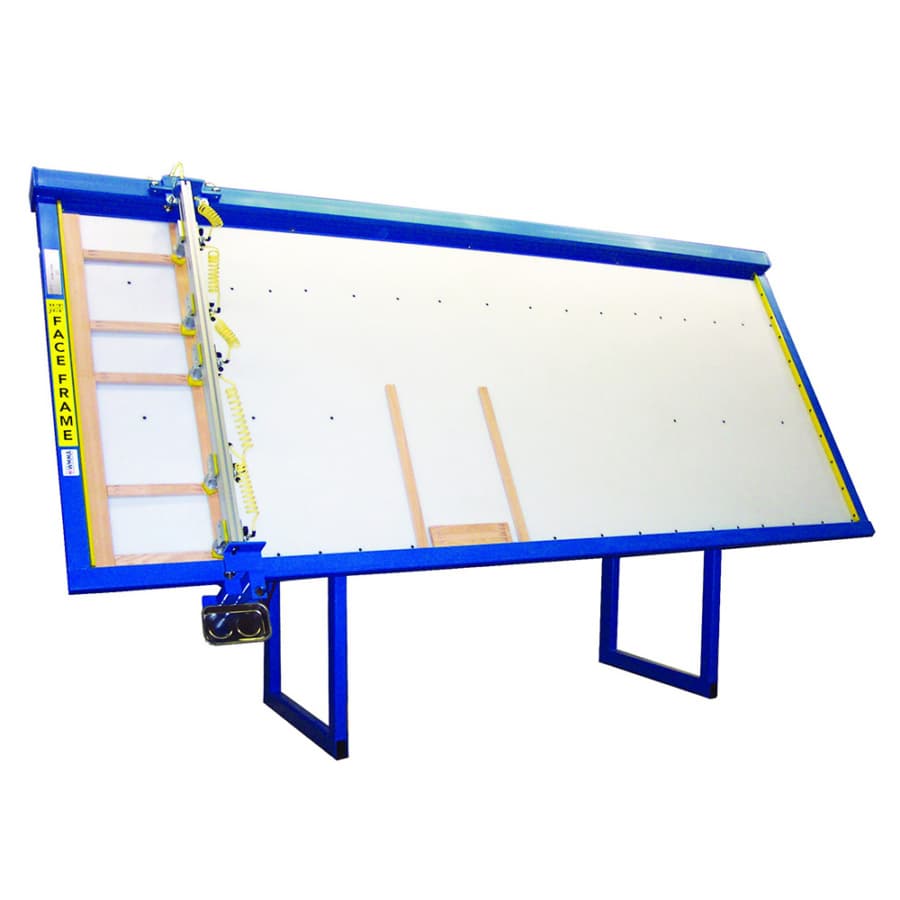

5' x 8' Pneumatic Face Frame Table

Item # JLT720A-8W
Mfr # 720A-8W
Jlt Clamps 5x8 Pneumatic Face Frame Table, 25% more area for oversized assemblies, new welded frame and backing sheets prevent warping, melamine surface for easy layup, adjustable clamping pistons.

This item may incur additional shipping costs and lead times.

Product Details

Features:
• The base model has a 5' x 8' layup surface; 25% more area than the typical 4'x8' face frame table
• Open end to handle oversized face frame assemblies
• Extra clamping arms can be purchased separately to make layup easier
• Newly designed welded main frame and backing sheets prevent warping. Makes for the best face frame layup surface
• New Melamine wrapped backed surface will hold up to daily use, resist PLA glue adhesion, and provides a smooth layup surface
• Easily replaced if damaged
• Innovative Vertical Pressure Arm with ball bearing roller assemblies provide smooth movement on the clamping arm
• Master Switch, a single pneumatic lever action allows the operator to toggle all (5) clamping pistons from one control
• Individual levers are still reserved if necessary
• The clamping pistons (air cylinders) are completely adjustable
• They easily slide into position and lock in place with a twist handle

Specifications

Box Quantity1
Length
Product TypeFace Frame Table
Width8'
Material
Color
Height5'
Model
Finish
