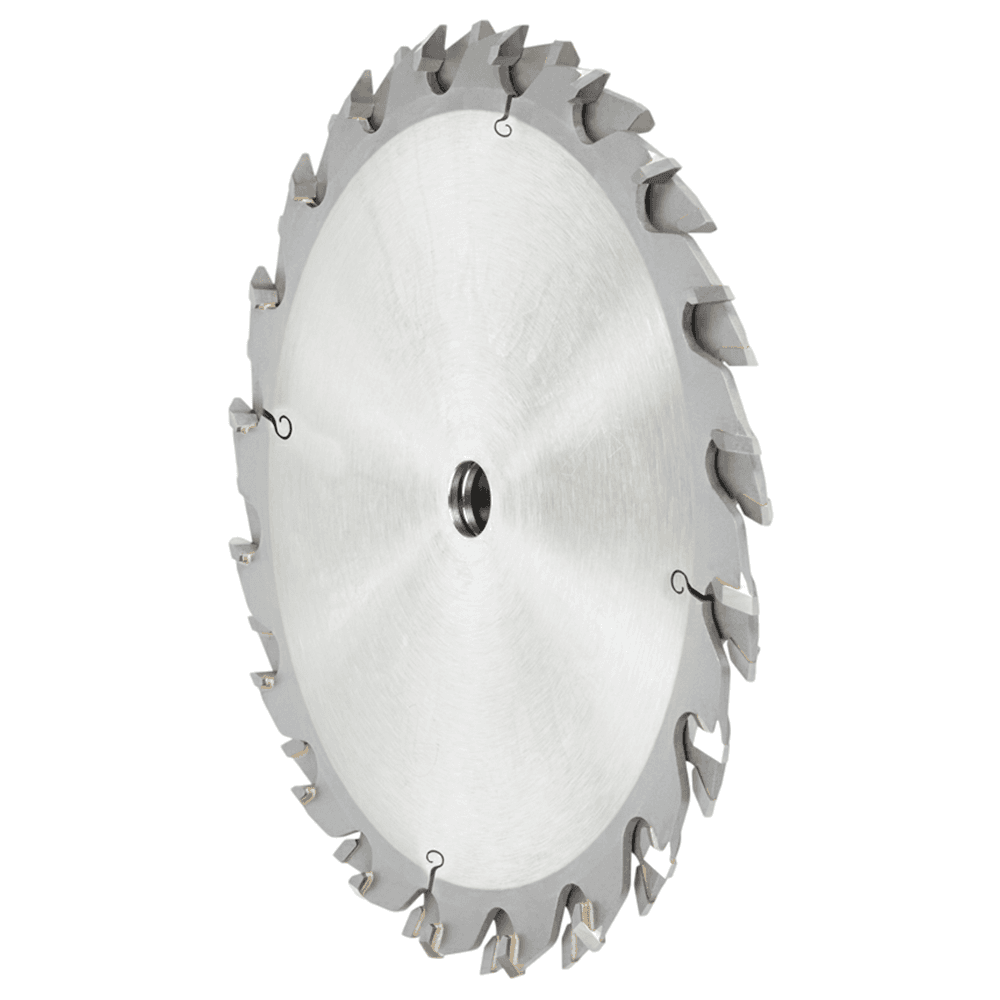

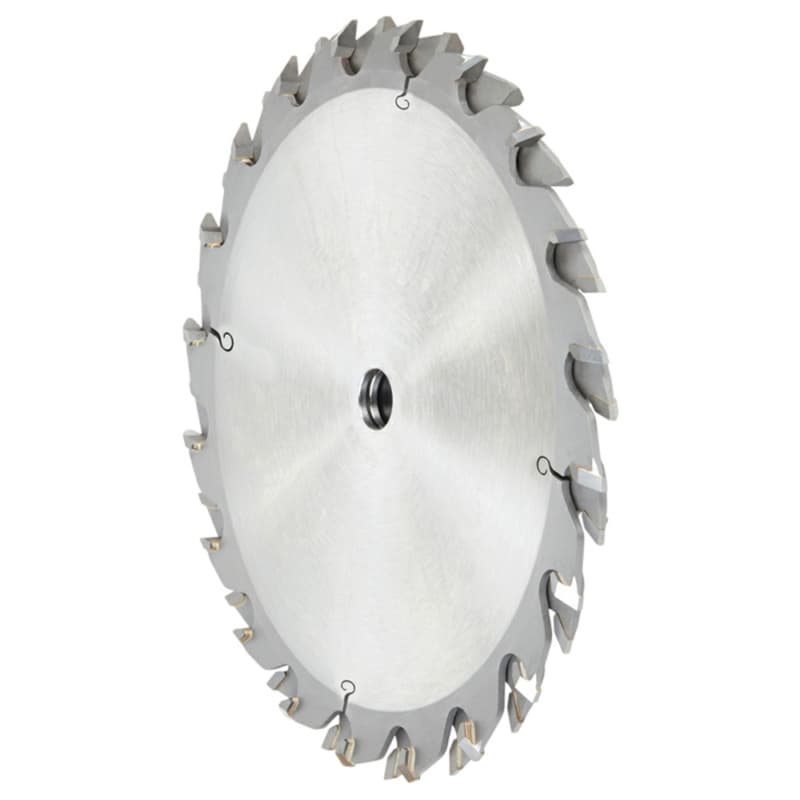

8" Dia x 2 x 20 Teeth Carbide Tipped Adjustable ACM Scoring Set, 5/8 Bore Saw Blade
Product Details

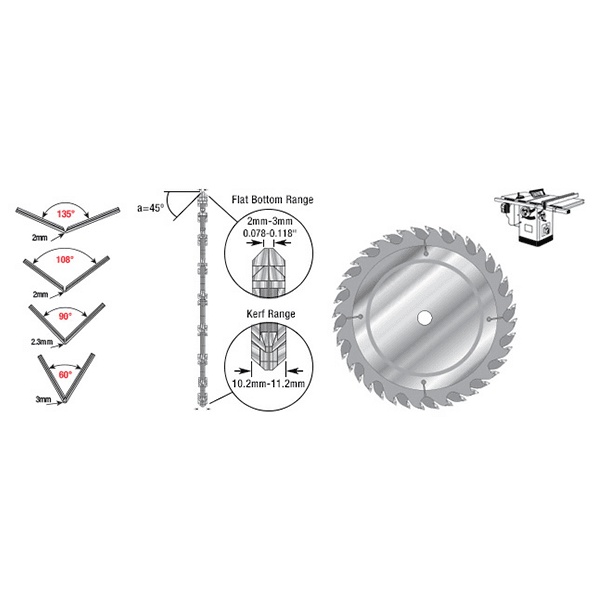

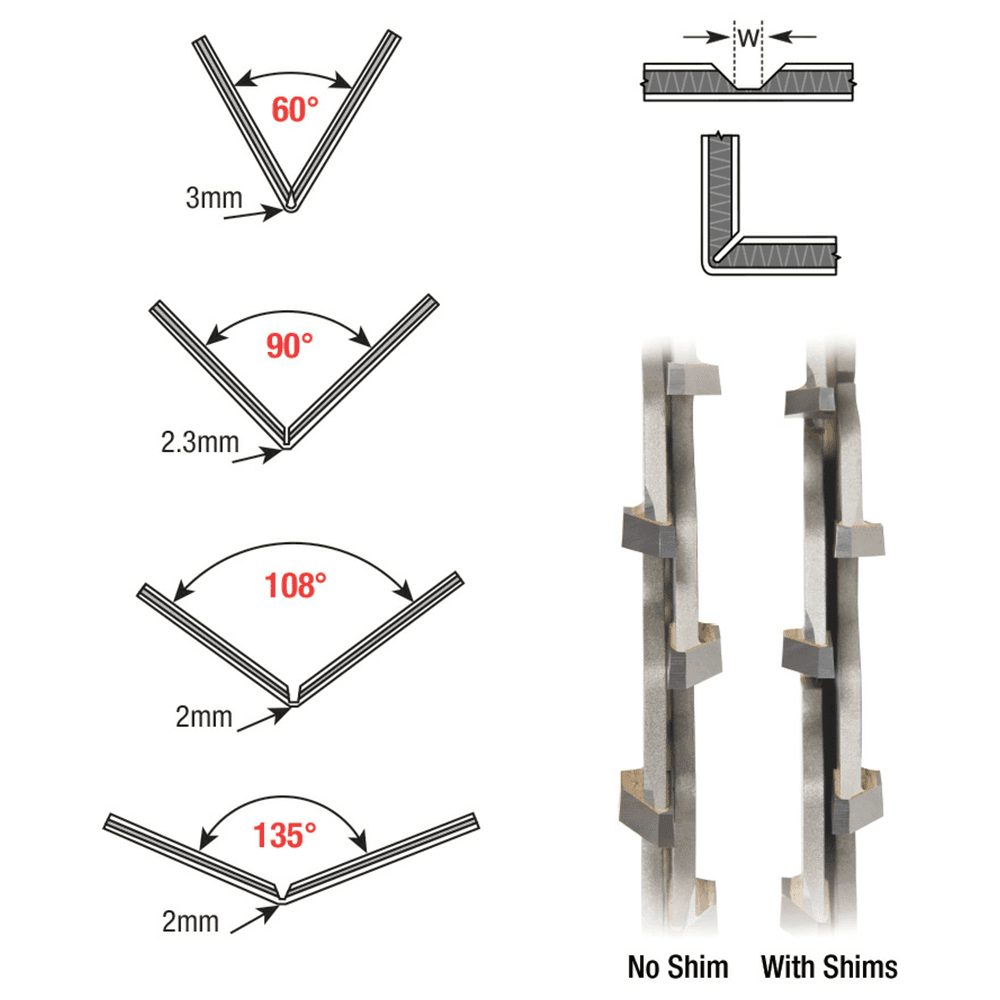

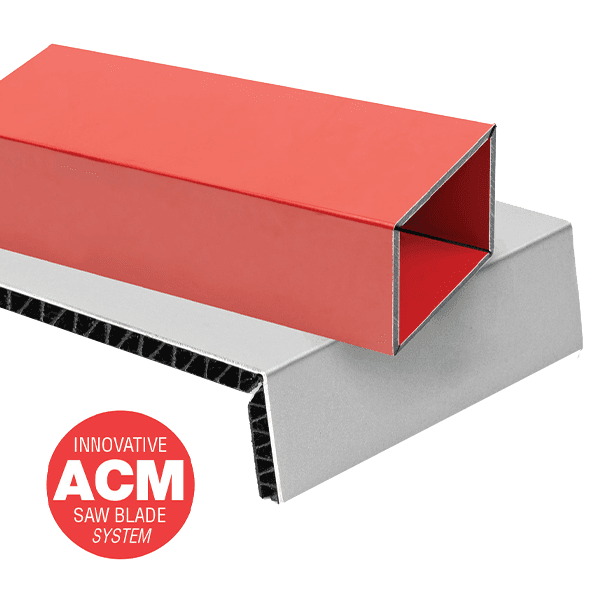

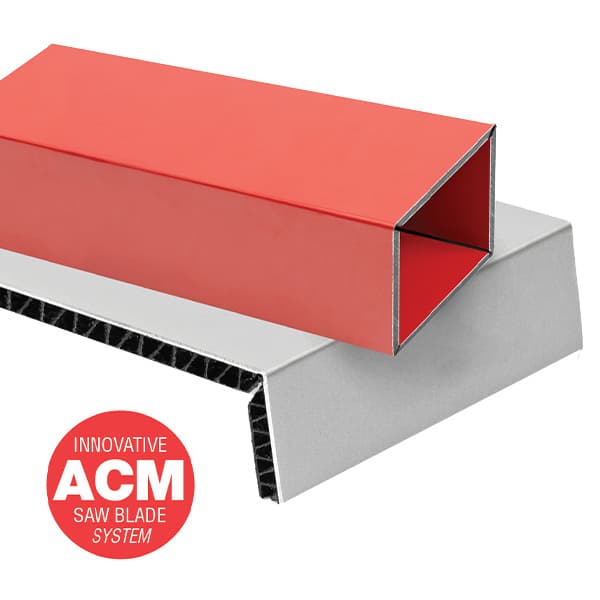

This set contains two carbide tipped saw blades and a shim set. This unique system can be widely used for scoring many cladding materials (wall coverings) such as Alucobond, Alupanel, Dibond, ALPOLIC CCM, Trespa, Durabond and more. The materials are used on facades and interior wall surfaces that can be found in office buildings, hospitals, convention centers, airports and hotels, along with exterior signage. ACP is a type of ACM flat panel that consists of two thin aluminum sheets bonded to a non-aluminum core. ACPs are frequently used for external cladding or facades of buildings, insulation, and signage. Durabond is a polyethylene core with 0.3mm colored aluminum sheet on either side, pre-finished requiring no decoration. Features: • Cutting V-shaped grooves with flat bottoms, whereby the aluminum cover and a part of the core is removed, allows for folding the remaining material by hand • Warning - This set requires a custom zero clearance throat plate • Warning - Not to be used with portable saws Adjustable Scoring Set Designed for Cutting Angled Cuts with Flat Bottoms in Aluminum/Non-Ferrous/Plastics Composite Sandwich Materials Such As: • Aluminum, Clay, Zinc and Wood Composite Panels • Aluminum Composite Materials (ACM) • Aluminum Composite Panel (ACP) • ALPOLIC Copper Composite Material (CCM) • Alucobond • Alupanel • Dibond • Durabond • e-panel • Etalbond • Titanium Composite Material (TCM) • Trespa
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Box Quantity | 1 |
| Product Type | |
| Application | |
| Arbor | |
| Blade Diameter | 8" |
| Blade Type | Saw Blade |
| Blade Material | Carbide Tipped |
| Kerf | 10.2-11.2mm |
| Number of Teeth | 2x20 |
| Bore Diameter | 5/8" |
| Hook Angle | 18° |
| Tooth Grind Type | ACM |
