6" Dia x 5 Teeth Insert Carbide ACM 90° Double Edge V-Scoring, 5/8" Bore Saw Blade
Product Details

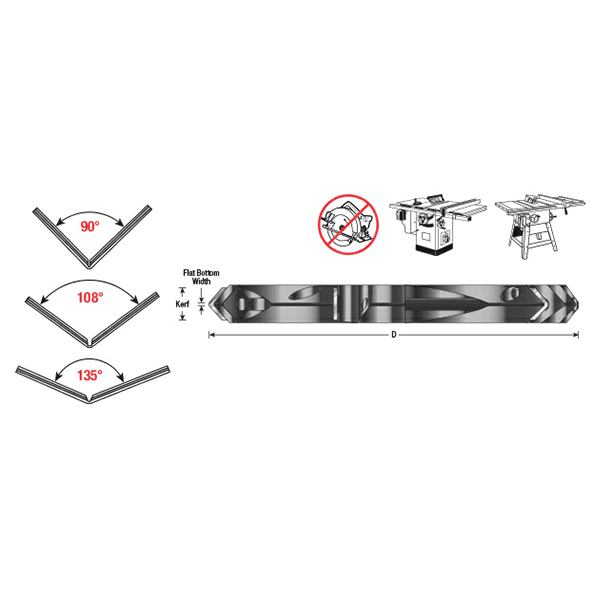

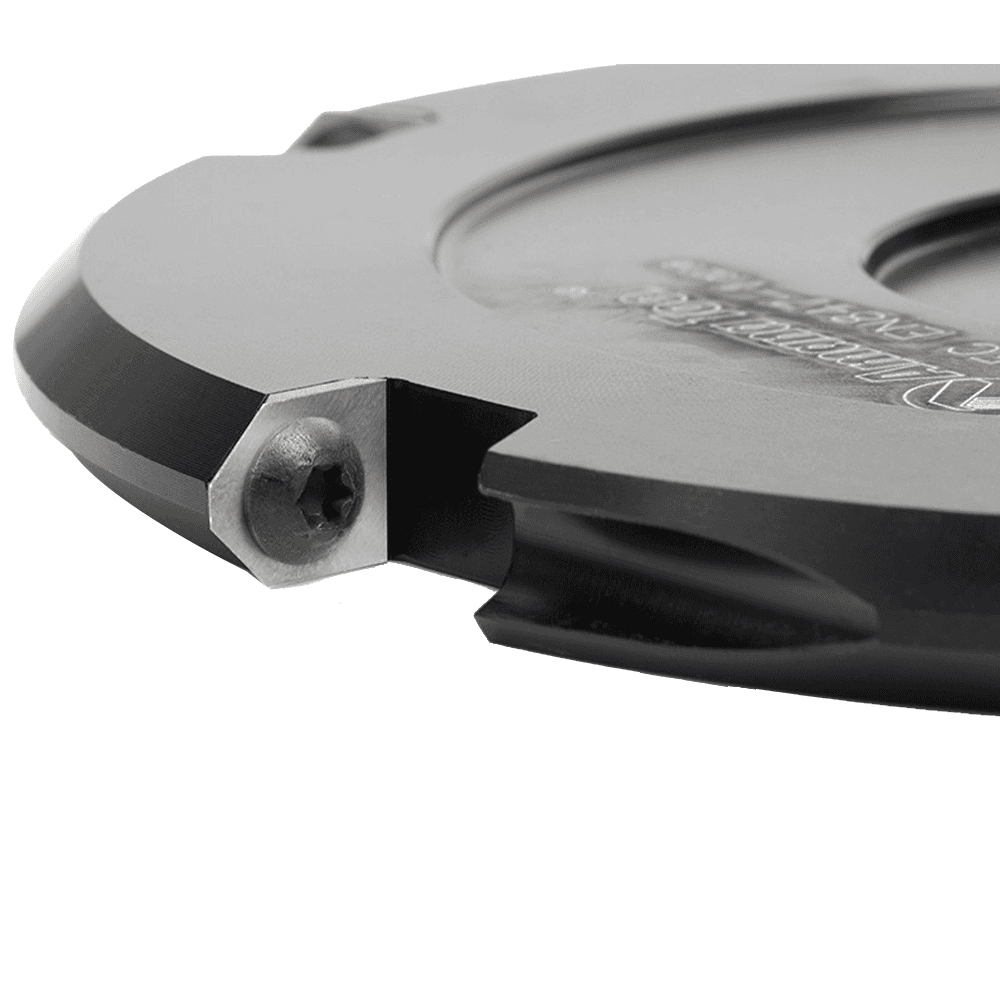

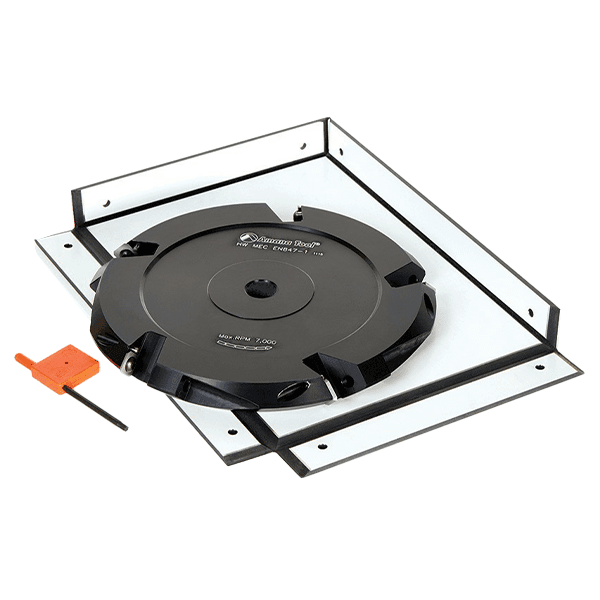

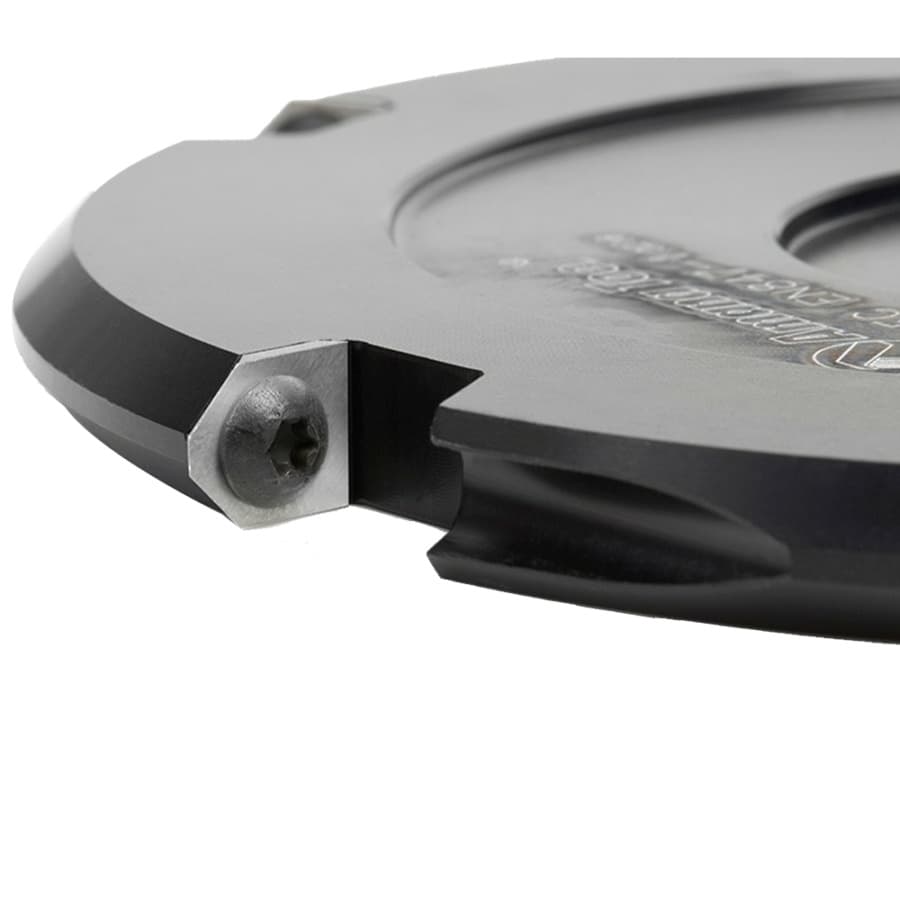

Features: • Designed for scoring Aluminum Composite (sandwich) Materials with 90° angle V-groove with flat bottom. Widely used for cladding many diverse exterior and interior applications. The long lasting durablility of the material makes it an excellent choice for buildings, signage, displays, etc. Utilizes 4-sided carbide inserts • ACP is a type of ACM flat panel that consists of two thin aluminum sheets bonded to a non-aluminum core. ACPs are frequently used for external cladding or facades of buildings, insulation, and signage. Durabond is a polyethylene core with 0.3mm • colored aluminum sheet on either side, pre-finished requiring no decoration • Warning - This set requires a custom zero clearance throat plate • Warning - Not to be used with portable saws V-Scoring Blade Designed for Cutting Angled Cuts with Flat Bottoms in Aluminum/Non-Ferrous/Plastics Composite Sandwich Materials Such As: • Aluminum, Clay, Zinc and Wood Composite Panels • Aluminum Composite Materials (ACM) • Aluminum Composite Panel (ACP) • ALPOLIC Copper Composite Material (CCM) • Alucobond • Alupanel • Dibond • Durabond • e-panel • Etalbond • Phenolics • Plastic/Acrylic • Plexiglas • Titanium Composite Material (TCM) • Wood
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Specifications
| Box Quantity | 1 |
| Product Type | |
| Application | |
| Arbor | |
| Blade Diameter | 6" |
| Blade Type | Saw Blade |
| Blade Material | Carbide Tipped |
| Kerf | 25/64 |
| Number of Teeth | 5 |
| Bore Diameter | 5/8" |
| Hook Angle | |
| Tooth Grind Type | ACM |
