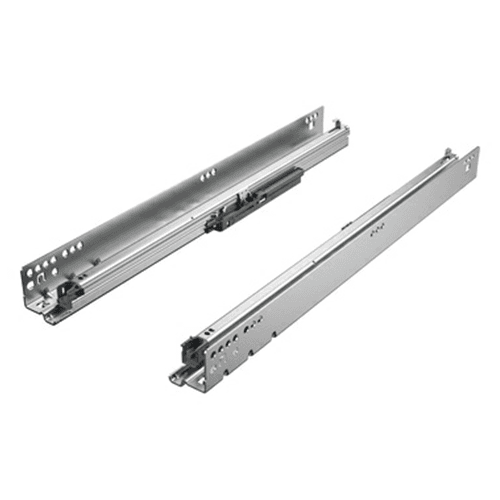

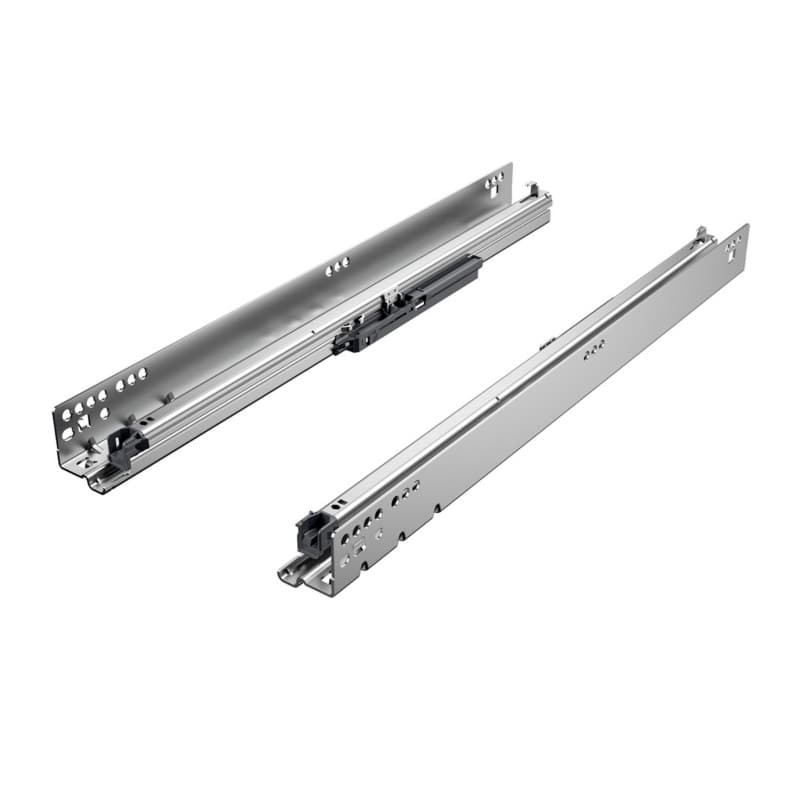

9" Quadro 2D V6 IW9 Undermount Left Drawer Slide for Faceframe/Frameless Application, 90lb Capacity Full Extension with Push-to-Open (20/Box)
Left or Right: Left
Product Details
Features: • 9" Quadro 2D V6 IW21 Undermount Drawer Slide for Wooden Drawers, 90lb Capacity Full Extension with Silent System, Left • Slide on installation with front mounted fixing clips and tool-less height adjustment • Integrated Silent System • With fixing tab • Side adjustment up to +/- 2 mm with 2D front panel connector clips • For drawer sides in a thickness of 5/8" (16 mm) • For framed or frameless front panel applications • Meets or exceeds the requirements under ANSI/BHMA 156.9, grade 1 • Load capacity up to 90 lb (dynamic) as per ANSI/BHMA 156.9 grade 1 specification on a 21" length slide • Galvanized steel, suitable for rooms exposed to moisture • For narrow applications
Specifications
| Box Quantity | 1 |
| Length | |
| Finish | Galvanized Steel |
| Drawer Length | 9" |
| Closing Type | Push-to-Open |
| Model | |
| Load Capacity | 90lb |
| Travel | Full Extension |
| Product Type | Drawer Slide |
| Left or Right | Left |
| Cabinet Type | Face Frame/Frameless |
| Mounting Type | Under Mount |
| Material | |
| Slide Type | |
| Height | |
| Certifications | |
| Width | |
| Material Thickness | |
| Cabinet Width | |
| Thickness | 5/8" |
| Overlay |
