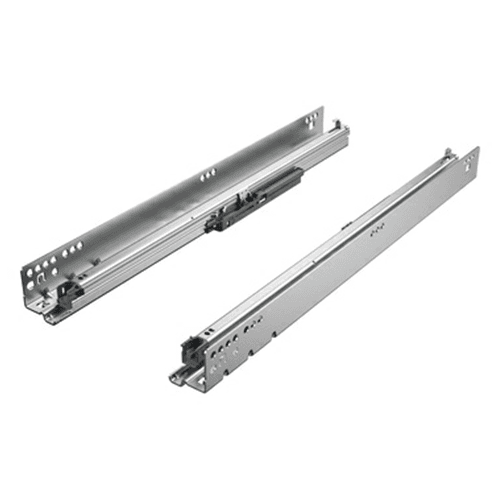

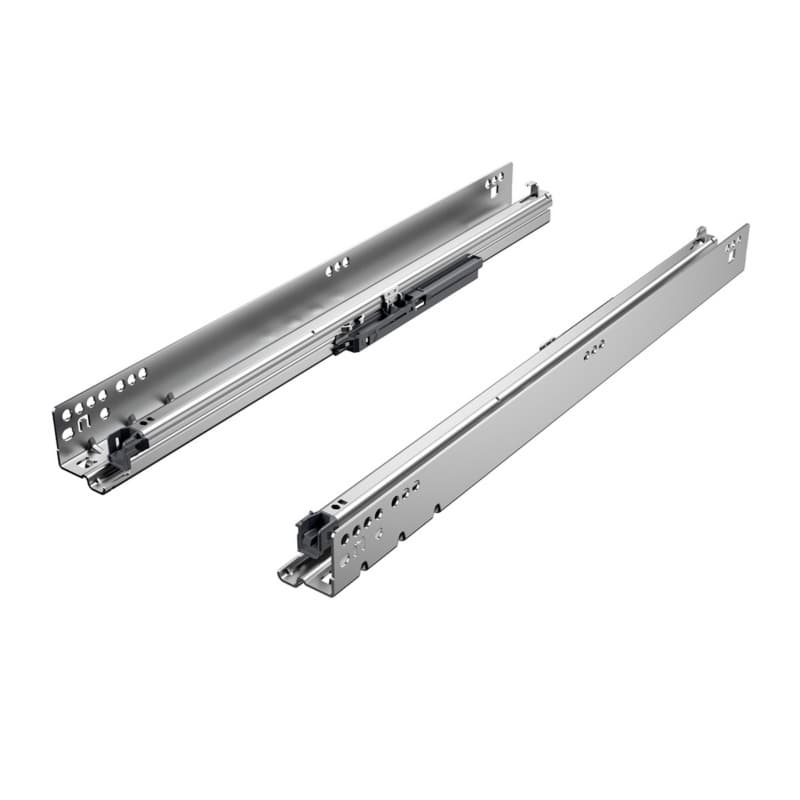

21" Quadro 2D V6 IW21 Undermount Drawer Slide for Faceframe/Frameless Application, 90lb Capacity Full Extension with Push-to-Open (5/Box)
5 items
25 items
200 items
Drawer Length: 21"
Product Details
Features: • Slide on installation with catches and tool-less drawer adjustment • Integrated damping system Silent System • Optionally upgradeable with Push to open Silent: convenient opening mechanism in combination with silent and soft closing; upgradeable with synchronization • Side adjustment up to +/- 2 mm with 2D front fixing clips • For 1/2" (13 mm) or 5/8" (16 mm) drawers side thickness • For face frame or frameless applications • Meets or exceeds ANSI/BHMA 156.9 grade 1 requirements • Load capacity up to 90 lb dynamic (100 lb static), as per ANSI/BHMA 156.9 grade 1 specification on a 21" length slide • Galvanized steel, suitable for rooms exposed to moisture • For narrow applications
Specifications
| Box Quantity | 5 |
| Length | |
| Finish | Galvanized Steel |
| Drawer Length | 21" |
| Closing Type | Push-to-Open |
| Model | |
| Load Capacity | 90lb |
| Travel | Full Extension |
| Product Type | Drawer Slide |
| Left or Right | Both |
| Cabinet Type | Face Frame/Frameless |
| Mounting Type | Under Mount |
| Material | |
| Slide Type | |
| Height | |
| Certifications | |
| Width | |
| Material Thickness | |
| Cabinet Width | |
| Thickness | 5/8" |
| Overlay |
