21" Quadro 2D V6 IW21 Undermount Drawer Slide for Wooden Drawers, 90lb Capacity Full Extension with Silent System Soft-Closing

Item # HET9304282
Mfr # 9304282

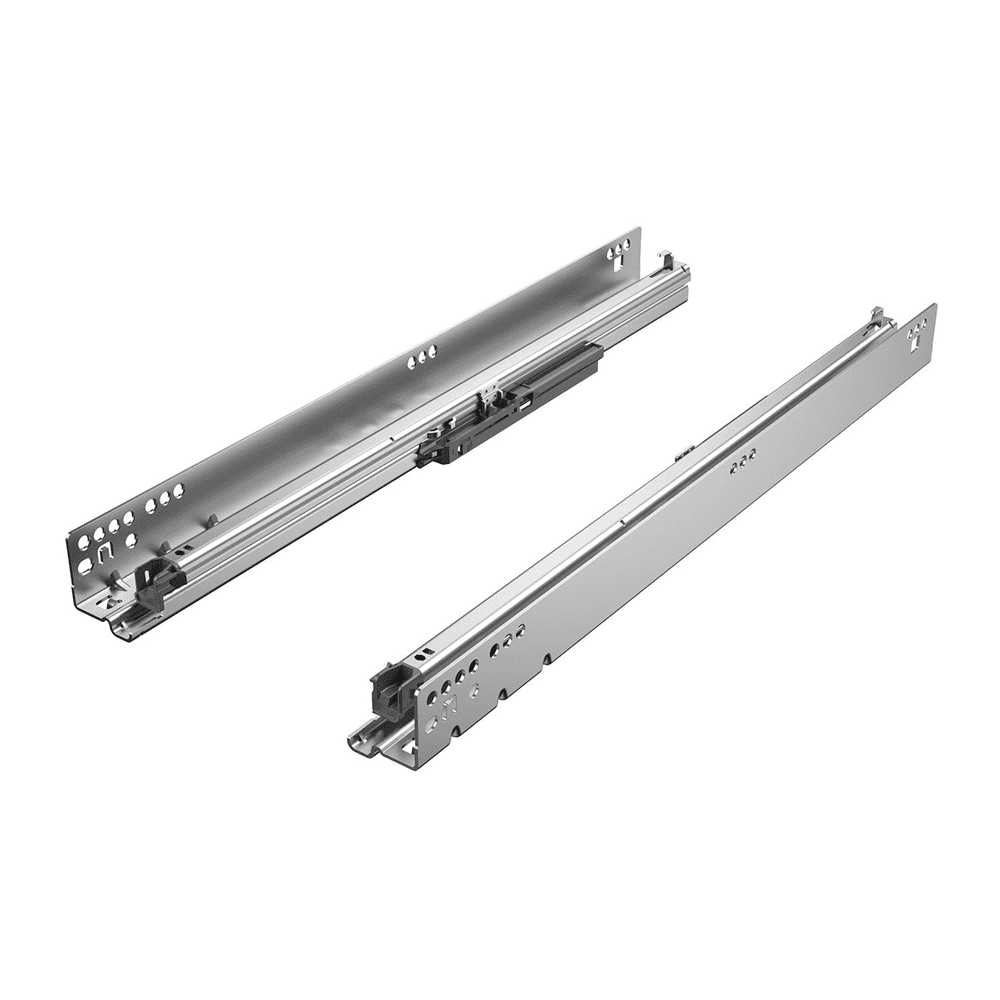

Quadro 2D V6 IW21 Main image

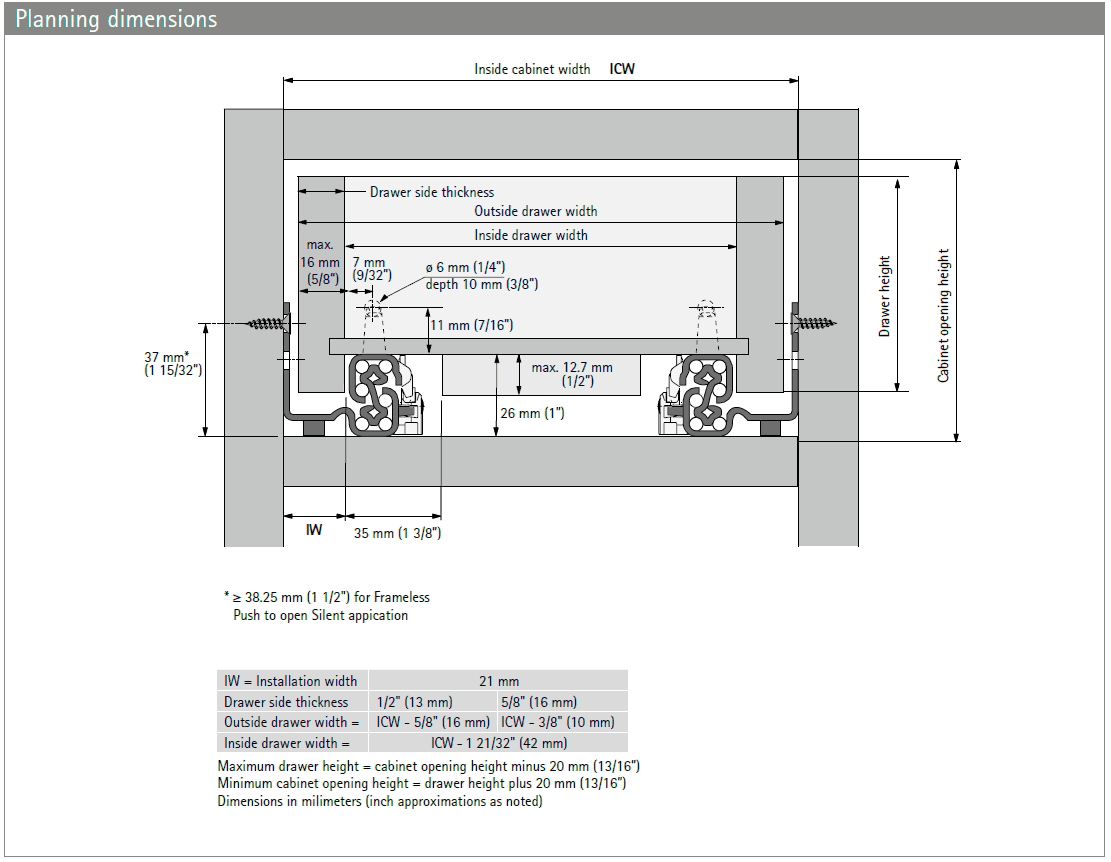

Quadro 2D V6 IW21 Planning Dimensions

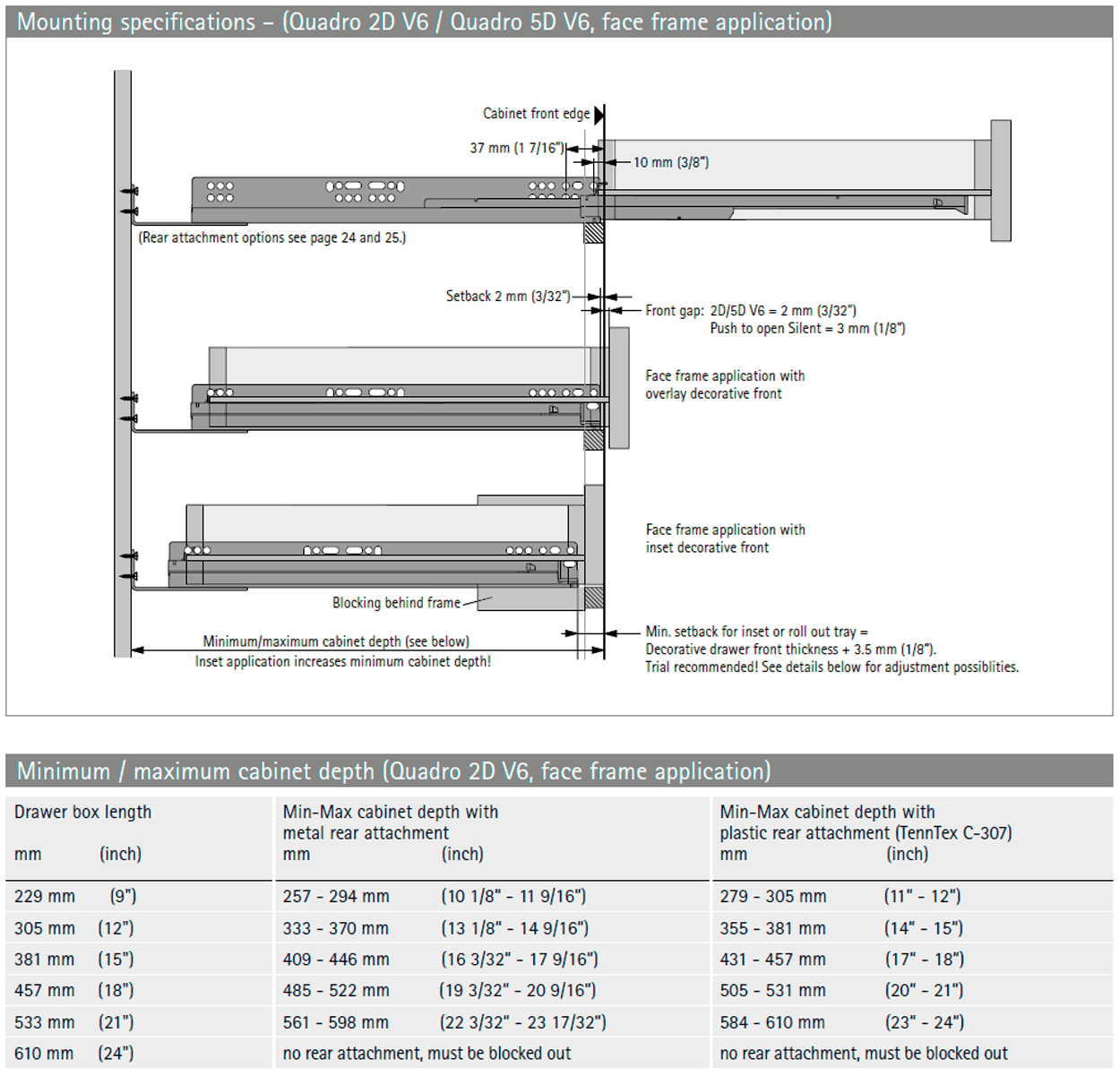

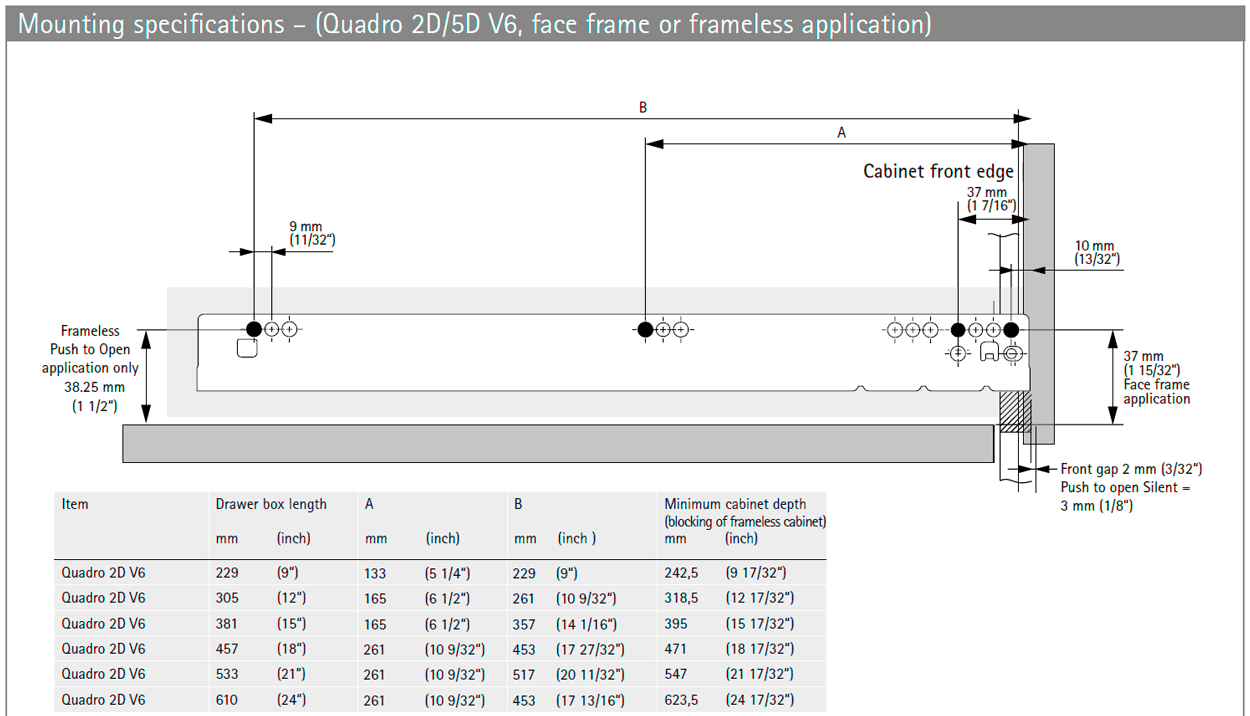

Quadro 2D V6 IW21 Face Frame or Frameless Mounting Specifications
Quadro 2D V6 IW21 Frameless Mounting Specifications
$19.46
/Pair
5 items
$19.02/Pair
25 items
$18.80/Pair
200 items
$18.47/Pair

Drawer Length: 21"

Qty /
Min Order: 1
Qty mult. by: 1

Product Details

Quadro 2D V6 IW21 Full Extension Undermount Slides with Silent System Soft-Closing for Drawer Thickness up to 5/8"


Quadro drawer slides guarantee the ultimate in drawer convenience: attractive design through concealed installation, long service life and unceasing top performance.
Precision ball bearing construction, for perfect andlateral stability.
The optional Silent System gently shuts drawers in complete silence.


Features:

  • Slide on installation with catches and tool-less drawer adjustment
  • Side adjustment up to +/- 2 mm with 2D front fixing clips
  • Optionally upgradeable with Push to open Silent: convenient opening mechanism in combination with silent and soft closing;
    upgradeable with synchronization
  • Meets or exceeds ANSI / BHMA 156.9 grade 1 requirements
  • Load capacity up to 90 lbs dynamic (100 lbs static), as per ANSI / BHMA 156.9 grade 1 specifications on a 21“ length slide
  • Galvanized steel, suitable for rooms exposed to moisture
  • For 1/2" (13 mm) or 5/8" (16 mm) drawer side thickness
  • For narrow applications

NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY

Specifications

Box Quantity5
Length
FinishGalvanized Steel
Drawer Length21"
Closing TypeSoft-Closing
ModelQuadro 2D V6 IW21
Load Capacity90lb
TravelFull Extension
Product TypeDrawer Slide
Left or RightBoth (Pair)
Cabinet Type
Mounting TypeUnder Mount
MaterialSteel
Slide Type
Height
CertificationsANSI/BHMA
Width
Material Thickness1/2" to 5/8"
Cabinet Width
Thickness
Overlay
