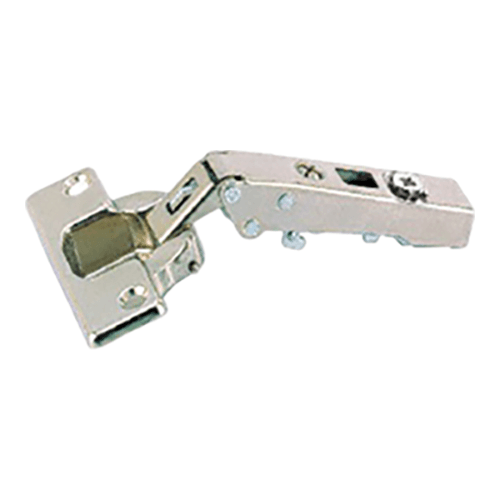

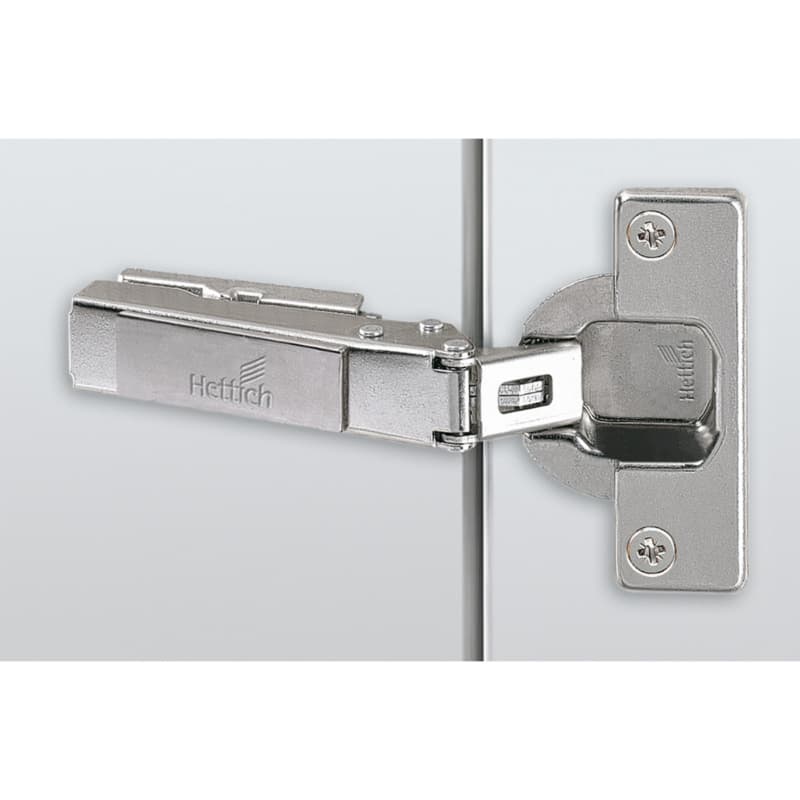

125° Opening Intermat Hinge Self-Closing, Overlay, Pressing-In Nickel-Plated (200/Box)
Product Details

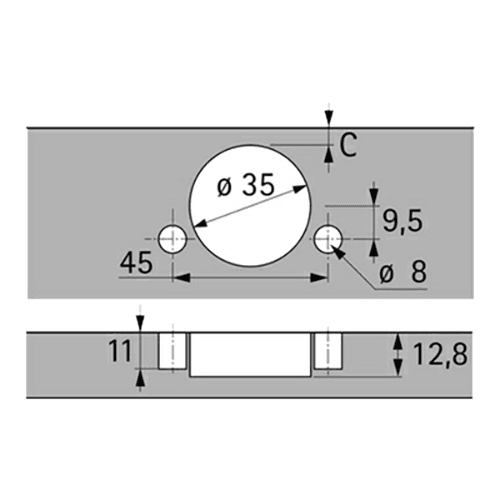

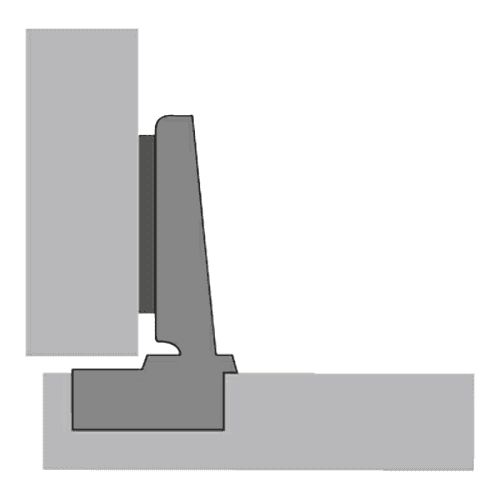

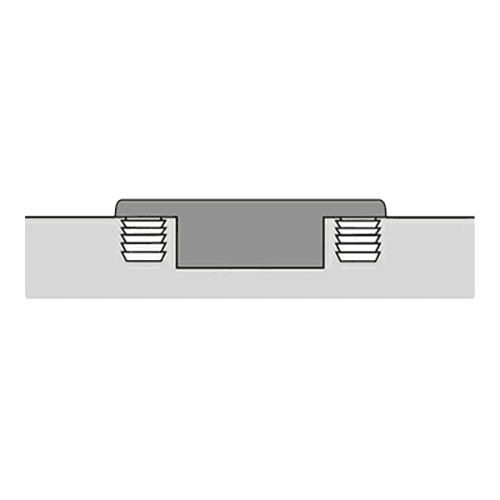

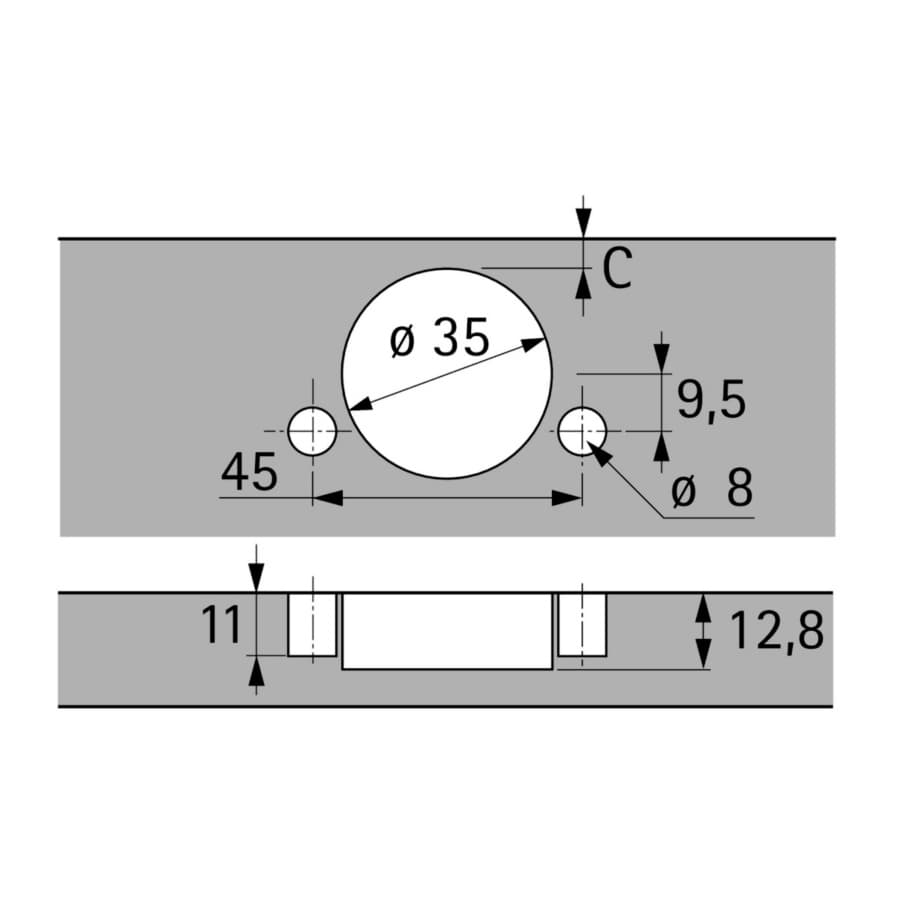

Features: • 125° Intermat hinge • With self closing feature (Intermat 9944) • Quality classification under EN 15570, Level 2 • Opening angle 125° • For door thickness 15 - 28 mm • Door mounting option overlay • TB - drilling pattern 45 x 9.5 mm • Cup depth 12.7 mm • Installation for pressing in • Integrated overlay adjustment +2 mm / -2 mm • Integrated depth adjustment +2 mm / -1.5 mm • Height adjustment at mounting plate • steel nickel plated
Specifications
| Box Quantity | 200 |
| Product Type | |
| Mounting Type | Pressing-In |
| Overlay | |
| Closing Type | Self-Closing |
| Opening Angle | 125° |
| Model | |
| Hinge Type | Intermat Hinge |
| Finish | Nickel Plated |
| Boring Pattern | |
| Cup Diameter | 35mm |
| Cup Depth | 12.7mm |
| Material | |
| Cabinet Type |
