Clamex P-10 52mm x 19mm x 9.7mm Interlocking Connector, Pair of 1000

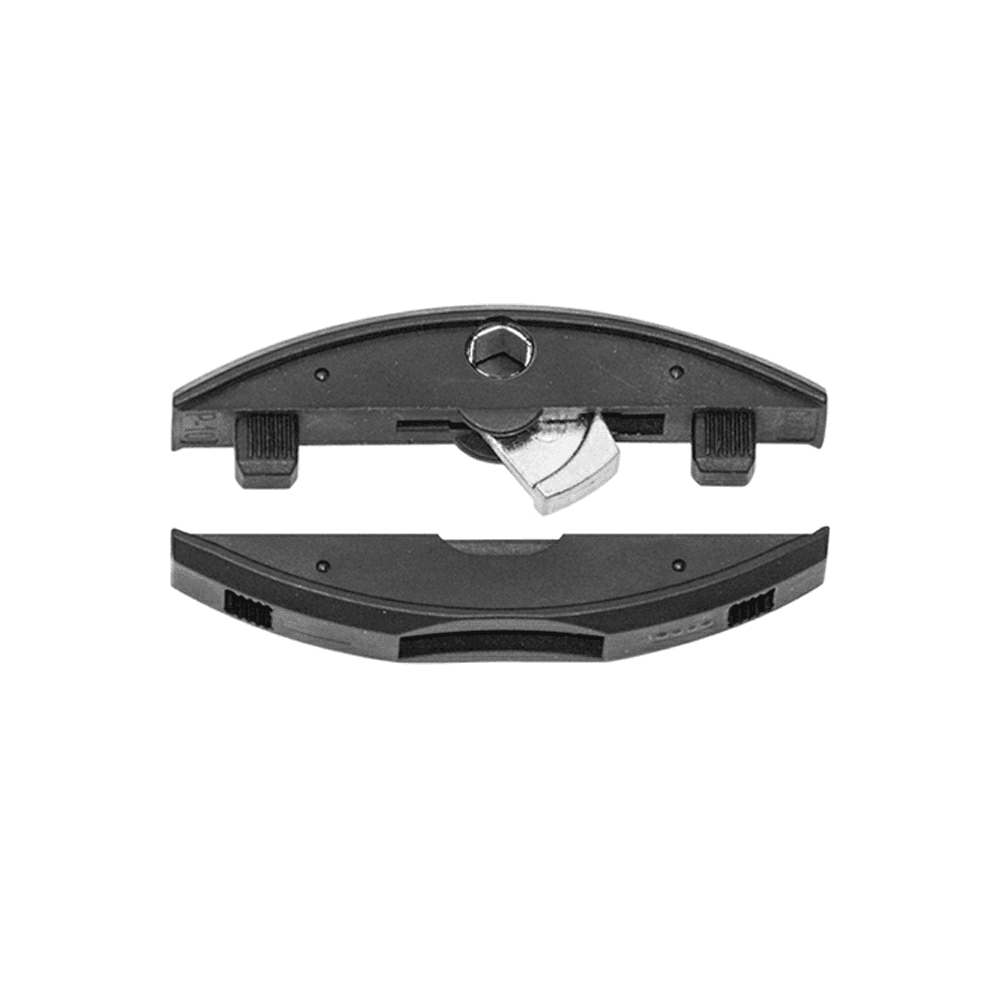

Clamex P-10 is a detachable connector and is anchored in the form-locking P-System groove within seconds. Through the minimalist 6 mm access hole, Clamex P-10 is firmly connected and disconnected using a lever. Clamex P-10 eliminates the need for glue, allows aesthetic joints at all angles and is ideal for permanently joined or detachable miters. Clamex P-10 is used on miter joints from 15mm material thickness and in butt joints from 12mm.

Benefits:
• Minimal installation depth for material as thin as 13mm (1/2") for surface or corner joints
• Detachable miter connector for 30?-180? angles in material thickness of at least 15mm (9/16")
• Nearly invisible with its 6 mm tool opening
• Fast tool-free installation of connectors
• Stackable for transport with connectors pre-installed
• High clamping force for gluing components at all angles
• Lateral tolerance for efficient installation with the Zeta P2 biscuit joiner or a CNC machine

Applications:
• Due to its small size, the Clamex P-10 can be used in 13mm materials such as plywood, solid surface or HPL as well as for miter joints in 16mm thick materials
• Ideal for miter joints in 16 mm panels for furniture making, shop fitting or kitchen manufacturing
• Detachable or fixed connecting fitting for toilet partition systems or caravan interiors using thin 13mm materials
• Gluing aid for miters and angle joints ranging from 30?-180?
• Aesthetic alternative to standard connecting fittings
• Rapid prototype construction before starting new furniture range
• On-site adjustments and assembly
