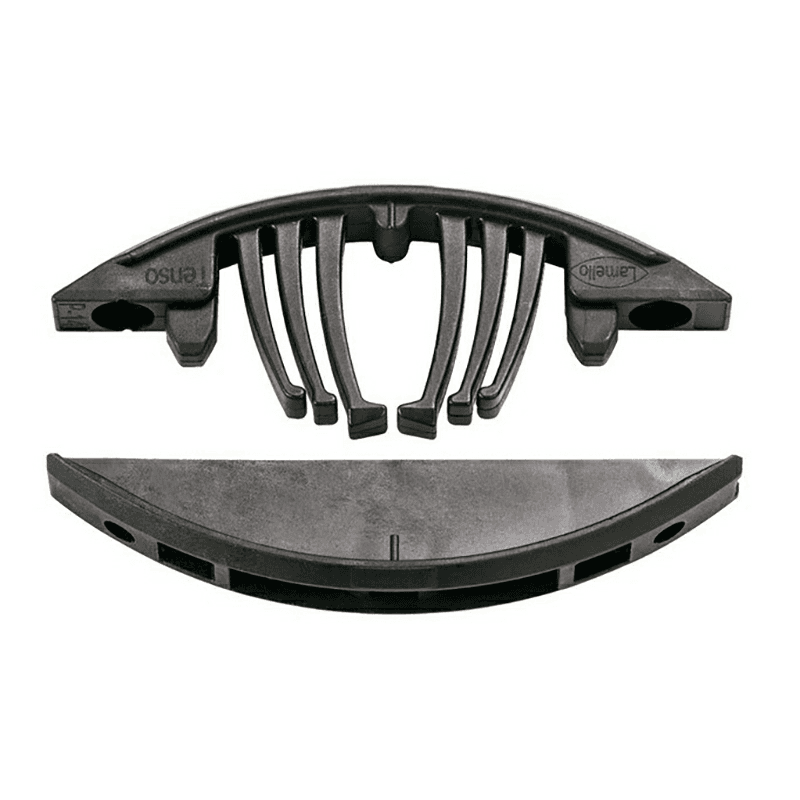

Tenso P-14 66mm x 27mm x 9.7mm Invisible Self-Clamping Connector for Gluing Materials, Pair of 1000

Tenso P-14 is a self-clamping gluing aid and is anchored in the form-locking P-System groove within seconds. The high clamping force of Tenso leads to perfectly clamped joints without the need for clamps or presses, regardless of the angle of the work pieces. Aesthetic joining is possible without visible connectors, with short assembly times and without the need to wait for the glue to dry. Tenso P-14 is used on miter joints from 18mm material thickness and in butt joints from 15mm.

Benefits:
• Concealed, self-clamping connector
• High level of clamping force
• For all angles
• Extremely fast, tool-free installation of connectors
• Stackable for transport, despite integrated connector
• Lateral tolerance for efficient installation with the Zeta P2 profile groove biscuit joiner or a CNC machine

Applications:
• The Tenso P-14 is primarily intended for any application where a clamped joint with adhesive will be used. Certain non-load-bearings like valances, toe kicks, scribes, or concealment panels are also great applications
• Along with standard furniture and cabinet constructions, popular applications for the Tenso P-14 also include bases, covers and other slotted connections. In addition, the Tenso P-14 is often used for pre-finished parts to prevent marks that are caused by the clamps used to force the parts together. The Tenso P-14 is also the perfect solution when it comes to connections that are difficult to clamp. It also allows excessive glue to be removed more conveniently
• Self-clamping gluing aid for furniture, shelving units, built-ins, kitchen cabinets, and face frames
• Clamping Connector for concealed corner joints
• Simpler and faster alternative to pipe and bar clamps
• Faster gluing process; work pieces may be stacked directly after gluing
• Application, adjustments and assembly are also possible on site
