Lamello 186311 Cabineo 8 Connectors for Center Panels White Box of 2000
Product Details
Cabineo

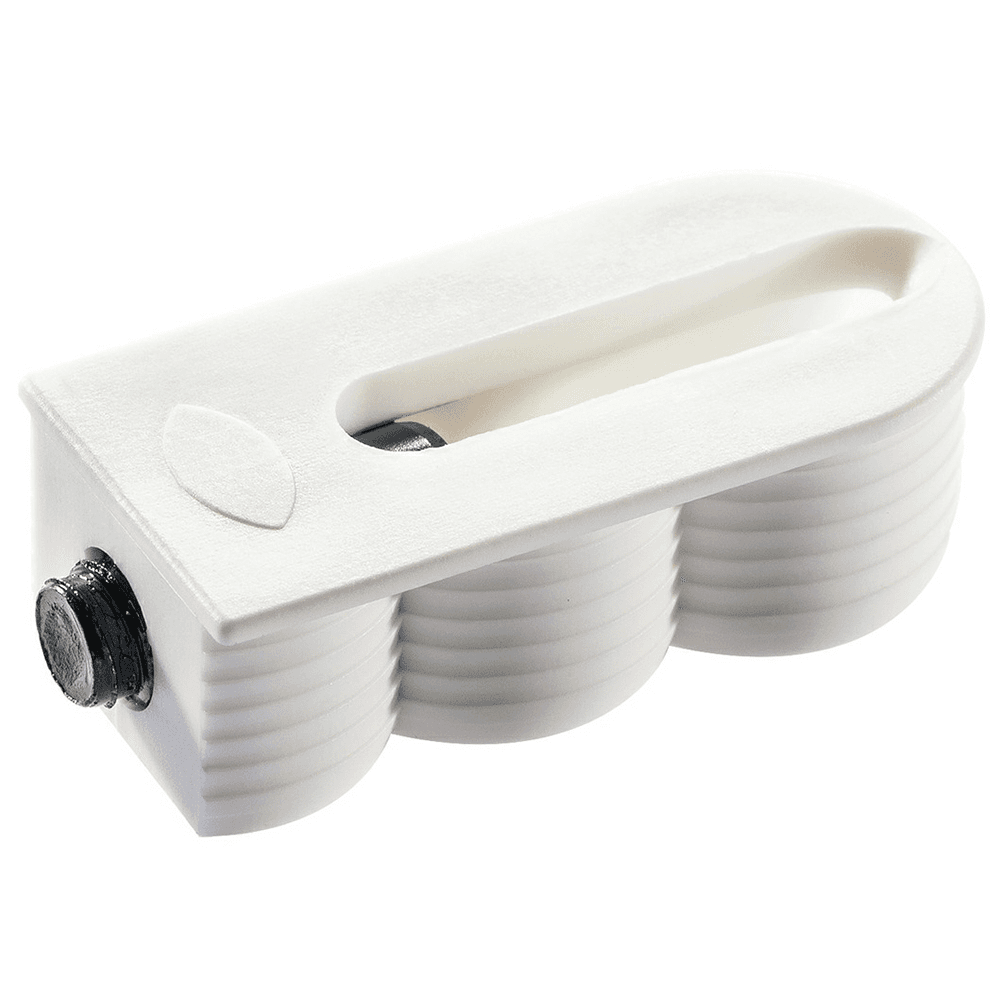

Cabineo is the newest connector from Lamello, and is an outstanding solution for cabinet shops and manufacturers using nested-based CNC routers. The toolpath may be quickly machined with a standard, straight-shank router bit without a tool change. The Cabineo connectors are simply tapped into the routed pocket and join cabinet components together by screwing into a mating 5mm shelf pin hole with nearly 200 pounds of clamping force. Cabineo may be covered with aesthetic cover caps, or parts may be inverted to allow for a completely invisible application. Because there is no pin or stud required with Cabineo, all components may be shipped to the jobsite as a true flat-pack, RTA solution. The M6 version of the Cabineo connector uses a metal helical insert or may be fastened directly into a tapped hole in metal furniture or fixture components.
More Advantages
- Installation of fixed shelves or vertical dividers in an already assembled unit
- Detachable for transport or if the fixed shelves need adjusting

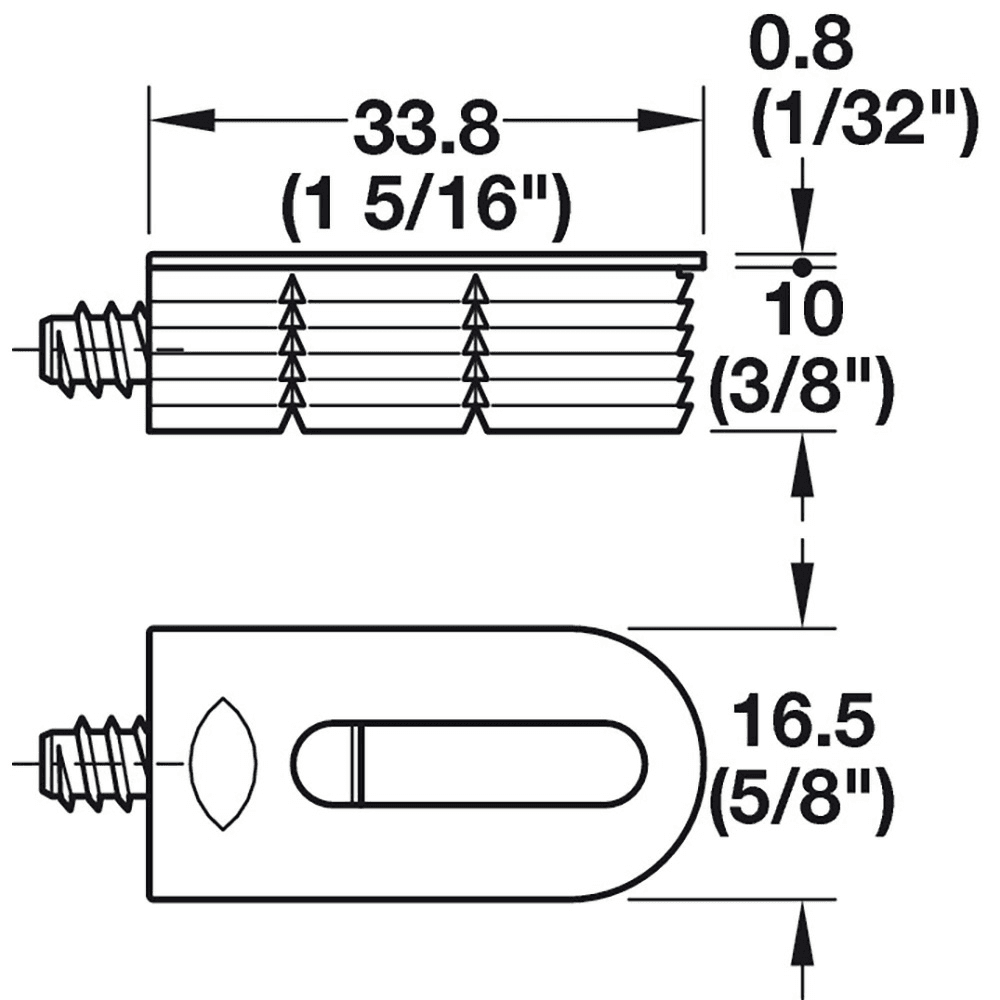

- Shallow element of 10 mm allows for panels from 12 mm thickness
- Corner joints with Cabineo 12 (drill hole Ø 5 × 12 mm)
- Dividing panel joints with Cabineo 8 (drill hole Ø 5 × 8 mm) from material thickness 16mm
- Use with or without cover caps. Cover caps are available in various colors
- Metal insert threaded version available for exceptionally strong connections or for wood-to-metal component connections
Benefits
Time-savings for the whole production process! Simple, Fast & Strong!
1. Time-saving in production
- Optimized process due to surface machining; no edge drilling necessary
- Only one tool change from 5 mm to 15 mm drill; or rout the profiled shape with no tool change - use a standard CNC spiral bit
- No dowel holes means less drill holes
2. Time-saving in transportation
- Efficient pre-installation of the one-piece connector in the factory
- Flat-Pack delivery with pre-installed connectors
- Connectors delivered installed in the workpiece; thus no hardware needs to be shipped separately
3. Time-saving in the assembly
- One-piece connector without dowels; no pre-assembly of screws or dowels in the side panels necessary
- Easy positioning in the drill hole due to the protruding screw
- Fast assembly with a cordless drill
Please be advised that product(s) you’re purchasing may have State of California Prop 65 warnings associated. For more information, go to www.P65Warnings.ca.gov
Specifications
| Box Quantity | 1 |
| Product Type | Connector |
| Length | |
| Finish | White |
| Diameter | |
| Panel Thickness | 16mm |
| Material | Plastic |
| Drilling Depth | |
| Drilling Distance |
