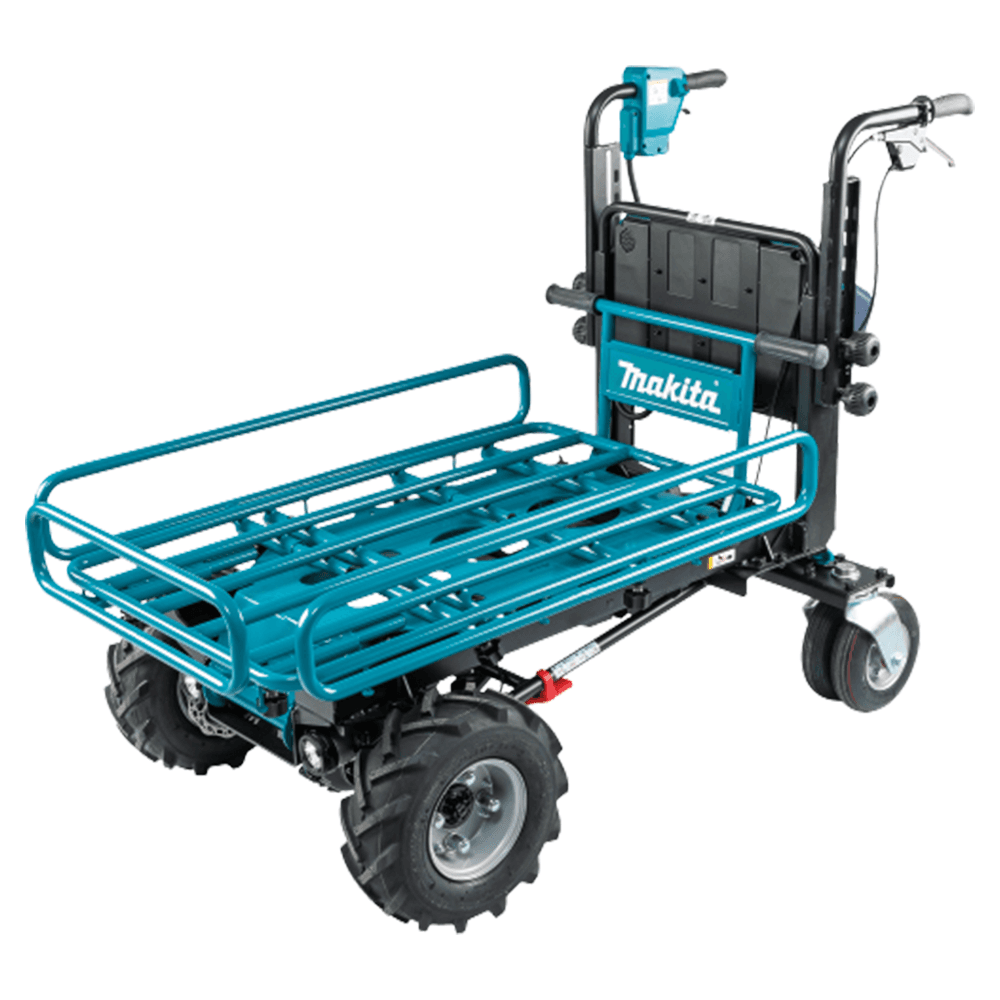

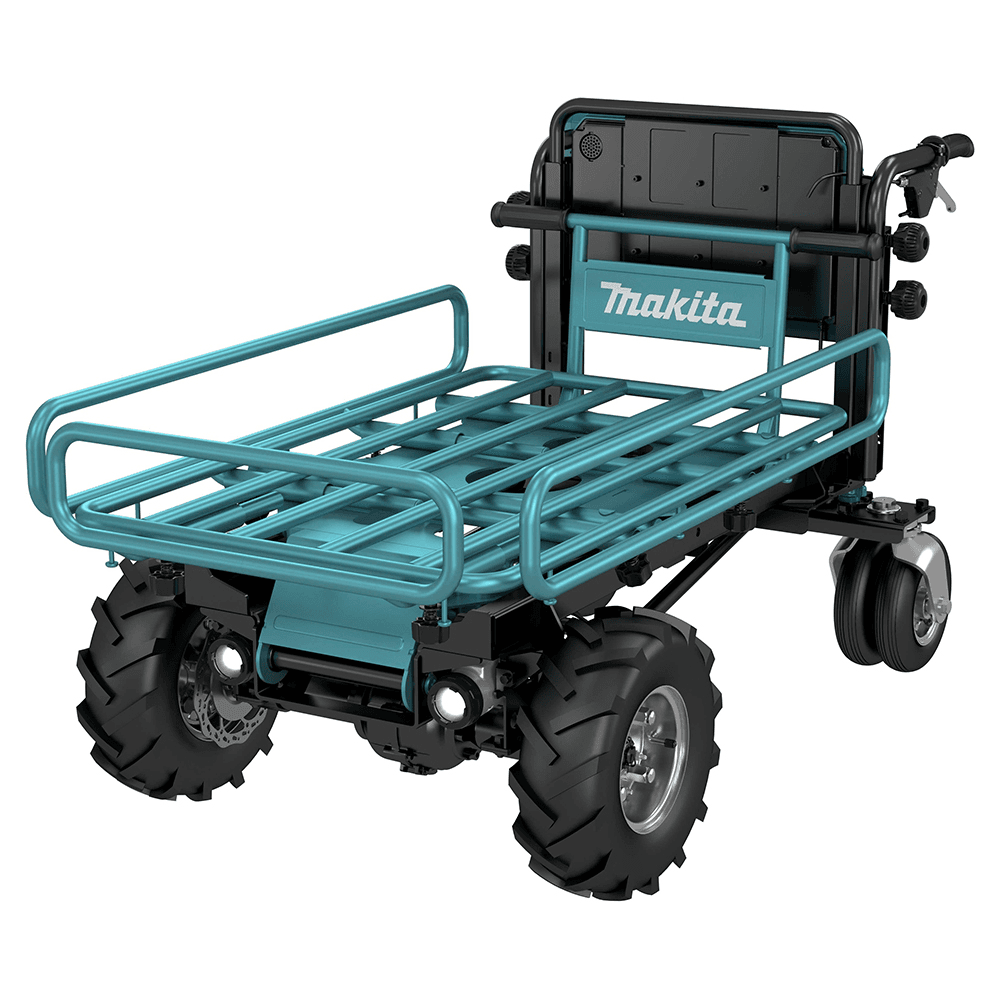

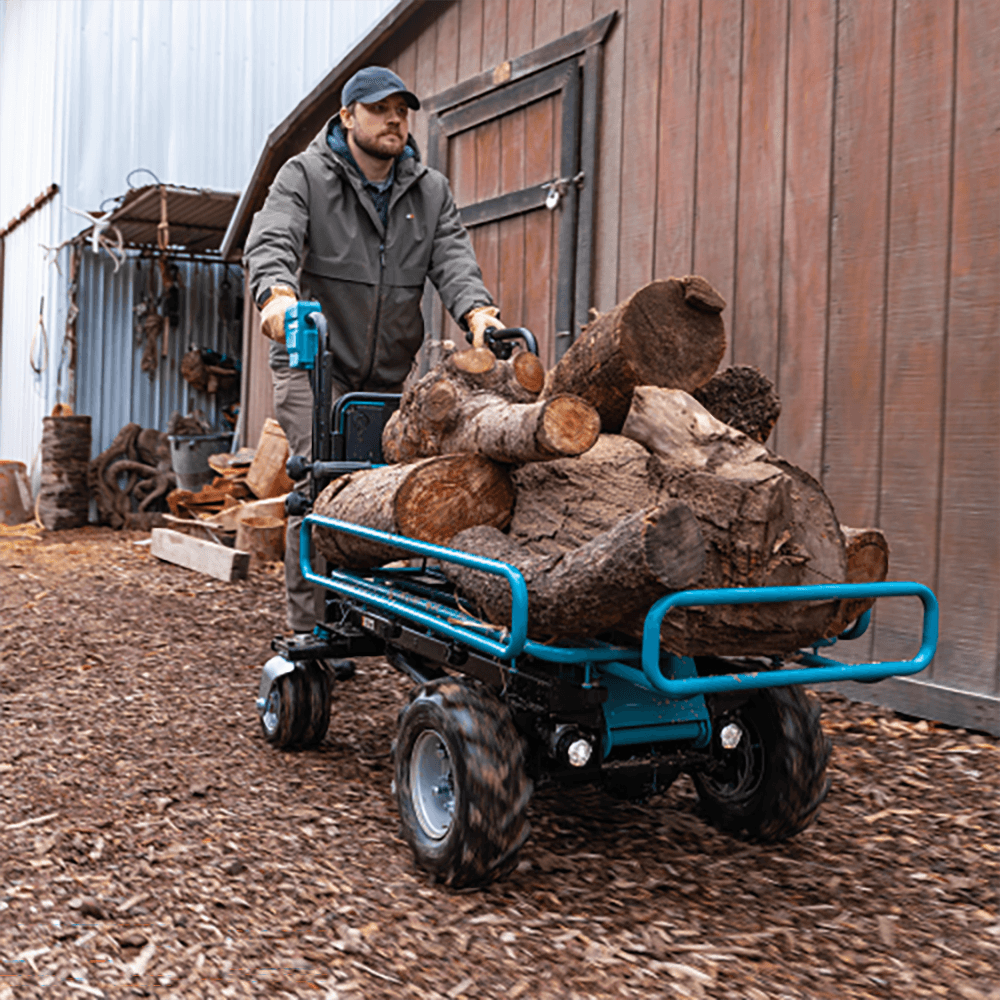

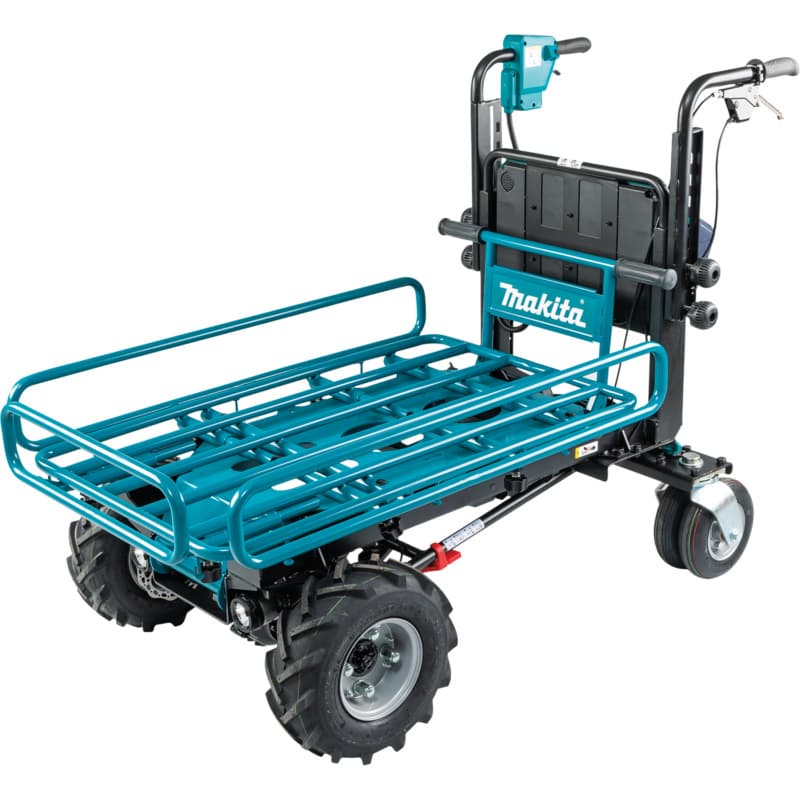

The 36V (18V X2) LXT Brushless Material Handling with Dump/Pipe Frame, Tool Only (XUC05Z) is an ideal solution for transporting materials on job sites and other settings. The XUC05Z delivers up to 100 minutes of run time (distance equivalent to 4.5 miles) under load using four 18V LXT 6.0Ah batteries (batteries not included).

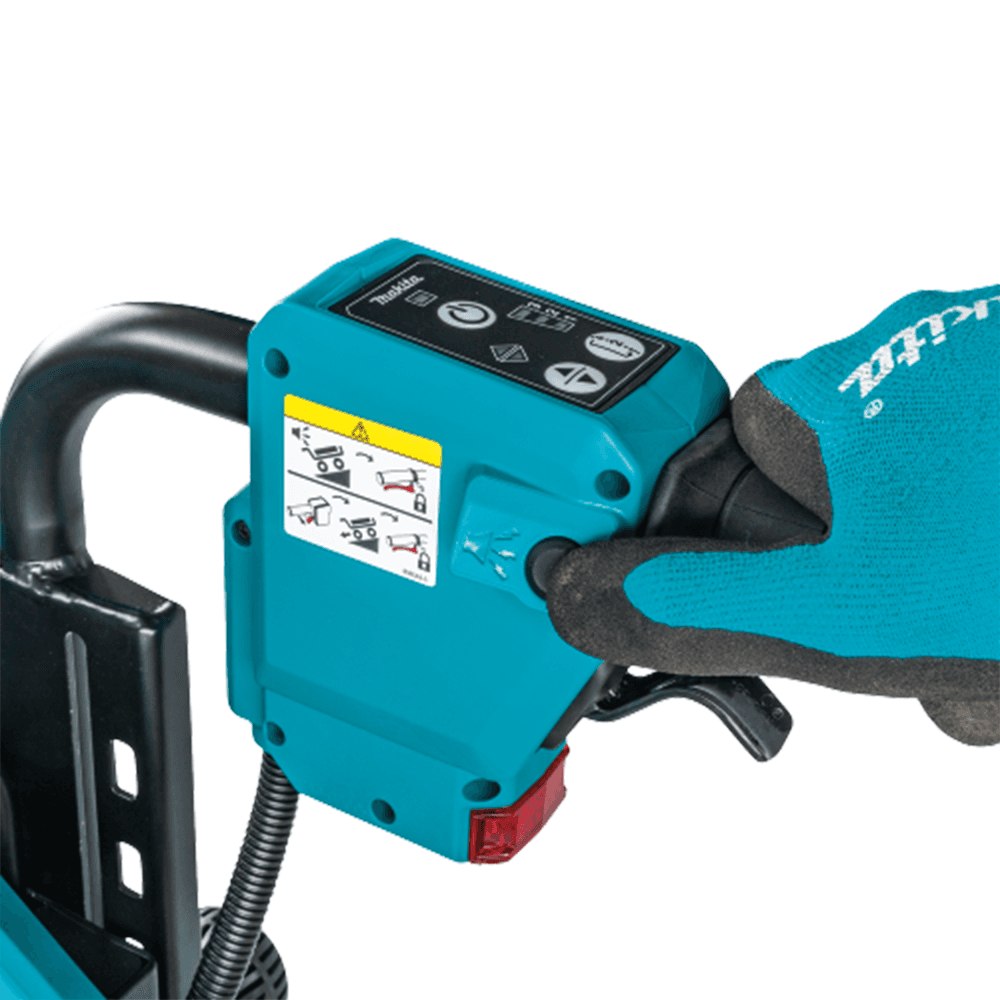

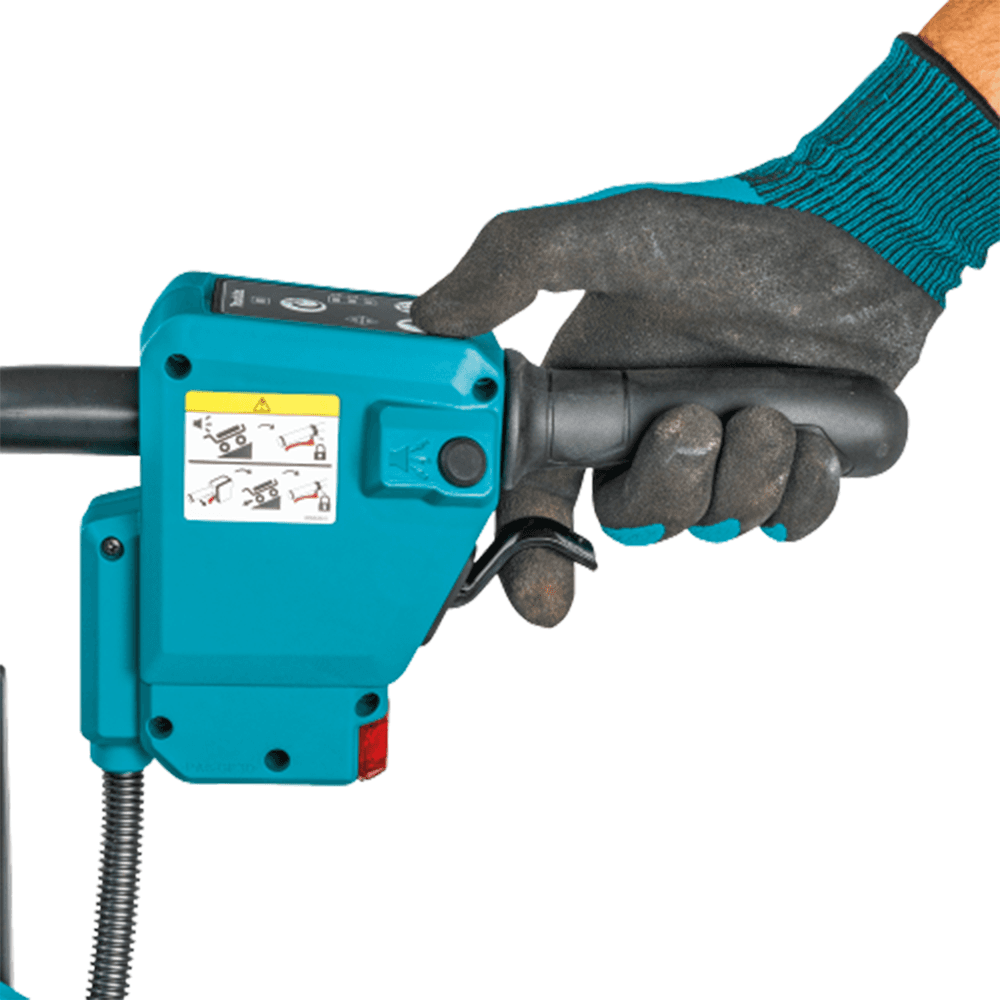

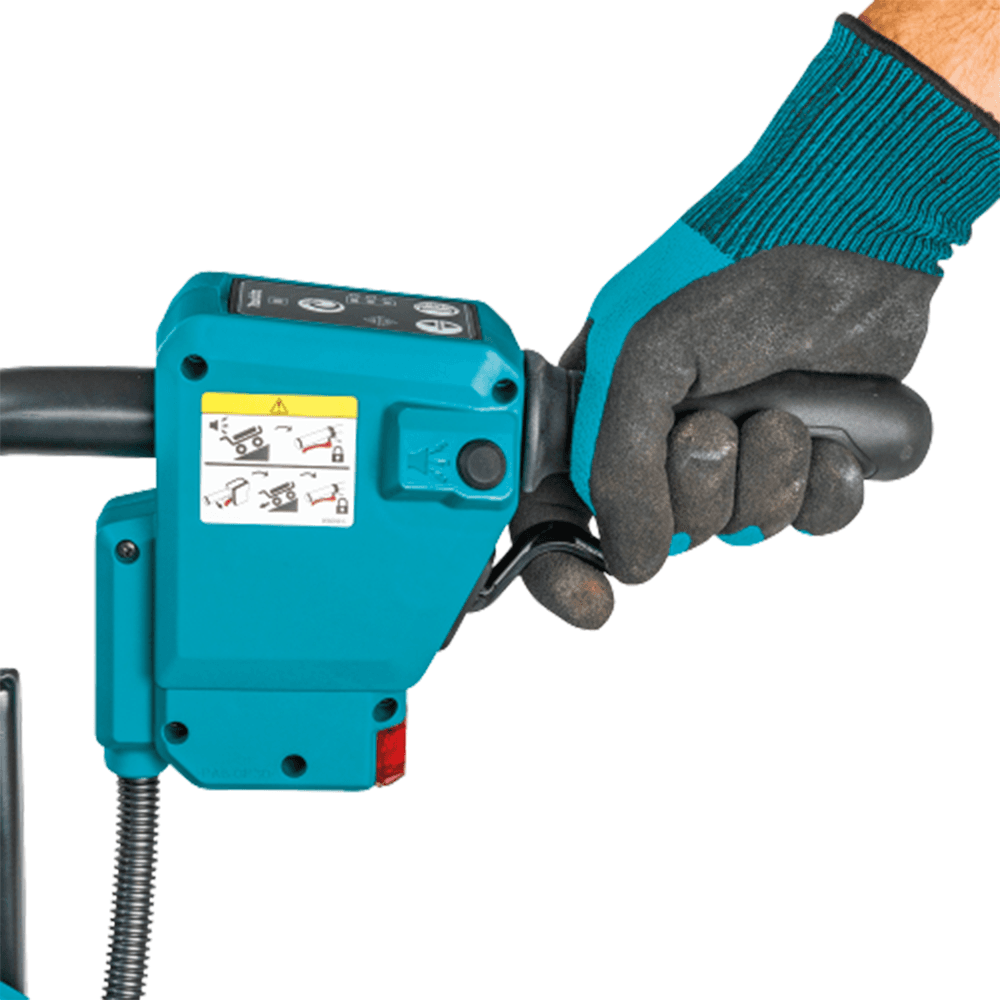

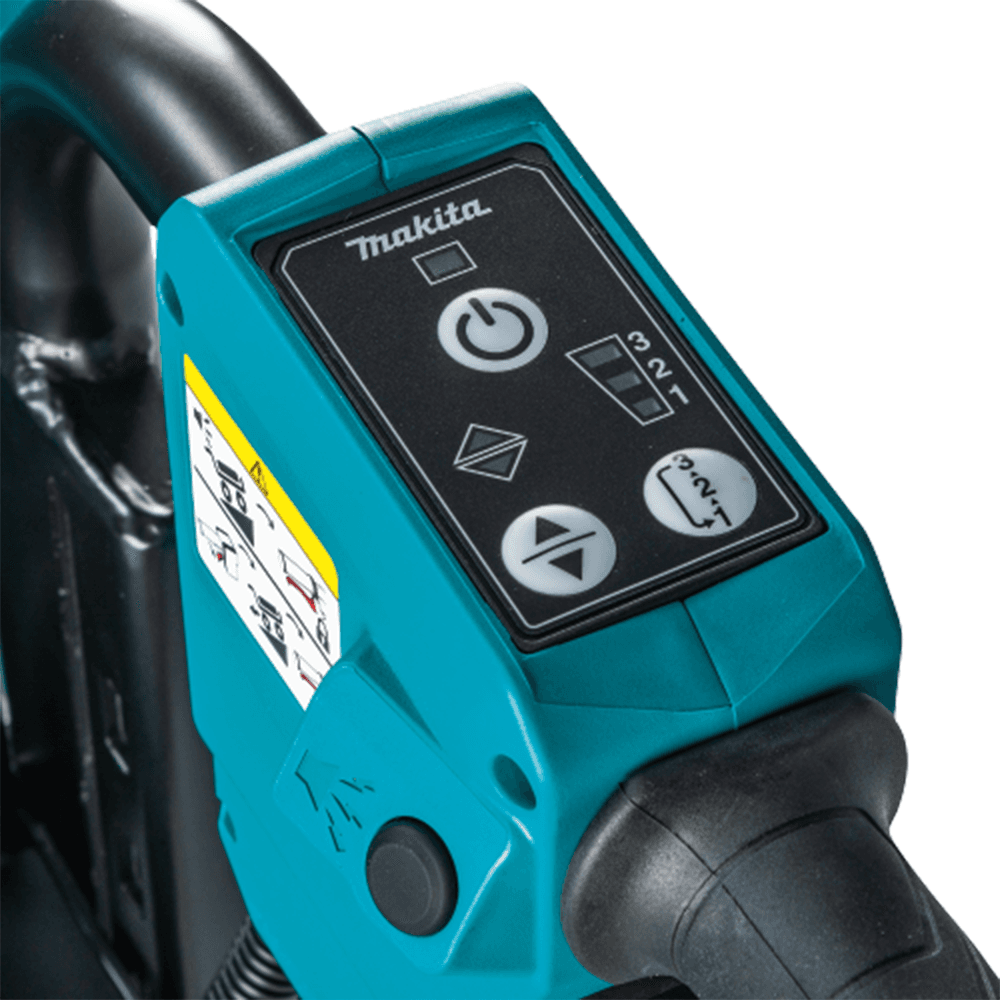

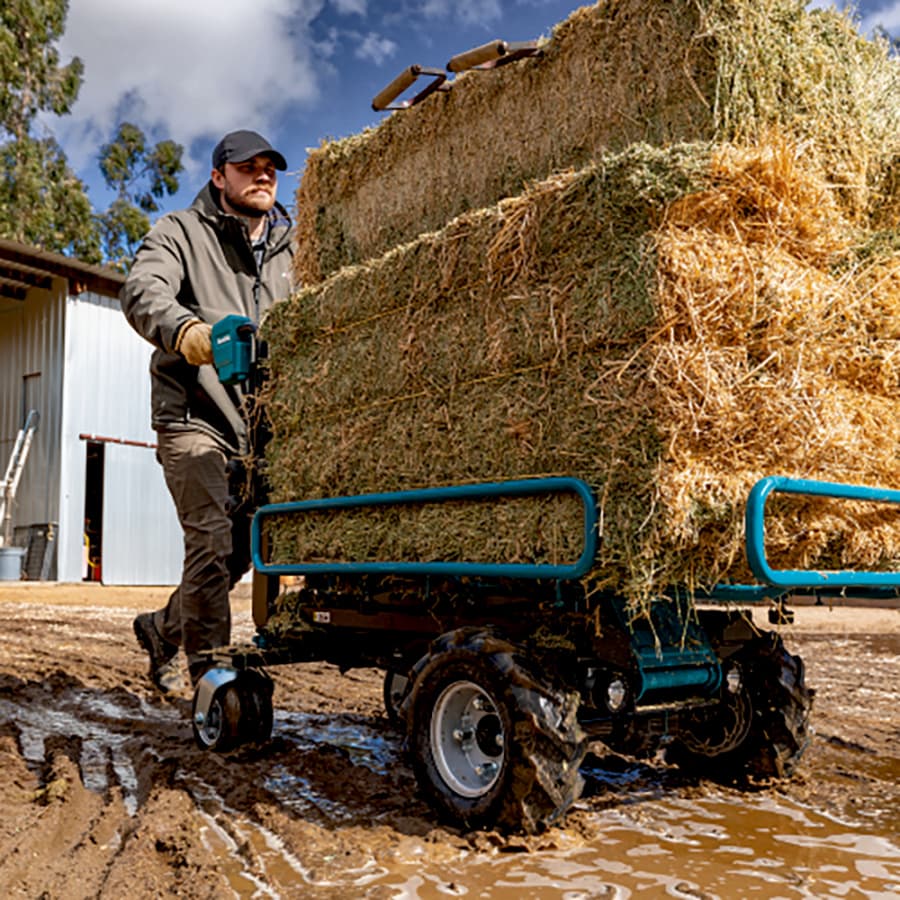

The Material Handler features three forward speeds and one reverse with variable speed controlled by a switch trigger in each range. The maximum forward speed is 3 mph and a maximum load capacity of 650 lbs. It features a telescoping loading platform that can adjust (57"-63" length, 28 ¾"-42 ½" width, and 32 ¼"- 40 ½" height) to the user′s needs.

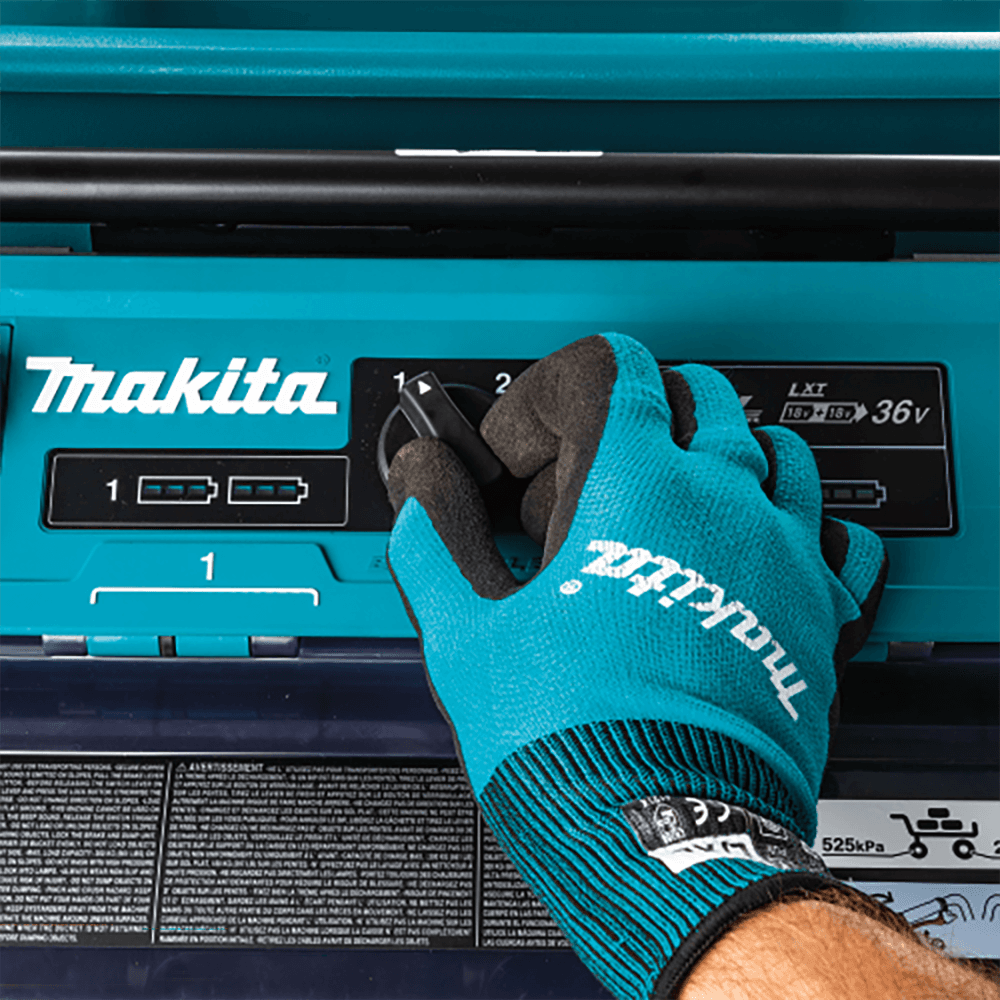

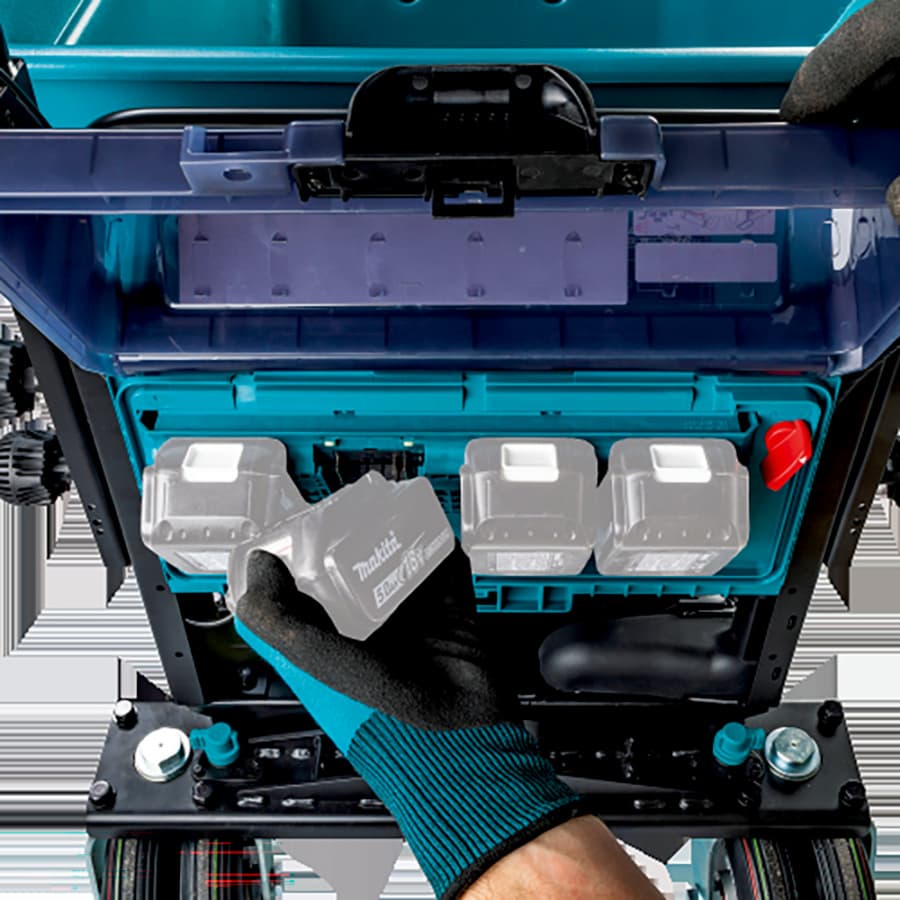

The XUC05Z is engineered to operate using two 18V batteries at a time, with the ability to utilize additional onboard batteries for longer run times. The XUC05Z features a warning beep that will go off if the unit is overloaded either on a slope or flat ground. It also beeps when in-use batteries are running low as a reminder to the user to cycle through the other set of batteries.

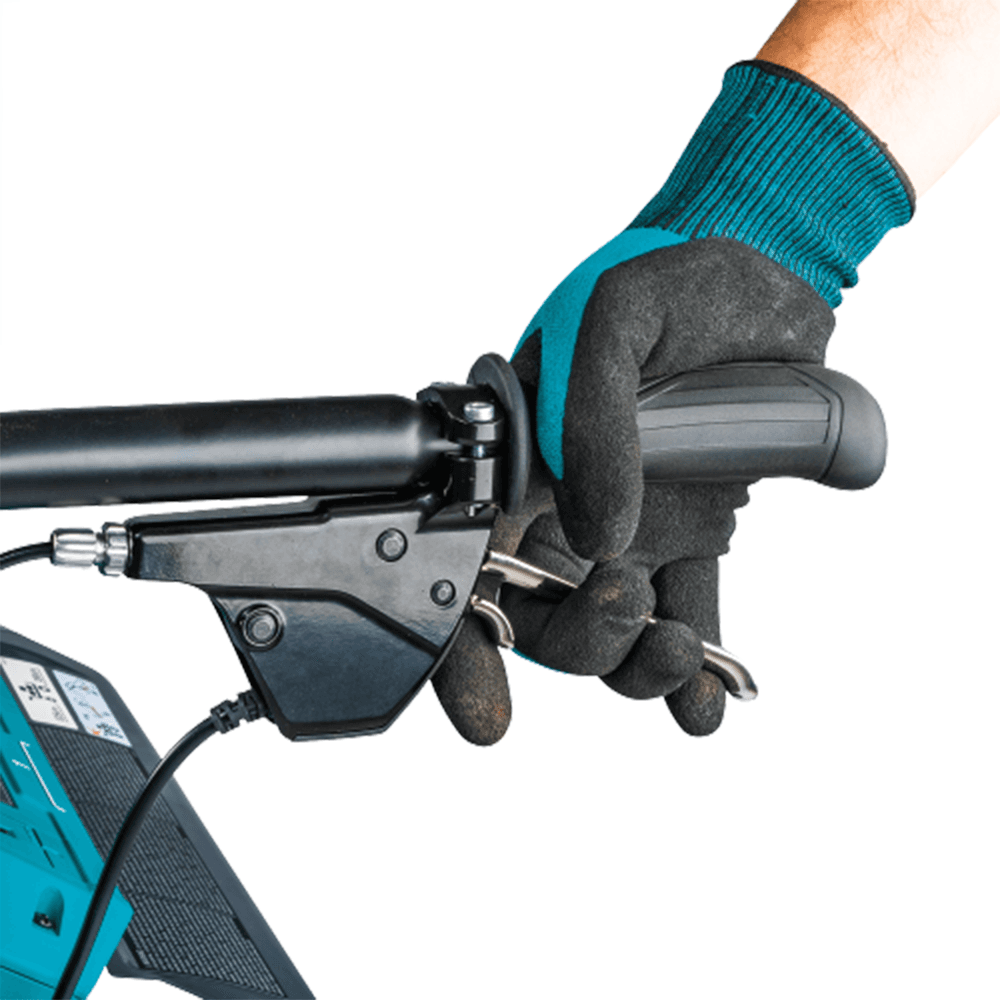

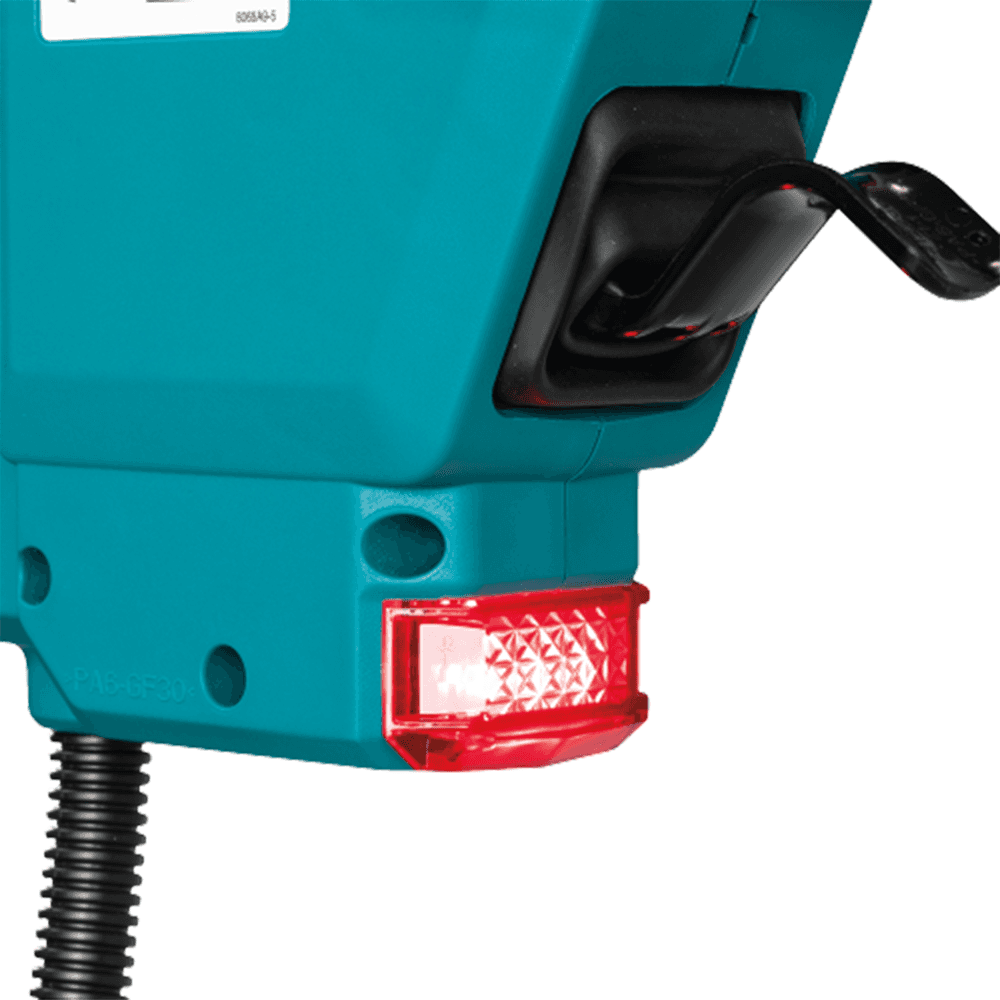

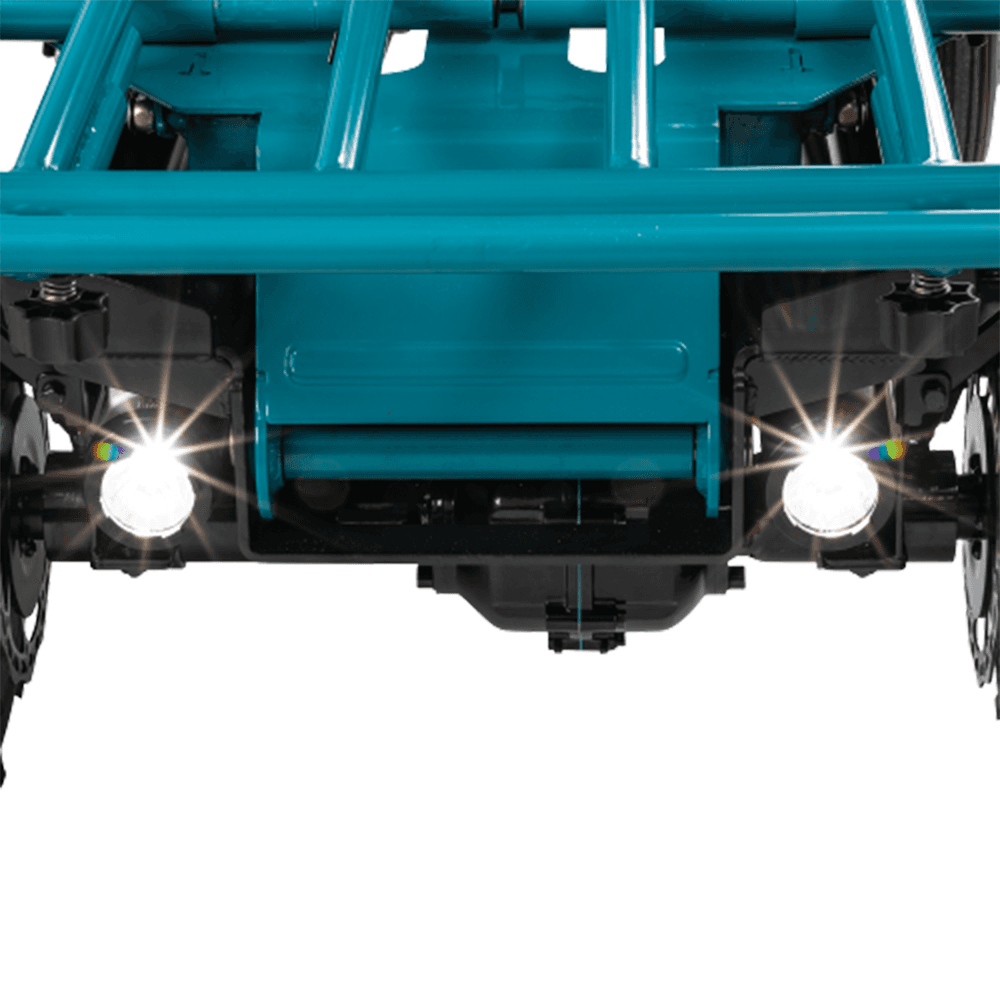

Convenience features include a hand lever-operated mechanical axle disc brake plus an electromagnetic brake that prevents the Material Handler from rolling forward or backward when the throttle is not engaged. There are headlights, a taillight, and a level gauge for more convenience. It also features handles that adjust to three separate heights to accommodate multiple users, and the handles feature rubberized soft grips that provide increased comfort on the job.

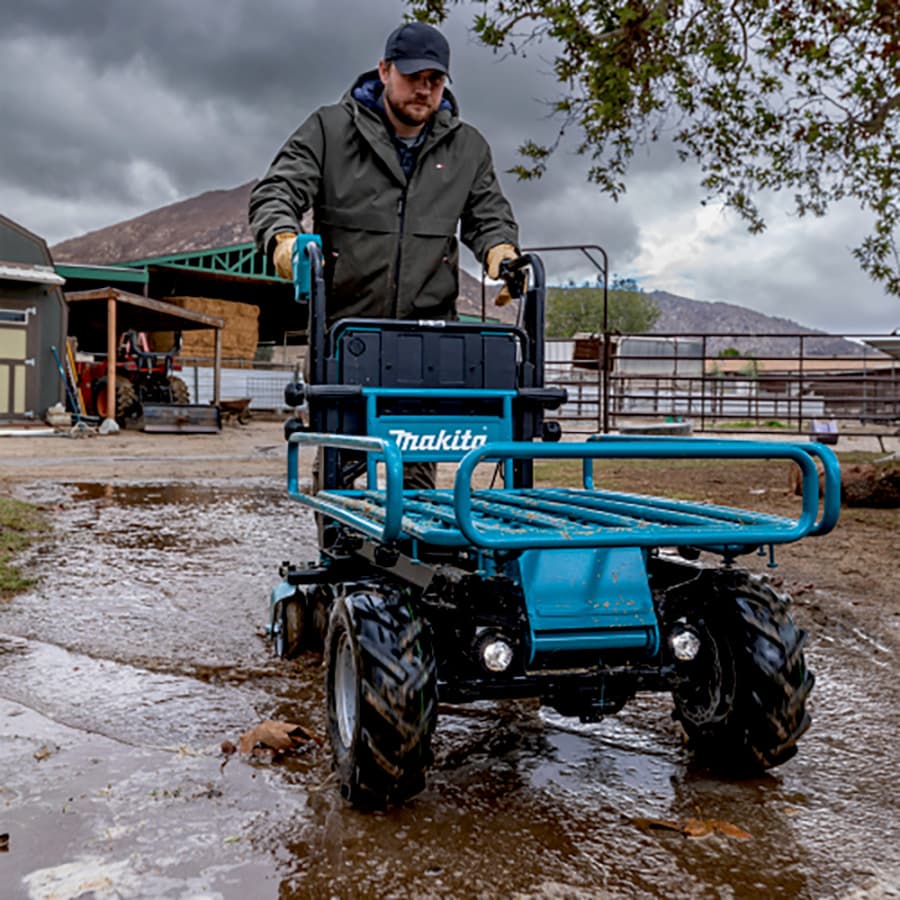

The Material Handler features Extreme Protection Technology (XPT) which is engineered to provide increased dust and water resistance in harsh job site conditions. It′s part of expanding 18V LXT System, the world′s largest cordless tool system powered by 18V lithium-ion slide-style batteries. 18V LXT Lithium-Ion Batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger.

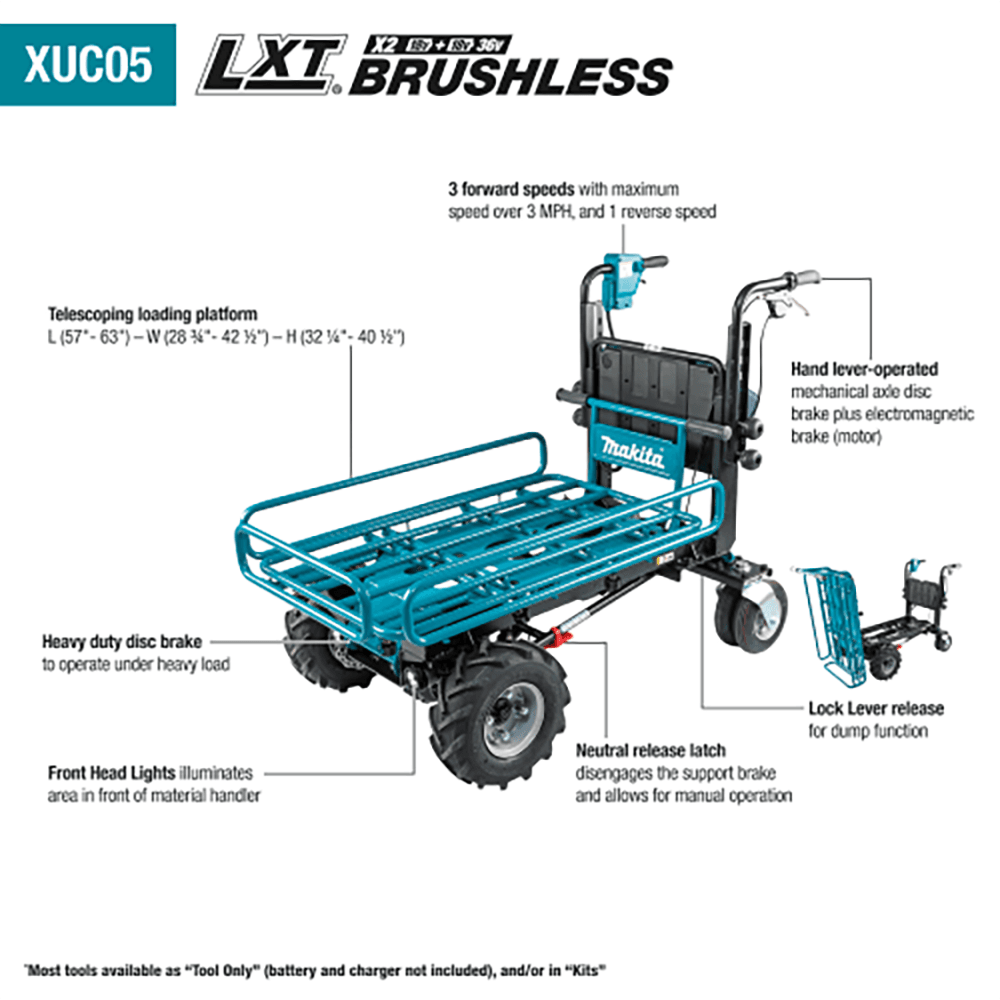

Features:
• Delivers up to 100 minutes of run time (distance equivalent to 4.5 miles) under load using four 18V LXT 6.0Ah BL1860 battery (battery not included)

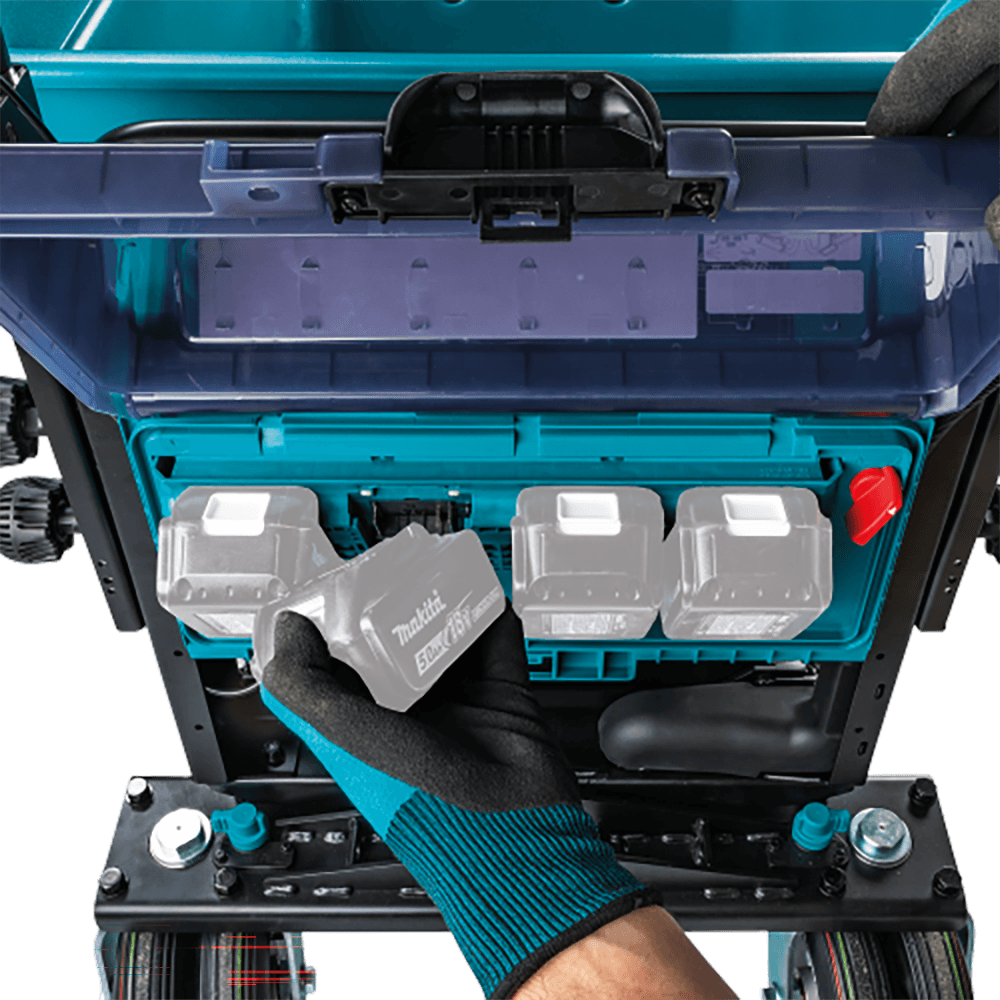

• Holds (4) 18V LXT Lithium-Ion batteries but operates using (2) 18V batteries at a time; utilizes additional batteries when needed (batteries not included)

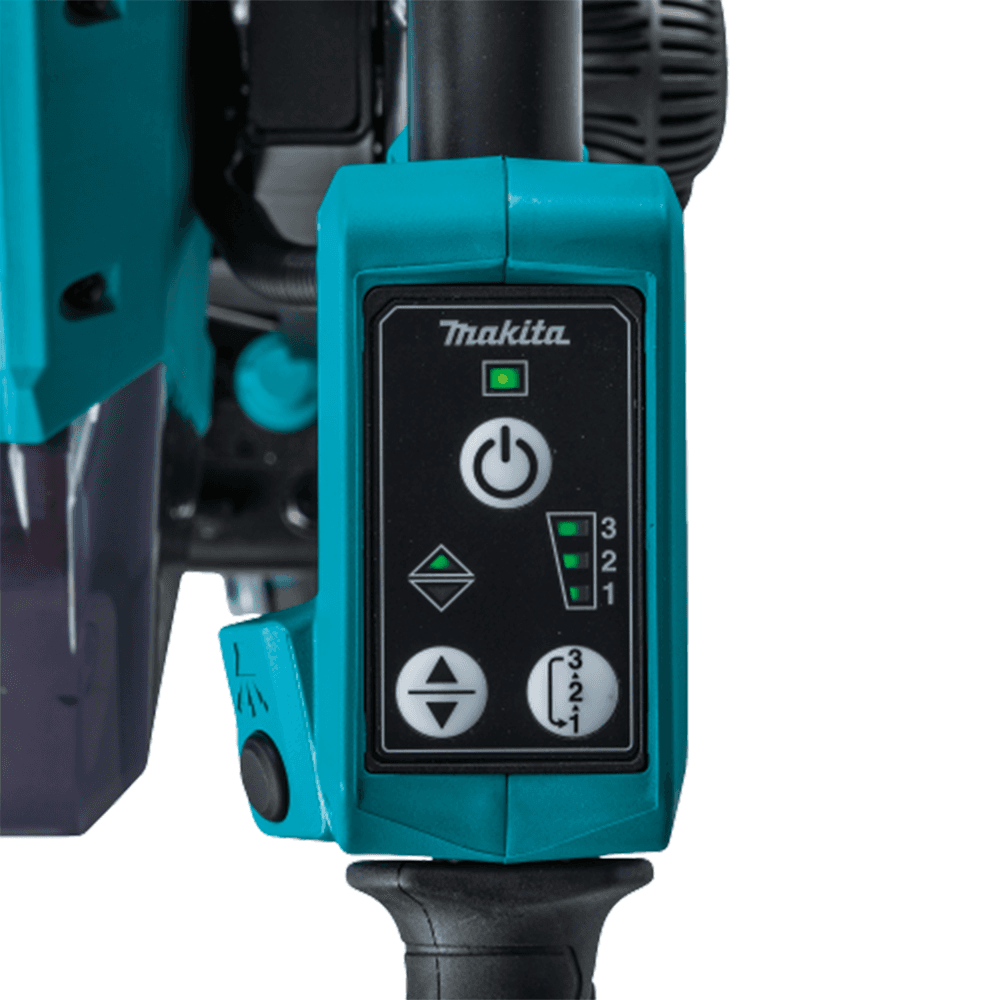

• 3 forward speeds with maximum speed over 3 MPH, 1 reverse speed

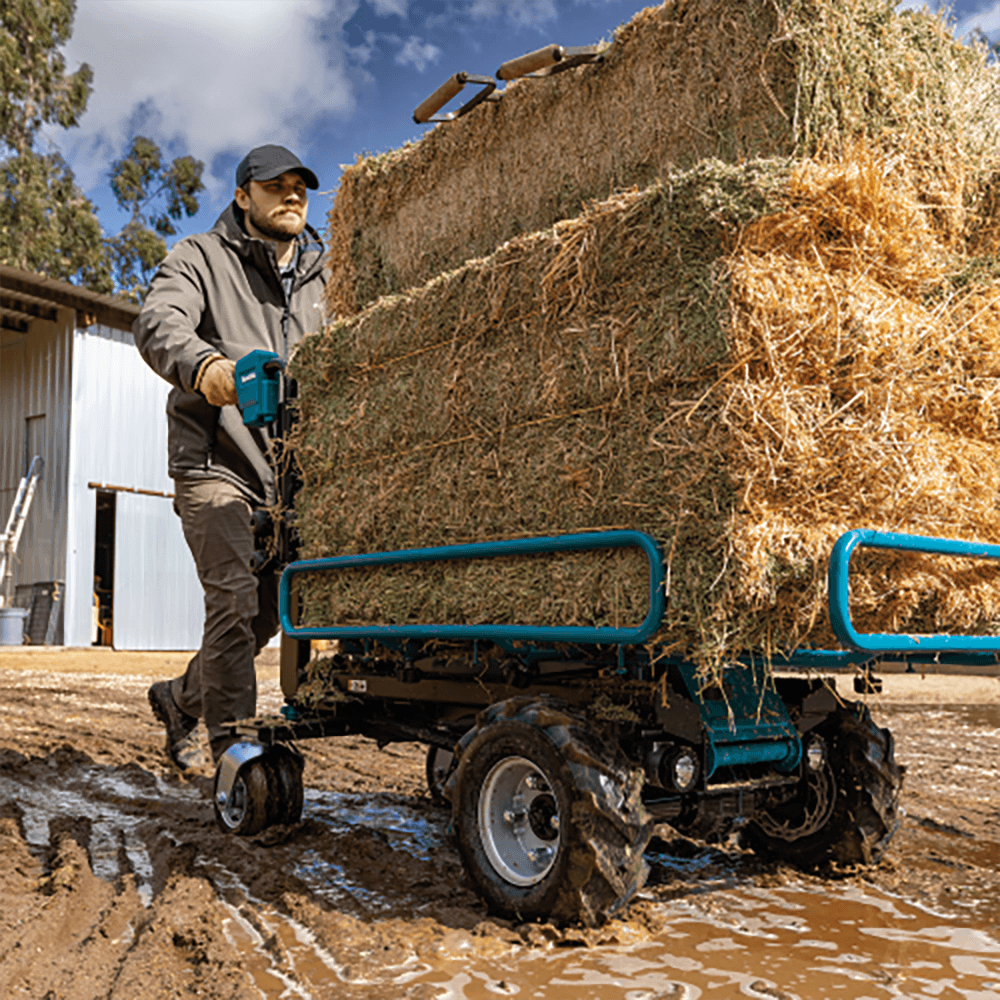

• Maximum load capacity over 650 lbs

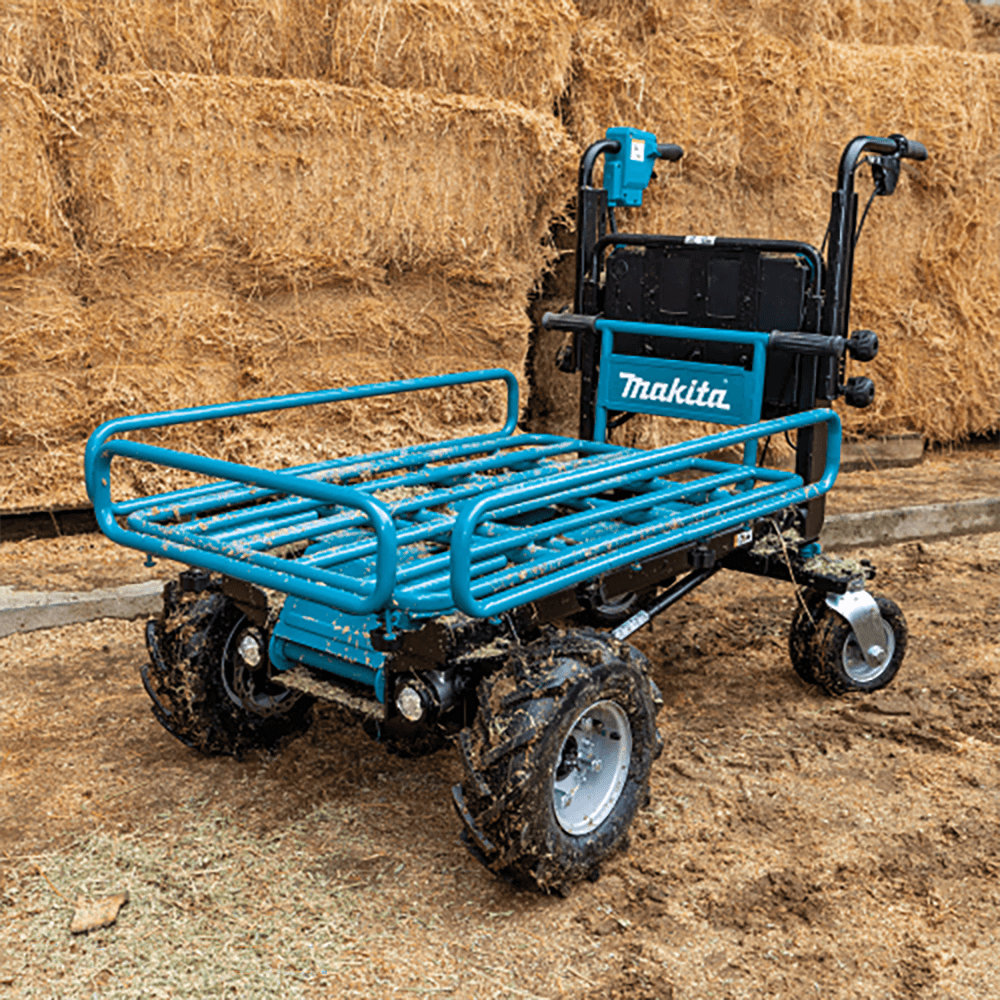

• Telescoping loading platform L(57"-63")– W (28 ¾"-42 ½") – H (32 ¼"- 40 ½")

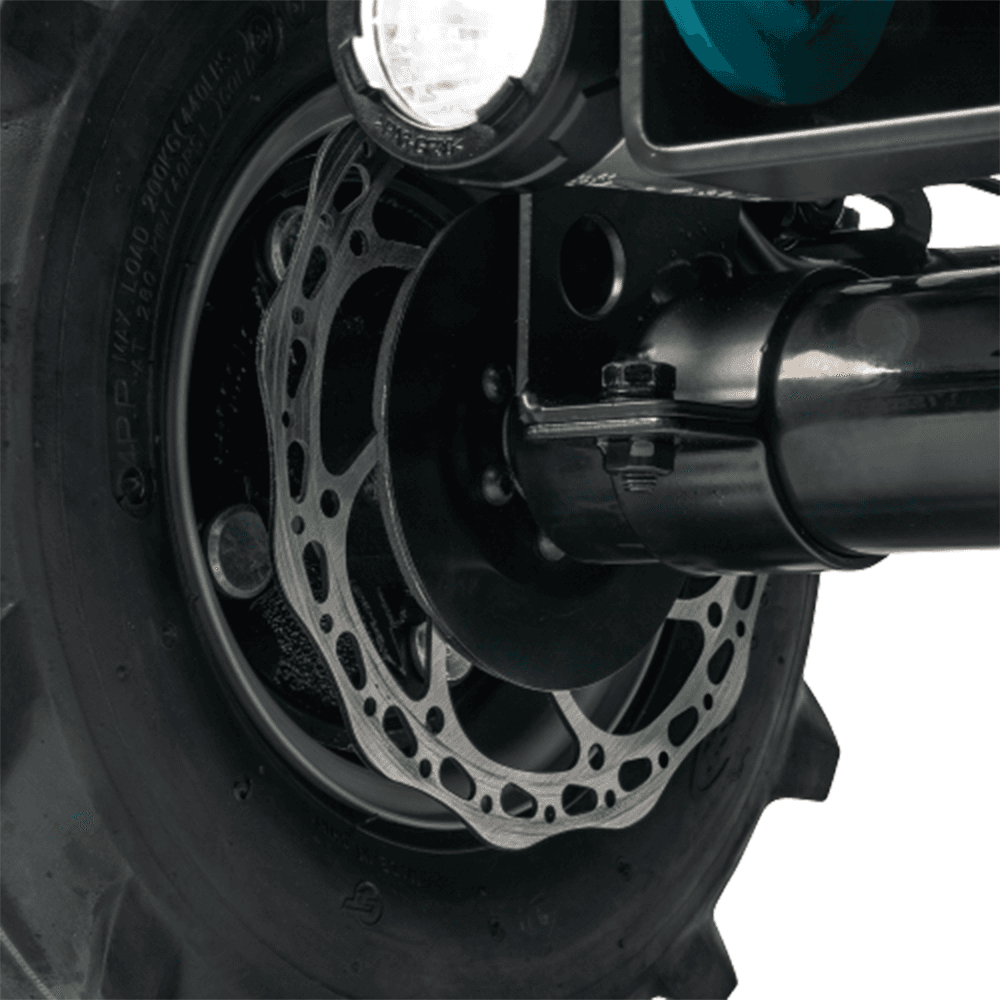

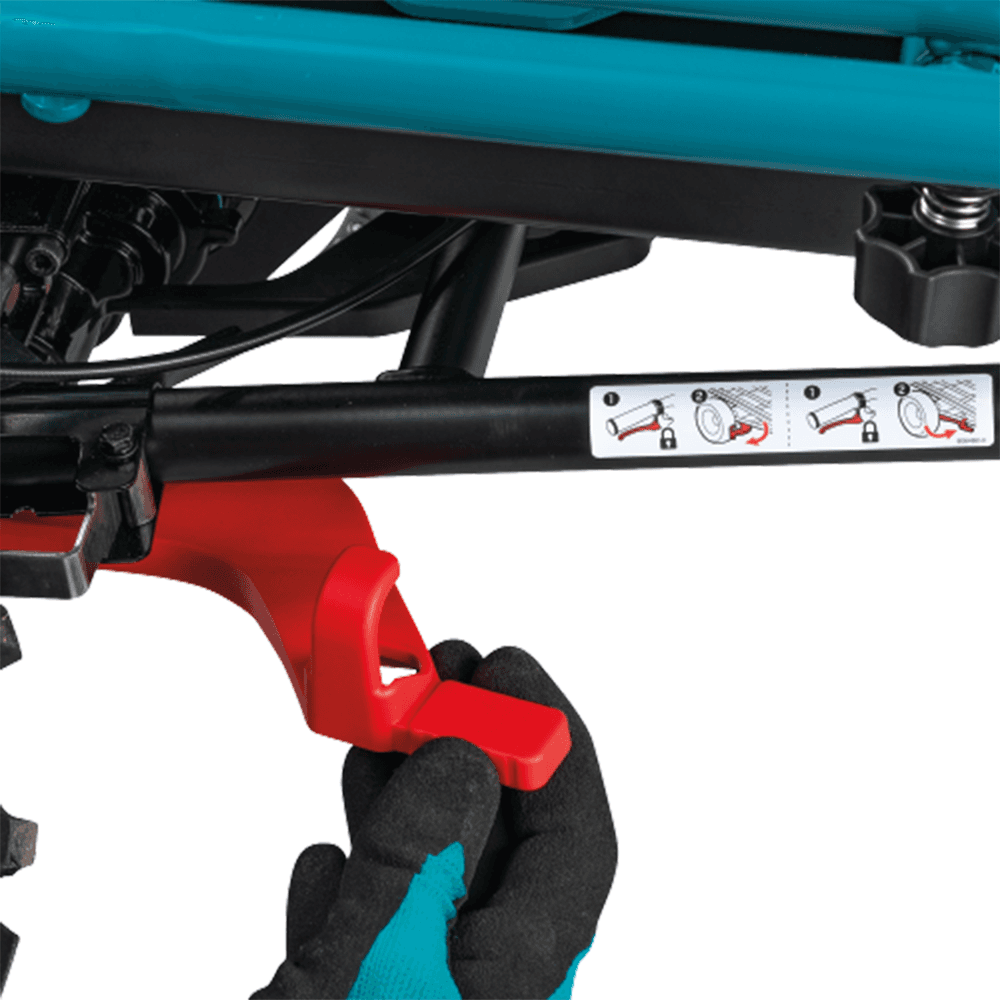

• Hand lever-operated mechanical axle disc brake plus electromagnetic brake (motor)

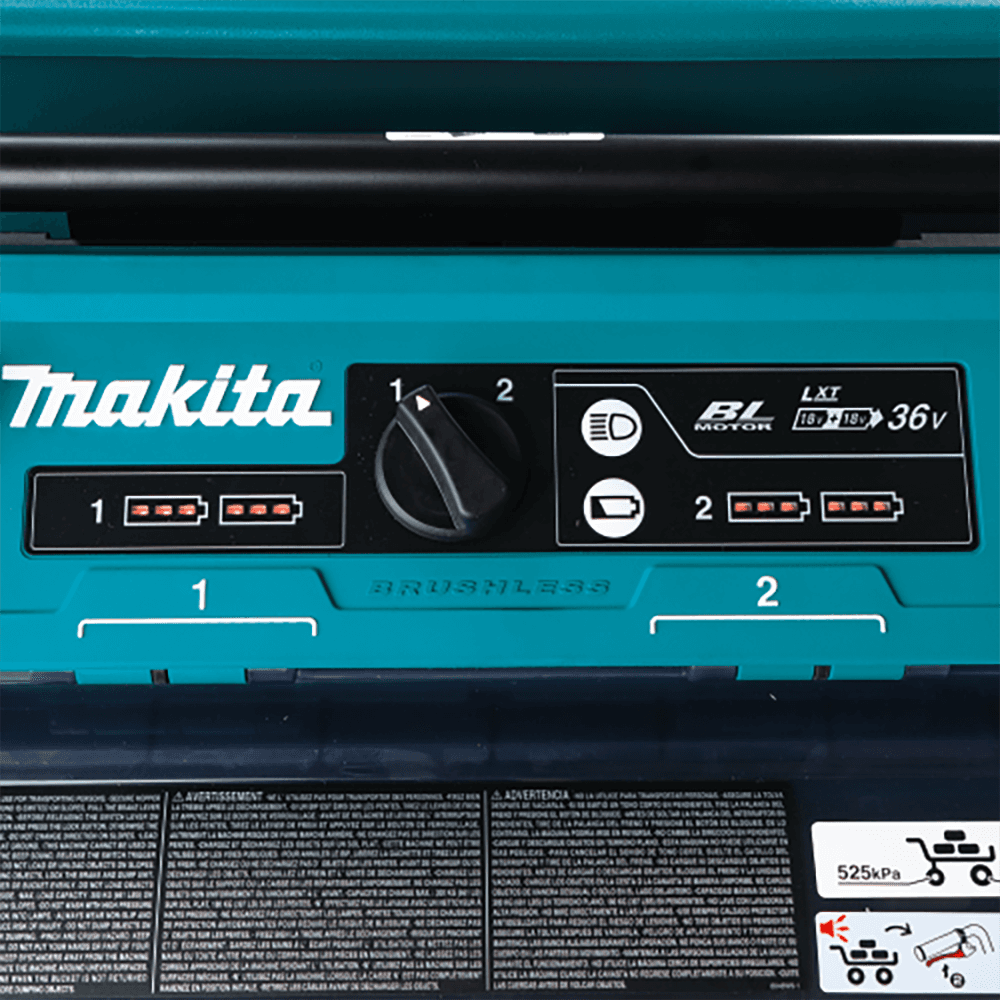

• Headlights, taillight, warning beeper and level gauge for more convenience
• Rubberized soft grip handles provide increased comfort on the job; adjust to 3 heights
• Built brushless motor for optimal performance

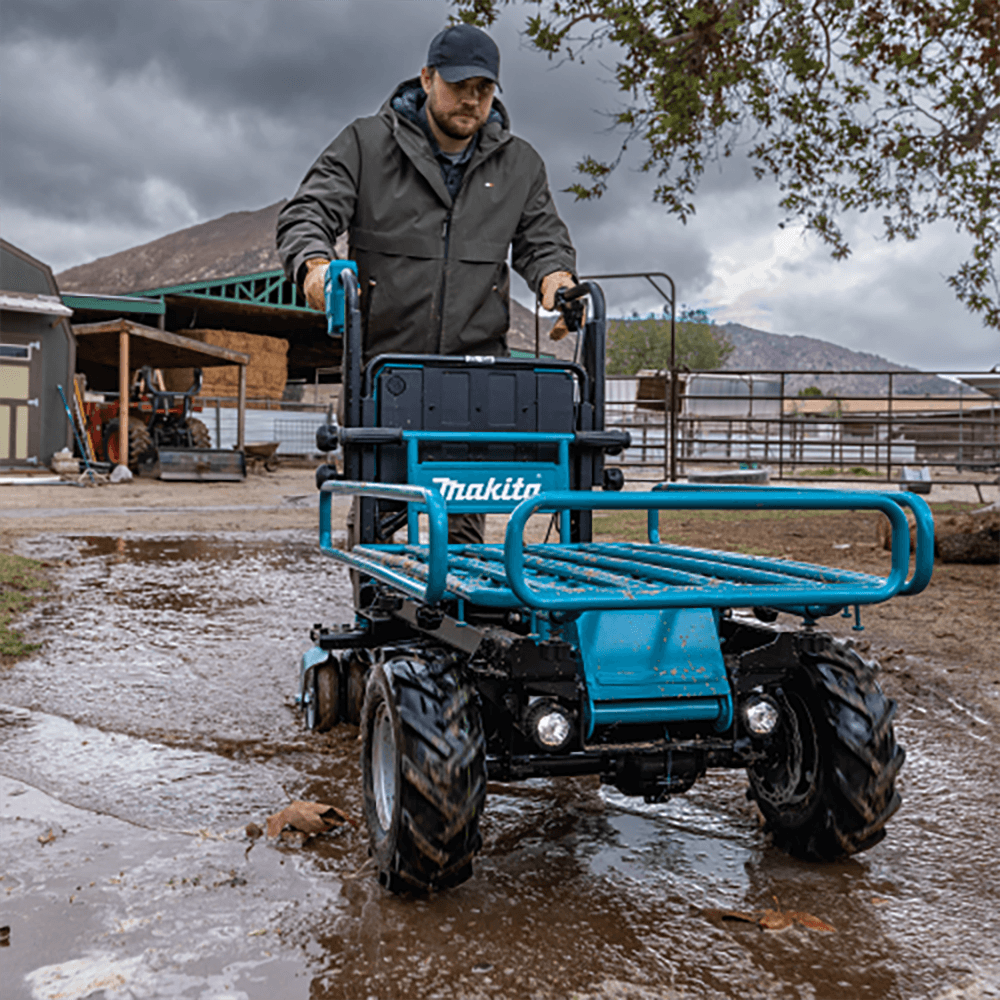

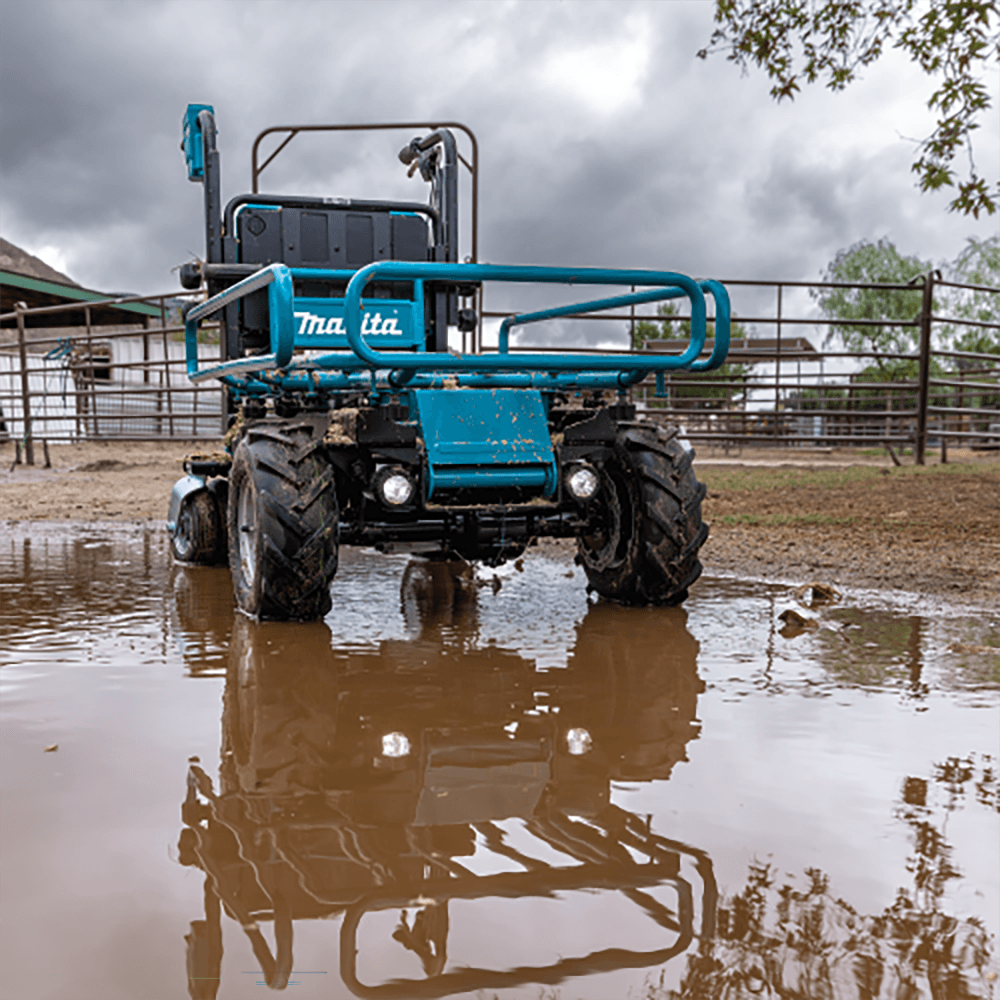

• Features Extreme Protection Technology (XPT) which is engineered to provide increased dust and water resistance in harsh job site conditions
• 3-year limited warranty
• Only use genuine batteries and chargers

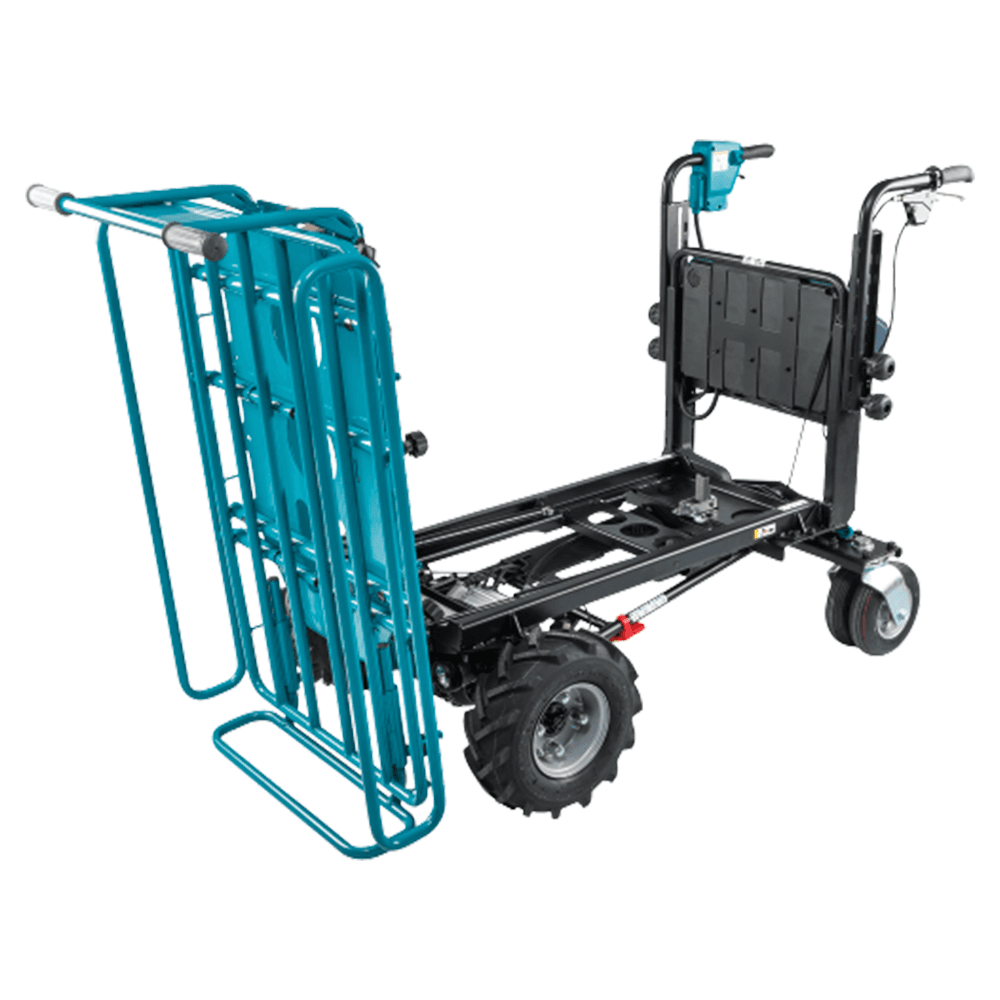

• Includes (1) Functional Unit for XUC04, XUC05 Manual Dump (191B63-0)
