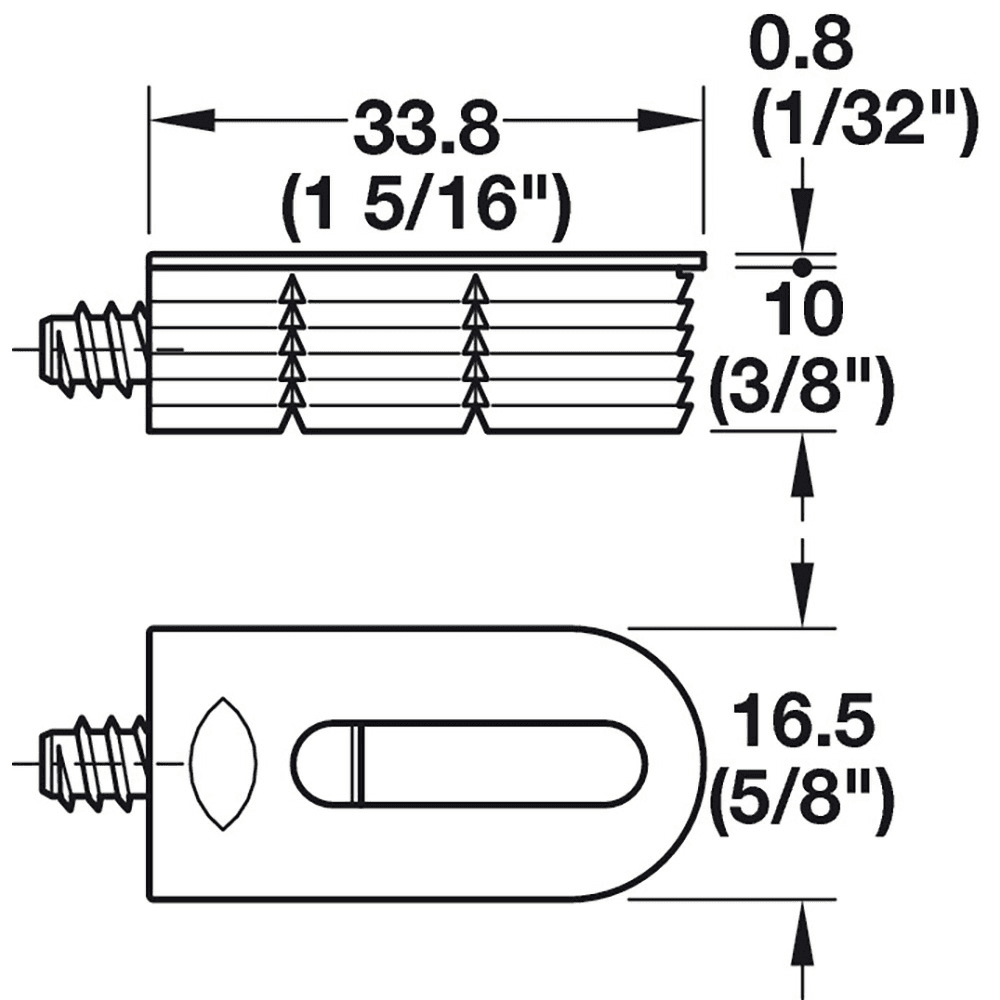

Cabineo 12 33.8mm x 16.5mm x 10.8mm Connector for Corner Connection, White, Box of 500

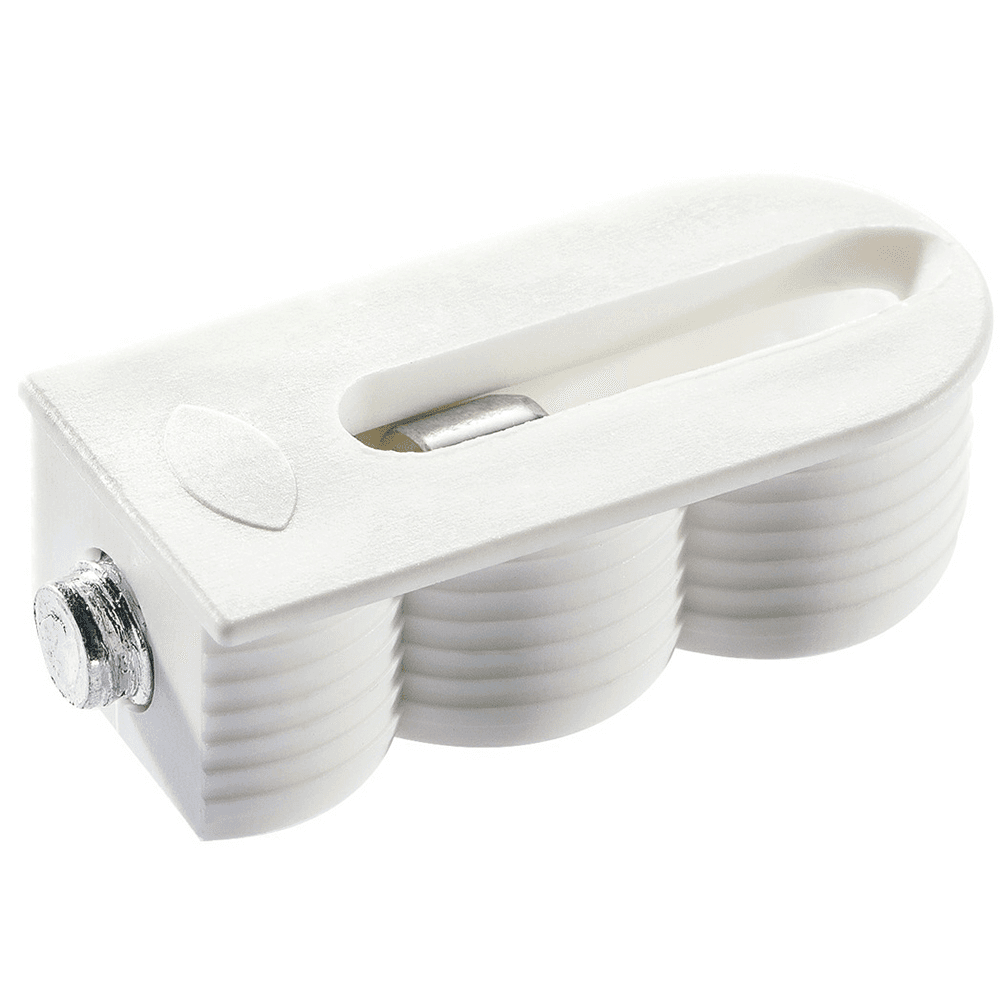

Cabineo 12 Connector in White finish and Cabineo is a one-piece cabinet connector which can be used with all CNC machines because only surface machining is required. The Cabineo is installed in the board either in the workshop or on site. The pre-assembled screw in the connector is screwed into the 5mm hole of the second workpiece using a cordless drill. Cabineo impresses with its time-saving processing and assembly as well as the high clamping force which leads to stable connections without the need for additional dowels.

Advantages:
• Installation of fixed shelves or vertical dividers in an already assembled unit
• Detachable for transport or if the fixed shelves need adjusting
• Shallow element of 10mm allows for panels from 12mm thickness
• Corner joints with Cabineo 12 (drill hole O 5 x 12mm)
• Dividing panel joints with Cabineo 8 (drill hole O 5 x 8mm) from material thickness 16mm
• Use with or without cover caps. Cover caps are available in various colors
• Metal insert threaded version available for exceptionally strong connections or for wood-to-metal component connections

Benefits:
• Time-saving in production
• Optimized process due to surface machining; no edge drilling necessary
• Only one tool change from 5mm to 15mm drill; or rout the profiled shape with no tool change - use a standard CNC spiral bit
• No dowel holes means less drill holes
• Time-saving in transportation
• Efficient pre-installation of the one-piece connector in the factory
• Flat-Pack delivery with pre-installed connectors
• Connectors delivered installed in the workpiece; thus no hardware needs to be shipped separately
• Time-saving in the assembly
• One-piece connector without dowels; no pre-assembly of screws or dowels in the side panels necessary
• Easy positioning in the drill hole due to the protruding screw
• Fast assembly with a cordless drill
