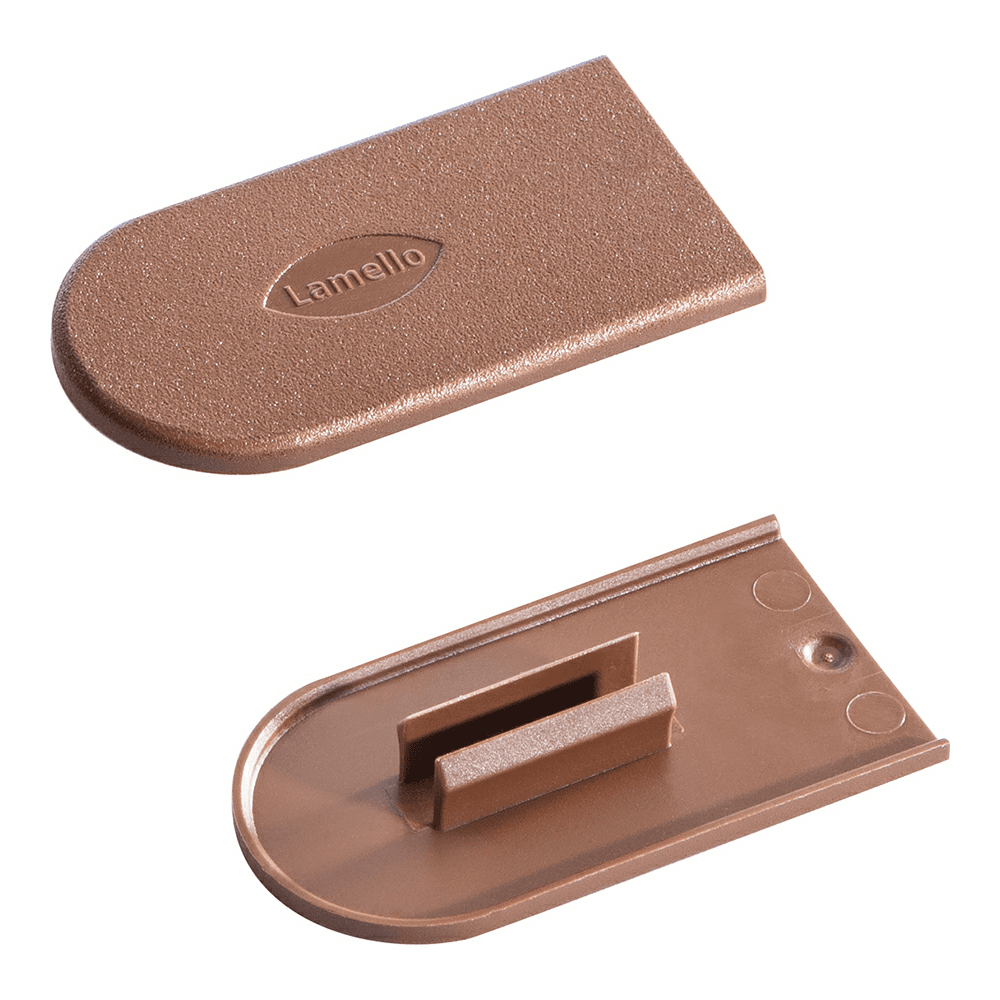

Cabineo Cover Cap, Fawn Brown (2000/Box)

Cabineo Fawn Brown Cover Cap is the newest connector from Lamello, and is an outstanding solution for cabinet shops and manufacturers using nested-based CNC routers. The toolpath may be quickly machined with a standard, straight-shank router bit without a tool change. The Cabineo connectors are simply tapped into the routed pocket and join cabinet components together by screwing into a mating 5mm shelf pin hole with nearly 200 pounds of clamping force. Cabineo may be covered with aesthetic cover caps, or parts may be inverted to allow for a completely invisible application. Because there is no pin or stud required with Cabineo, all components may be shipped to the jobsite as a true flat-pack, RTA solution. The M6 version of the Cabineo connector uses a metal helical insert or may be fastened directly into a tapped hole in metal furniture or fixture components.

Advantages:
• Installation of fixed shelves or vertical dividers in an already assembled unit
• Detachable for transport or if the fixed shelves need adjusting
• Shallow element of 10mm allows for panels from 12mm thickness
• Corner joints with Cabineo 12 (drill hole O 5 x 12mm)
• Dividing panel joints with Cabineo 8 (drill hole O 5 x 8mm) from material thickness 16mm
• Use with or without cover caps. Cover caps are available in various colors
• Metal insert threaded version available for exceptionally strong connections or for wood-to-metal component connections
• Time-savings for the whole production process! Simple, Fast & Strong!
• Time-saving in production
• Optimized process due to surface machining; no edge drilling necessary
• Only one tool change from 5 mm to 15 mm drill; or rout the profiled shape with no tool change - use a standard CNC spiral bit
• No dowel holes means less drill holes
• Time-saving in transportation
• Efficient pre-installation of the one-piece connector in the factory
• Flat-Pack delivery with pre-installed connectors
• Connectors delivered installed in the workpiece; thus no hardware needs to be shipped separately
• Time-saving in the assembly
• One-piece connector without dowels; no pre-assembly of screws or dowels in the side panels necessary
• Easy positioning in the drill hole due to the protruding screw
• Fast assembly with a cordless drill
