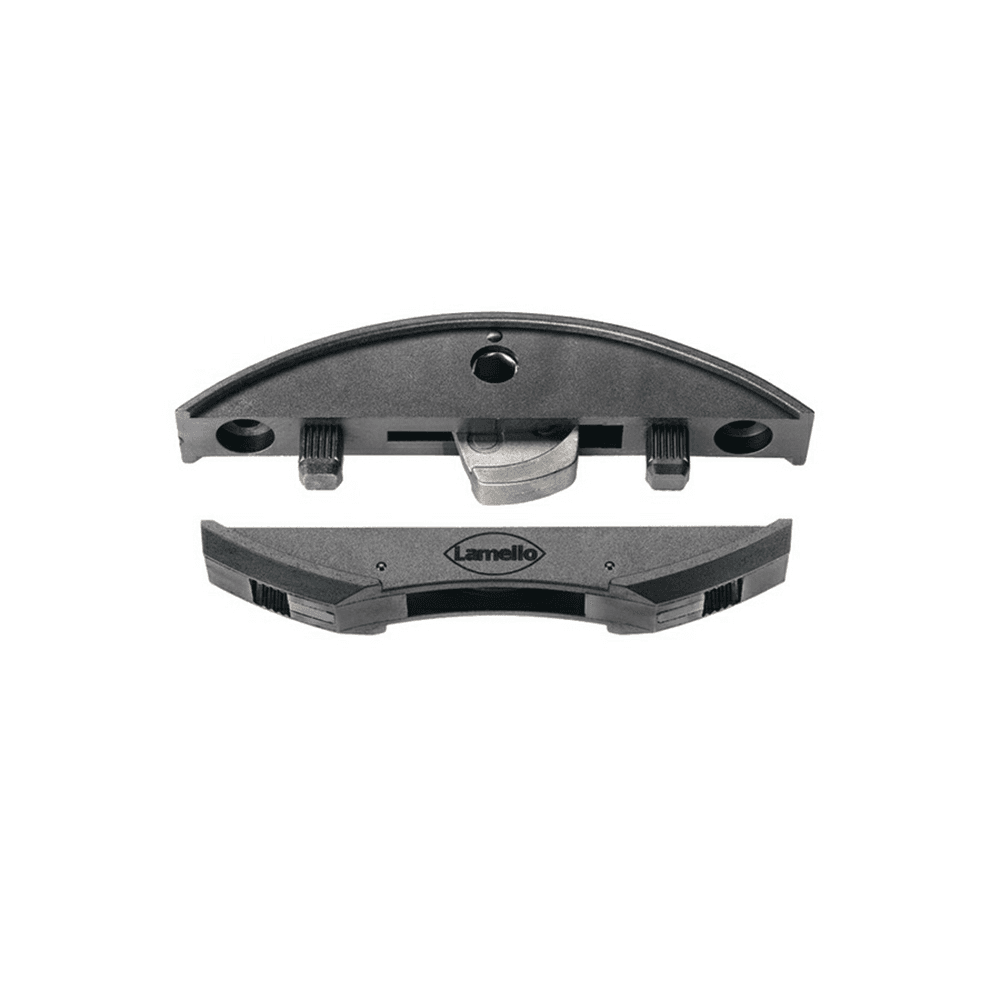

Clamex P-14/10 Medius 64mm x 13.5mm x 9.7mm/52mm x 7.5mm x 9.7mm Dividing Panel Connector, Pair of 80

Clamex P-14/10 Medius is a detachable connector and is anchored in the form-locking P-System groove within seconds. Through the minimalist 6 mm access hole, Clamex P-14/10 Medius is firmly connected and disconnected using a lever. The connector for divisions has two installation depths and is used when two shelves are attached to the same dividing panel at the same height. Due to the reduced installation depth of 10mm, the minimal thickness for the division is 16mm.

Benefits:
• Practically wear-free knock down fitting
• Same positioning of P-System grooves on both sides possible for dividing panels with a minimum thickness of 16mm (5/8")
• Minimal tool opening of just 6mm
• Fast, tool-free installation of connectors
• Stackable for transport, with connectors pre-installed
• Lateral tolerance for efficient installation with the Zeta P2 biscuit joiner or a CNC machine

Applications:
• Dividing panel connection of shelf units where two shelves meet the dividing panel at the same height
• This removes the need to offset the cutting position on dividing walls and reduces potential errors
• Surface installation in material thicknesses of 12mm since one half of the connector is anchored just 10mm deep
• Knock down fitting for furniture, shelf units, fitted wardrobes, kitchen manufacturing etc
• Connecting fitting for detachable elements in shop fitting and trade show construction
• Powerful alternative to standard connecting fittings
• Rapid prototype construction before starting a new furniture range
• On-site adjustments and assembly
