Docking Drawer 15-amp Safety Interlock Outlet with Corner Mount White Limit Switch Turns ON Power

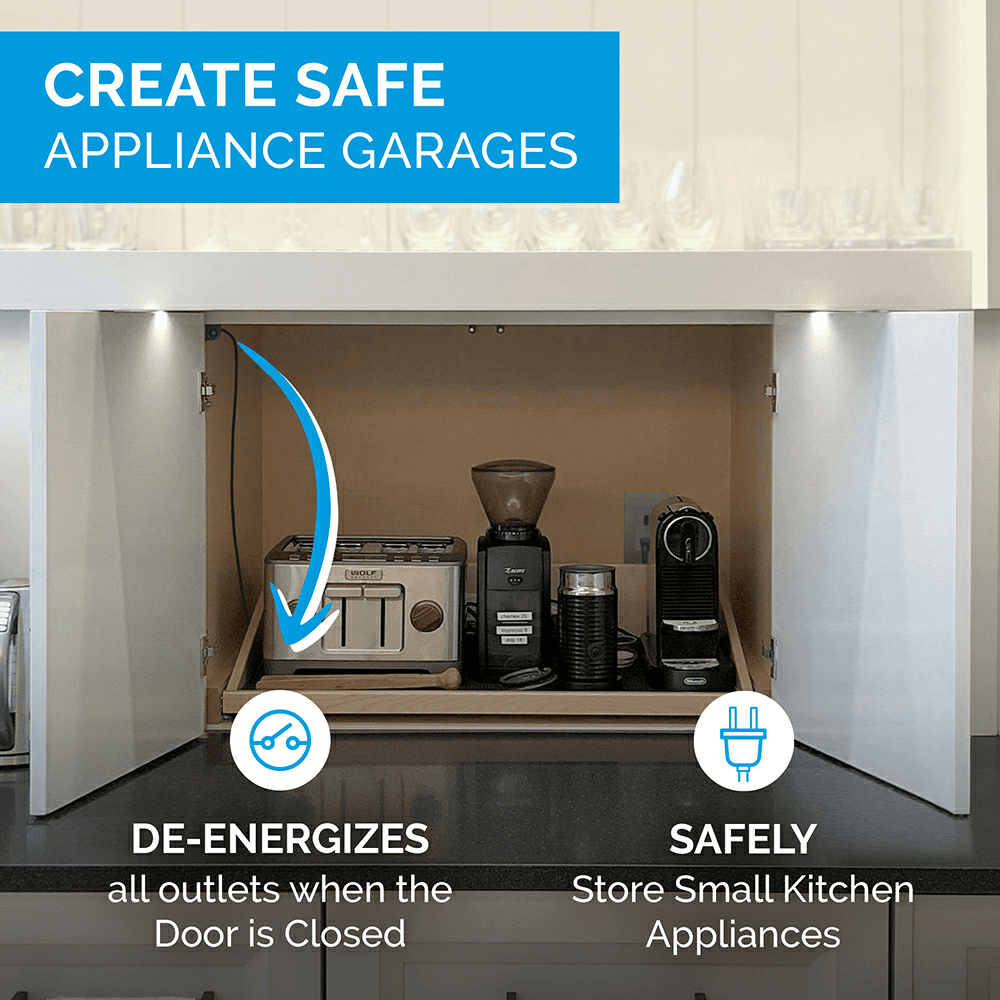

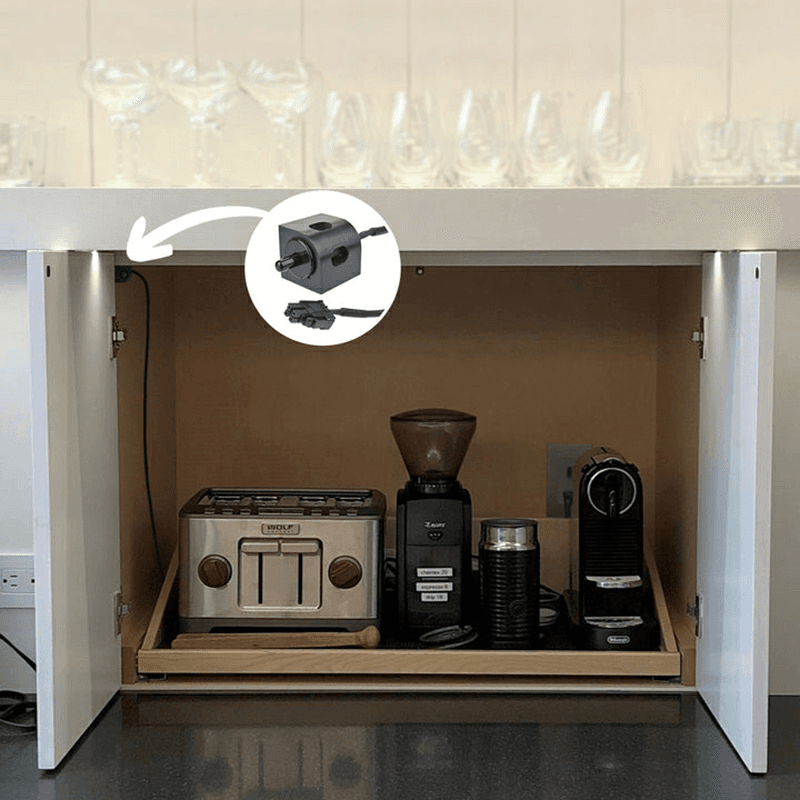

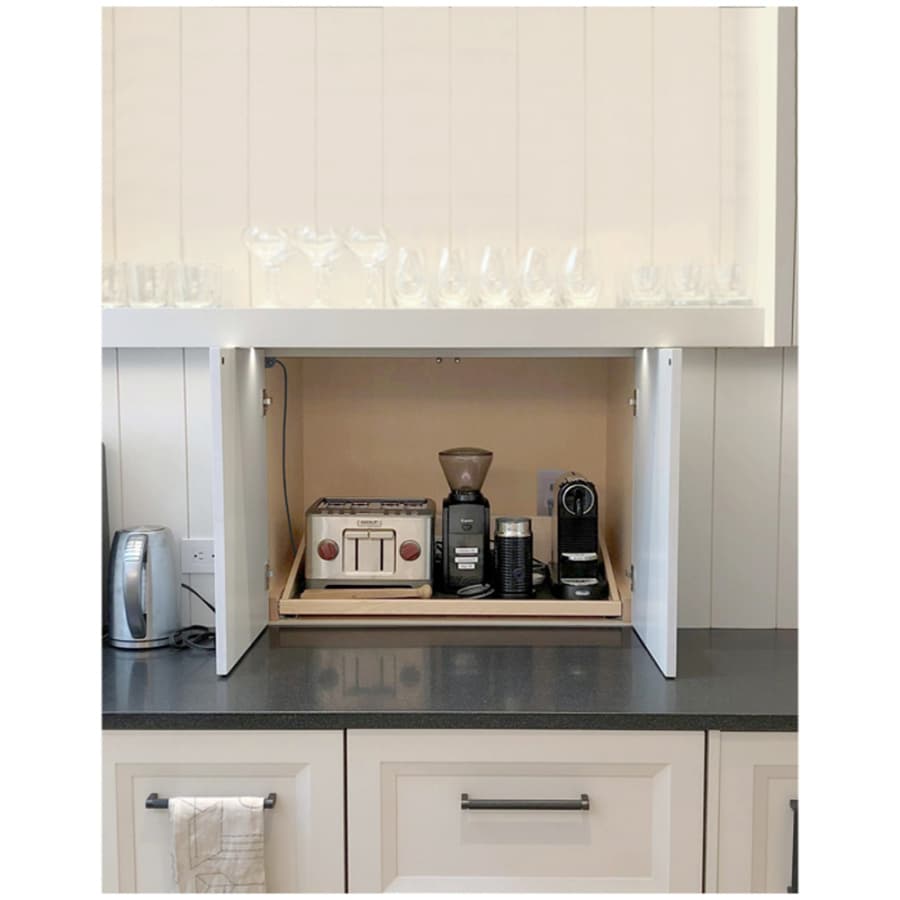

Designed for use as an added layer of safety in powered appliance garages, the Corner Mount Limit Switch senses the cabinet door position, de-energizing the safety outlet and all connected appliances depending on which limit switch is selected.

Features:

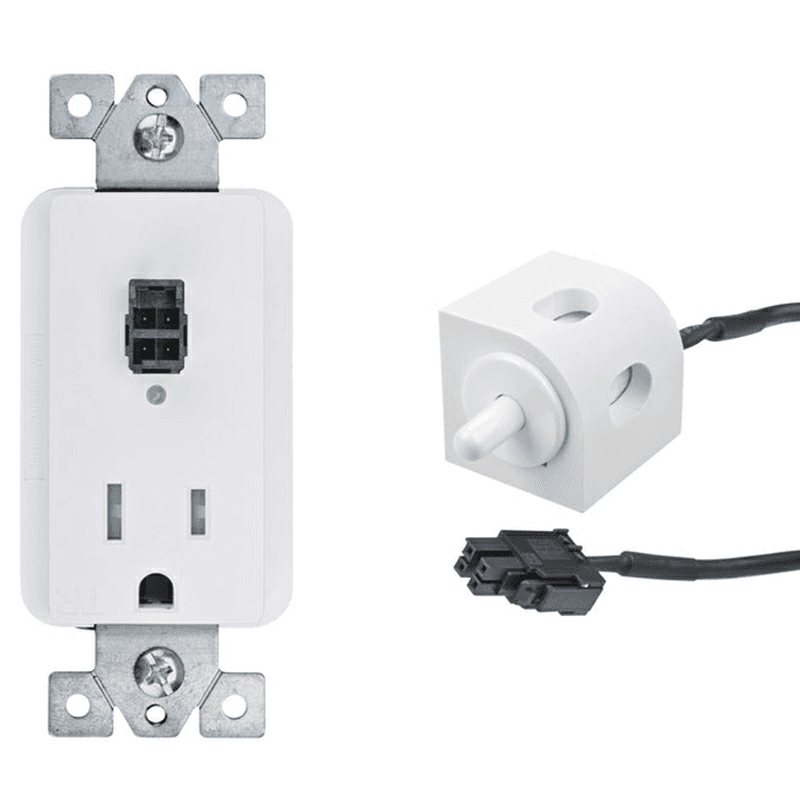

• 15-amp safety interlock outlet with corner mount limit switch
• Smart Technology: Create safe, non-energized enclosed spaces
• Enhanced Safety: Switch automatically turns OFF power when depressed
• Easy Installation: Replaces single-gang wall receptacle; side-mounts behind cabinet doors
• Peace of Mind: Ensures heat-generating appliances are off inside closed cabinet spaces
• Configuration: Directly connects one appliance with a single plug for convenience
• ETL Listed: Complies with NEC and CEC standards and is certified for UL 498, CSA 22.2 #42

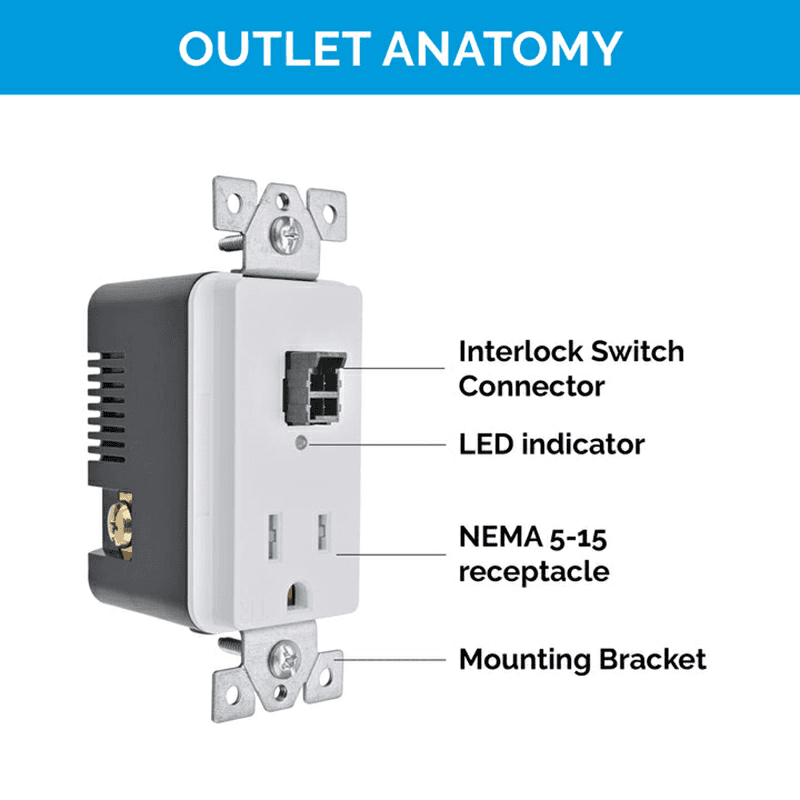

15-amp Outlet Specification:
• Input: 100 - 125 VAC, 50/60 Hz
• AC Output: 15A@125VAC, 1875 VA MAX, 1/2 HP
• DC Output: 24VDC @ 100mA MAX
• DC Power Supply: IEC Class II
• Number of Receptacles: (1) NEMA 5-15R
• Tamper Resistant: Yes
• LED Indicator: Yes
• Conformance: UL60730, UL498, EN 61558, EN60730, EN62386, CSA C22.2#42
• Environmental: -10C to +50C, non condensing
• 2 Years Warranty

Limit Switch Specification:
• Type of Limit Switch: Corner Mount Limit Switch
• Limit Switch Cable: 6 ft 24 VDC low voltage cable

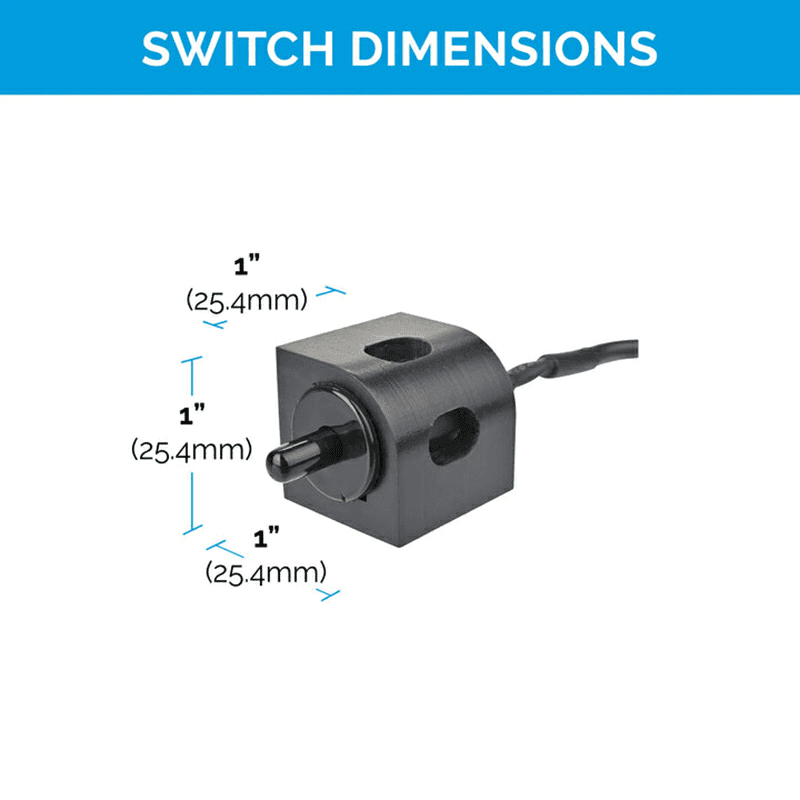

• Switch Length: 1" (25.4mm)
• Switch Width: 1" (25.4mm)
• Switch Height: 1" (25.4mm)

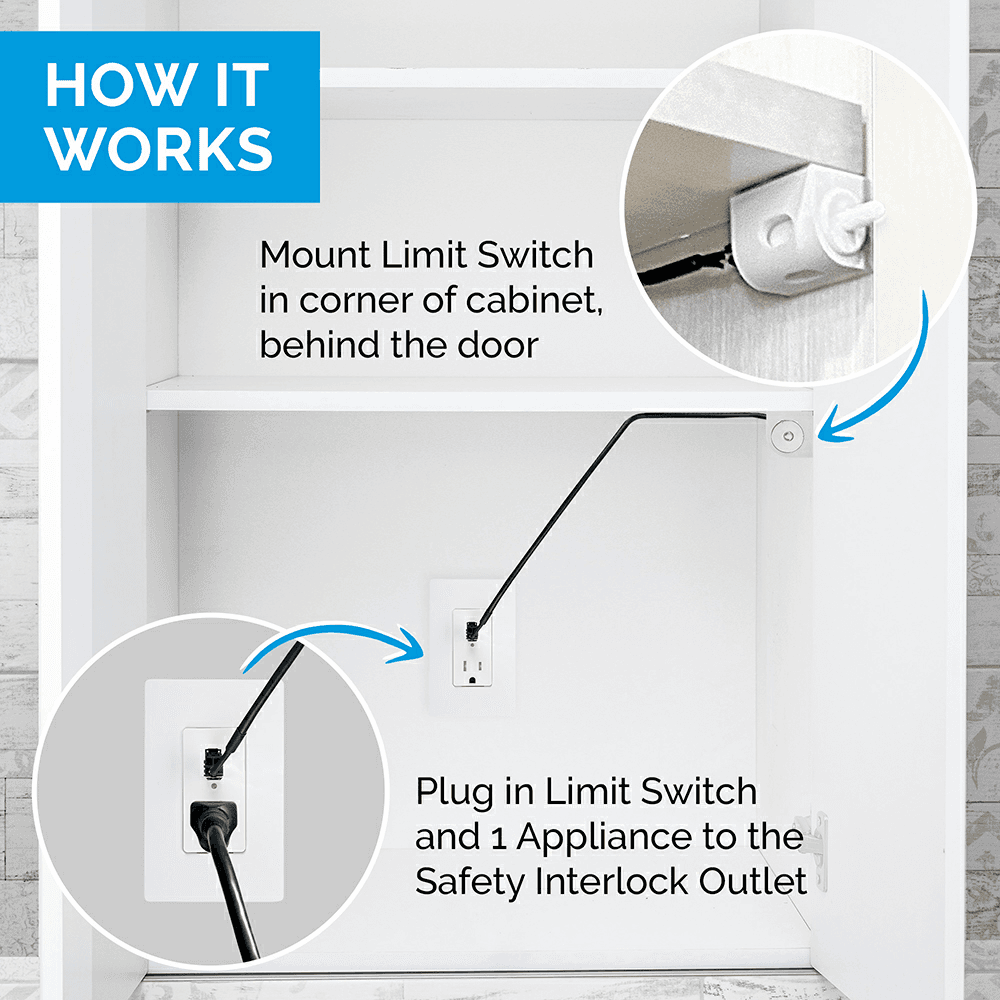

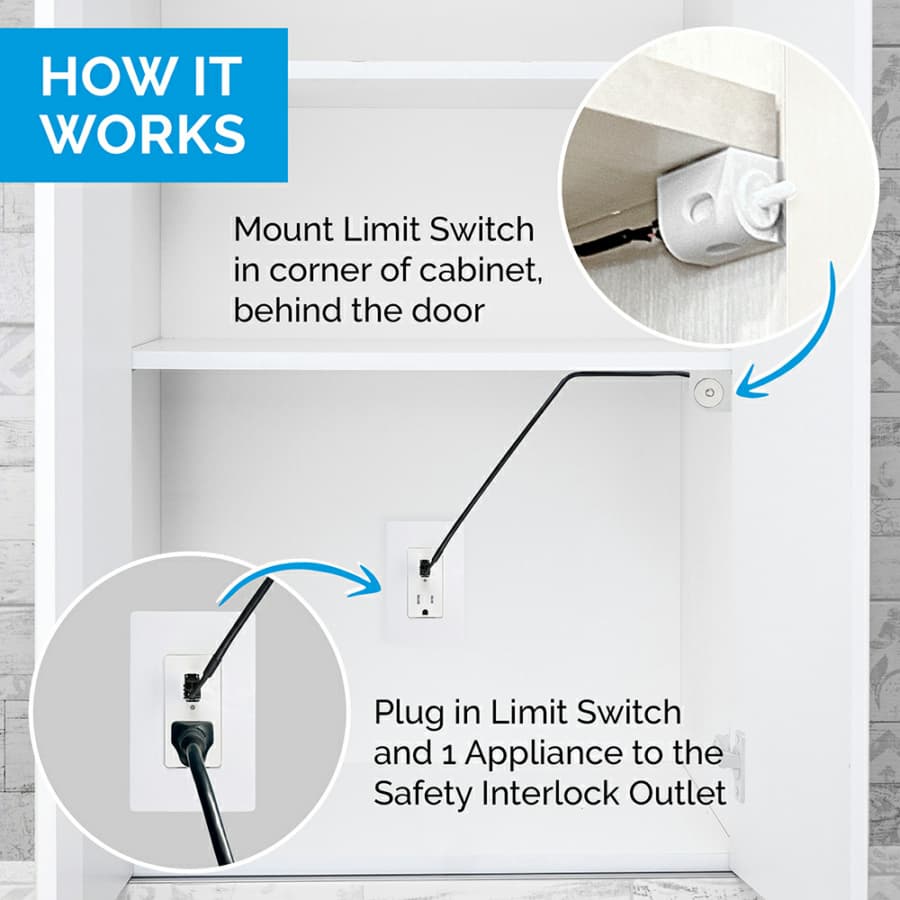

• Mounting Details: Can install in the corner of any cabinet or enclosed space behind the hinged side of the door
• Conformance: UL60730, UL498, EN 61558, EN60730, EN62386, CSA C22.2#42
