Bisco P-10 52mm x 19mm x 7mm Aligning Element, Pair of 300

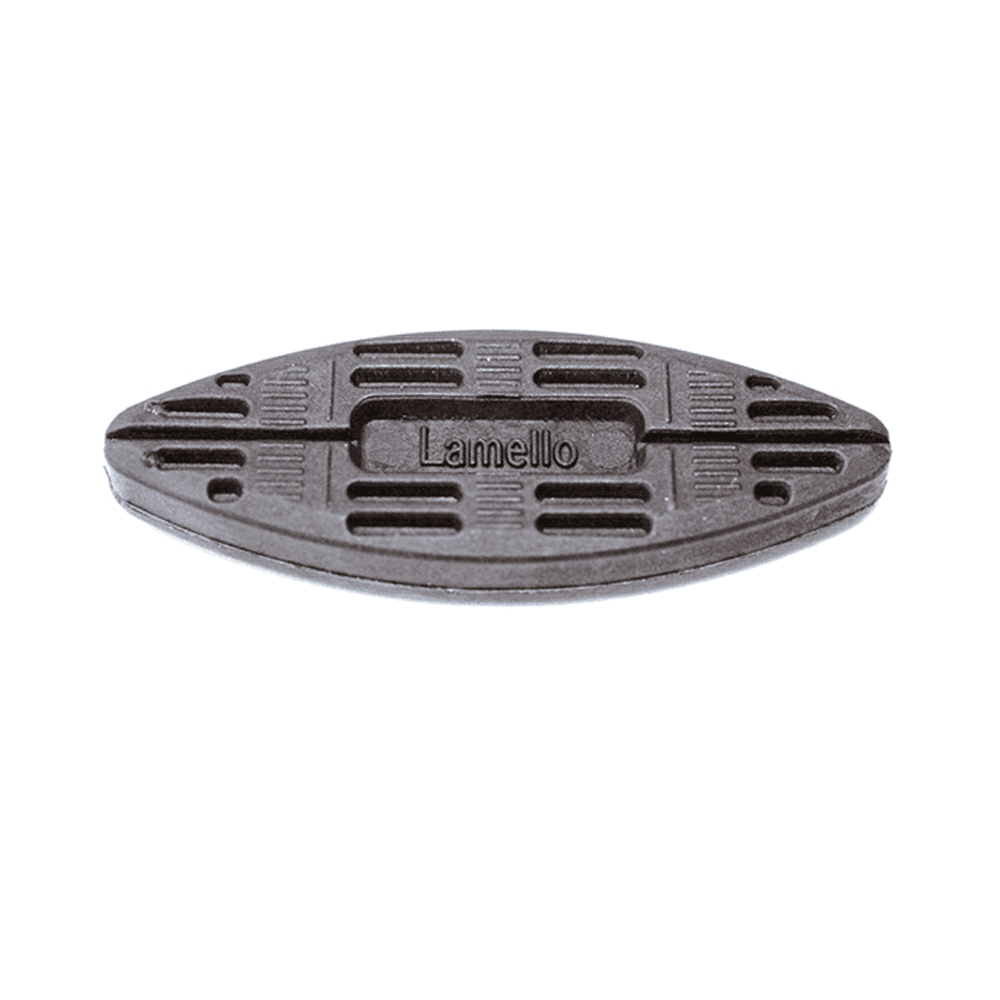

Bisco P is a plastic biscuit which fits into the 7mm P-System groove and is held in the groove due to its surface structure. Bisco P is used in combination with Clamex or Tenso as a cost-effective alignment element and ensures flushness of the joint. The Bisco can also be used as a dry joint as a test before the work piece is permanently joined with Tenso P and adhesive. Bisco P-14 is used in combination with Clamex P-14 or Tenso P-14 and Bisco P-10 with the same connectors in size P-10.

Benefits:
• Fits the same P-System groove as Clamex P-14/Clamex P-10 thus removing the need to change cutters
• Self-clamping in the groove due to its surface structure
• Fixed connections possible in conjunction with PVA glue
• Minimal installation depth for material thickness of at least 16mm
• Lateral tolerance for efficient installation with the Zeta P2 profile groove biscuit joiner or a CNC machine

Applications:
• Alignment of grooves on separation walls, table tops or kitchen worktops
• Combination with Clamex P-14/Clamex P-10 for detachable surface, corner or miter joints ranging from 30?-180?
• Combination with Clamex P-14/Clamex P-10 or as a simple element for gluing work pieces
• Stiffening or raising shear strength
