For over 45 years, Würth Louis and Company has elevated the woodworking industry through exceptional service, quality, and convenience to ensure a seamless experience every time. With flexible ordering options, a comprehensive selection of products, and next-day delivery, we cater to all your woodworking and shop supply needs.
We appreciate your trust in our expertise and dedication to providing you with the best tools and materials, helping you achieve outstanding results in your projects.
We are committed to offering:
Flexible Ordering Options: Order online 24/7 or speak with our sales team

Order by 24/7 by web, contact our sales reps or call by phone.

What you need, when you need it, all in one place.

Orders are shipped next day.

Advice and support from knowledgeable professionals.
| Box Quantity | 1 |
| Product Type | Safety Interlock Outlet |
| Manufacturer Series | Safety Interlock Outlet Series |






| Box Quantity | 1 |
| Product Type |
| Safety Interlock Outlet |
| Manufacturer Series | Safety Interlock Outlet Series |

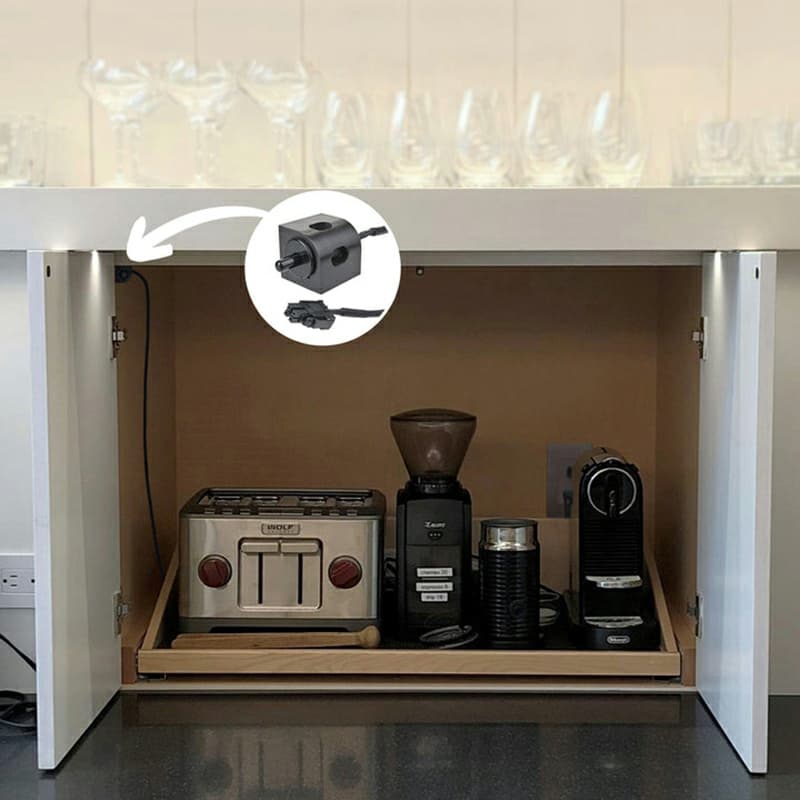

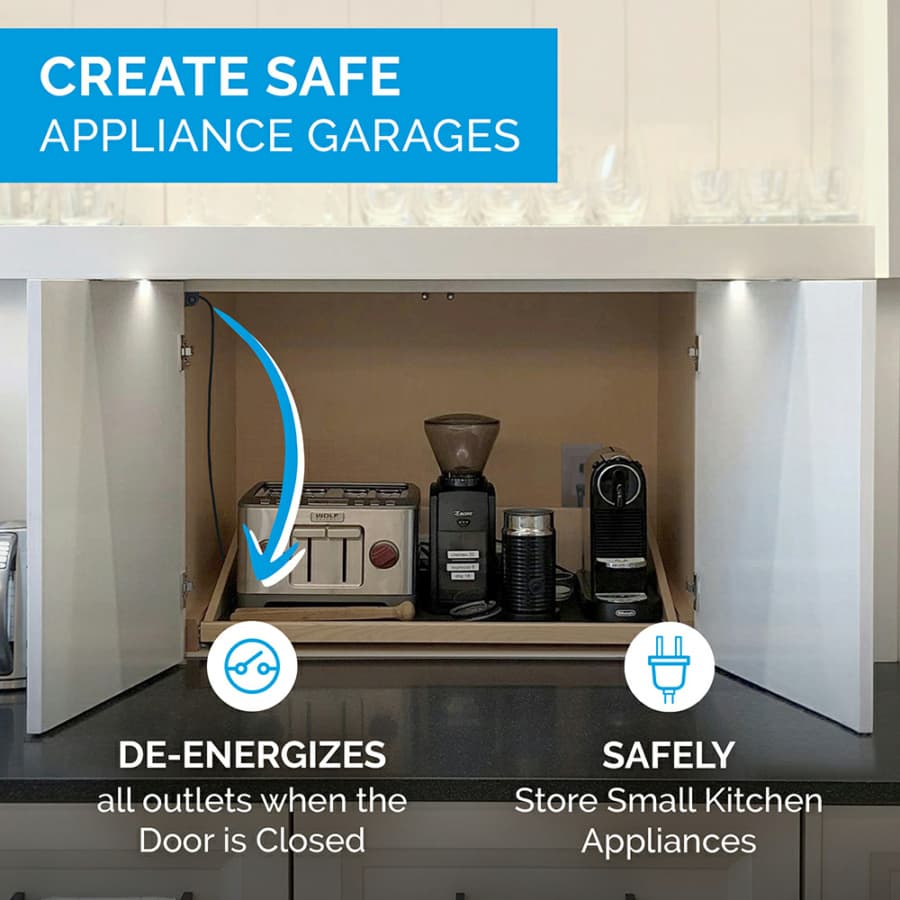

Designed for use as an added layer of safety in powered appliance garages, the Corner Mount Limit Switch senses the cabinet door position, de-energizing the safety outlet and all connected appliances depending on which limit switch is selected.
Features:

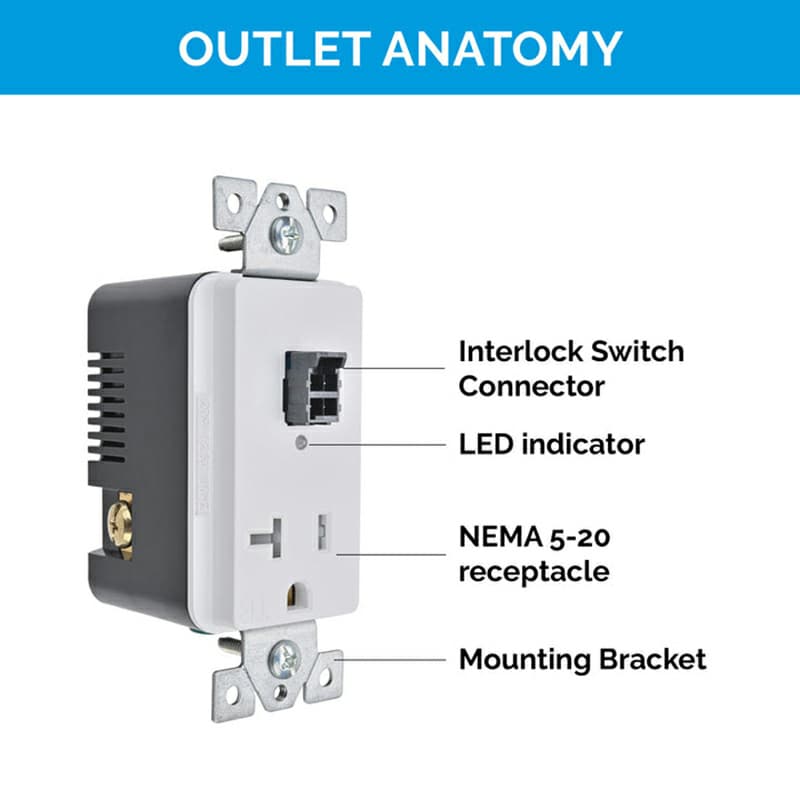

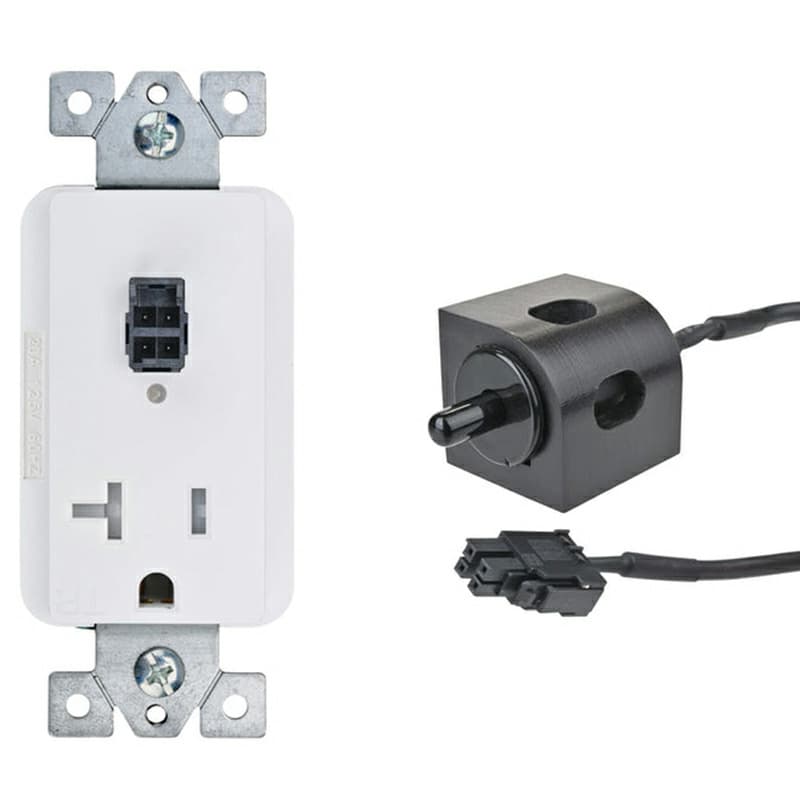

• 20-amp safety interlock outlet with corner mount limit switch
• Smart Technology: Create safe, non-energized enclosed spaces
• Enhanced Safety: Switch automatically turns ON power when depressed

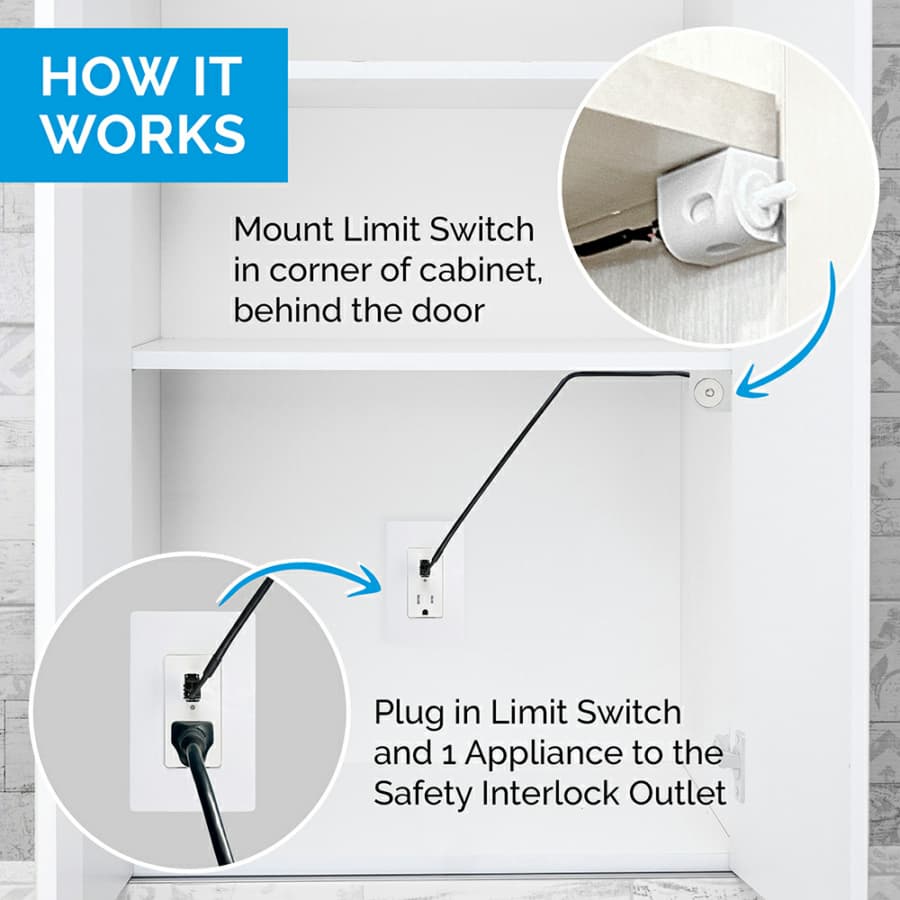

• Easy Installation: Replaces single-gang wall receptacle; side-mounts behind cabinet doors
• Peace of Mind: Ensures heat-generating appliances are off inside closed cabinet spaces
• Configuration: Directly connects one appliance with a single plug for convenience
• ETL Listed: Complies with NEC and CEC standards and is certified for UL 498, CSA 22.2 #42
20-amp Outlet Specification:
• Input: 100 - 125 VAC, 50/60 Hz
• AC Output: 20A@125VAC, 2500 VA MAX, 1/2 HP
• DC Output: 24VDC @ 100mA MAX
• DC Power Supply: IEC Class II
• Number of Receptacles: (1) NEMA 5-15R
• Tamper Resistant: Yes
• LED Indicator: Yes
• Conformance: UL60730, UL498, EN 61558, EN60730, EN62386, CSA C22.2#42
• Environmental: -10C to +50C, non condensing
• 2 Years Warranty
Limit Switch Specification:
• Type of Limit Switch: Corner Mount Limit Switch
• Limit Switch Cable: 6 ft 24 VDC low voltage cable

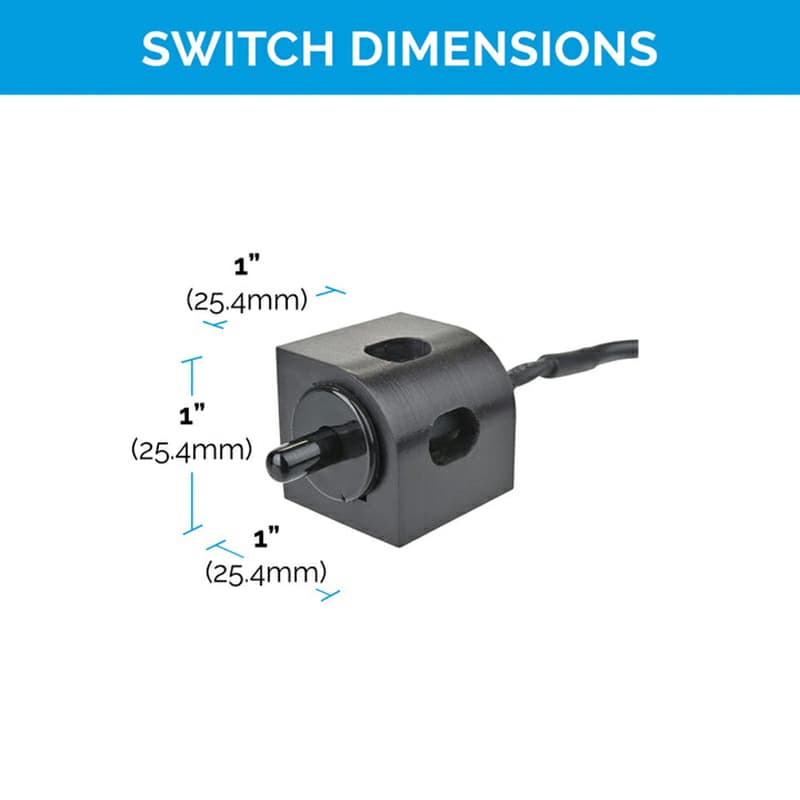

• Switch Length: 1" (25.4mm)
• Switch Width: 1" (25.4mm)
• Switch Height: 1" (25.4mm)
• Mounting Details: Can install in the corner of any cabinet or enclosed space behind the hinged side of the door
• Conformance: UL60730, UL498, EN 61558, EN60730, EN62386, CSA C22.2#42
