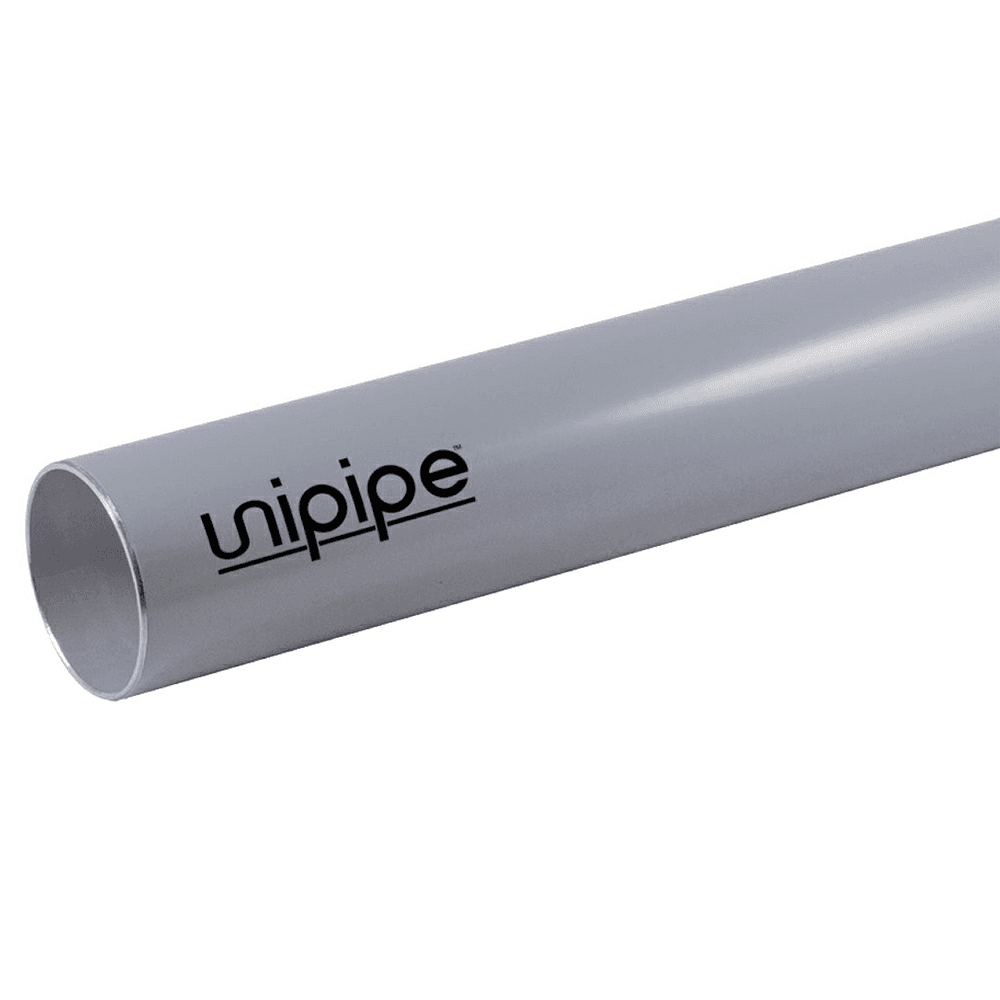

20mm x 8' Pipe for Vacuum, Gray
Size: 20mm x 8'
Product Details
Features: • 20mm x 8′ Pipe for Vacuum, Gray • 8′ Section • Weight: 2.1 lb • For Vacuum • Wall Thickness: 1.0mm • Max working pressure: 25.7 (4-1/2" to 10") -29 inHg (3/4" to 3-1/2") • Plant Testing Pressure 1 hour at 20°C: 348 PSI (24 bar) • Quality Testing Pressure 1 hour at 20°C: 928 PSI (64 bar) • Continuous Working Temperature: From -4°F to 212°F (-20°C up to 100°C) • Max Working Temperature: From -22°F Up to 266°F (-30°C Up to 130°C) • Thread Standard: NPT National Pipe Thread complying to ANSI B1.20.1 • Aluminum Pipe Mechanical Resistance: According to EN-755-2/2008 standards • Pipe Material: Aluminum Alloy EN AW 6060 - T5 according to EN 755-2/2008 • Aluminum Fittings Material: Aluminum Alloy EN Aw 6061 T6 O-Ring & Lip Gasket Material: HNBR 65°/75° Shore A Clamp Ring Material: AISI 304 Stainless Steel
Specifications
| Box Quantity | 1 |
| Product Type | Pipe |
| Gauge | |
| Size | 20mm x 8' |
