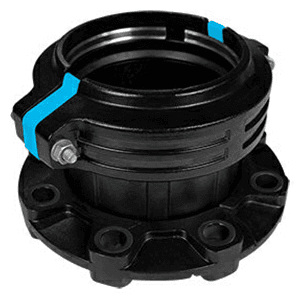

160mm x 6" Flange Adapter for Compressed Air
Size: 160mm x 6"
Product Details

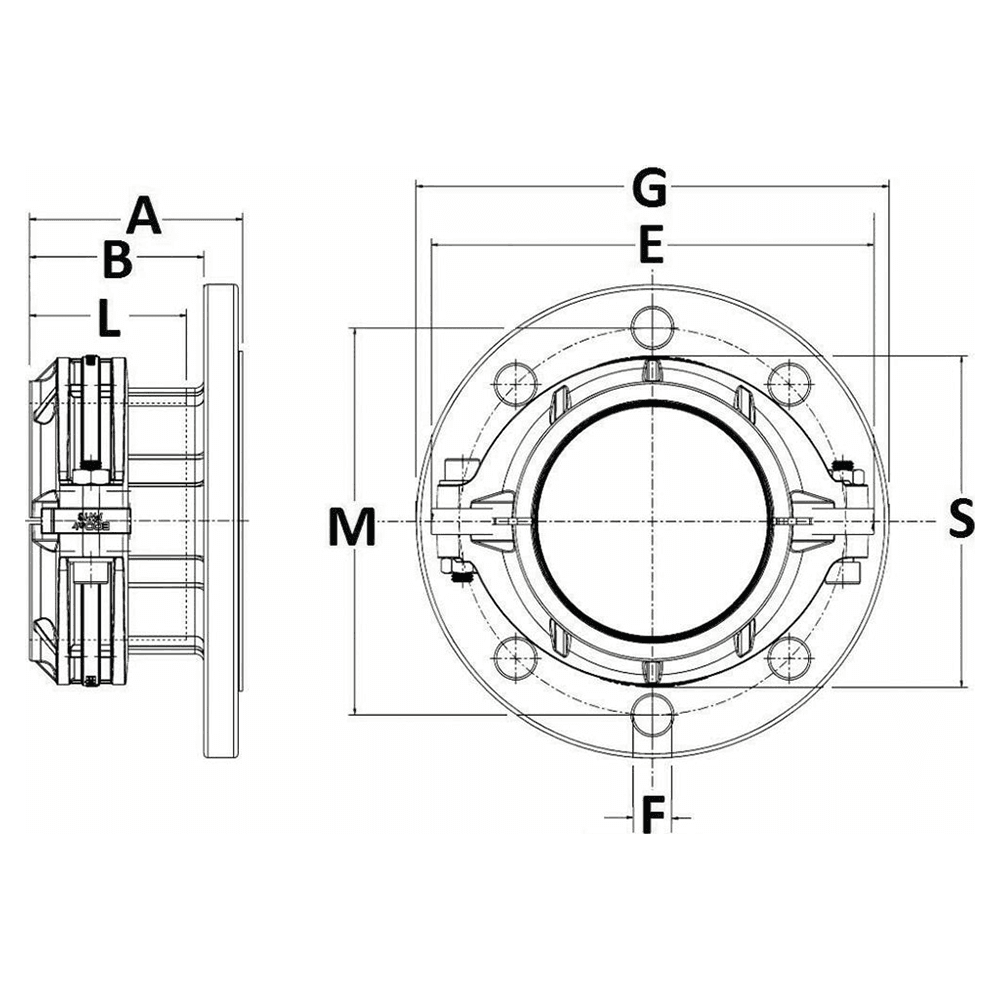

Features: • 160mm x 6" Flange Adapter for Compressed Air • Weight: 16.4 lb • For Compressed Air (also rated for oils and coolants) • Max Working Pressure 232 PSI (16 bar) • Dimension of A Size: 184mm • Dimension of B Size: 171mm • Dimension of E Size: 221mm • Dimension of F Size: 23.5mm • Dimension of G Size: 283mm • Dimension of M Size: 240.5mm • Dimension of L Size: 133.5mm • Dimension of S Size: 221mm
Specifications
| Box Quantity | 1 |
| Product Type | Flange Adapter |
| Gauge | |
| Size | 160mm x 6" |
