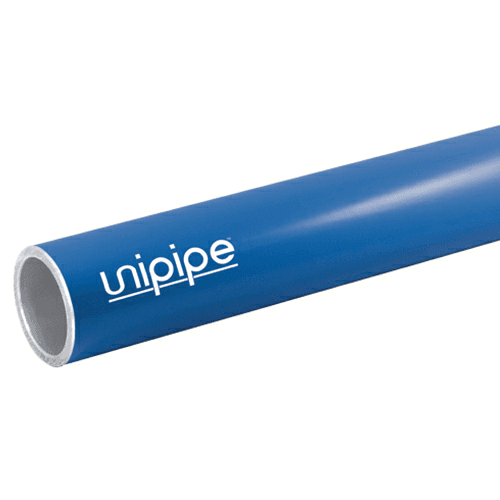

20mm x 13.1' Pipe, Dark Blue
Size: 20mm x 13.1'
Product Details
Features: • 20mm x 13.1′ Pipe, Dark Blue • Weight: 2.1 lb • Wall Thickness: 2.0 • For higher pressure needs exceeding 232 PSI • Max Working Pressure 1015 PSI (70 bar) • Continuous Working Temperature: From -4°F to 212°F (-20°C up to 100°C) • Max Working Temperature: From -22°F Up to 266°F (-30°C Up to 130°C) • Thread Standard: NPT National Pipe Thread complying to ANSI B1.20.1 • Aluminum Pipe Mechanical Resistance: According to EN-755-2/2008 standards • Pipe Material: Aluminum Alloy EN AW 6060 - T5 according to EN 755-2/2008 • Aluminum Fittings Material: Aluminum Alloy EN Aw 6061 T6 • O-Ring & Lip Gasket Material: HNBR 65°/75° Shore A • Clamp Ring Material: AISI 304 Stainless Steel
Specifications
| Box Quantity | 1 |
| Product Type | Pipe |
| Gauge | |
| Size | 20mm x 13.1' |
