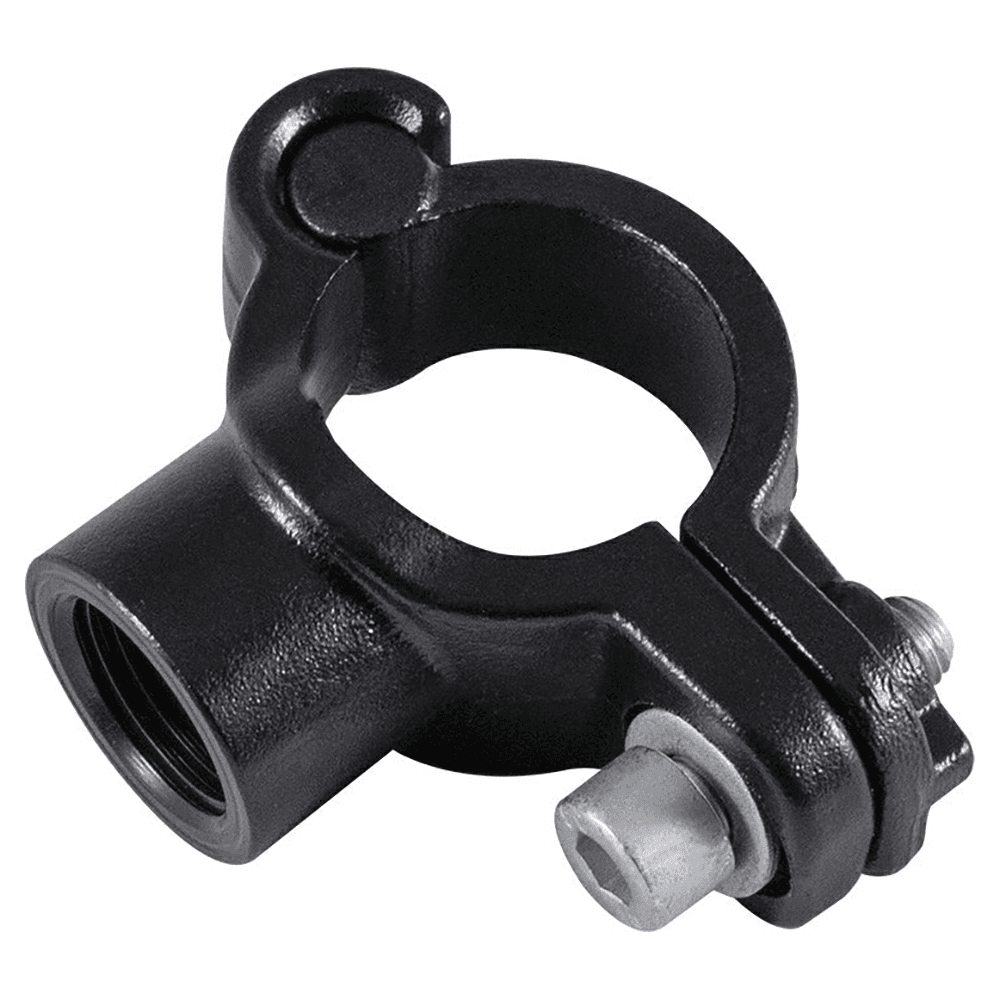

50mm x 3/4" FNPT Saddle Branch for Compressed Air
Item # UNIUCHF0.050020N
•Mfr # UCHF0.050020N
Size: 50mm x 3/4"
Product Details

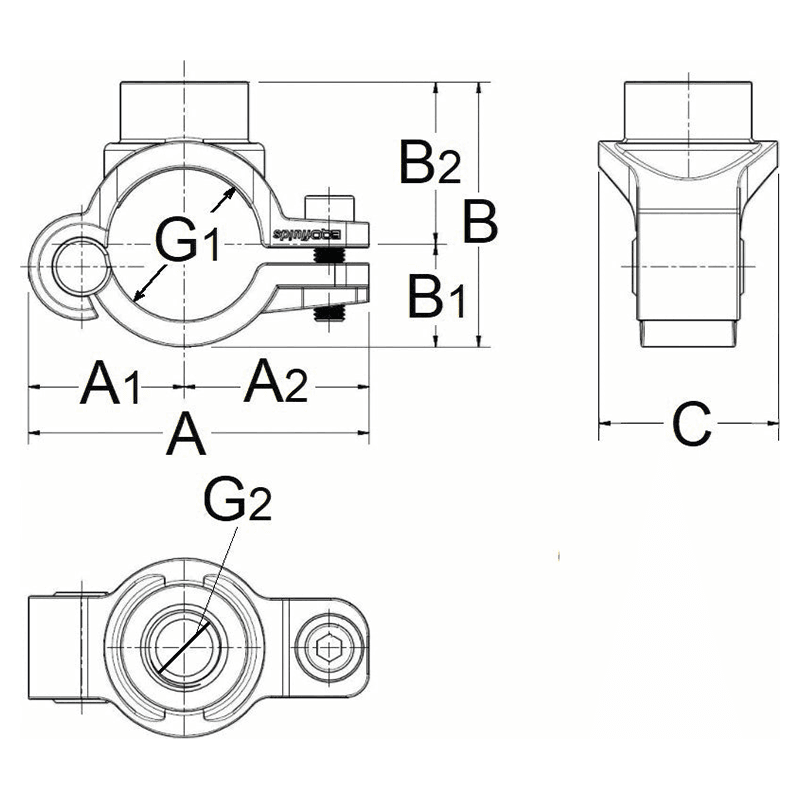

Features: • 50mm x 3/4" FNPT Saddle Branch for Compressed Air • Weight: 7.7 oz • Max Working Pressure 580 PSI (40 bar) • Dimension of A Size: 102mm • Dimension of A1 Size: 46.5mm • Dimension of A2 Size: 55.5mm • Dimension of B Size: 84mm • Dimension of B1 Size: 32mm • Dimension of B2 Size: 32mm • Dimension of C Size: 47mm
Specifications
| Box Quantity | 1 |
| Product Type | Saddle Branch |
| Gauge | |
| Size | 50mm x 3/4" |
