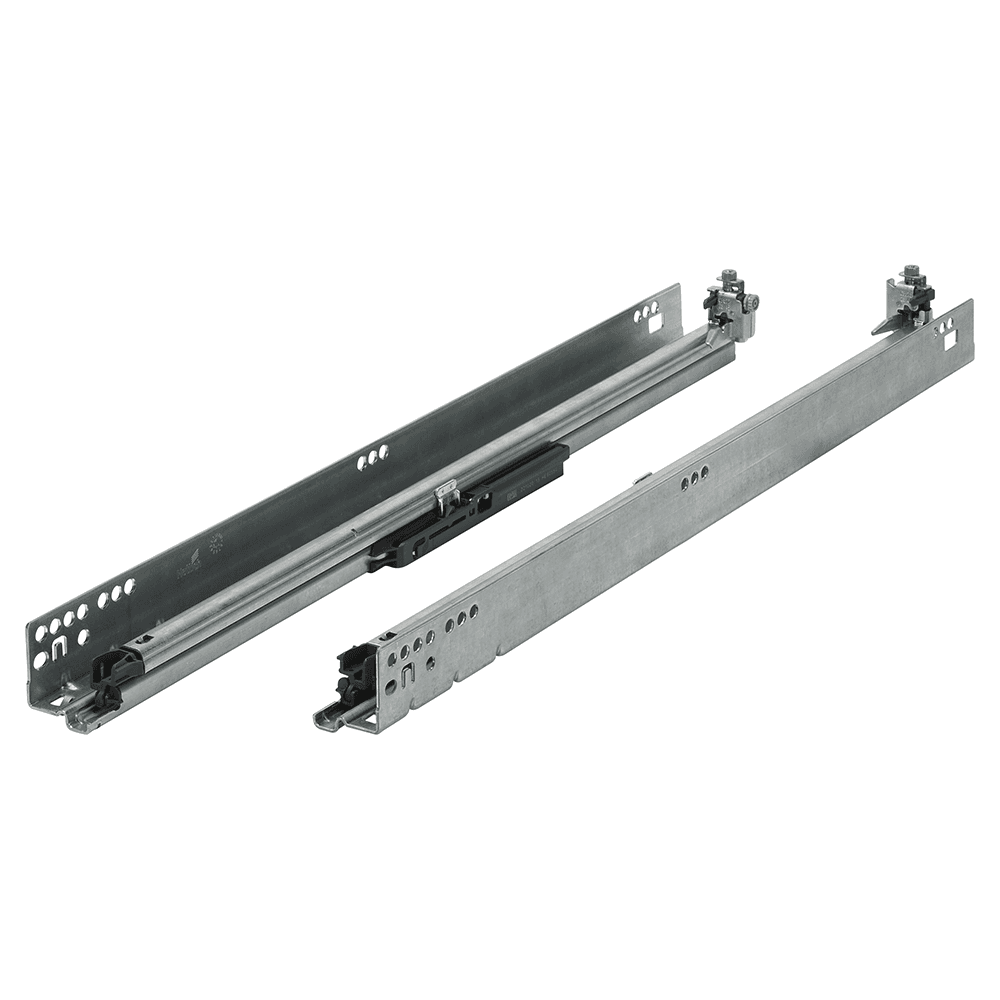

15" Quadro 5D V6 IW21 Undermount Drawer Slide for Wooden Drawers, 90lb Capacity Full Extension with Silent System Soft-Closing
5 items
25 items
Drawer Length: 15"
Product Details
Features: • 15" Quadro 5D V6 IW21 undermount drawer slide • Slide on installation with catches and tool-less drawer adjustmen • Side adjustment up to +/- 2 mm with 2D front fixing clip • Various user friendly functions (see ordering table • Optionally upgradeable with Push to open Silent: convenient opening mechanism in combination with silent and soft closing; upgradeable with synchronization • Meets or exceeds ANSI / BHMA 156.9 grade 1 requirement • Load capacity up to 90 lbs dynamic (100 lbs static), as per ANSI / BHMA 156.9 grade 1 specifications on a 21" length slide • Galvanized steel, suitable for rooms exposed to moistur • For 1/2" (13 mm) or 5/8" (16 mm) drawer side thicknes • For narrow application
Specifications
| Box Quantity | 5 |
| Length | |
| Finish | Galvanized Steel |
| Drawer Length | 15" |
| Closing Type | Soft-Closing |
| Model | Quadro 5D V6 IW21 |
| Load Capacity | 90lb |
| Travel | Full Extension |
| Product Type | Drawer Slide |
| Left or Right | Both (Pair) |
| Cabinet Type | |
| Mounting Type | Under Mount |
| Material | Steel |
| Slide Type | |
| Height | |
| Certifications | ANSI/BHMA |
| Width | |
| Material Thickness | 1/2" to 5/8" |
| Cabinet Width | |
| Thickness | |
| Overlay |
