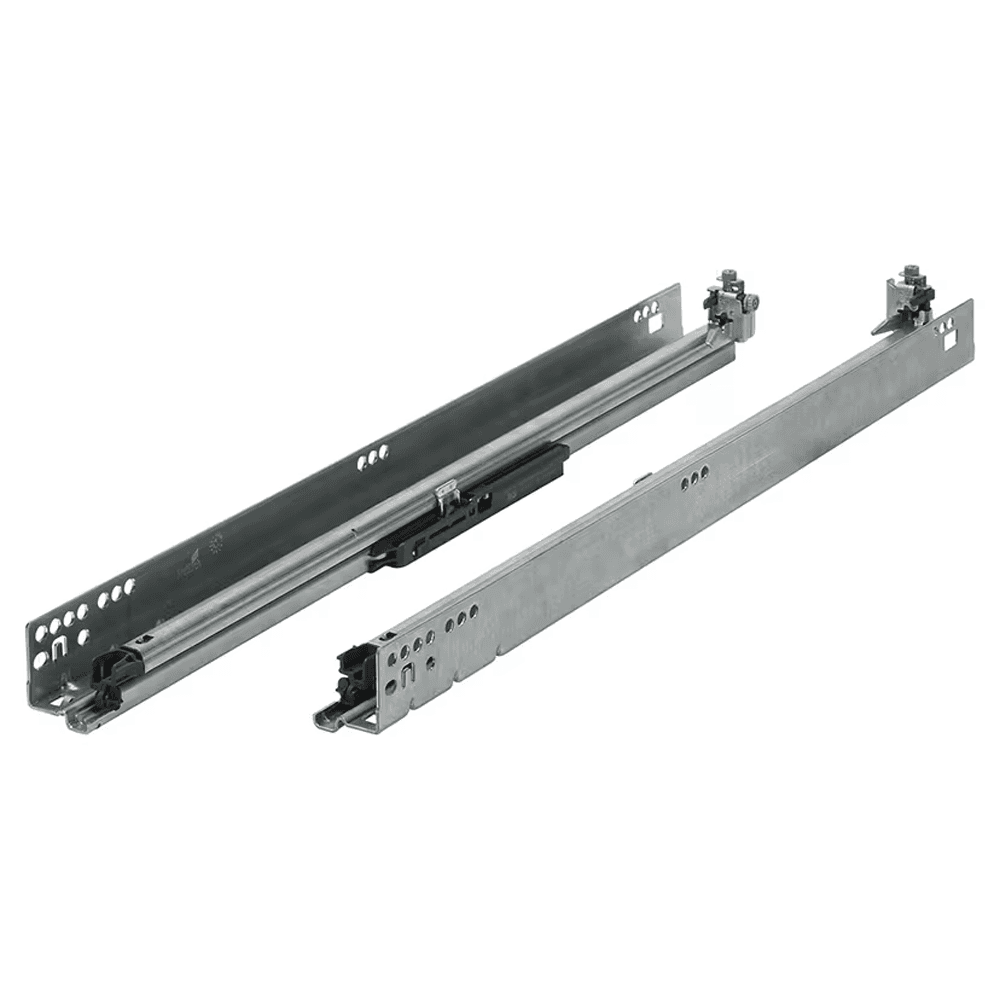

15" Quadro 5D V6 IW21 Undermount Drawer Slide for Wooden Drawers, 90lb Capacity Full Extension with Silent System Soft-Closing
5 items
25 items
Drawer Length: 15"
Product Details
Quadro 5D V6 IW21 Full Extension Undermount Slides with Silent System Soft-Closing for Drawer Thickness up to 5/8"
Quadro drawer slides guarantee the ultimate in drawer convenience: attractive design through concealed installation, long service life and unceasing top performance.
Precision ball bearing construction, for perfect andlateral stability.
The optional Silent System gently shuts drawers in complete silence.
Features:
Quadro 5D offers seamless drawer front alignment. The tool-less adjustments include:
- Height adjustment up to + 3 mm
- Side adjustment up to +/- 1.5 mm
- Depth adjustment up to + 2 / - 1 mm
- Tilt adjustment up to + 4 mm
- Radial adjustment up to +/- 1.5 mm
Additional Features:
NOTE: FRONT LOCKING DEVICES REQUIRED AND SOLD SEPERATELY
Downloads
Specifications
| Box Quantity | 5 |
| Length | |
| Finish | Galvanized Steel |
| Drawer Length | 15" |
| Closing Type | Soft-Closing |
| Model | Quadro 5D V6 IW21 |
| Load Capacity | 90lb |
| Travel | Full Extension |
| Product Type | Drawer Slide |
| Left or Right | Both (Pair) |
| Cabinet Type | |
| Mounting Type | Under Mount |
| Material | Steel |
| Slide Type | |
| Height | |
| Certifications | ANSI/BHMA |
| Width | |
| Material Thickness | 1/2" to 5/8" |
| Cabinet Width | |
| Thickness | |
| Overlay |
