952 Disc Tumbler Cam Lock for Doors and Drawers Application, Matte Black, Keyed Different/Master Keyed to (Pack/15)

Feature:
• Lock comes assembled
• Passed ANSI/BHMA Grade 2 cycle test: 20,000 cycles including key insertion and removal
• Shipped with cylinder and body assembled via patented retainer staple. Keys are not required for assembly
• Spur washer with eyelet. When screwed into place, the spur washer prevents lock rotation and keeps fixing nut from loosening after installation
• Revolutionary cylinder + cylinder extender allows cylinders to easily be swapped between different size cam lock bodies increasing inventory and keying flexibility
• 90 degree cam turn
• Custom keying typically ships direct from mfr. in 48-72 hours
• For drawers, right-hand or left-hand doors

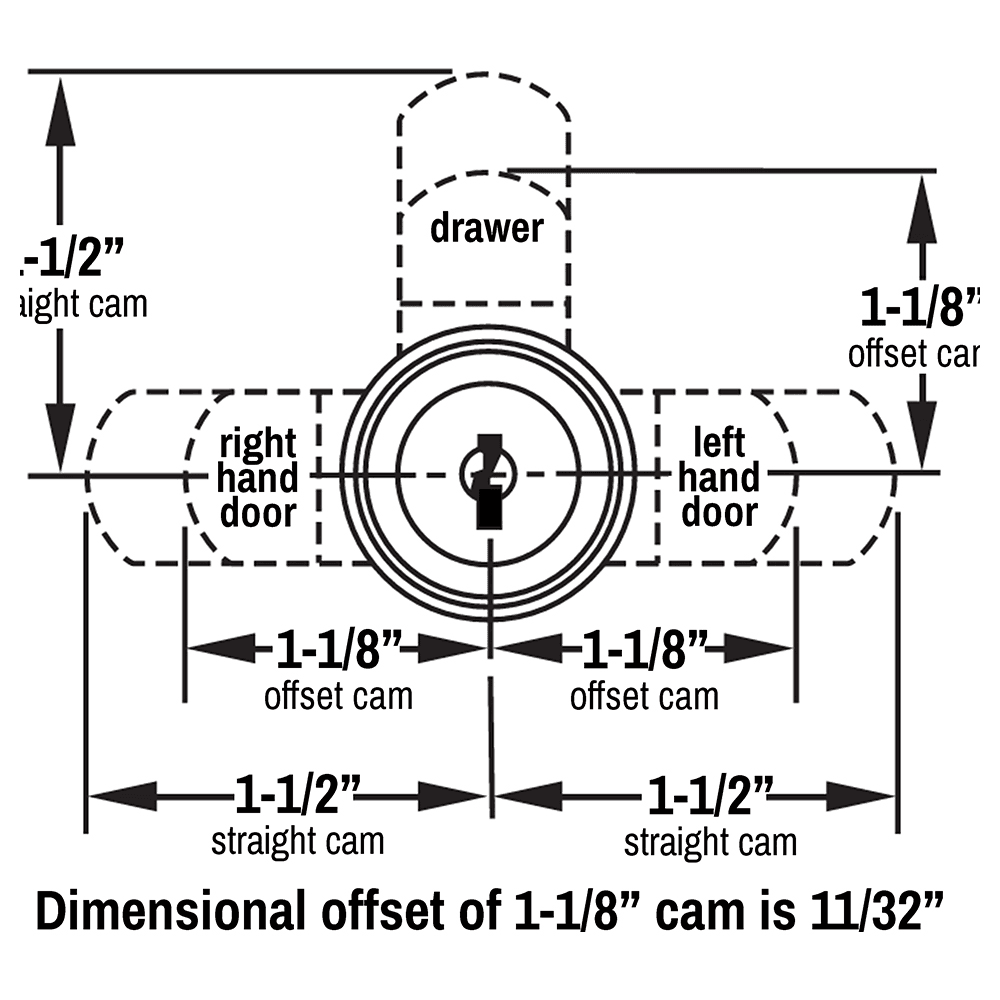

• Lipped/overlay construction (1-1/2" straight cam) or flush construction (1-1/8" extension, 11/32" offset cam)
• For overlay application, the combined thickness of front and frame cannot exceed the cylinder length listed below
• Key removable in both locked and unlocked positions
• Includes: (2) keys, (2) cams, eyelet spur washer, fixing nut, trim ring, cam screw with star washer and retainer staple
• KA = All Keyed Alike to key number specified, master key will not work on these locks
• KD = All Keyed Different, various lock numbers, master key will not work on these locks
• KDMKD = All Keyed Different and master keyed, master key will work on these locks
• Maximum Material Thickness: 15/64"
• Rotation: 90°
