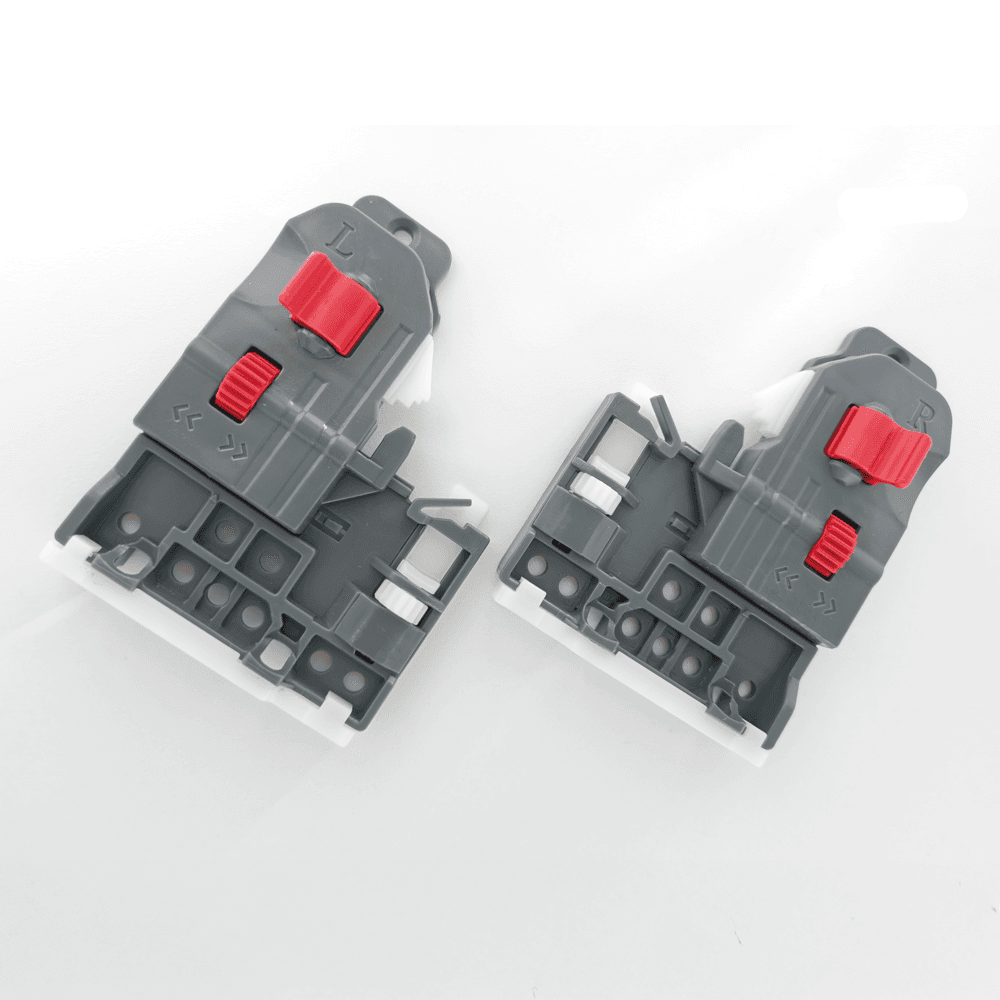

PRO560 2D 4-Way Adjustable Non-Flanged Front Locking Device Set
Item # PRO560FLD-2D
•Mfr # 0684250159961 120
Product Details

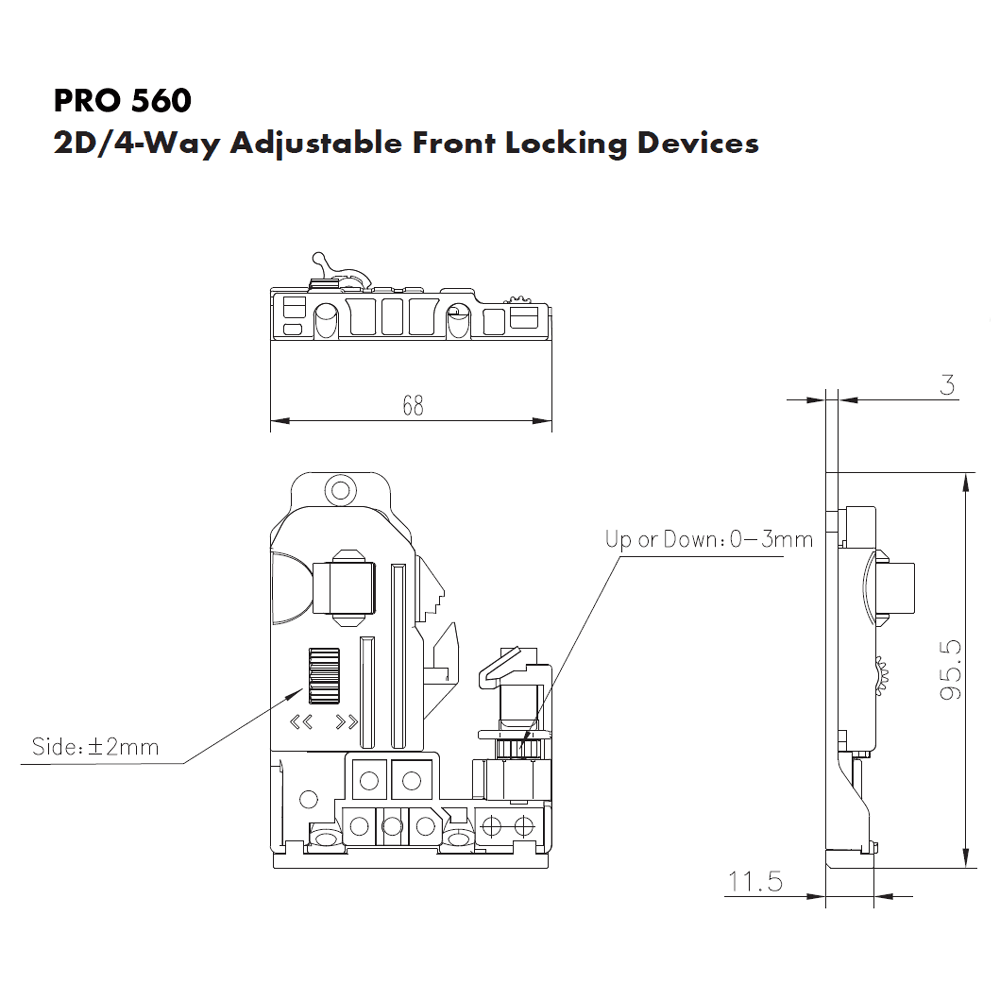

• 2D/4-Way Front Locking Devices:
• Height Adjustment: +3mm
• Side-to-Side Adjustment: +/- 2mm
• For 12mm or 16mm drawer thickness
• For 16mm, use 1/8” spacer (included). Spacer is to be used when the drawer material is 1/2" (12mm)
• Height Adjustment: +3mm
• Side-to-Side Adjustment: +/- 2mm
• For 12mm or 16mm drawer thickness
• For 16mm, use 1/8” spacer (included). Spacer is to be used when the drawer material is 1/2" (12mm)
Specifications
| Box Quantity | 6 |
| Length | |
| Finish | |
| Drawer Length | |
| Closing Type | |
| Model | PRO560 |
| Load Capacity | |
| Travel | |
| Product Type | Front Locking Device |
| Left or Right | Both (Pair) |
| Cabinet Type | |
| Mounting Type | |
| Material | |
| Slide Type | |
| Height | |
| Certifications | |
| Width | |
| Material Thickness | |
| Cabinet Width | |
| Thickness | |
| Overlay |
