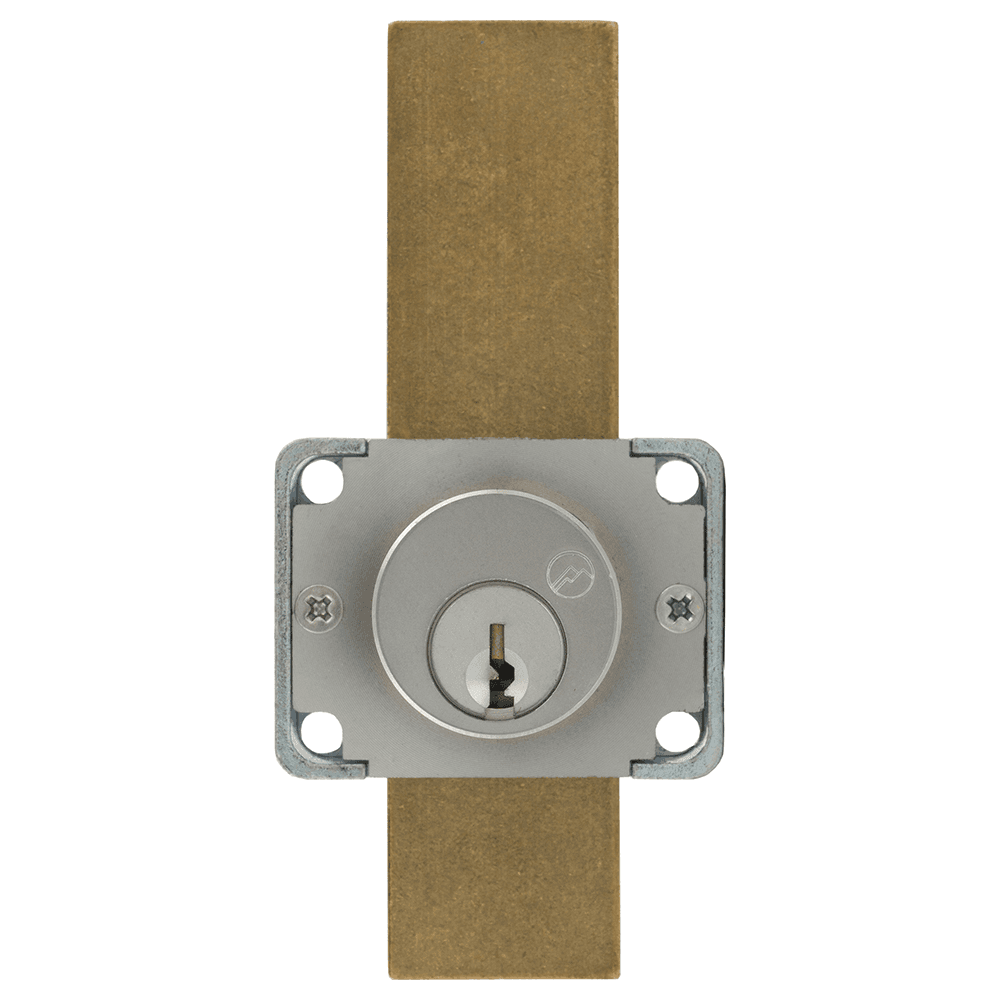

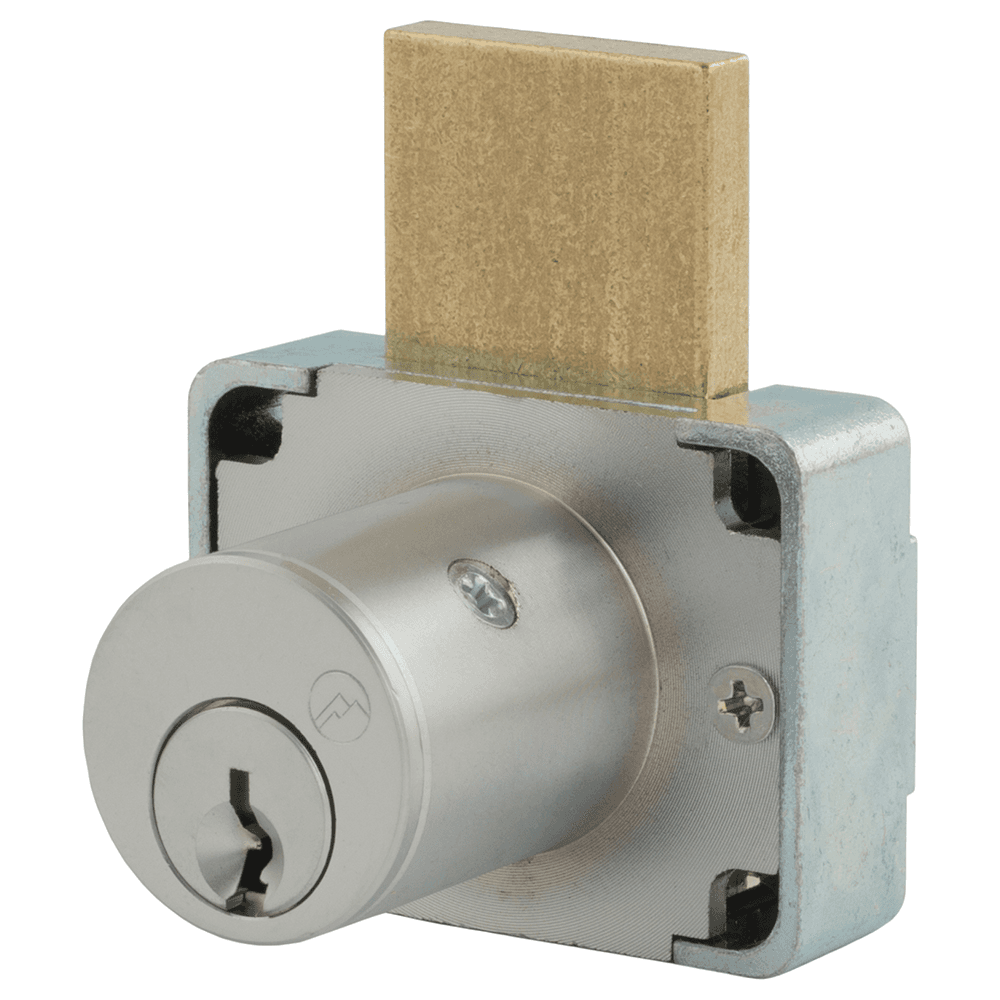

N Series 7/8" Deadbolt Drawer Lock, Satin Chrome, KA# 51001
Product Details
Features: • N Series 7/8" deadbolt drawer lock in satin chrome, KA# 51001 • N Series: National Keyway • 200DW deadbolt drawer lock • Easily rekeyable via set screw cylinder release mechanism • Solid brass pin tumbler cylinder drilled for 5 pins • For MRI locks see 200M • For weather resistant locks see 200B • Barrel diameter: 7/8" • Standard function: locks are non-handed with key removable in the locked and unlocked position • Optional extended bolt - specify -LB option • Includes angle strike 12-3 • US Patent Nos: 4,899,563; 4,920,774 • Key-retaining = key removable in locked position only • WARNING (California Proposition 65)
Specifications
| Box Quantity | 1 |
| Keyed As | KA# 51001 |
| Finish | Satin Chrome |
| Product Type | Deadbolt Drawer Lock |
| Width | 1-5/8" |
| Height | 1-1/4" |
| Cam Length | |
| Depth | |
| Material | |
| Mounting Type | |
| Shape | |
| Bolt Length | |
| Application | Drawers |
| Cylinder Diameter | 7/8" |
| Certifications | ANSI/BHMA A156.11 Grade 1 |
| Bolt Throw | |
| Cam Rotation | |
| Locked Bolt Length | |
| Orientation | |
| Hardware Included | |
| Tumbler Type | Pin |
| Bolt Set Back | |
| Cam Setback | |
| Open Bolt Length | |
| Center to Center |
