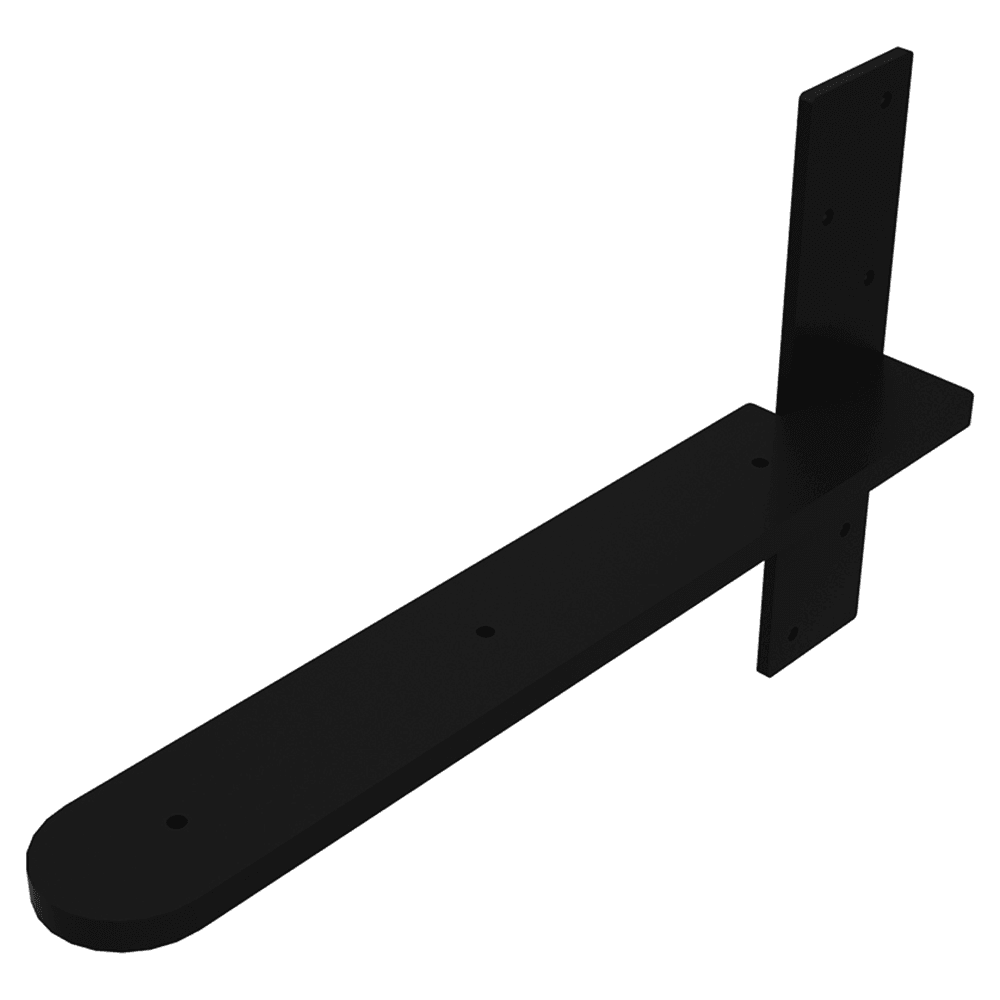

2-1/2" x 10" Capitol Stud Mounted Floating Shelf/Countertop Bracket, Flat Black

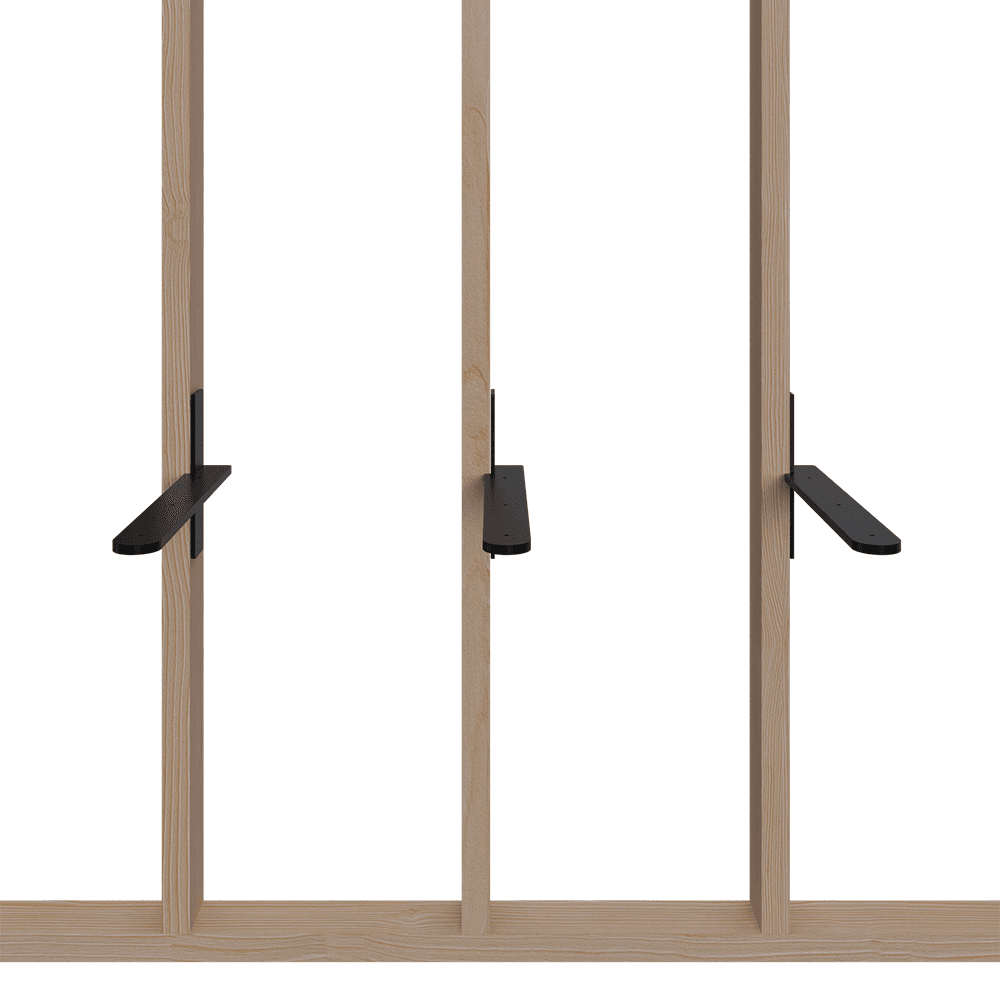

The Capitol bracket for a floating shelf application, ensure the bracket arms align with the shelf’s depth and that each bracket is anchored directly into wall studs for maximum strength; for a countertop application, ensure each bracket is properly aligns with wall studs and spaced no more than 24 inches apart to support the weight of the surface

Features:

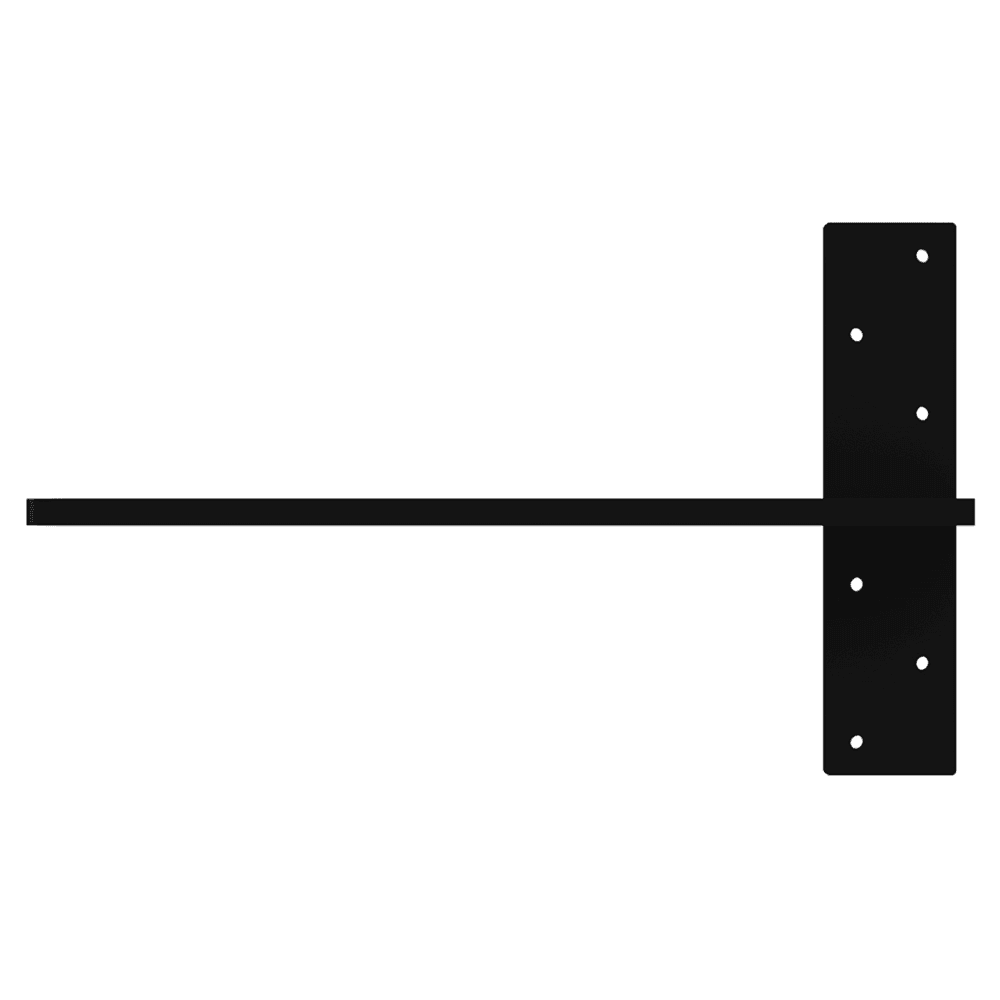

• 2-1/2" x 10" Capitol stud mounted floating shelf/countertop bracket in flat black finish
• Ultra-slim, stud-install bracket engineered for invisible strength and ease of installation

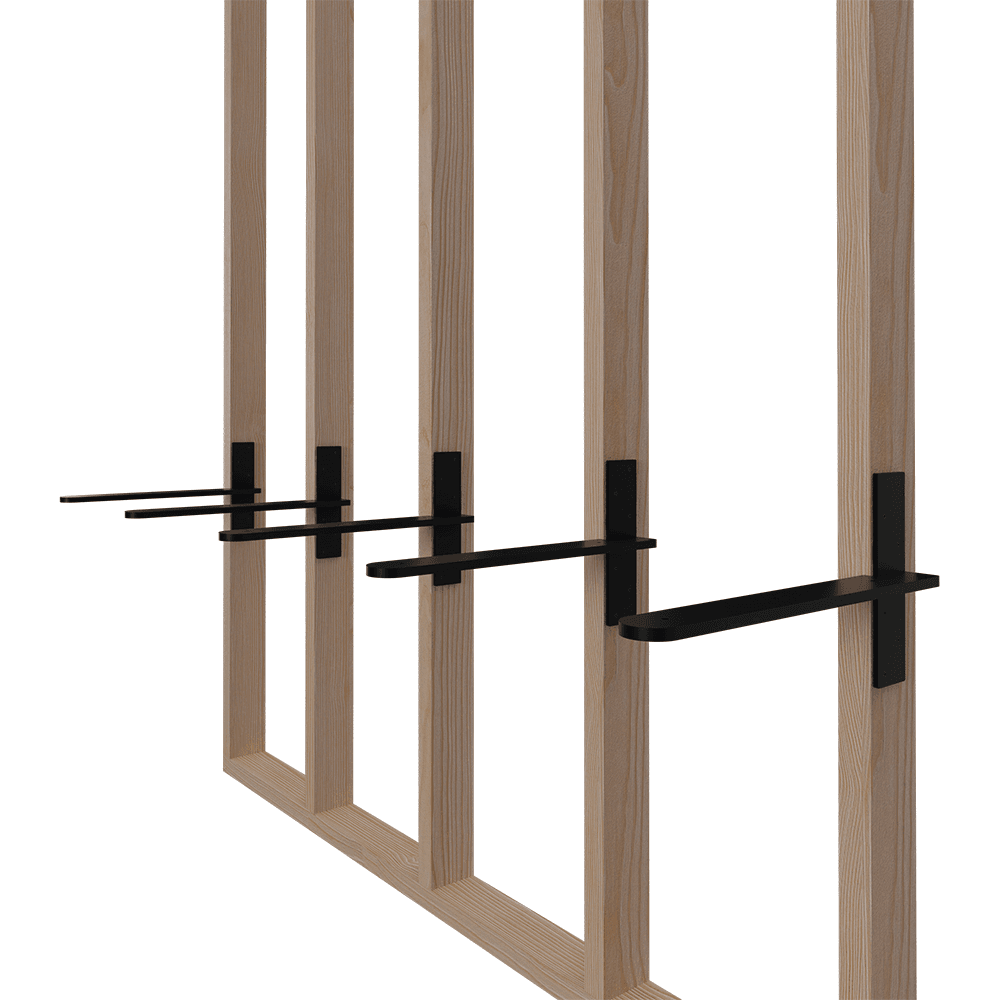

• Designed to mount along the side of standard wall studs, its minimal profile arm extends cleanly into the space, ready to support everything from floating vanities, countertops, benches, and floating shelves

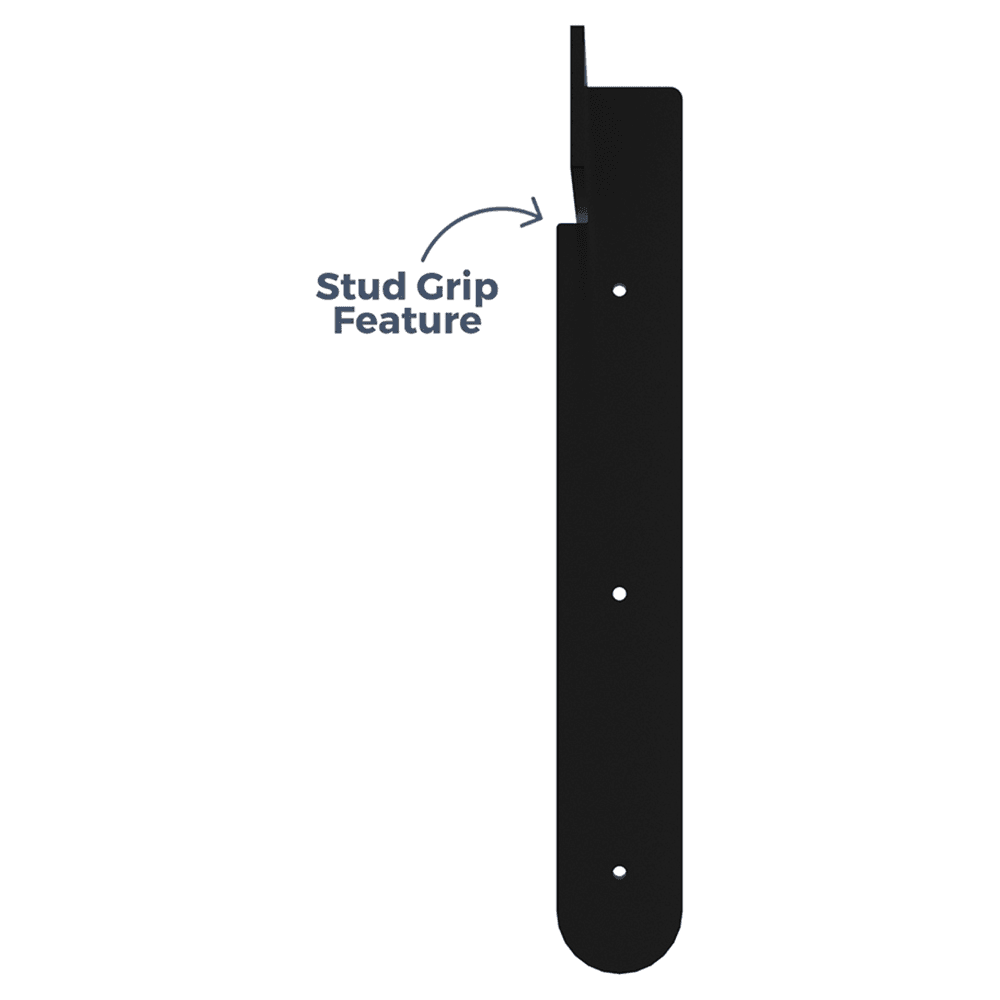

• This part has a "stud grip" feature allowing you to square the bracket up using the front edge of the studs, making the installation process convenient even without having an extra set of hands
• Manufactuer does not recommend using a shelf depth farther than 4" beyond the end of the support arm for maximum weight capacity
• Mounting style disappears completely behind drywall or cabinetry
• Material Thickness: 0.25" Mounting Plate, 0.50" Support Arm
• Hole Specifications: (8) 0.26" diameter holes
• Fastener Specifications: (8) 1/4" Lag Screws/Bolts, not included
