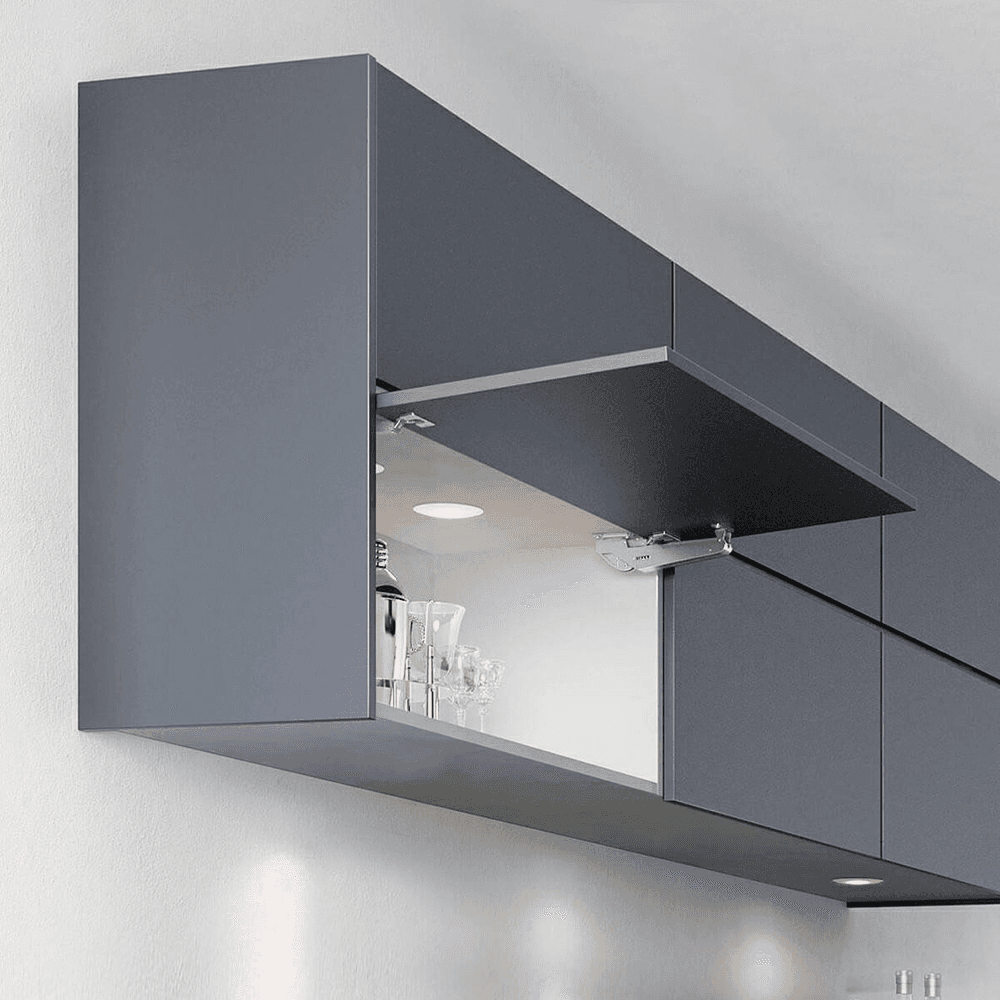

Aileron Stay HD 95° Up-Opening Top-Lid with Hinge, Grey
Item # SGARN3-H
•Mfr # ARN-3-H
$46.29
/Each
Finish: Grey
Product Details
Features: • Integrated design with Sugatsune′s Olympia hinge create lift assist, free-stop, and soft closing functions • Lift assist and soft-close independently adjustable • Torque (kg-cm): 61.2-81.6(53.1-70.8 lbs.-in) • Fasteners Included: Yes • Fasteners Size: 3.5 x 15mm
Specifications
| Box Quantity | 1 |
| Product Type | |
| Mounting Type | Top-Lid Hinge |
| Overlay | |
| Closing Type | Soft-Closing |
| Opening Angle | 95° |
| Model | |
| Hinge Type | |
| Finish | Grey |
| Boring Pattern | |
| Cup Diameter | |
| Cup Depth | |
| Material | Steel (SPCC) |
| Cabinet Type |
