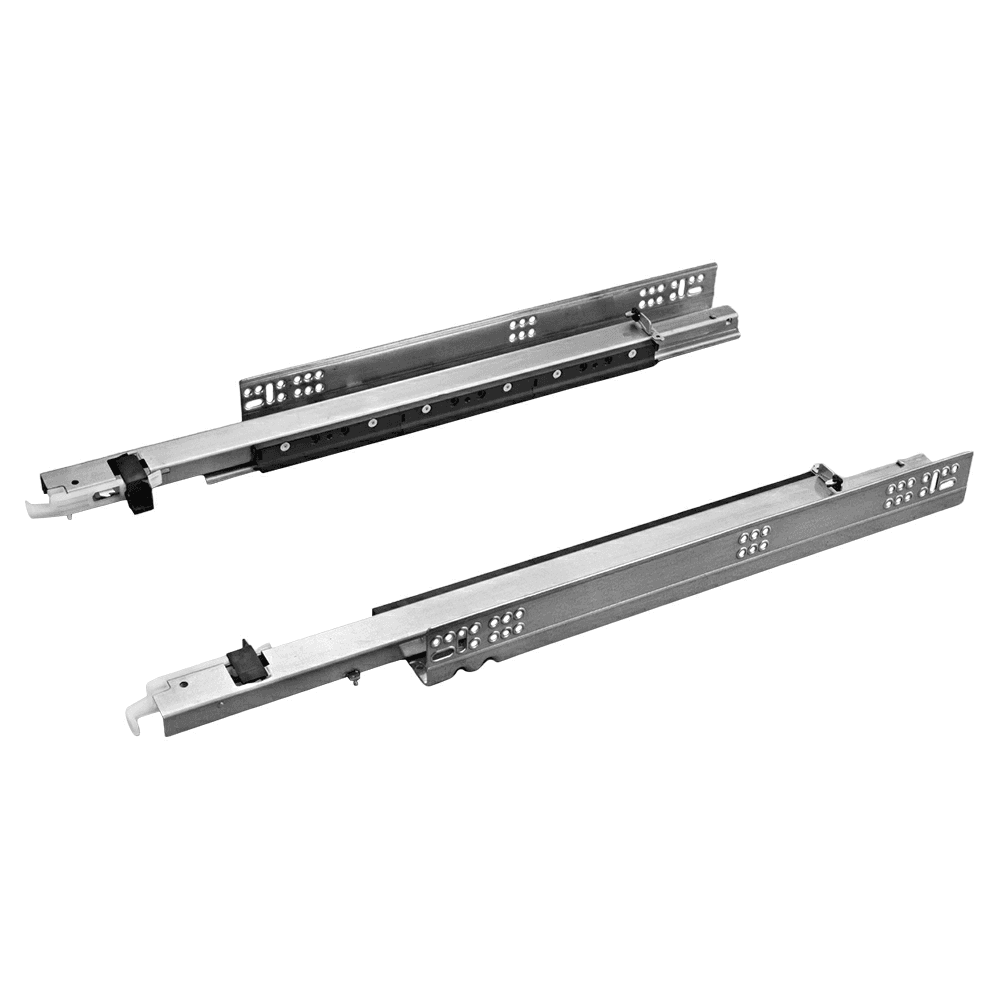

24" Progressa+ Undermount Drawer Slide for Frameless or Blocked-Out Faceframe Applications, 3/4" Material, 170lb Capacity Full Extension with Push-to-Open
2 items
Drawer Length: 24"
Cabinet Type: Frameless (Short)
Product Details
Features: • 170 Lbs Static Load capacity, 154 Lbs Dynamic Load capacity • Full extension with a synchronized mechanism • Integrated Push opening system • Meets and exceeds Ansi BHMA A156.9-2020 Grade 1 standard; WI approved • Elongated holes for depth and height adjustments • The drawer is latched when closed • Adjustable clips allow for easy drawer insertion and removal, special clip for narrow drawer • Tool free height adjustments +2.5 mm • Tool free depth adjustments +/- 3 mm • Tool free side adjustments + / - 1.5 mm • Optional tool free tilt adjustment +3 mm • Optional Push Synchronizer • Compatible with 1/2” to 5/8” and 3/4” drawer sides • Runner length (LN): 621 mm • Minimum inside cabinet depth: 630 mm
Specifications
| Box Quantity | 1 |
| Length | |
| Finish | |
| Drawer Length | 24" |
| Closing Type | Push-to-Open |
| Model | Progressa+ |
| Load Capacity | 170lb |
| Travel | Full Extension |
| Product Type | Drawer Slide |
| Left or Right | Both (Pair) |
| Cabinet Type | Frameless (Short) |
| Mounting Type | Undermount |
| Material | |
| Slide Type | |
| Height | |
| Certifications | |
| Width | |
| Material Thickness | 3/4" |
| Cabinet Width | |
| Thickness | |
| Overlay |
